MPO (Multi‑fiber Push‑On) is a multi‑core fiber connector defined by IEC 61754‑7, designed to terminate and manage multiple fibers in a single, compact interface. A standard MPO plug typically holds 12 fibers in a single row, but 24, 32, or higher fiber counts (single or multi‑row) are now widely used in modern data centers. [flukenetworks]
From an engineering standpoint, MPO connectors are usually specified by four key dimensions:
- Number of fibers (core count, e.g. 8/12/16/24/32)
- Gender (male with guide pins, female without guide pins)
- Polarity (key up/key down schemes such as Type A/B/C)
- Endface polishing type (PC vs APC)
In practice, these parameters determine how well your trunk cables and cassettes mate, how clean your link budget is, and how easily you can upgrade from 10G to 40G/100G/400G parallel optics. [flukenetworks]
Not all MPO connectors are APC. MPO is only the connector family; the endface geometry can be either PC (Physical Contact) or APC (Angled Physical Contact), and both are common in the field.
Whether a particular MPO assembly is PC or APC depends on:
- System design (single‑mode vs multimode, link budget, protocol)
- Reflection sensitivity of the application
- Interoperability with existing infrastructure
- Cost and supply‑chain constraints
As a result, many hyperscale and carrier‑grade single‑mode backbones standardize on MPO/APC for better return loss, while enterprise and short‑reach multimode links often use MPO/PC for compatibility and cost reasons. [flukenetworks]
APC stands for Angled Physical Contact. In APC connectors, the fiber endface is polished at an angle (typically 8°) rather than flat. This angled geometry ensures that residual reflected light is diverted into the cladding instead of returning directly back into the fiber core.
For system designers, this delivers two clear technical benefits:
- Lower return loss: APC connectors achieve significantly better back‑reflection performance, which is critical in high‑speed and long‑haul single‑mode systems. [flukenetworks]
- Higher overall signal integrity: Less reflected power means fewer impairments for sensitive optics such as DWDM, 5G fronthaul, and coherent systems.
Because of this, APC polishing is widely adopted wherever reflection noise can degrade OSNR (Optical Signal‑to‑Noise Ratio), trigger laser instability, or distort high‑speed modulation formats. [flukenetworks]
PC means Physical Contact. The endface is polished to be slightly curved (spherical), so that fiber cores make direct, flat‑on contact under spring force.
Typical advantages of MPO/PC in real‑world deployments include:
- Good insertion loss with simpler manufacturing and inspection
- Broad compatibility with a very large installed base of PC connectors
- Cost‑effective choice for shorter, less reflection‑sensitive links
For many enterprise and campus environments using multimode OM3/OM4 trunks and short‑reach single‑mode, MPO/PC still delivers more than adequate performance at a lower overall cost.
It is a common misconception that "MPO = APC" because many high‑density single‑mode cassettes and backbone trunks in telecom networks are built with angled MPO connectors. In reality:
- MPO connectors support both PC and APC polishing.
- The polishing style is an application‑driven choice, not a fixed feature of MPO.
- Mixing MPO/APC and MPO/PC within the same link path is not recommended and usually not physically compatible.
When engineers specify MPO for new builds, they will typically decide on APC or PC based on link budget, reflection requirements, interoperability with existing panels, and future migration paths (e.g., 40G SR4 vs 100G PSM4 vs 400G parallel optics). [flukenetworks]
From a solution‑design perspective, you should always consider the following variables together, not in isolation. [flukenetworks]
- 8‑fiber: Popular for 40G/100G SR4 parallel optics
- 12‑fiber: Classic, widely installed base in legacy systems
- 16‑fiber: Emerging for 400G applications
- 24/32‑fiber: Used in ultra‑high‑density backbones and cassettes
Higher‑fiber‑count MPOs reduce connector density per rack unit but demand more rigorous cleaning, inspection, and polarity management. [flukenetworks]
MPO male connectors have guide pins, while female connectors do not. System designers usually standardize on:
- Trunk cables: male–male
- Cassettes or modules: female on front ports
- Test cords: one end male, one end female
This layout prevents pins from colliding and helps keep field patch cords simpler.
MPO polarity ensures that transmit (Tx) channels always align with receive (Rx) channels across the link. Typical polarity methods include:
- Type A: straight‑through
- Type B: pairwise flipped
- Type C: array pair flipped
For APC systems, maintaining correct polarity while also tracking angled mating faces is even more critical to avoid unexpected loss and performance degradation. [flukenetworks]

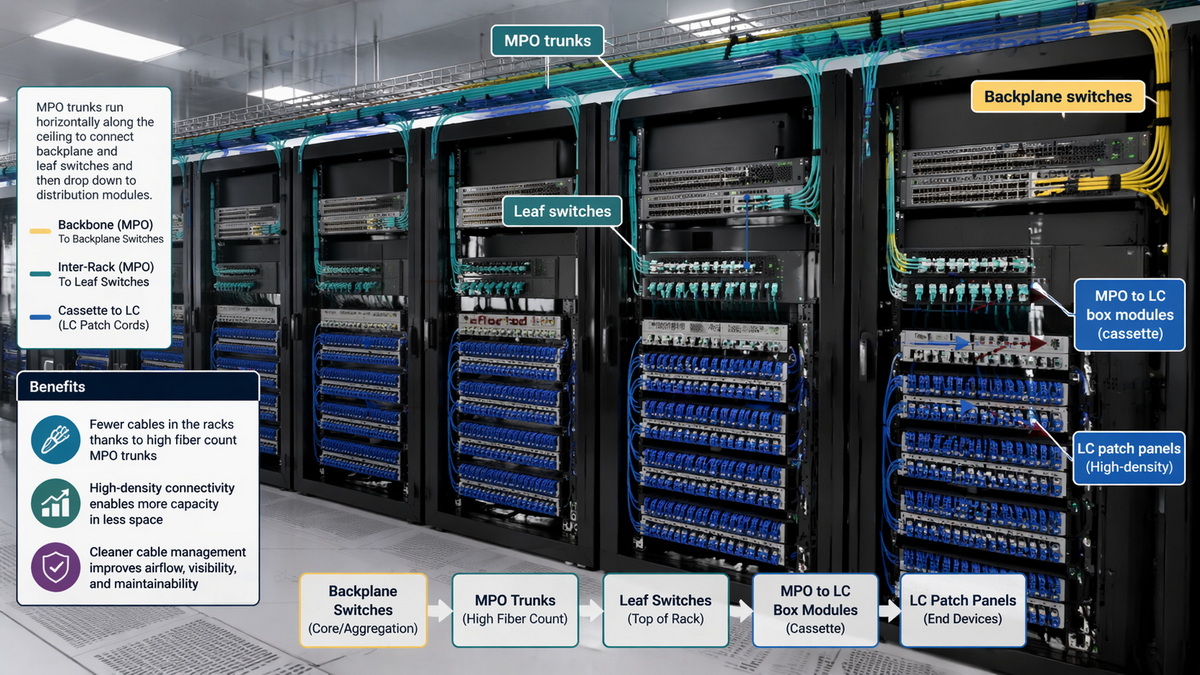

MPO connectors have become the backbone of modern high‑density optical infrastructure. You will commonly find them in: [flukenetworks]
- Enterprise LAN and campus networks: High‑fiber trunks between buildings and floors, feeding modular patch panels and cassettes.
- Data centers: Spine‑leaf architectures, structured cabling, and parallel optics (40G/100G/400G) using MPO trunks and breakout cables.
- Telecom central offices and base stations: Fiber backhaul and fronthaul, RF over fiber, and high‑capacity transport rings.
- Optical active equipment: Interconnection of amplifiers, ROADMs, and optical switches that require compact multi‑fiber harnesses.
- Fiber distribution frames and ODFs: High‑density distribution of numerous subscribers or services through MPO–LC fanout modules.
In each of these scenarios, the decision between MPO/APC and MPO/PC will depend on whether your priority is low reflection and long‑haul performance, or cost and compatibility in shorter‑reach links. [flukenetworks]
To make this practical, here is a concise decision framework based on typical design priorities. [flukenetworks]
| Design priority | Recommended endface | Typical use case example |
|---|---|---|
| Ultra‑low reflection, long‑haul links | MPO/APC | DWDM transport, 5G fronthaul C‑RAN |
| High‑speed single‑mode parallel optics | MPO/APC | 100G PSM4, 200/400G SM data center backbones |
| Short‑reach multimode, cost sensitive | MPO/PC | 40G/100G SR4 intra‑rack or row‑to‑row |
| Legacy system compatibility | MPO/PC | Upgrades in existing PC‑based infrastructures |
| Mixed vendor ecosystem | Case‑by‑case | Needs explicit interoperability verification |
As a rule of thumb, if your optical budget is tight and reflection penalties are unacceptable, you should standardize on MPO/APC and enforce strict cleaning and inspection procedures in the field. [flukenetworks]
In many of the projects we participate in as an OEM cable and adapter manufacturer, customers are upgrading from 10G duplex LC links to 40G/100G parallel optics across rows of cabinets. A typical migration looks like this: [flukenetworks]
1. Existing OM3/OM4 trunks with MPO/PC connectors between patch panels.
2. Customer introduces MPO cassettes that break out MPO to LC at the top of rack.
3. As traffic and oversubscription increase, they shift to 40G/100G parallel optics using MPO patch cords directly between switches.
During this transition, the team must evaluate whether the installed MPO/PC base can deliver sufficient performance, or whether to deploy new MPO/APC trunks for future‑proofing, particularly when adding single‑mode links for higher‑speed uplinks. [flukenetworks]
This is where partnering with an experienced OEM manufacturer is crucial: you can align connector types, trunk lengths, polarities, and testing procedures in a single, coherent roadmap instead of patching together incompatible components from multiple vendors. [jctgrowth]

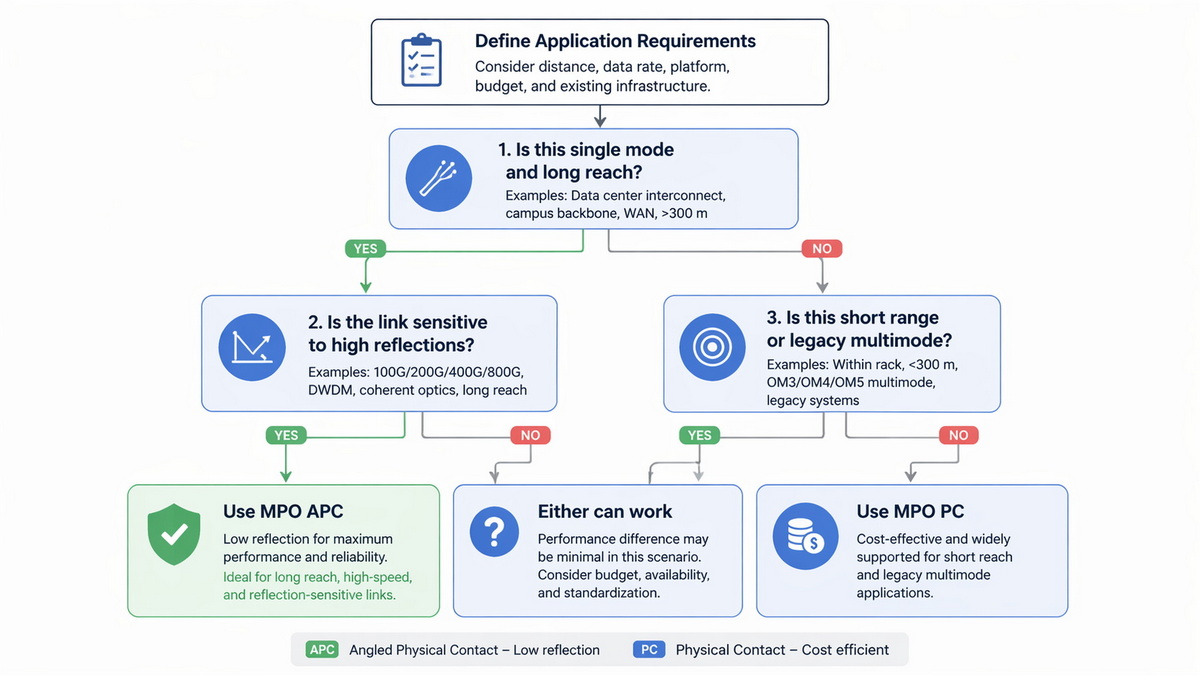

From a hands‑on engineering perspective, here is a simple checklist you can walk through before finalizing your specification. [flukenetworks]
1. Define fiber type and reach
- Single‑mode long‑haul or metro: favor MPO/APC.
- Short‑reach multimode: MPO/PC is often sufficient.
2. Calculate link budget and reflection tolerance
- Include connector loss, splice loss, and margin.
- If back‑reflection is a risk, specify APC and inspect more rigorously.
3. Audit existing infrastructure
- Identify which panels, cassettes, and jumpers are already PC or APC.
- Avoid mixing APC and PC within the same mating interfaces.
4. Standardize polarity and gender
- Choose a polarity (A/B/C) and stick to it across trunks and modules.
- Define where male and female connectors will reside in your architecture.
5. Plan cleaning and inspection procedures
- MPO/APC endfaces are more sensitive to contamination and angle damage.
- Ensure you have compatible inspection scopes and cleaning tools.
6. Align with future upgrades
- If you expect to move to higher‑speed single‑mode parallel optics, designing for MPO/APC from day one can prevent costly re‑cabling.

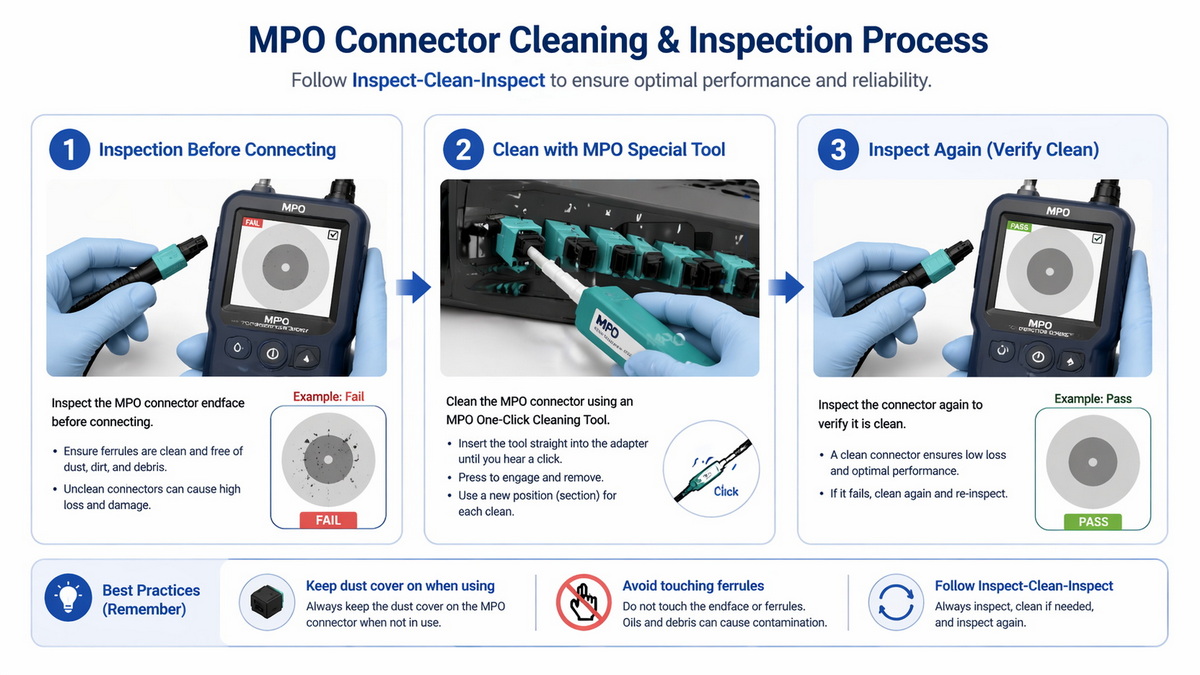

Even the best‑specified MPO/APC or MPO/PC connector will underperform if it is dirty, damaged, or poorly handled. [flukenetworks]
To maintain long‑term reliability:
- Always inspect before you connect using an MPO‑specific inspection scope.
- Use appropriate dry or wet‑dry cleaning tools designed for multi‑fiber connectors.
- Avoid twisting or pulling trunks beyond their rated tensile strength and bend radius.
- Document fiber polarity and labeling clearly at every patch panel and module.
These operational steps significantly reduce unplanned downtime and make future expansions faster and safer. [flukenetworks]
As transmission speeds increase and optical interfaces evolve, standards bodies and ecosystem vendors continue to refine best practices for connector performance and testing. While MPO/PC will remain relevant in legacy and short‑reach applications, the industry trend for single‑mode high‑speed links is steadily moving towards MPO/APC for tighter reflection requirements. [jctgrowth]
Forward‑looking operators are already designing new facilities with clear policies:
- APC for all single‑mode trunks and long‑reach parallel optics.
- PC for specific multimode or legacy segments with documented boundaries.
This dual‑policy approach combines performance optimization with practical cost control. [jctgrowth]
As a dedicated Chinese manufacturer of adapters, harnesses, and cabling assemblies, our daily work is to translate these technical choices into reliable, manufacturable products for global brands, distributors, and system integrators. [jctgrowth]
Working with an experienced OEM partner means you can:
- Customize MPO/APC and MPO/PC assemblies by fiber count, jacket type, and polarity.
- Align connector strategy with long‑term upgrade plans instead of one‑off buys.
- Implement factory‑level testing, labeling, and documentation tailored to your standards.
If you are designing or refreshing high‑density optical infrastructure, involving your OEM at the design stage can save significant re‑work and cost later in the rollout. [jctgrowth]
If you are planning a new data center build, a telecom backbone upgrade, or a high‑density campus rollout, choosing between MPO/APC and MPO/PC is not just a technical detail—it directly impacts long‑term performance, upgrade flexibility, and total cost of ownership. [jctgrowth]
You can reach out to our engineering team with your current link budget, topology drawings, or even just a target speed and distance. We will help you design application‑matched MPO solutions, including connector type, polarity, labeling, and testing plans, then manufacture them under strict quality control for your brand or project.
A: No. They are not designed to be mated together and doing so can cause high loss, poor return loss, and potential damage to the endfaces. [flukenetworks]
A: MPO/APC is better for reflection‑sensitive, long‑reach, and high‑speed single‑mode links, but MPO/PC can be more than adequate—and more economical—for short‑reach or legacy deployments. [flukenetworks]
A: Yes. You should use cleaning tools and inspection scopes specifically designed for MPO connectors to ensure the entire multi‑fiber array and angled surface are properly cleaned and inspected. [flukenetworks]
A: Check your product documentation and visually inspect the connector: APC connectors often have a green housing in many coding schemes, while PC may be beige, black, or aqua, depending on fiber type and vendor conventions. [flukenetworks]
A: MPO connectors are typically defined by IEC 61754‑7, with additional performance and testing guidance coming from various IEC, TIA, and IEEE specifications related to cabling and Ethernet transmission. [flukenetworks]
