When I first started helping factory customers migrate from serial fieldbuses to PROFINET, one of the most common questions I heard from engineers was: "Can I just use a normal Ethernet patch cord from the IT room?" On paper, PROFINET is based on standard Ethernet, but on the plant floor, cable choice often decides whether a line runs smoothly or suffers from random, hard‑to‑diagnose faults. [us.profinet]
In this guide, I'll walk you through when a regular Ethernet cable is acceptable for PROFINET, when it becomes a hidden risk, and what an industrial‑grade PROFINET cable actually gives you in real‑world conditions. [us.profinet]
PROFINET is an industrial Ethernet communication protocol built on IEEE 802.3 Ethernet, designed specifically for real‑time automation tasks such as motion control, I/O, and safety communication on factory floors. It inherits Ethernet's high speed and low cost, then adds deterministic behavior and robustness features required by industrial systems. [us.profinet]
From a technology standpoint:
- PROFINET uses standard Ethernet physical layer and frame structure. [us.profinet]
- Typical connectors are RJ45 for copper cabling and standard industrial M12 in harsher zones. [us.profinet]
- It can run over copper Ethernet cables, fiber optic (FO) cables, and even PoE or wireless links in suitable applications.
That means PROFINET networks *can* use standard Ethernet cables and interfaces – at least in theory. The real question is whether those cables will survive and perform reliably in an industrial environment. [us.profinet]
From my experience on mixed office‑to‑factory networks, regular Cat5e/Cat6 office cables can work acceptably in:
- Office, control room, or lab environments with stable temperature and low EMI.
- Short, temporary test setups, such as commissioning on a workbench.
- Non‑critical segments, for example, a monitoring link from a switch to an engineering laptop.
In these situations:
- A standard Cat5e cable can carry PROFINET traffic without any protocol‑level issues. [us.profinet]
- You are mainly concerned with basic electrical performance (bandwidth and distance), not long‑term mechanical or EMI robustness. [us.profinet]
However, once that same cable is moved onto the factory floor, everything changes.
Manufacturing environments expose cables to conditions they were never designed for. As PI North America points out, extreme temperatures, moisture, vibration, and electromagnetic interference (EMI) can quickly damage standard office‑grade Ethernet cables. In those conditions: [us.profinet]
- PVC jackets crack or harden over time.
- Unshielded or lightly shielded pairs pick up noise from drives, motors, and welders.
- Repeated bending in cable chains leads to broken conductors and intermittent faults. [us.profinet]
These problems often show up as:
- Random communication errors or retries.
- Intermittent device "drop‑offs" during production peaks.
- Hard‑to‑reproduce bugs that disappear when you swap in a new cable.
In other words, ordinary Ethernet cables are usually designed for quiet office spaces – not for the electrical and mechanical stress found in automation cells. [us.profinet]

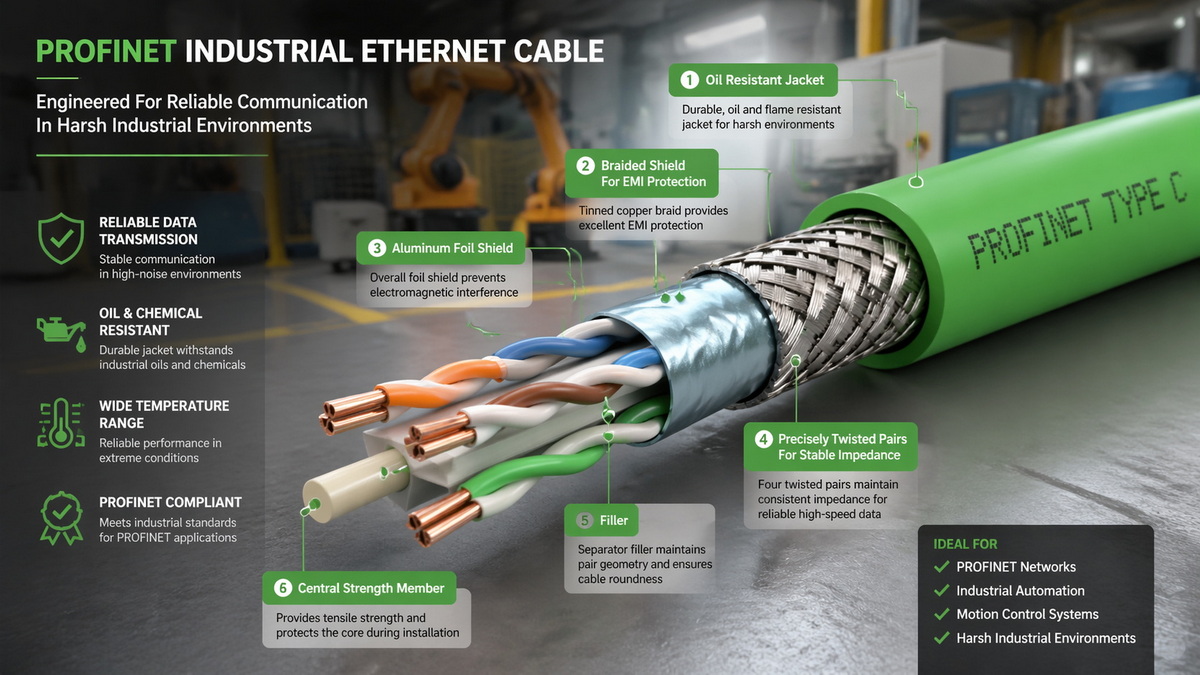

Industrial Ethernet cable is still "just Ethernet on the wire," but the construction is significantly more robust. Many vendors supply PROFINET‑specific cables as a subset of industrial Ethernet cables, which are commonly recognized by their green outer jacket and adherence to PROFIBUS & PROFINET International (PI) standards. [us.profinet]
Key improvements you get from a true PROFINET cable include:
- Enhanced shielding: Often a combination of aluminum foil and braided shielding around twisted pairs to minimize EMI and crosstalk. [us.profinet]
- Stronger jacketing: Oil‑resistant, UV‑resistant, and abrasion‑resistant materials for drag chains, robots, or outdoor runs. [us.profinet]
- Mechanical robustness: Designs tested for millions of bending cycles, vibration, and pull forces.
- Consistent impedance and pair geometry: A PROFINET 4‑wire cable typically arranges pair cores diametrically opposite to ensure stable transmission characteristics. [us.profinet]
Because of these properties, the vast majority of production PROFINET installations rely on industrial Ethernet or PROFINET cables rather than regular office patch cords. [us.profinet]

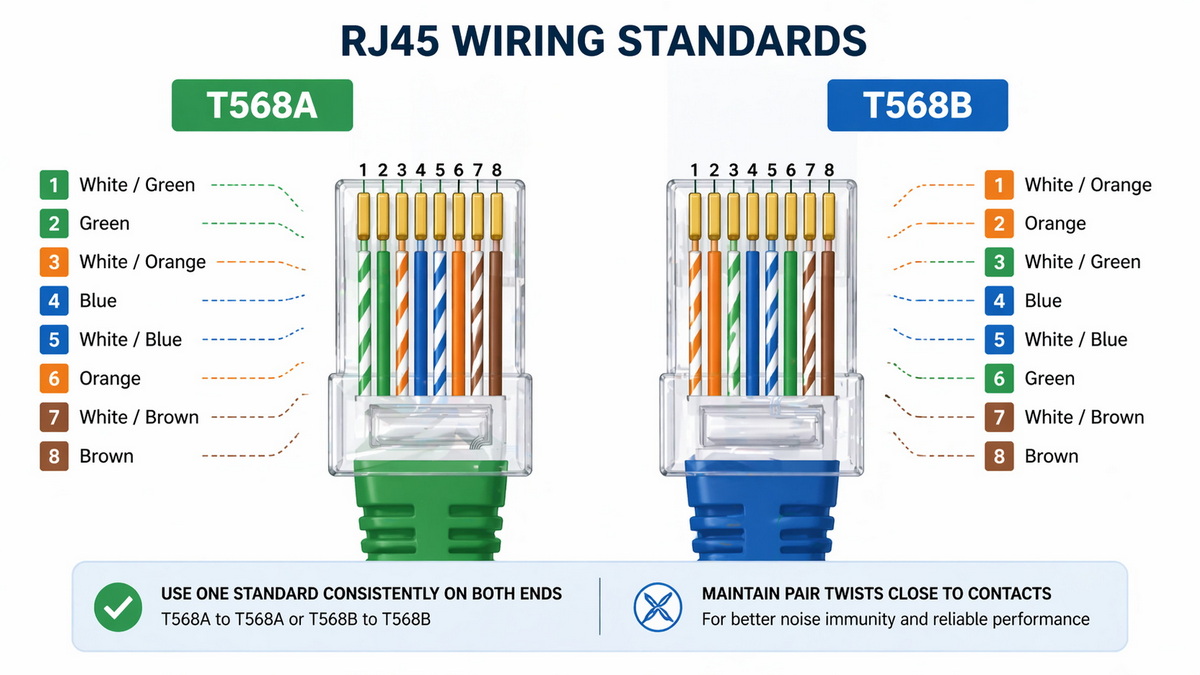

On the connector side, PROFINET follows standard Ethernet wiring schemes such as T568A and T568B. The core rule is consistency: [us.profinet]
- Use the same wiring standard (A or B) for both ends of each cable.
- Maintain the twist of each pair as close as possible to the contact to preserve noise immunity.
- Follow equipment‑specific pinouts if using M12 or hybrid power/data connectors.
Standards may vary by region or vendor, so in practice you should always:
- Check the device manual or OEM wiring guide.
- Follow recommended pair assignments for 2‑pair or 4‑pair PROFINET applications.
Correct wiring does not turn an office cable into an industrial cable, but incorrect wiring can break even the best PROFINET cable.
A typical scenario I have seen multiple times:
1. A plant extends a PROFINET line from a control cabinet to a new sensor rack using low‑cost Cat5e office patch cords.
2. Everything passes tests during commissioning; ping and diagnostics look fine.
3. After a few months, the line starts showing sporadic faults during high‑speed production.
4. Maintenance spends hours swapping devices, updating firmware, and rebooting switches.
5. Eventually, someone replaces the run with a PROFINET‑grade cable, and the issue disappears.
In this case, the initial "saving" on cable cost is quickly overshadowed by:
- Production downtime.
- Debugging labor.
- Re‑wiring costs.
This is why industrial standards organizations and many vendors strongly recommend industrial‑grade connectors and cables at the machine level. [us.profinet]
If you are planning or upgrading a PROFINET network, you can use the following simple decision process.
1. Evaluate the environment
- Clean office or control room, no heavy machinery nearby → standard Ethernet can be acceptable.
- Near drives, motors, welders, or in cable chains, outdoors, or in humid/oily zones → always choose industrial PROFINET or industrial Ethernet cable.
2. Assess criticality and downtime cost
- Non‑critical monitoring link or temporary test setup → regular cable may be fine.
- Line‑critical control, safety circuits, or motion control → use PROFINET‑compliant industrial cable.
3. Check regulatory and customer requirements
- Some OEMs or end customers require certified industrial cabling for all field devices.
- Check corporate standards, machine safety rules, and vendor recommendations.
4. Confirm connector and wiring scheme
- Choose suitable connectors (RJ45 vs M12) and wiring standard (T568A or T568B).
- Maintain shielding and strain relief into the connector.
5. Plan for growth and maintenance
- Design cable routes with maintenance and future expansion in mind.
- Label both ends, document lengths and types, and keep spare PROFINET cables in stock.
Following this process ensures you're not making cable decisions purely on price but on lifecycle reliability and total cost of ownership.
Below is a concise comparison you can reuse on your product page.
| Feature | Regular Office Ethernet Cable | Industrial PROFINET Cable |
|---|---|---|
| Typical use | Home/office networking (us.profinet) | Factory automation, PROFINET lines (us.profinet) |
| Jacket material | Basic PVC (us.profinet) | Oil‑resistant, abrasion‑resistant compounds (us.profinet) |
| Shielding | None or simple foil (us.profinet) | Foil plus braided shield, high EMI immunity (us.profinet) |
| Mechanical robustness | Limited bend/vibration (us.profinet) | Tested for flex, vibration, chain applications (us.profinet) |
| Environmental resistance | Poor against moisture, oil, UV (us.profinet) | Designed for harsh industrial conditions (us.profinet) |
| Typical lifetime on plant floor | Short, unpredictable (us.profinet) | Long, predictable under rated conditions (us.profinet) |
| Recommended for new PROFINET installations | Only in clean, non‑critical areas (us.profinet) | For all industrial and machine‑level segments (us.profinet) |
To maximize PROFINET reliability, cable selection is only the first step. Proper installation matters just as much.
- Keep cables away from high‑power lines where possible; if they must run parallel, maintain separation and use tray dividers or conduits.
- Avoid tight bend radii; follow the manufacturer's minimum bend radius for static and dynamic runs.
- Use strain relief at panels and machine entries to avoid stress on connectors.
- Terminate shielding properly, bonding shields to ground where recommended by the device vendors.
- Document every segment, including type, length, and route, to speed up future troubleshooting.
These practices are also aligned with general telecom and industrial cabling recommendations for maintaining link stability and minimizing interference. [fdgweb]
As an OEM cable producer focused on USB, VGA, HDMI, DVI, SATA, and Ethernet‑based solutions, you are in a strong position to support PROFINET users with customized industrial cable assemblies. [blog.animonlive]
You can differentiate by:
- Providing industrial‑grade PROFINET assemblies with pre‑molded connectors, tested shielding, and clear labeling.
- Offering application‑specific designs (drag‑chain, robotic, outdoor, high‑temperature) that match different PROFINET installation classes. [us.profinet]
- Supplying detailed technical documentation (electrical parameters, bending cycles, environmental ratings) that helps engineers comply with internal standards and audits. [blog.thomasnet]
- Supporting customers with OEM branding and custom lengths, which is highly attractive for system integrators and device manufacturers.
For B2B buyers, deep product detail and transparency are key trust signals and are strongly recommended for manufacturing websites. [marketveep]
If you are designing or upgrading a PROFINET network, the safest path is to treat cabling as a strategic investment, not a commodity expense. A small saving on office‑grade patch cords can quickly turn into unplanned downtime and troubleshooting headaches.
If you need:
- Industrial PROFINET‑grade copper or fiber cables
- Custom lengths and OEM‑branded assemblies
- Technical support to match cable types to your environment
you can reach out to our engineering team for a tailored recommendation and quotation. We help OEMs, wholesalers, and system integrators choose cables that keep PROFINET networks stable from day one.
PROFINET uses standard Ethernet at the physical and data‑link layers but adds industrial features for real‑time control, diagnostics, and robustness in automation environments. [us.profinet]
Yes, a good‑quality Cat5e cable can technically carry PROFINET traffic, especially in clean office or control room environments, but it may not survive long‑term on the plant floor without industrial‑grade construction. [us.profinet]
Not strictly, but the green jacket is a common visual indicator of a PROFINET‑compliant industrial cable. What truly matters are shielding, jacket material, mechanical ratings, and compliance with relevant standards. [us.profinet]
Using different wiring schemes at each end can create a crossover cable or, if done incorrectly, cause mis‑wiring that leads to link failure or unstable communication. Always follow one scheme consistently or device‑specific guidance.
Yes, PROFINET‑grade industrial cables typically cost more than office patch cords, but they deliver much longer lifetime and fewer failures in harsh industrial environments, which usually reduces overall cost of ownership. [blog.thomasnet]
