In more than a decade of designing industrial control and embedded systems, I've learned that choosing between CAN and RS‑485 is rarely just a theoretical question—it directly impacts reliability, wiring cost, and long‑term maintainability of the whole system. This guide walks you through CAN vs RS‑485 , so you can confidently decide which bus is right for your next project and select the proper cable and connectors for it. [pcm-cable]
Controller Area Network (CAN) is a multi‑master serial communication protocol originally developed for automotive applications and now widely used in industrial automation, medical equipment, and off‑highway vehicles. It defines both the data link layer (framing, arbitration, error handling) and the physical layer, which typically uses a differential pair (CAN‑H, CAN‑L). [ptc]
Key characteristics of CAN bus include: [pusr]
- Multi‑master, message‑based architecture
- Up to 1 Mbps at short distances (for example, 40 m at 1 Mbps)
- Strong built‑in error detection (CRC, bit‑stuffing, ACK, frame checks)
- Automatic arbitration to handle collisions without data corruption
- Widely extended by higher‑layer protocols like CANopen and DeviceNet
RS‑485 (also known as TIA/EIA‑485) is a physical layer standard, not a complete protocol. It specifies differential signaling on a twisted pair, allowing long‑distance, multi‑drop serial communication, but it does not define frames, addressing, or error checks by itself. [learn.sparkfun]
Important RS‑485 traits include: [pcm-cable]
- Physical layer only; usually combined with protocols like Modbus RTU or Profibus
- Multi‑drop bus with up to 32 (or more with repeaters) nodes on a pair
- Typical maximum distance about 1200 m at lower data rates
- Data rates up to 10 Mbps at short distances
- Simple and cost‑effective for master‑slave, request‑response communication

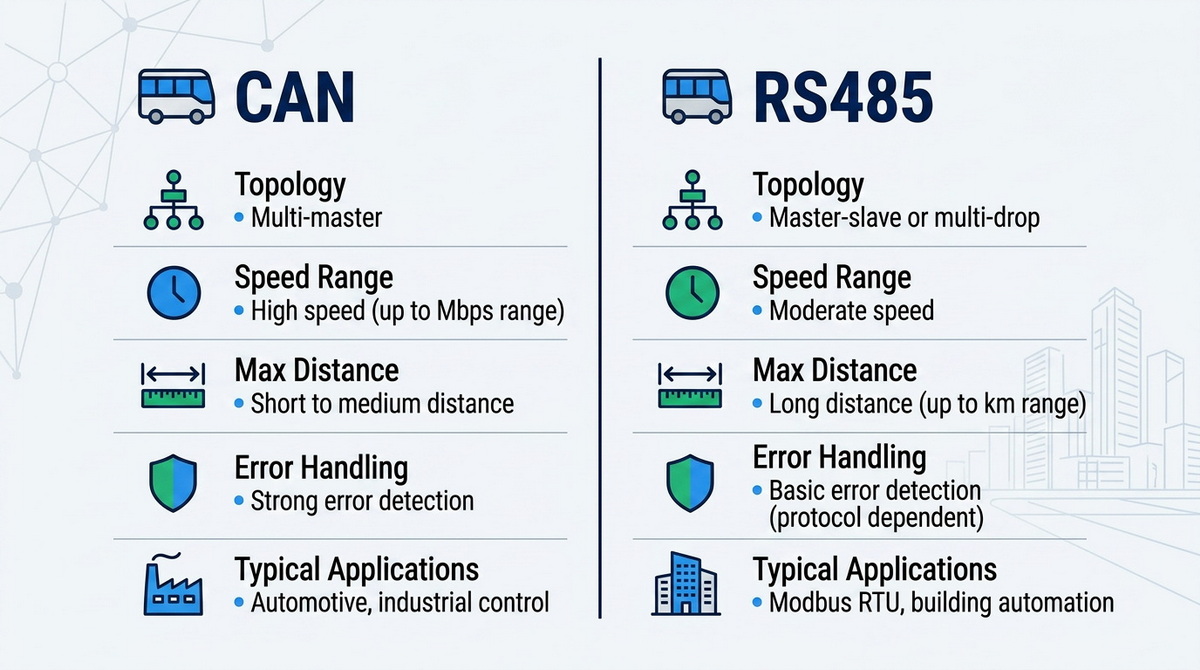

The table below summarizes the most important differences engineers care about during system design. [ptc]
| Dimension | CAN Bus | RS‑485 |
|---|---|---|
| Layer definition | Full protocol (physical + data link) with framing and arbitration (pcm-cable) | Physical layer only; needs higher‑level protocol like Modbus/Profibus (pcm-cable) |
| Topology | Multi‑master, message‑based bus (pcm-cable) | Typically master‑slave or half‑duplex multi‑drop (pcm-cable) |
| Speed vs distance | Up to 1 Mbps; distance decreases with speed (e.g., 40 m @ 1 Mbps) (pcm-cable) | Up to 10 Mbps at short runs; up to ~1200 m at lower speeds (pcm-cable) |
| Error handling | Built‑in CRC, ACK, error frames, bit‑stuffing (pcm-cable) | Depends on higher‑level protocol; physical layer has no CRC (pcm-cable) |
| Robustness | Very high, with automatic retransmission and arbitration (pcm-cable) | Physically robust; logical robustness depends on protocol implementation (learn.sparkfun) |
| Typical applications | Automotive ECU networks, industrial CANopen, elevators (pcm-cable) | Modbus RTU networks, building automation, HVAC, meters (pcm-cable) |
| Cable requirements | Twisted pair with controlled impedance for CAN‑H/CAN‑L (pcm-cable) | Twisted pair(s) for A/B lines, often shielded for long runs (pcm-cable) |
| Scalability | Easy to add nodes as message IDs are logical (pcm-cable) | Scales by node addressing in the chosen protocol (learn.sparkfun) |
| Cost and complexity | Slightly higher node cost but simpler system‑level behavior (pcm-cable) | Very low hardware cost; more firmware effort for protocol and error handling (learn.sparkfun) |
For many OEMs, the true decision is between a high‑reliability, feature‑rich bus (CAN) and a long‑distance, cost‑optimized workhorse (RS‑485). [eureka.patsnap]
From an engineer's viewpoint, CAN feels like a cooperative conversation on a shared bus, where every node can speak but must follow strict rules. [pusr]
In CAN networks, all nodes listen to the bus and can initiate communication without a central master. When two nodes transmit simultaneously, CAN's non‑destructive arbitration ensures that the message with the highest priority identifier continues, while the others back off and retry. [eureka.patsnap]
This means: [pcm-cable]
- No collisions in the classic Ethernet sense
- Deterministic timing for high‑priority messages
- Naturally suited for safety‑critical signals (e.g., brake control, emergency stop)
CAN's built‑in error handling is one of its strongest advantages. It uses: [pusr]
- CRC fields for payload integrity
- Bit‑stuffing rules to maintain synchronization
- ACK bits so receivers can confirm correct reception
- Error frames and automatic retransmission
In harsh industrial environments with EMI and frequent switching events, this makes CAN an excellent choice for mission‑critical control networks when paired with high‑quality cables and connectors. [analog]
On RS‑485, I usually start from the opposite direction: it gives you a reliable electrical backbone, but you must decide how the "language" on top works. [learn.sparkfun]

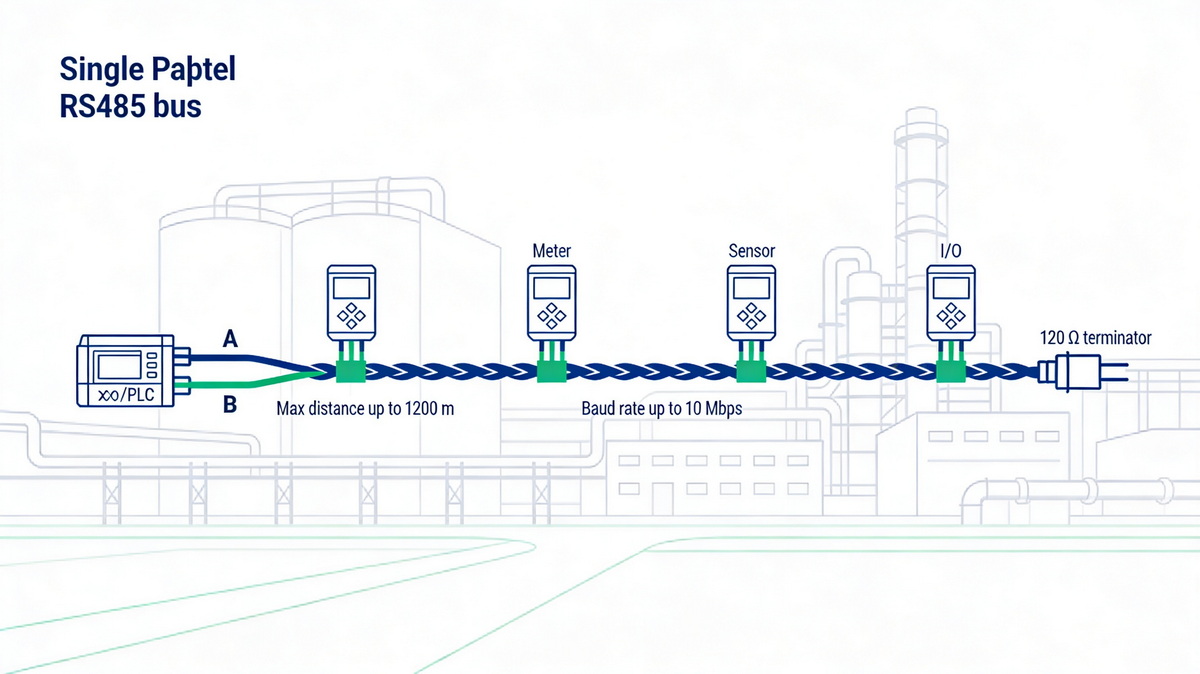

RS‑485 uses a differential pair (A/B lines) where data is transmitted as the voltage difference between the two wires. This differential signaling improves noise immunity, enabling long cable runs in industrial plants, buildings, and outdoor installations. [analog]
Typical RS‑485 characteristics in the field include: [learn.sparkfun]
- Up to 1200 m at modest baud rates (e.g., 9.6–115.2 kbps)
- Up to 10 Mbps over tens of meters when properly terminated
- Multi‑drop networks with multiple slaves on one twisted pair
- Termination and biasing resistors to avoid reflections and idle‑line ambiguity
Because RS‑485 is only a physical layer, devices commonly implement protocols such as Modbus RTU, Profibus, or proprietary frame formats. These protocols define: [ptc]
- Frame structure and addressing
- Function codes or command types
- Error checks (often CRC16 or checksums)
- Master‑slave polling strategies
This flexibility is powerful, but it does mean more firmware effort and thorough testing are needed to reach CAN‑like robustness. [learn.sparkfun]
From a system designer's view, performance is not just about maximum baud rate; it is the combination of speed, distance, node count, and timing guarantees. [eureka.patsnap]
Both CAN and RS‑485 face a fundamental constraint: as cable length increases, usable speed decreases. [pcm-cable]
- CAN typically supports 1 Mbps over tens of meters and lower bit rates over several hundred meters to kilometers (for example, 500 kbps within about 1 km in favorable conditions). [pusr]
- RS‑485 can reach 10 Mbps over short runs, but for lengths approaching 1200 m, it is common to drop to well under 1 Mbps. [analog]
If your priority is very long distance with modest throughput (like remote metering), RS‑485 usually wins. If you need short‑to‑medium distances with high reliability and more complex messaging, CAN is often the better choice. [eureka.patsnap]
CAN and RS‑485 both support multi‑node networks, but their design philosophy differs. [pcm-cable]
- CAN assigns message IDs, not node addresses, so you can add or remove nodes without changing the basic bus behavior, as long as IDs and timing are engineered correctly. [pusr]
- RS‑485 master‑slave networks scale via device addresses and protocol design; adding nodes may require careful reconfiguration of polling cycles and timing. [ptc]
In high‑growth systems where you expect to add modules over time—such as modular industrial machinery—CAN and modern Ethernet‑based protocols are often easier to scale cleanly. [ptc]
Industrial sites, automotive compartments, and smart buildings are electrically noisy, so physical robustness and protocol‑level resilience matter a lot. [analog]
Both CAN and RS‑485 rely on differential signaling, which cancels common‑mode noise picked up along the cable. With proper shielding, grounding, and surge protection, both technologies can deliver very reliable communication in harsh conditions. [learn.sparkfun]
RS‑485 has long been viewed as one of the most robust industrial physical layers when correctly implemented, with proven performance in long cable runs and electrically noisy factories. CAN adds another layer of robustness via its sophisticated error detection and retransmission mechanisms. [analog]
From a system reliability perspective: [pcm-cable]
- CAN's built‑in CRC, acknowledgment, and error confinement mechanisms automatically isolate faulty nodes and maintain bus stability.
- RS‑485 depends on the upper‑layer protocol (e.g., Modbus RTU) for CRC and retries, so firmware quality and implementation discipline strongly influence actual reliability.
For safety‑critical or real‑time control, CAN often provides a more predictable and manageable error‑handling model out of the box. [eureka.patsnap]
As a cable manufacturer working with OEMs worldwide, we see a recurring pattern: many field issues are caused not by protocol design, but by poor cable or connector choices. [learn.sparkfun]

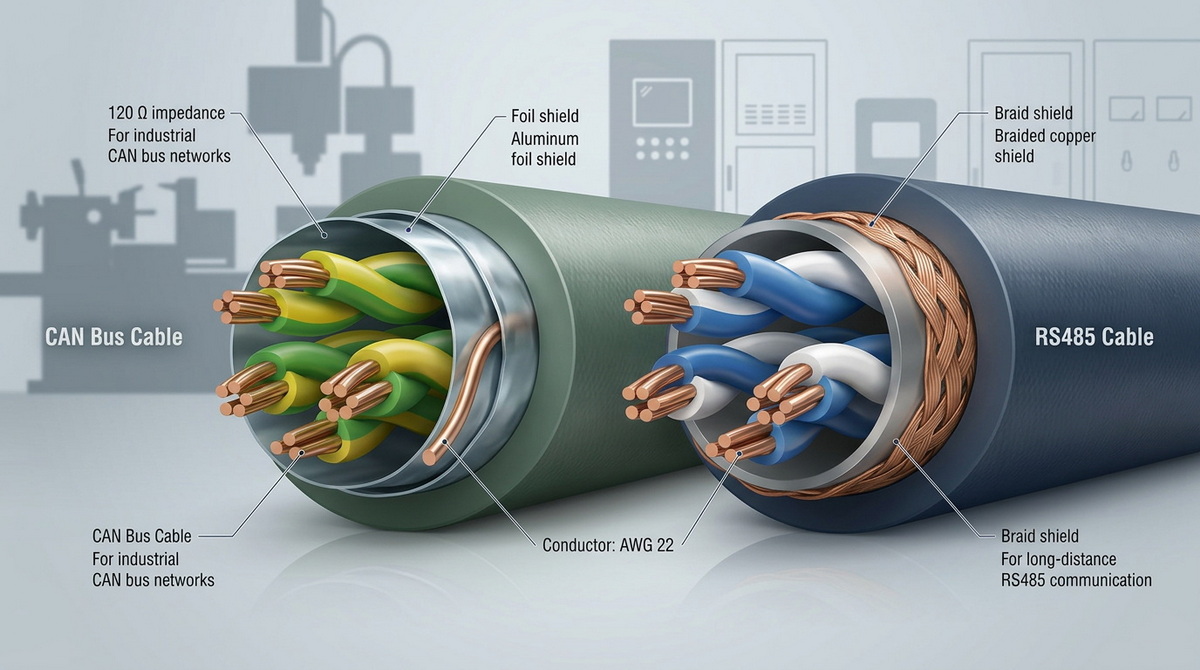

For CAN, you typically need: [analog]
- Twisted pair for CAN‑H and CAN‑L to maintain differential signaling integrity
- Characteristic impedance around 120 Ω
- Low‑capacitance insulation for longer runs at higher speeds
- Optional overall shielding (foil or braid) for high‑EMI environments
In automotive and industrial contexts, jacket materials and temperature ratings are also critical. For example, cables used near engines or in outdoor enclosures must tolerate wide temperature ranges and exposure to oils or UV. [learn.sparkfun]
RS‑485 also favors 120‑ohm twisted pair cabling, but long‑distance or exposed runs benefit significantly from: [pcm-cable]
- Shielded twisted pairs to combat EMI
- Drain wires and proper grounding strategies
- Robust outer jackets (PVC, PUR, or special compounds) for mechanical and environmental protection
- Correct conductor gauge to manage signal integrity and voltage drops over long distances
When OEMs consult us early in their design, we can often optimize cost and reliability by choosing the right copper size, shielding structure, and jacket compound instead of over‑ or under‑specifying the cable. [pcm-cable]
Over multiple projects with international customers, these patterns have proven reliable in deciding between CAN and RS‑485. [eureka.patsnap]
I tend to recommend CAN when: [pusr]
- You need high reliability and real‑time behavior, such as in vehicles, elevators, AGVs, or safety‑related controllers.
- You want multi‑master communication with flexible data exchange among many controllers.
- You prefer leveraging established higher‑layer standards like CANopen or J1939 rather than designing a protocol from scratch.
In such cases, slightly higher node cost is more than offset by simpler application logic and better fault handling. [eureka.patsnap]
I recommend RS‑485 when: [ptc]
- You need very long cable runs (hundreds of meters to over a kilometer) with moderate data rates.
- Your architecture is naturally master‑slave (polling meters, sensors, or remote I/O).
- You want a low‑cost, widely understood standard like Modbus RTU for straightforward monitoring and control.
This is common in building management systems, HVAC, energy metering, lighting networks, and remote pump stations. [ptc]
Because RS‑485 and CAN differ at both the physical and data‑link layers, they are not directly compatible. However, in modern installations it is common to see both in the same system, linked via protocol converters or gateways. [pusr]
A dedicated RS‑485–to–CAN gateway can: [ptc]
- Translate Modbus RTU messages into CAN frames and vice versa
- Buffer data between networks with different speeds and timing
- Present a unified interface to higher‑level SCADA or IIoT platforms
When planning such mixed networks, it is crucial to select cables and connectors that match the electrical requirements of each segment and ensure proper isolation and surge protection. [analog]
Based on repeated feedback from OEM clients, here are practical guidelines when starting a new design that must choose between CAN and RS‑485. [learn.sparkfun]
1. Start from application timing, not just speed.
Define worst‑case latency and jitter requirements, then evaluate whether CAN's arbitration and priority model or RS‑485's master‑slave polling best meets them. [pusr]
2. Plan cable routes early.
If you have noisy environments, long distances, or frequent connectors, involve your cable supplier early to choose the right shielding and conductor sizes. [analog]
3. Design for diagnostics.
Include test points, diagnostic LEDs, and accessible connectors so technicians can quickly validate bus health in the field. [learn.sparkfun]
4. Standardize where possible.
Using well‑known standards like CANopen, J1939, or Modbus RTU reduces integration risk and shortens time‑to‑market. [pcm-cable]
5. Qualify cables and connectors, not just electronics.
Many intermittent faults come from wiring, not boards; select industrial‑grade cable assemblies that match your long‑term reliability expectations. [analog]
If you are designing a CAN or RS‑485 network, you are not just choosing a protocol—you are committing to a wiring and connectivity strategy for the next 5–10 years of your product line. As a dedicated cable manufacturer, we support OEMs, wholesalers, and brand owners with custom CAN, RS‑485, USB, HDMI, VGA, DVI, SATA and other cable assemblies that match the exact electrical and mechanical requirements of your system. [ptc]
Whether you already finalized your bus architecture or are still deciding between CAN and RS‑485, you can reach out to our engineering team for design‑in support, prototype cable samples, and scalable production for global deployment. [pcm-cable]
Call to action:
If you are planning a new CAN or RS‑485‑based device or network, contact us today to discuss custom cable assemblies and OEM solutions tailored to your application requirements and compliance standards. [learn.sparkfun]
Not necessarily. CAN is typically used up to about 1 Mbps, while RS‑485 can reach higher raw speeds (up to 10 Mbps) over short distances, though at long lengths both must reduce bit rates. [pcm-cable]
Both can be very reliable, but CAN integrates advanced error detection and automatic retransmission in the protocol itself, whereas RS‑485 depends on the higher‑level protocol and firmware for these features. [pusr]
No. CAN and RS‑485 are not electrically or logically compatible, so you need a dedicated gateway or converter that can translate between the two systems. [pusr]
Use a 120‑ohm twisted pair with suitable impedance control and low capacitance, and consider shielded cable with industrial‑grade jackets for noisy or harsh environments. [analog]
RS‑485 is usually preferred for long‑distance, cost‑sensitive, master‑slave networks such as energy metering, building automation, and remote monitoring where ultra‑high real‑time performance is not critical. [ptc]
