Views: 222 Author: Otechkabel Publish Time: 2026-04-29 Origin: Site
DeviceNet cables sit at the heart of many reliable industrial automation systems, and choosing the right cable type is one of the most impactful decisions a controls engineer or system integrator can make. Drawing on years of working with OEMs and plant maintenance teams, I have seen that well‑designed DeviceNet cabling is often the difference between a rock‑solid line and a network that fails at the worst possible moment. [pcm-cable]
DeviceNet is an open industrial communication protocol based on the CAN bus, designed by ODVA for device‑level control, connecting PLCs, sensors, actuators, and I/O modules in a trunk‑and‑drop topology. A single network can support up to 64 nodes, with typical data rates of 125, 250, or 500 kbit/s depending on the required cable length. [can-cia]
At a practical level, the cable system does three jobs at once: it carries power, transports data, and protects signals from industrial noise. Poor‑quality or incorrectly specified cables are a leading root cause of intermittent DeviceNet failures, "bus‑off" errors, and unexplained downtime reported by technicians in the field. [copperhilltech]

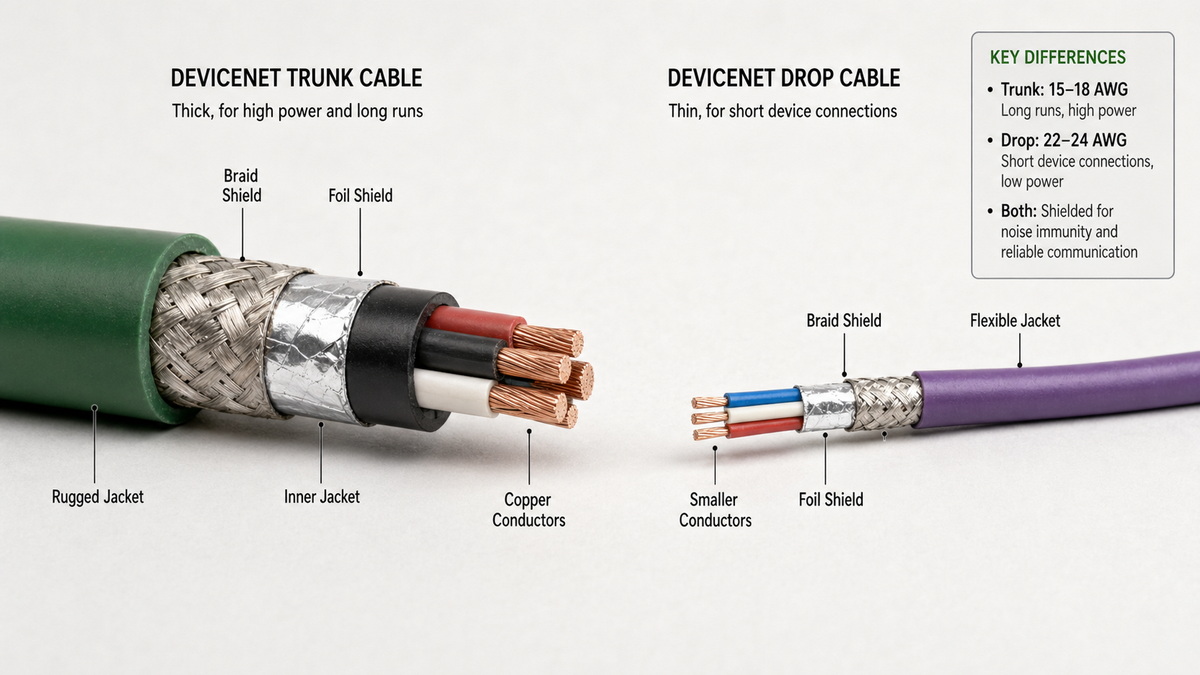

The trunk cable is the main backbone of the DeviceNet network, running through the line and feeding power and data to all drop lines. It typically uses a 5‑conductor structure (24 VDC pair, CAN_H/CAN_L pair, and shield/drain) built with a thicker wire gauge such as AWG 15 for low voltage drop and robust signal integrity. [turck]
Key traits of thick trunk cable:
- Function: Main communication highway and power bus for all nodes. [pcm-cable]
- Structure: Twisted pairs with full shielding, AWG 15 conductors, industrial‑grade jacket for oil and abrasion resistance. [odva]
- Typical connectors: 7/8" mini‑style connectors on heavy equipment, M12 for compact masters or where space is tight. [turck]
From an engineering viewpoint, I always treat the trunk as a critical infrastructure asset: overspecifying shielding and jacket robustness is cheaper than tracing intermittent faults later on. [copperhilltech]
Branch (or "thin") cable connects individual devices to the trunk and is chosen for flexibility and ease of routing inside panels and machines. These cables usually use AWG 22 conductors, which are easier to bend around corners and into tight sensor locations while still maintaining stable communication over short distances. [odva]
Practical characteristics:
- Function: Short drops from trunk to devices such as proximity sensors, valves, or distributed I/O. [pcm-cable]
- Structure: Finer conductors, smaller outside diameter, typically shielded twisted pair plus power conductors. [elandcables]
- Connectors: M12 A‑coded plugs and receptacles for quick, error‑proof connection and fast maintenance. [pcm-cable]
In my experience, thin cable is where many installers try to "save" by mixing in generic control wire—this almost always backfires under real‑world noise and vibration. [copperhilltech]
Extension or drop cables are used when the branch line must be extended or when two connector systems need to be adapted, for example from a 7/8" trunk to an M12 device input. These assemblies may use AWG 15 or AWG 22 depending on required current and distance, and are available in multiple combinations such as 7/8" to M12 or M12 to open‑ended pigtails. [turck]
Typical uses from real projects include:
- Extending a sensor drop to a new bracket location.
- Adapting a standard trunk to an OEM device that only offers M12.
- Providing a removable service loop for frequently replaced components.

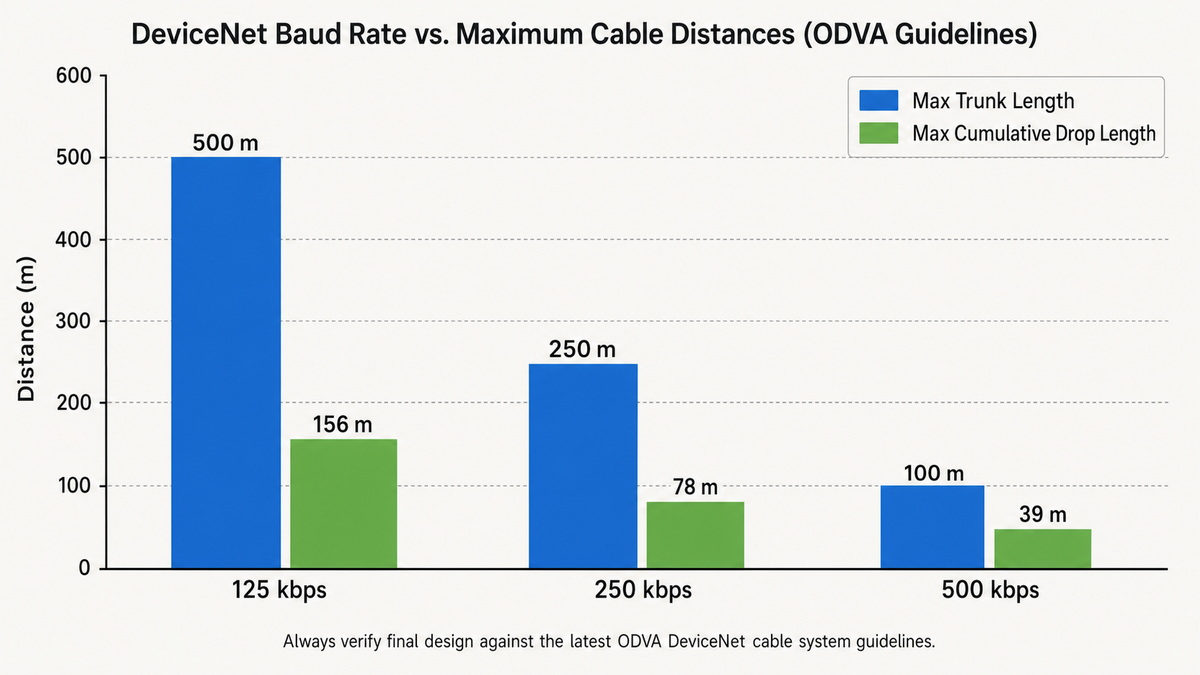

DeviceNet performance is tightly linked to the relationship between baud rate and cable length, and this needs to be considered at the design stage. Using a higher baud rate shortens the maximum possible trunk length and tightens the constraints on total drop length. [odva]
Typical planning values for round shielded media:
| Baud Rate | Max Trunk Length | Max Single Drop Length | Total Drop Length Limit |
|---|---|---|---|
| 125 kbps | 420 m | 6 m | 156 m |
| 250 kbps | 200 m | 6 m | 78 m |
| 500 kbps | 75 m | 6 m | 39 m |
When I audit existing DeviceNet networks, I often see two recurring mistakes: undersized power conductors on long trunks and excessive cumulative drop length beyond specification. Both issues may appear as random communication faults, but they actually originate from design choices that violate the standard's distance and loading rules. [copperhilltech]

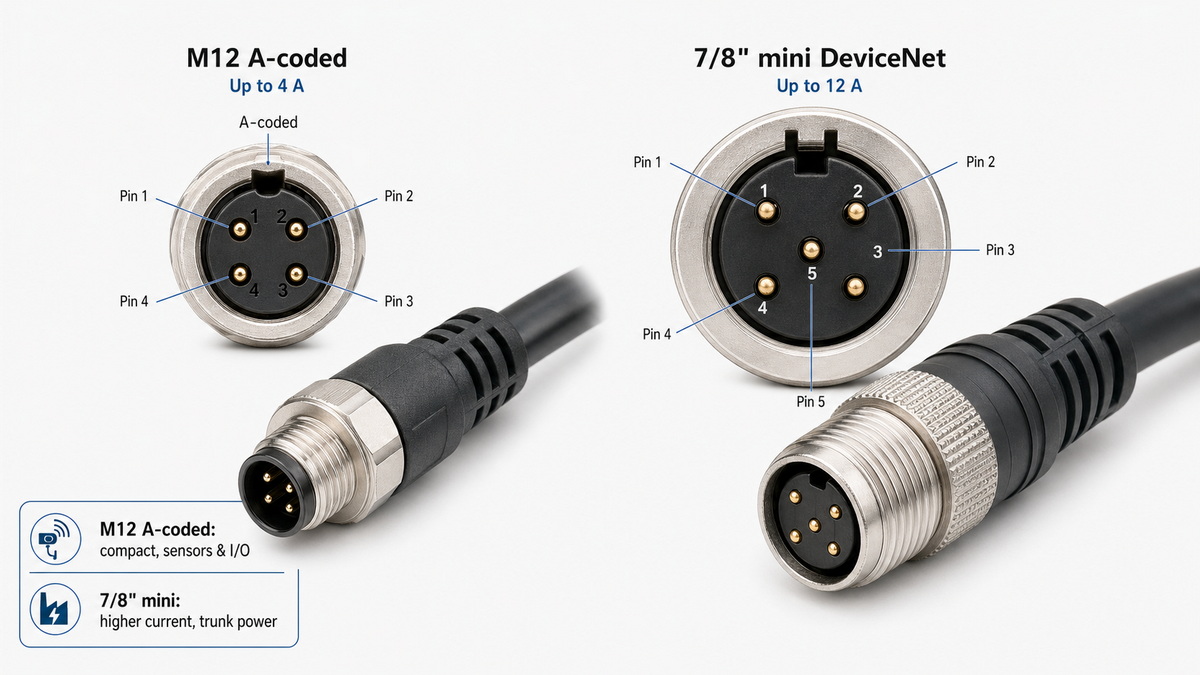

Connector selection is about balancing current capacity, installation space, and robustness in harsh conditions. In DeviceNet environments, M12 and 7/8"‑16UN connectors are the dominant choices. [turck]
M12 A‑coded connectors:
- Common for sensors, compact I/O modules, and tight panel spaces. [elandcables]
- Typically handle up to 4 A per core and offer IP67 protection in properly assembled systems. [pcm-cable]
- Ideal where compact routing and quick‑disconnect maintenance are priorities.
7/8" mini‑style connectors:
- Preferred on main trunks and power‑heavy loads, carrying up to about 8 A per core depending on cable specification. [turck]
- Better suited for high‑current applications and robust mechanical environments such as conveyors or heavy machinery frames. [pcm-cable]
- Often used by OEMs on pre‑assembled trunk cables to simplify plug‑and‑play installation.
From a user‑experience perspective, standardizing connector styles across a line dramatically reduces wiring mistakes and shortens commissioning time, especially for multi‑vendor equipment mixes. [can-cia]
Over multiple projects and troubleshooting calls, several DeviceNet cabling rules have proven themselves repeatedly. Adhering to these not only aligns with vendor guidelines but also improves real‑world uptime. [copperhilltech]
1. Grounding and shielding
- Ground the shield and drain wire at only one location near the physical center of the network to prevent ground loops. [odva]
- Use a short, low‑impedance connection (e.g., #8 AWG, ≤ 3 m) to a clean earth ground. [copperhilltech]
2. Terminating resistors
- Install 121 Ω resistors across CAN_H and CAN_L at both ends of the trunk line. [odva]
- With power removed, you should measure approximately 60 Ω between CAN_H and CAN_L on a healthy network. [copperhilltech]
3. Physical routing
- Keep DeviceNet cables away from high‑voltage power cables, motor leads, and VFD outputs.
- Avoid sharp bends, tight cable ties, and mechanical pinch points that damage insulation and shielding.
In my experience, simply correcting grounding, terminations, and routing solves the majority of chronic DeviceNet noise issues without changing a single device. [reddit]
Field technicians often report DeviceNet as "unreliable", but root‑cause analysis usually points back to cabling. Recognizing recurring failure patterns speeds up troubleshooting and reduces downtime. [reddit]
Typical cabling‑related issues include:
- Intermittent "bus‑off" or node drops: Often due to damaged shield, water ingress, or crushed trunk segments. [reddit]
- Excessive voltage drop at far nodes: Caused by undersized power conductors or trunk length beyond guidelines. [turck]
- Reflection and noise problems: From missing or incorrectly placed terminators and improper branching.
A practical method technicians use is a "binary search" approach: temporarily moving a terminator to the middle of the trunk and observing whether faults disappear in the front or back half, then repeating to home in on the defective segment. This real‑world technique, supported by formal resistance and continuity checks, is far more efficient than randomly replacing nodes. [reddit]
When specifying DeviceNet cables, it is important to align with recognized standards and documentation. This ensures interoperability between components from different vendors and simplifies global sourcing for OEMs. [can-cia]
Key reference points:
- Physical layer: Based on CAN high‑speed transceivers compliant with ISO 11898‑2 for up to 64 nodes. [can-cia]
- Cable system: ODVA's cable guide defines round thick, thin, and flat trunk cable types, as well as drop cables and their electrical characteristics. [can-cia]
- Flame and smoke performance: Many modern DeviceNet cables use LSZH (Low Smoke Zero Halogen) jackets that meet IEC/EN 61158 and IEC/EN 62026‑3, which supports safer operation in enclosed environments. [elandcables]
For international buyers—brand owners, wholesalers, and OEMs—the cable itself is only part of the solution. A specialized manufacturer can support the entire DeviceNet lifecycle from design to long‑term operation. [supplier.alibaba]
As a producer of industrial cables such as USB, HDMI, and fieldbus cables, a mature factory typically offers:
- OEM/ODM customization: Tailored trunk and drop cable assemblies, connector combinations (M12, 7/8", open ends), and jacket materials based on the installation environment. [supplier.alibaba]
- Engineering support: Assistance in network layout, cable selection for different data rates and distances, and documentation that aligns with ODVA guidelines. [can-cia]
- Consistency and quality control: Automated production lines, 100% continuity and hi‑pot testing, and traceable batches to ensure stable electrical performance over time. [supplier.alibaba]
From a user‑experience standpoint, engineers and buyers benefit from a simple checklist they can follow during design and procurement. The list below condenses common best practices from standards and field experience. [odva]
1. Define network baud rate and maximum required trunk length.
2. Select thick trunk cable rated for the environment (temperature, oil, UV, flexibility).
3. Confirm power budget and conductor size to limit voltage drop at the most distant node.
4. Plan drop cable lengths and ensure total cumulative length stays within ODVA limits.
5. Standardize connectors (M12 or 7/8") across the line where possible.
6. Specify two 121 Ω terminating resistors at the physical ends of the trunk.
7. Design grounding point near the center of the network and avoid multiple earth connections.
8. Separate DeviceNet routing from high‑noise power circuits and VFD outputs.
9. Document cable types, lengths, and connector pinouts for maintenance teams.
10. Choose a cable manufacturer that can reproduce the exact assemblies with consistent quality.
To make specification decisions easier for buyers and engineers, the table below summarizes typical use cases for different cable and connector combinations based on industry practice and published guides. [pcm-cable]
| Use Scenario | Recommended Cable Type | Typical Connector | Key Reasons |
|---|---|---|---|
| Long backbone on assembly line | Thick trunk, AWG 15 | 7/8" mini‑style | Low voltage drop, higher current, robust jacket |
| Sensor drops inside machine | Thin drop, AWG 22 | M12 A‑coded | Flexible routing, compact heads, fast replacement |
| Compact control cabinet network | Thin cable for trunk & drop | M12 A‑coded | Space saving, lower current demand, standardized connector |
| Outdoor or harsh environment trunk | Thick trunk with LSZH/UV | 7/8" or sealed M12 | Enhanced environmental protection, fire performance |
| Mixed OEM equipment integration | Hybrid trunk/drop assemblies | 7/8" to M12 / open end | Adapts different vendor connectors with minimal on‑site wiring |
If you are designing or upgrading a DeviceNet network, partnering with a dedicated cable manufacturer gives you more than just product—you gain a long‑term engineering ally. By specifying high‑quality thick and thin DeviceNet cables, correctly matched connectors, and OEM‑level assemblies, you reduce risk, simplify installation, and protect your production uptime. [supplier.alibaba]
For OEMs, brand owners, and wholesalers looking for reliable DeviceNet cable assemblies with flexible OEM services, consider collaborating with an experienced industrial cable factory that already supplies USB, HDMI, DVI, SATA, and other data cables for global customers. You can share your network drawings, length requirements, and connector preferences and receive tailored DeviceNet solutions that are ready to deploy on your next project. [supplier.alibaba]
Thick DeviceNet cable is used for the trunk line and features larger conductors (for example AWG 15) to minimize voltage drop and provide robust shielding over longer distances. Thin cable uses finer conductors (such as AWG 22) and is designed for shorter drops to devices where flexibility and compact routing are more important than current capacity. [pcm-cable]
At 125 kbps, a standard round thick DeviceNet trunk can reach up to about 420–500 m depending on the exact specification and cable quality. Always verify total drop length and node count against the latest ODVA guidelines when approaching these limits. [can-cia]
Terminating resistors of 121 Ω at each end of the trunk line damp signal reflections and maintain proper impedance on the CAN bus, which is essential for stable communication. Without proper termination, you are likely to see intermittent communication errors, especially at higher baud rates or longer cable runs. [copperhilltech]
Yes, many networks combine thick trunk cable with thin drop cables and extension leads, provided that all components meet DeviceNet electrical specifications and the overall distance rules are respected. The most important factors are maintaining proper impedance, shielding continuity, and staying within maximum trunk and drop lengths. [pcm-cable]
Look for a manufacturer with proven industrial cable experience, compliance with relevant standards (such as IEC/EN 61158, IEC/EN 62026‑3, UL, and RoHS), and the ability to offer customized lengths and connector combinations. Consistent testing, clear documentation, and responsive engineering support are also essential for long‑term reliability and easy re‑ordering. [elandcables]
