From the perspective of a cable manufacturer and field engineer, HDMI bandwidth is no longer a theoretical spec on paper—it directly decides whether your 4K/8K screens, gaming rigs, and pro‑AV systems run flawlessly or suffer from random blackouts and artifacts. In this guide, I'll walk you through HDMI bandwidth in plain language, with the same rigor we use when designing and testing HDMI, VGA, DVI, SATA and other cables in our own production lines in Shenzhen. [hdmi]
Bandwidth, in HDMI terms, is the amount of data an HDMI cable can reliably carry per second, measured in gigabits per second (Gbps). It's helpful to imagine a multi‑lane highway: the more lanes and the higher the speed limit, the more cars you can move at once—HDMI bandwidth works the same way for pixels, audio channels, HDR metadata, and control data. [fycables]
A higher‑bandwidth HDMI cable allows:
- Higher resolutions (1080p → 4K → 8K, and now beyond). [hdmi]
- Higher refresh rates (60 Hz → 120 Hz → 240 Hz and higher). [hdmi]
- Richer color formats and HDR (10‑bit/12‑bit, 4:4:4 chroma). [hdmi]
- Advanced audio formats (Dolby Atmos, DTS‑HD, uncompressed eARC).
If the cable cannot sustain the required bandwidth with enough signal integrity margin, you see symptoms: sparkles, random black screens, audio dropouts, HDCP errors, or failure to lock at the target resolution. [allion]
As an OEM cable maker, we see the practical side of every HDMI generation when customers ask "Why does my old cable fail on a new 8K TV?"—the answer is usually bandwidth. [allion.com]
| HDMI version / cable type | Max bandwidth (Gbps) | Typical use case in 2026 |
|---|---|---|
| HDMI 1.0–1.2 | ~4.95 Gbps | 720p/1080i legacy gear. |
| HDMI 1.3 / 1.4 (High Speed) | 10.2 Gbps | 1080p, basic 4K30, early 3D. |
| HDMI 2.0 / 2.0b (High Speed 18G) | 18 Gbps | 4K60, HDR, mainstream consoles. allion.com |
| HDMI 2.1 (Ultra High Speed) | 48 Gbps | 4K120, 8K60, VRR, eARC. hdmi |
| HDMI 2.2 (Ultra96) | Up to 96 Gbps | 4K240, 8K60 4:4:4, 10K/12K, pro gaming & AV. hdmi |
- HDMI 1.0 started at ~4.95 Gbps, enough for early HD content.
- HDMI 1.3/1.4 increased to 10.2 Gbps, enabling Deep Color and early 3D, and limited 4K at 24–30 Hz.
- HDMI 2.0 took a major step to 18 Gbps, making stable 4K60 HDR feasible for consumer TVs and set‑top boxes. [allion.com]
- HDMI 2.1 introduced the Ultra High Speed HDMI Cable, pushing bandwidth to 48 Gbps, enough for 4K120 and 8K60 with advanced HDR and gaming features. [strategicmarketresearch]
- HDMI 2.2 (2026 spec) and the new Ultra96 HDMI Cable now define up to 96 Gbps, effectively doubling headroom for high‑frame‑rate 4K and 8K, and even enabling 10K/12K with DSC in pro scenarios. [linkedin]
From an engineering standpoint, each jump in bandwidth tightens requirements on cable materials, geometry, shielding, and manufacturing tolerance—which is exactly where an experienced OEM adds value. [allion]

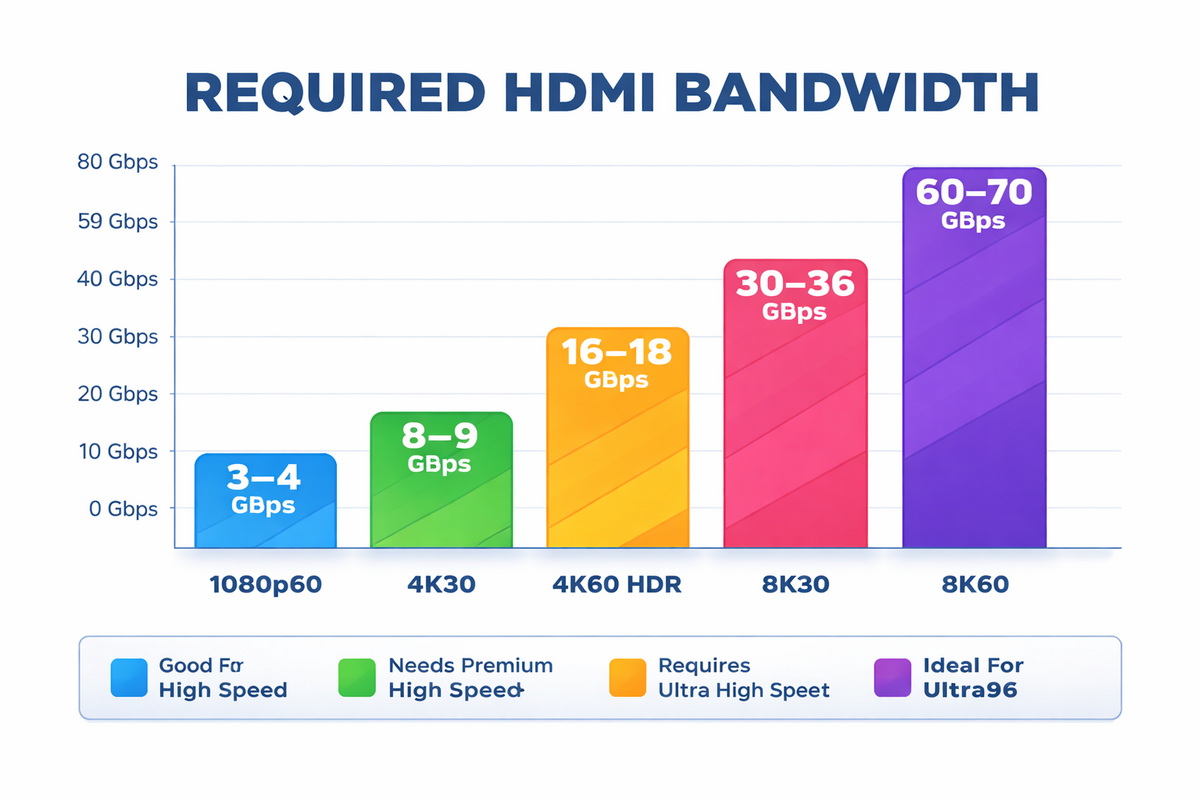

To choose the right HDMI cable bandwidth, start with your actual video and audio requirements.
The numbers below assume typical modern signals with 4:4:4 or 4:2:2 chroma and 8–10‑bit color; actual values vary slightly with chroma subsampling and encoding. [allion.com]
- 1080p @ 60 Hz: about 3–4 Gbps; any High Speed cable easily handles this.
- 4K @ 30 Hz: roughly 8–9 Gbps; HDMI 1.4 High Speed is usually enough.
- 4K @ 60 Hz with HDR: around 16–18 Gbps; this is why certified 18 Gbps (HDMI 2.0) cables are recommended. [allion.com]
- 4K @ 120 Hz (gaming): can push toward 40–48 Gbps, requiring HDMI 2.1 Ultra High Speed. [strategicmarketresearch]
- 8K @ 30 Hz: around 30–36 Gbps, which HDMI 2.1 can support with the right encoding. [hdmi]
- 8K @ 60 Hz, full‑fat chroma: can approach 60–70 Gbps uncompressed, where HDMI 2.1 uses DSC, and HDMI 2.2 with 96 Gbps provides additional headroom. [hdmi]
For most real‑world 2026 setups—4K60 TVs, mainstream consoles and PCs—18 Gbps or 48 Gbps cables are the practical sweet spots. Ultra96 at 96 Gbps is increasingly relevant for future‑proof gaming monitors, LED walls, and pro‑AV switchers. [linkedin]

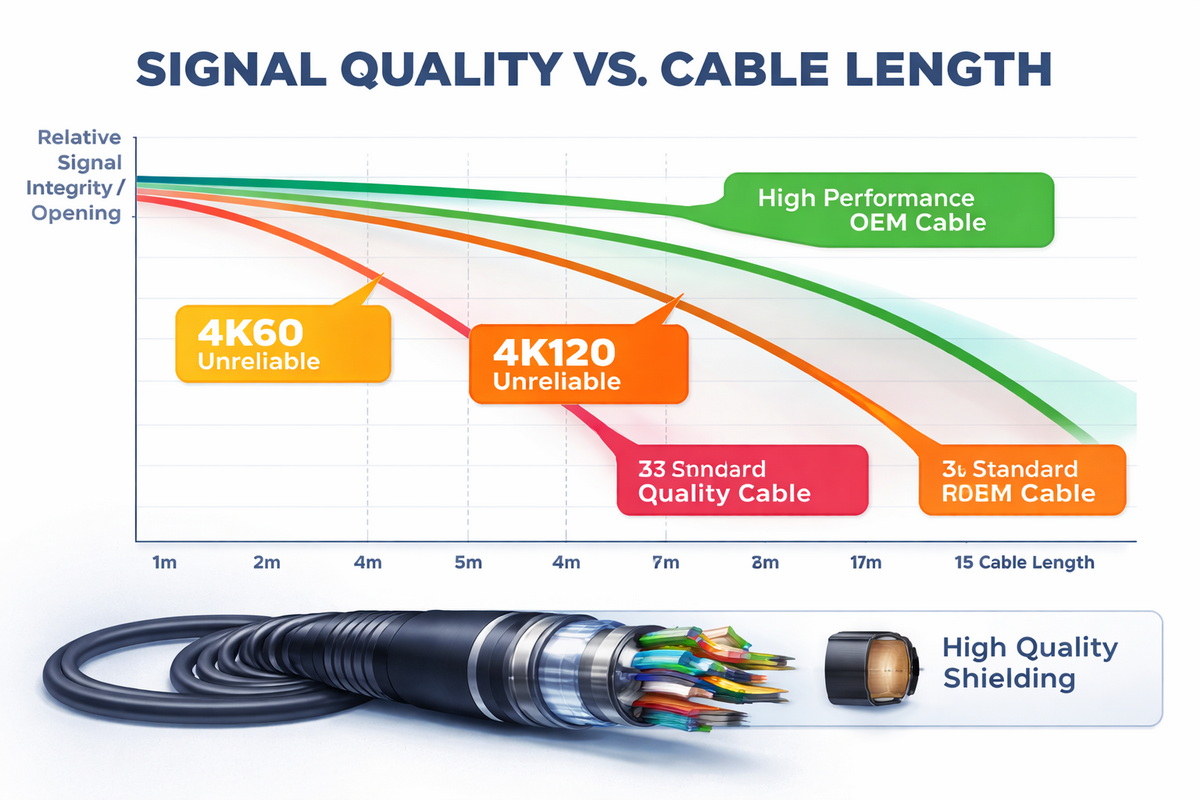

On paper, a cable may claim "48 Gbps", but in the lab and in the field, length and construction quality decide whether it truly performs at that level. [fycables]
Independent testing on HDMI cables shows that as length increases, resistance and attenuation increase, causing more signal loss and jitter. [allion]
- At 1–3 m, high‑quality cables usually deliver excellent 1080p–4K60 signal integrity with no visible artifacts. [fycables]
- At 3–5 m, minor degradation may appear at 4K60, especially with lower‑quality cables. [fycables]
- At 5–10 m, issues such as pixelation, color shifts, or intermittent audio become more likely at higher resolutions. [fycables]
- Over 10 m, passive copper HDMI at 4K60 and above often becomes unreliable without active electronics or fiber. [fycables]
From our manufacturing and competitive testing experience, the following aspects strongly impact usable bandwidth and durability: [allion]
- Conductor quality and gauge (e.g., oxygen‑free copper, appropriate AWG).
- Differential pair twist and spacing, which affect impedance control and crosstalk.
- Shielding structure (foil, braid, or both) to control EMI.
- Connector plating and termination quality to minimize reflections and contact resistance.
- Strain relief and over‑molding for durability under frequent plugging cycles.
A major third‑party lab's competitive analysis has shown that cables from reputable manufacturers can differ significantly in both high‑frequency performance and durability tests, even when they claim similar nominal specs. This is why certification, not just a printed logo, is critical. [allion]

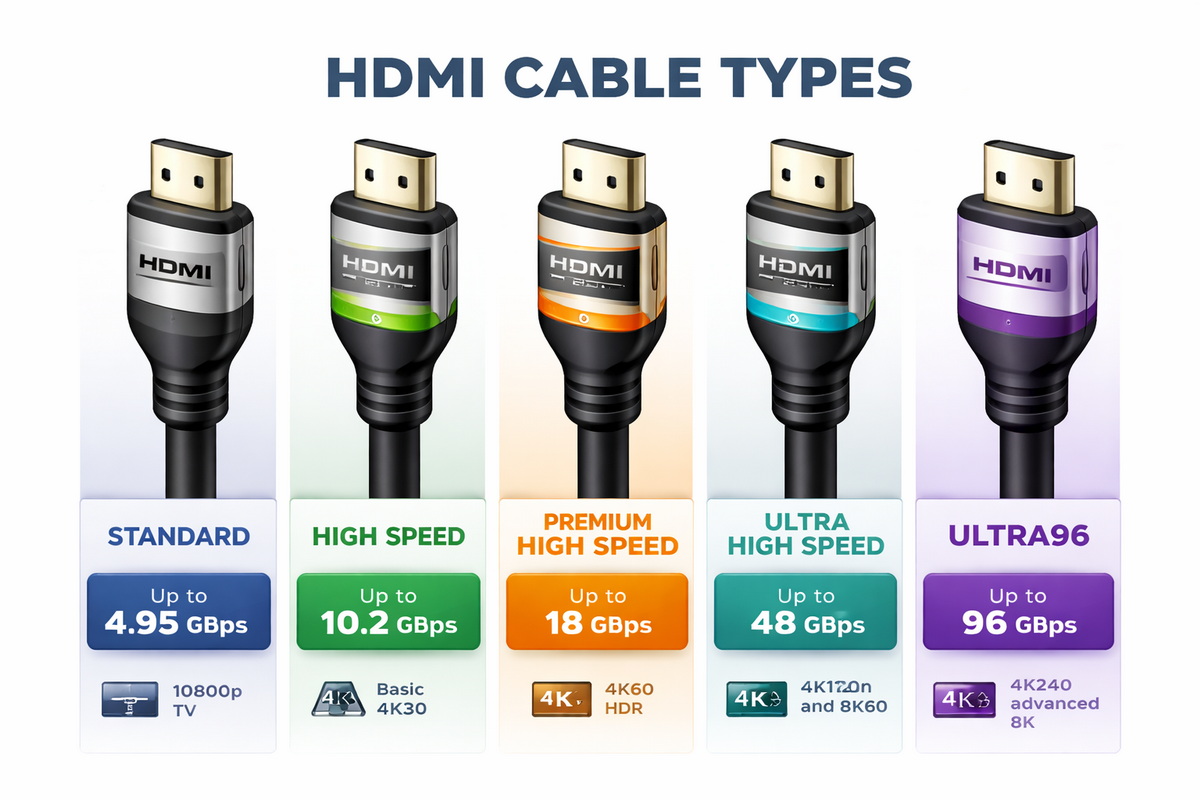

The HDMI ecosystem has standardized cable categories to make selection easier.
| Cable category name | Typical max bandwidth | Typical resolutions supported in 2026 |
|---|---|---|
| Standard HDMI Cable | Up to ~4.95 Gbps | 720p, 1080i legacy. |
| High Speed HDMI Cable | Up to 10.2 Gbps | 1080p, 3D, basic 4K30. |
| Premium High Speed HDMI Cable | 18 Gbps | 4K60 HDR, most streaming and TV uses. (allion.com) |
| Ultra High Speed HDMI Cable | 48 Gbps | 4K120, 8K60, advanced gaming. (hdmi) |
| Ultra96 HDMI Cable (HDMI 2.2) | Up to 96 Gbps | 4K240, 8K60 full‑fat, 10K/12K pro‑AV. (hdmi) |
The Ultra High Speed HDMI Cable Certification Program requires cables to be tested for full 48 Gbps throughput and low EMI, reducing interference with Wi‑Fi, Bluetooth, and mobile devices. HDMI 2.2 extends this approach to the Ultra96 class with stringent testing for 64/80/96 Gbps applications. [linkedin]
As someone who has helped overseas brands and integrators specify HDMI, VGA, DVI, and other cables for their projects, I recommend a simple, four‑step selection process.
- Identify the HDMI version supported by your source (PC, console, player) and display (TV, monitor, projector).
- If both are limited to HDMI 1.4, an Ultra High Speed cable will not add visual benefit—though it can help future‑proof upgrades.
Ask yourself: What do you actually need the system to do?
- Movie watching at 4K60 HDR → Premium High Speed (18 Gbps) is generally sufficient. [allion.com]
- Competitive gaming at 4K120 or higher frame rates → Ultra High Speed (48 Gbps) becomes essential. [strategicmarketresearch]
- Cutting‑edge 8K60 or large LED walls → consider Ultra High Speed or Ultra96 depending on the device roadmap. [hdmi]
- For short runs (≤3 m), certified cables of the right category are usually enough.
- For medium runs (3–10 m), prioritize high‑quality shielded cables from proven manufacturers. [allion]
- For long runs (>10 m), look at active copper or hybrid fiber HDMI solutions designed for 4K/8K distribution. [fycables]
- Prefer cables with official HDMI certification labels for Premium / Ultra High Speed / Ultra96 where applicable. [hdmi]
- Work with OEMs who can provide test reports from third‑party labs (eye diagrams, insertion loss, return loss, EMI), not just marketing claims. [allion]
From a manufacturing and system‑integration standpoint, the phrase "typical HDMI cable bandwidth" is context‑dependent.
- For a typical 4K smart TV, streaming box, or game console setup, a Premium High Speed HDMI Cable (18 Gbps) remains the most common and cost‑effective choice in 2026. [strategicmarketresearch]
- As more devices ship with HDMI 2.1, Ultra High Speed (48 Gbps) is quickly becoming the "new normal" for gamers and home cinema enthusiasts who want 4K120 or 8K60 capability. [hdmi]
- For AV integrators, signage, and post‑production, it is increasingly necessary to spec cables at 48 Gbps or beyond, especially for distributed 4K120 and 8K workflows. [linkedin]
- For forward‑looking brands, preparing for HDMI 2.2 and Ultra96 at up to 96 Gbps ensures compatibility with next‑generation displays and GPUs that target 4K240 and advanced 8K formats. [linkedin]
From our experience supplying OEM cables, the most stable projects minimize "over‑promising" on cable length at the highest resolutions and instead use correctly rated, moderately long runs combined with appropriate extenders where necessary. [allion]
Working with overseas customers, we often correct several recurring misconceptions.
- Myth 1: "All HDMI cables are the same if they connect."
In reality, lab testing shows large performance differences in attenuation, crosstalk, and durability between cables sold in the same market, even at 1080p. [allion]
- Myth 2: "Expensive automatically means better."
Some mid‑priced certified cables outperform premium‑priced non‑certified ones in signal‑integrity and plug‑cycle tests. What matters is design and testing, not just price. [allion]
- Myth 3: "If it works now, it will work after upgrading devices."
A 10.2 Gbps cable that works on a 4K30 TV may fail completely once you upgrade to 4K60 HDR or 4K120. Device upgrades often expose cable bandwidth limits. [allion.com]
As a Chinese manufacturer specialized in USB, VGA, HDMI, DVI, SATA and other data and video cables, we design our HDMI products around the real bandwidth requirements of global brands and integrators. [allion]
For OEM / ODM clients, we typically provide:
- Custom‑spec HDMI cables (18 Gbps, 48 Gbps, and forward‑looking 96 Gbps readiness).
- Length‑optimized designs based on your typical installation scenarios (desktop, living‑room, rack‑to‑rack, conference room, signage).
- Engineering support, including advice on matching cable type to device spec, resolution roadmap, and cost targets. [strategicmarketresearch]
- Access to third‑party testing reports to verify bandwidth performance and EMI compliance in your target markets. [allion.com]
If you plan a new product line—such as 4K/8K TVs, gaming monitors, set‑top boxes, docking stations, or pro‑AV equipment—collaborating early with your cable OEM ensures that your advertised HDMI capabilities are matched by reliable, field‑tested cable performance.
A typical modern consumer cable is either 10.2 Gbps (High Speed) or 18 Gbps (Premium High Speed), with 48 Gbps (Ultra High Speed) rapidly spreading in 4K120/8K setups. [hdmi]
If your content is limited to 4K60 HDR streaming or Blu‑ray, a certified 18 Gbps Premium High Speed cable is usually enough, though 48 Gbps is a safe choice for future upgrades. [strategicmarketresearch]
No—HDMI handshakes negotiate the best common format, so an older cable will not damage devices, but it may limit or destabilize 4K60 HDR or 4K120 modes. [allion.com]
Higher resolutions and frame rates require more bandwidth and cleaner signals, so the same long cable that copes with 1080p may suffer too much attenuation and jitter at 4K60. [fycables]
Look for official HDMI certification labels, buy from reputable manufacturers, and for OEM projects, request independent signal‑integrity and EMI test reports. [hdmi]
