As a network engineer who has spent years in lab environments, data centers, and OEM production lines, I often get asked: "Can I just use an Ethernet cable as a console cable?" [sana-commerce]
The short answer is no, not directly—but with the correct adapters (RJ45‑to‑DB9, USB‑to‑serial, or custom rollover wiring), you can use an Ethernet-style twisted-pair cable as part of a console connection without damaging your devices. [rsonline]
Even though both may use an RJ45 connector, they are designed for very different jobs. [sana-commerce]
- Used for data networking (LAN/WAN) between computers, switches, routers, and other IP devices. [ascentoptics]
- Typically straight-through or crossover wiring following T568A / T568B standards.
- Carries Ethernet frames at speeds like 100 Mbps, 1 Gbps, or higher. [ascentoptics]
- Optimized for signal integrity, crosstalk reduction, and bandwidth over various categories (Cat5e, Cat6, Cat6a, etc.). [rsonline]
- Used for device management and configuration, not normal data traffic. [sana-commerce]
- Connects a PC (via USB or serial/COM port) to the console port of a router, switch, firewall, or server.
- Historically uses RS‑232 signaling and often special pinouts (e.g., Cisco rollover cables). [rsonline]
- Prioritizes reliable low-speed serial communication over high bandwidth.
- Different signaling: Ethernet ports use differential signaling and Ethernet protocols, while console ports use serial (RS‑232/TTL) signaling and simple text/CLI. [sana-commerce]
- Different pinouts: A console port expects a very specific mapping of TX, RX, and ground; a standard Ethernet cable wiring does not match that pattern. [sana-commerce]
- Different purpose: Ethernet is for live traffic; console is for out‑of‑band management and troubleshooting. [sana-commerce]
Although you cannot plug an Ethernet cable directly from a PC network port into a console port, you can safely use Ethernet-style twisted-pair cables as part of the physical path if:
1. You use the correct console adapter (e.g., USB‑to‑RJ45 console, RJ45‑to‑DB9 serial adapter). [sana-commerce]
2. The device's console interface is designed to work over an RJ45 connector with serial signaling (common on Cisco/HPE/enterprise switches). [rsonline]
Typical real-world combinations:
- USB‑to‑RJ45 console cable + Cat5e/Cat6 Ethernet cable between the adapter and the device console port.
- RJ45‑to‑DB9 rollover adapter + standard Ethernet cable to extend the console reach.
- Console server / terminal server that uses RJ45 ports and structured cabling to reach multiple devices.
In all these cases, the Ethernet cable is only a medium (the twisted pairs) while the adapters handle the correct pinout and signaling.
In data centers and OEM lab setups, I regularly see these patterns:

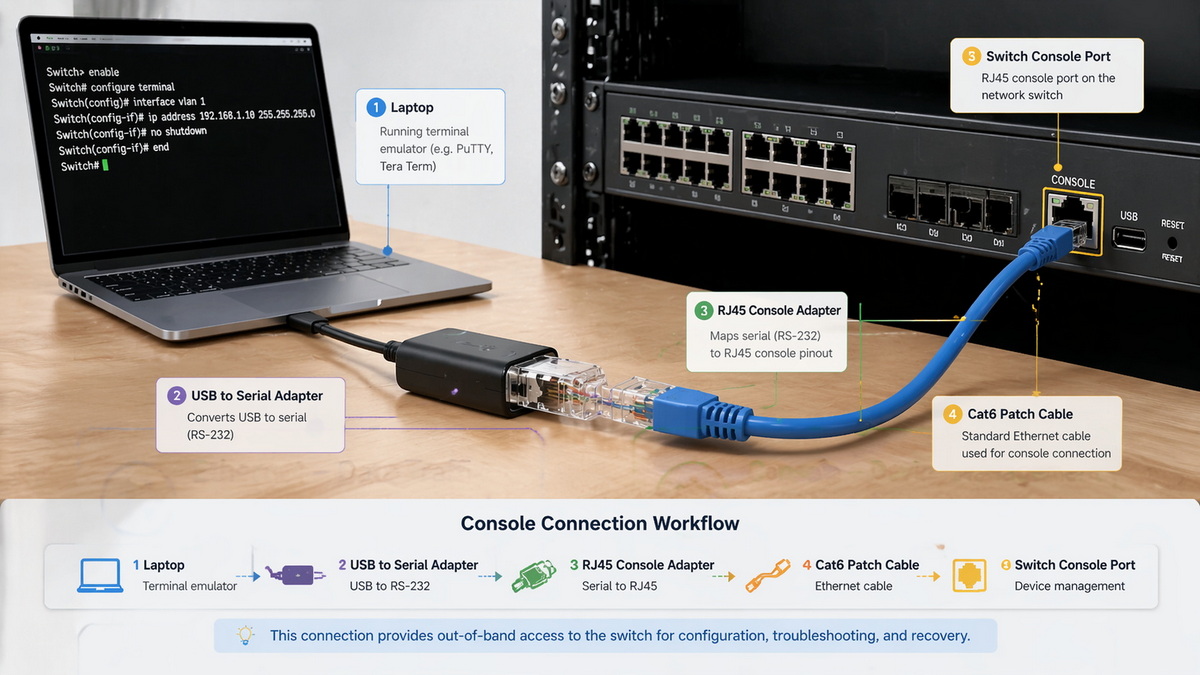

1. Laptop with USB‑C → USB‑to‑Serial (DB9) → RJ45 console adapter → Short Cat5e cable → Switch console port.

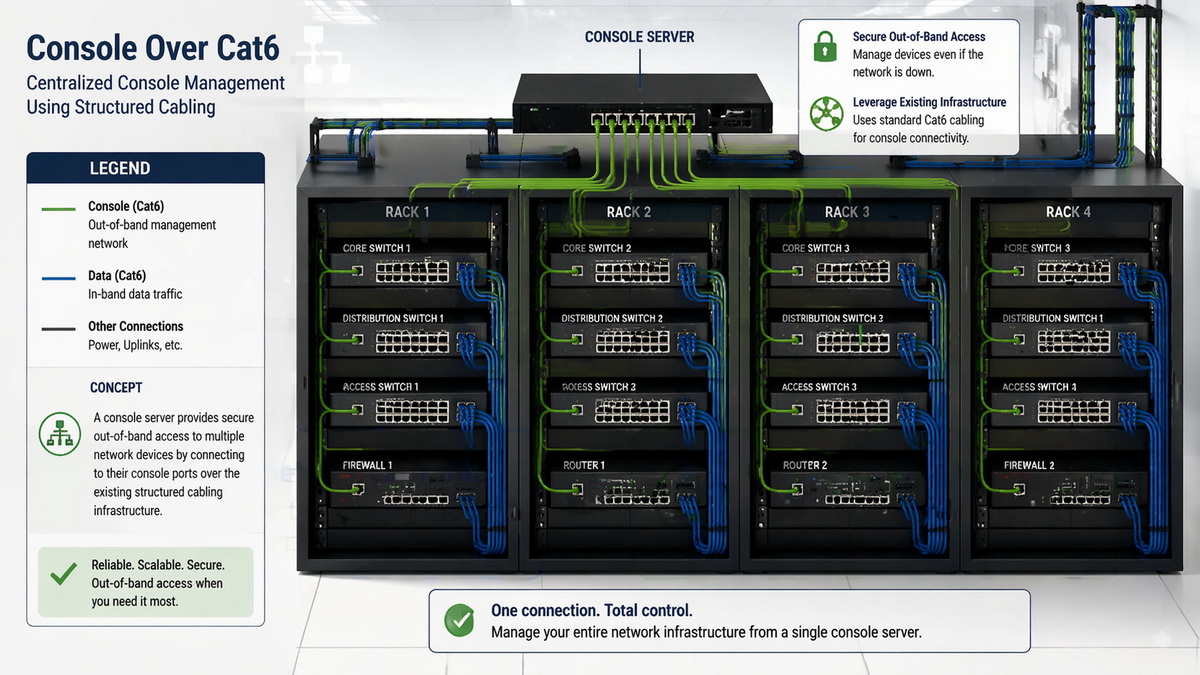

2. NOC or test rack: Console server with 24 RJ45 console ports, each connected over structured Cat6 cabling to different routers/switches.
3. On-site troubleshooting: Engineer carries one multi-function USB console cable and uses building cabling (Ethernet runs) temporarily to avoid stretching a dedicated console cable across racks.
In all these situations, the key is that the adapters and devices are built for console use—the Cat5e/Cat6 cable is just passive copper.
From an engineering standpoint, there are two critical aspects: wiring and signaling levels.
- Ethernet cables follow T568A/B with specific pair assignments (e.g., pins 1–2, 3–6 for 10/100 Mbps). [rsonline]
- Classic Cisco-style rollover console cables reverse the pin order (1↔8, 2↔7, etc.), which is incompatible with normal Ethernet wiring if used without an adapter. [sana-commerce]
This is why a plain Ethernet patch cord cannot act as a console cable by itself—the console interface expects a rollover mapping or a specific serial pinout, not Ethernet T568B.
- Ethernet PHY uses differential pairs and specific voltage levels for fast data transfer.
- Console ports use serial signaling (RS‑232 or TTL, often 3.3 V or 5 V logic).
- Plugging one into the other without a proper interface could cause communication failure and in rare cases even hardware damage.
Adapters and console modules exist precisely to translate between these worlds safely.
For many of our OEM and B2B clients (switch/industrial device manufacturers and integrators), using twisted-pair cable in console infrastructure offers tangible benefits:
- Standardized cabling: Install Cat6 across the rack/room and use small console adapters at each end.
- Easier maintenance: Replace only a short patch cord or adapter instead of pulling dedicated serial lines.
- Scalability: Console servers can fan out to dozens of devices over structured cabling.
If your environment already has reliable Cat5e/Cat6 wiring, designing console connectivity over structured cabling is often more cost-effective than maintaining separate serial cables for every device.

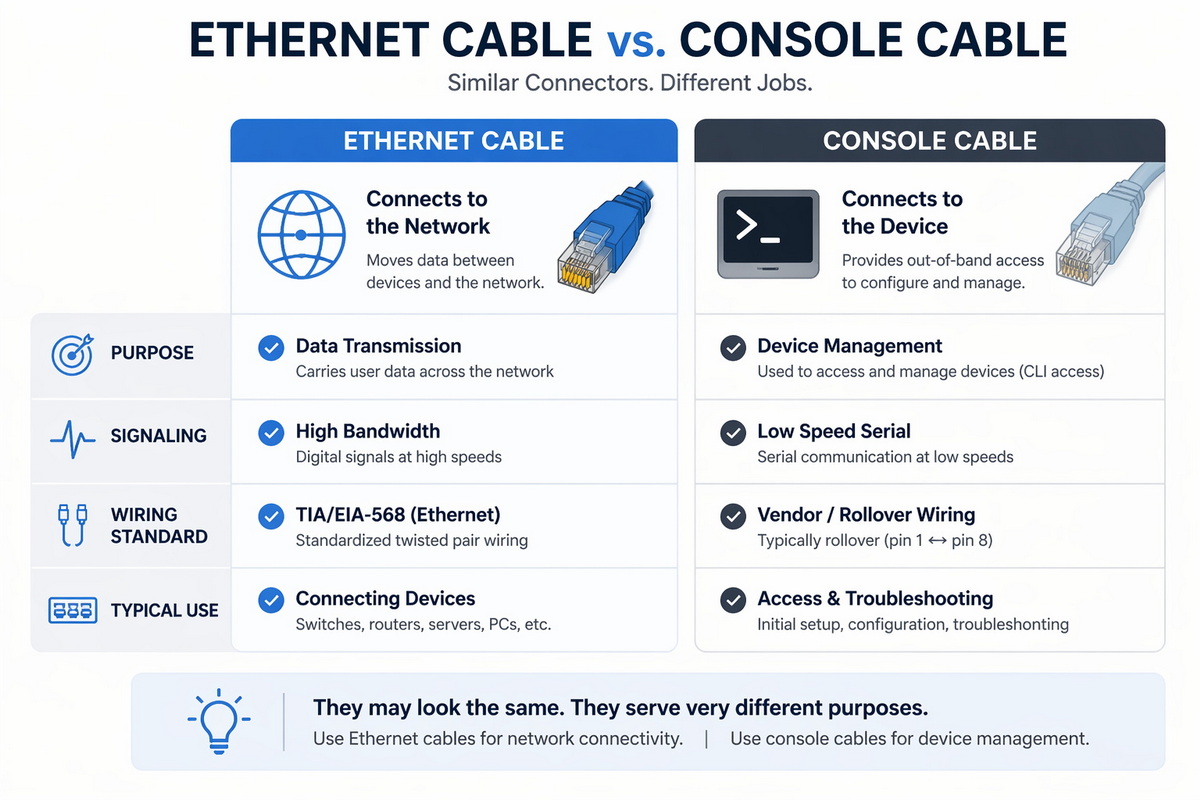

Here is a quick reference table you can show to technicians and procurement teams:
| Feature | Ethernet Cable (Patch Cord) | Console Cable (Serial/Rollover) |
|---|---|---|
| Primary purpose | Data networking (LAN/WAN traffic) (ascentoptics) | Device configuration and management (sana-commerce) |
| Typical connector | RJ45, sometimes GG45, etc. | RJ45 to DB9, USB‑to‑RJ45, proprietary console plugs |
| Signaling | Ethernet (10/100/1000 Mbps+) | Serial (RS‑232/TTL) |
| Wiring standard | T568A/T568B straight‑through or crossover (rsonline) | Rollover or custom serial pinout |
| Speed focus | High bandwidth, low latency | Low speed, high reliability |
| Direct interchangeability | No | No |
| Can share same cable type? | Yes, with correct adapters and console-compatible hardware | Yes, by using Cat5e/Cat6 as the physical medium only |
Here is a simple workflow you can standardize in your internal SOP or user documentation:
1. Identify the console port type
- Check the device label or manual: RJ45 console, USB console, mini‑USB, or DB9.
- Confirm whether the console port is RS‑232 or USB-based.
2. Select the right console adapter
- For laptops: USB or USB‑C to serial/console adapter (often with an RJ45 end).
- For servers or fixed workstations: PCI serial card + RJ45 console adapter if needed.
3. Use a high-quality Cat5e or Cat6 cable as the link
- Keep the cable length reasonable for easier troubleshooting.
- Choose shielded cables in noisy industrial or factory environments to improve stability. [ascentoptics]
4. Configure your terminal software correctly
- Common default settings: 9600 baud, 8 data bits, no parity, 1 stop bit, no flow control (check device manual).
- Use tools like PuTTY, Tera Term, SecureCRT, or built-in terminal apps.
5. Test and document
- Save known-good settings and adapter models in your internal documentation.
- Label cables and ports clearly to reduce confusion during outages.
From an OEM/OBM perspective—especially for manufacturers of cables and interconnects—there are several design and procurement angles worth considering:
- Standardization around RJ45-based console: Many network vendors have standardized on RJ45 console ports specifically because they integrate smoothly with structured cabling systems.
- Cable category selection: For console use, Cat5e is usually sufficient, but many data centers now standardize on Cat6/Cat6a for consistency and better future-proofing. [rsonline]
- Color-coding: Using distinct colors for "console over Ethernet" cables reduces the risk of technicians accidentally plugging them into production network ports.
- Labeling & documentation: Clear labels like "CONSOLE ONLY" and including connection diagrams in deployment manuals significantly reduce misconfiguration on site.
For overseas buyers and system integrators, working with an OEM that understands both networking requirements and practical deployment realities can shorten installation time and reduce field failures.
As a specialized cable manufacturer producing USB, VGA, HDMI, DVI, SATA, Ethernet, and custom console assemblies, an experienced OEM partner can:
- Customize pinouts for RJ45‑to‑DB9, USB console, and rollover cables to match your device design.
- Supply pre-labeled and color-coded console kits (adapter + patch cord) for specific product lines.
- Design hybrid bundles that include data cables, power leads, and console cables in one package for easier field deployment.
- Provide quality testing (continuity, pinout verification, signal integrity checks) to ensure every batch meets your specifications.
This level of customization is especially valuable for B2B buyers such as:
- Network equipment manufacturers (OEM/ODM).
- Industrial automation and control system providers.
- System integrators and data center solution providers.
There are a few important exceptions and cautions:
- Do not plug a console port directly into a live Ethernet switch port.
- Do not assume PoE lines are safe for console cabling; console ports are not designed for power injection.
- Avoid improvised adapters unless you fully understand the pinout and signaling—miswiring can cause device damage.
When in doubt, use vendor-approved console cables or consult with your hardware/OEM partner before deploying at scale.
If you are designing or deploying networked systems and want to standardize your console and Ethernet cabling:
- Specify your device console port types, pinouts, and target cable lengths.
- Decide whether you prefer RJ45-based console, USB console, or a combination.
- Work with a dedicated OEM cable factory to develop private-label, pre-tested console kits that match your devices and branding.
With the right partner, you can reduce installation complexity, avoid field wiring mistakes, and give your customers a plug‑and‑play console experience out of the box.
No. A standard Ethernet patch cable cannot replace a console cable by itself because the pinout and signaling are different. You must use proper adapters or console interfaces that support serial communication over RJ45. [sana-commerce]
Many console cables use RJ45 connectors and twisted-pair cable, similar to Ethernet patch cords, but the internal wiring and function are different. They are built for serial console communication, not Ethernet traffic. [sana-commerce]
Yes, as long as you use the correct console adapters and the devices are designed for RJ45-based console ports. In that case, Cat5e/Cat6 simply acts as the copper medium and is commonly used in data centers and labs. [rsonline]
In most cases, the devices simply will not communicate because the protocols and signaling do not match. However, this is not recommended, especially in environments with PoE, since mismatched connections can increase the risk of hardware issues.
For large deployments, many engineers standardize on Cat5e or Cat6 Ethernet cable for physical runs, combined with RJ45-based console adapters or console servers. You can then work with an OEM to produce pre-labeled, color-coded console kits to simplify installation and maintenance. [rsonline]
