As a low‑voltage installer and cable manufacturer working with IP surveillance projects worldwide, I am asked almost daily: "How far can you run Cat6 cable for cameras without losing power or video quality?" The short, standards‑based answer is up to 100 meters or 328 feet per run, but real‑world projects are rarely that simple. In this guide, I will walk you through the practical limits, design choices, and upgrade paths that professional installers use to keep PoE cameras stable well beyond a single 100‑meter segment. [cablematters]
For networked surveillance cameras, Cat6 is used to carry both data and often PoE power over a single twisted-pair Ethernet cable. [amissiontech]
Key standard limit
- Industry standards specify a maximum channel length of 100 m (328 ft) for twisted‑pair Ethernet, including solid horizontal cable plus both patch cords. [cloud.tencent]
- This limit applies to Cat5e, Cat6, and Cat6a when used for standard Ethernet links. [showmecables]
From a surveillance perspective, this 100 m ceiling exists to prevent:
- Data errors and dropped packets
- Video artifacts or frozen frames
- Insufficient voltage at the camera for PoE, especially with higher‑power models [cctvcameraworld]
Why cameras are sensitive to distance
An IP camera can run continuously, day and night, so small voltage drops or marginal signal quality that might be tolerated in office networking often cause intermittent reboots, image freezes, or night‑mode failures in CCTV. [addcomnc]
In practice, installers approach Cat6 camera runs with three distance bands:
| Distance band | Typical solution |
|---|---|
| 0–100 m / 0–328 ft | Direct Cat6 PoE run (standard) cctvcameraworld |
| 100–200 m / 328–656 ft | Cat6 plus PoE extender(s) or mid‑span switch cctvcameraworld |
| 200 m+ / 656 ft and more | Multiple extenders, fiber backbone, or special cable cctvcameraworld |
For most small and mid‑size installations, you should:
- Keep each Cat6 camera run at or under 100 meters (328 feet)
- Use solid copper Cat6 cable instead of copper‑clad aluminum (CCA) to reduce resistance and voltage drop [cablematters]
- Follow the standard 90 m permanent link + 2 × 5 m patch cord model whenever possible [cloud.tencent]
With good‑quality solid copper Cat6, well‑terminated jacks, and a reliable PoE switch, your camera should work reliably up to the 328 ft limit. [cctvcameraworld]
To go beyond 100 m, professionals typically introduce active devices that regenerate the Ethernet signal and, in many cases, power:

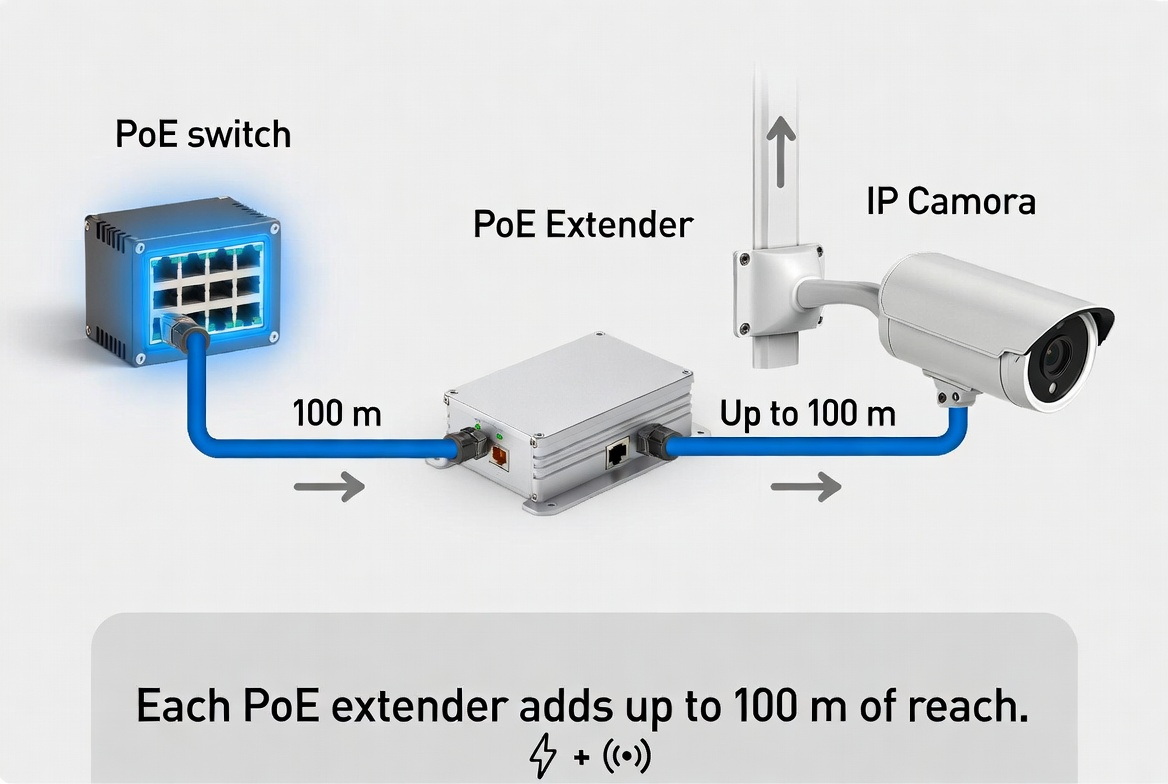

1. PoE extenders / PoE repeaters
- Installed in‑line, usually inside a junction box or enclosure
- Each extender can add another up to 100 m segment, depending on its rating [cctvcameraworld]
- Practical designs often use one extender per extra 100 m, though products vary
2. Intermediate PoE switch
- Place a small PoE switch in the field (for example, in a weather‑proof cabinet on a pole)
- First Cat6 run from the NVR/switch to the cabinet, then a second run from cabinet to camera
- Each leg can be up to 100 m as long as the total channel per leg respects the standard [cablematters]
3. High‑performance or specialty cable
- Some larger integrators report pushing well beyond 100 m using premium, larger‑gauge cables (such as 22 AWG "game changer" style cable), but this is outside strict Ethernet spec and should be carefully tested. [reddit]
For most commercial jobs, the safest and most maintainable approach is to stay within spec per segment and rely on extenders or switches rather than trying to "overstretch" a single Cat6 run. [cablematters]
Once your design requires camera runs of 200 m+, Cat6 plus multiple extenders starts to become:
- More expensive
- Harder to maintain
- More vulnerable to environmental issues [showmecables]
At that point, experienced designers usually:
- Run single‑mode or multi‑mode fiber from the control room to a field switch (on a pole, in a cabinet, or inside a building) [amissiontech]
- Use short Cat6 PoE drops (for example, 20–80 m) from that field switch to each camera
Fiber can reach hundreds or even thousands of meters without the electrical noise, voltage drop, or grounding concerns associated with copper. [showmecables]
Even if the data signal can run close to 100 m, PoE power may effectively limit you to a shorter distance for high‑power cameras. [cctvcameraworld]
Why PoE matters
- Higher‑resolution and PTZ cameras can draw more power, especially at night when IR LEDs activate
- PoE standards (PoE, PoE+, PoE++, etc.) define how much power can be delivered over the cable
- Longer cable length means higher resistance, which means lower voltage at the far end [cablematters]
Best practices from real installations
- Choose solid pure copper Cat6, not CCA, for better current carrying capacity
- Use higher‑power PoE injectors or switches (for example, PoE+) when powering power‑hungry PTZ cameras at longer distances [cctvcameraworld]
- Avoid daisy‑chaining passive splitters; use proper extenders or switches that comply with the PoE standard [addcomnc]
If you notice random camera reboots at night, or when IR turns on, consider:
1. Measuring voltage at the camera under load
2. Shortening the run or moving to a higher‑power PoE source
3. Adding a field PoE switch powered locally

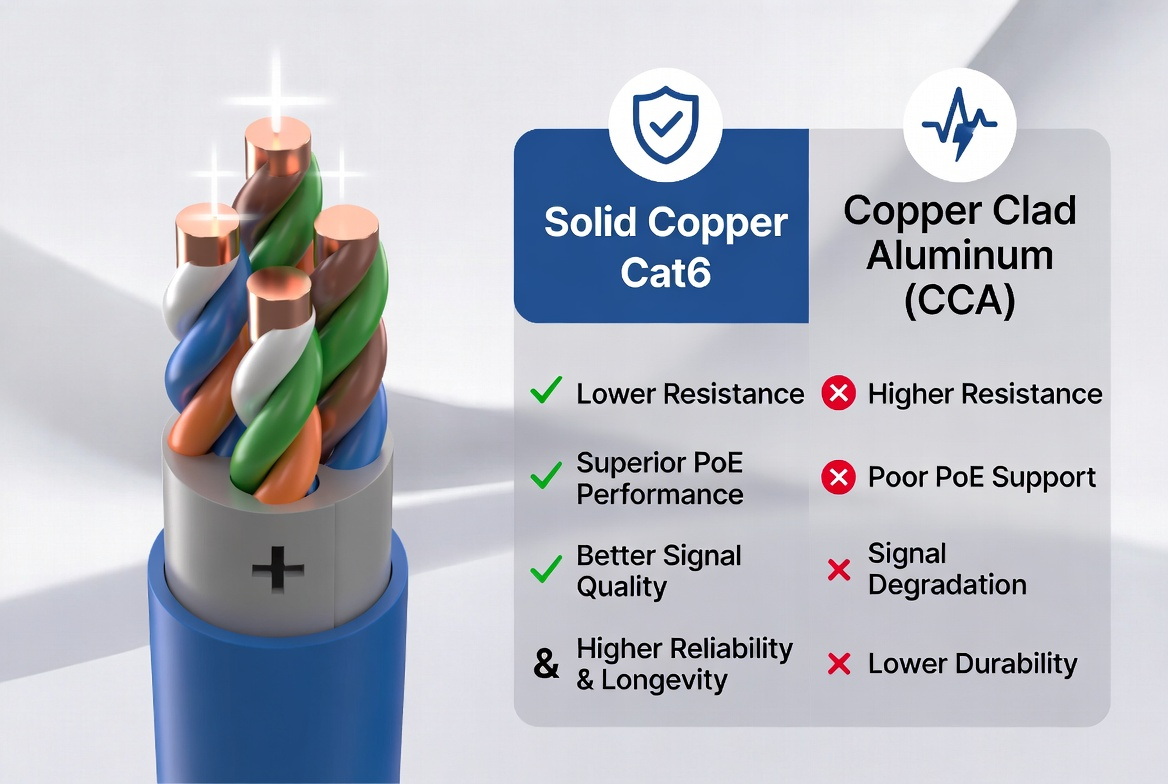

From a manufacturer's standpoint, we can confirm that cable construction and installation quality directly change the "real" maximum distance you can safely run. [backstreet-surveillance]
- Solid copper Cat6 offers lower resistance, better PoE performance, and more reliable high‑frequency transmission. [cablematters]
- Copper‑clad aluminum (CCA) is cheaper but causes higher voltage drop and may fail to meet Cat6 transmission specs at full distance. [cablematters]
Professional installers treating surveillance as mission‑critical almost always specify solid copper cable.
- Unshielded twisted pair (UTP) Cat6 is enough for most indoor and low‑noise environments
- Shielded Cat6 (STP or FTP) is advisable when:
- Running near high‑voltage lines
- Running outdoors where lightning and EMI are factors
- Running in industrial environments with motors or heavy equipment [backstreet-surveillance]
Proper grounding is essential when you choose shielded cable; otherwise, shield can act as an antenna.
Based on best practices:
- Avoid running Ethernet in the same conduit as mains power or attaching cables to hot water pipes [backstreet-surveillance]
- Do not route cables directly over fluorescent fixtures or high‑heat sources [backstreet-surveillance]
- Protect outdoor cable with conduit or raceway, and avoid long stretches in direct sunlight [backstreet-surveillance]
- Add 5–10 feet of slack per run to simplify termination and future maintenance [backstreet-surveillance]
These steps do not change the formal 100 m limit, but they help ensure that your installation meets that limit in reality, not just on paper.
In everyday IP camera deployments, Cat5e is still common and fully capable of handling the data rate of typical cameras. [reddit]
You should consider Cat6 over Cat5e when:
- You need better noise margin or want to future‑proof for higher bitrates
- Cable will run through electrically noisy or industrial environments
- You want to standardize new builds on a newer category, while older runs remain Cat5e [showmecables]
However, for most PoE cameras, you will not see a significant image quality difference purely from Cat6 vs. Cat5e if both are high‑quality, correctly installed, and within the 100 m limit. The main benefit is headroom and reliability. [reddit]
To help you translate these principles into action, here is a simple step‑by‑step framework we use when advising customers.
- Measure pathway distance from NVR/PoE switch to each camera
- Add vertical distances and routing detours
- Add at least 5 ft (1.5 m) of extra cable per run for service slack [backstreet-surveillance]
- ≤ 100 m (328 ft): Standard Cat6 PoE run
- 100–200 m: Plan for PoE extender or field PoE switch
- > 200 m: Consider fiber backbone plus short Cat6 drops [amissiontech]
- For each camera, note PoE class and max power draw
- Ensure PoE switch or injector supports adequate power on that port
- For long runs with high‑power devices, prioritize solid copper and thicker gauge if available [cctvcameraworld]
- Avoid high‑voltage and high‑heat routes [backstreet-surveillance]
- Prefer attics, crawl spaces, and conduit for outdoor transitions [backstreet-surveillance]
- Protect connectors from moisture and UV with proper junction boxes and covers [addcomnc]
- Test each run with a cable tester or at least by observing link speed and PoE stability under load
- Label both ends of each cable
- Keep a simple map or spreadsheet of distances, routes, and device types for future maintenance
Imagine a 4 MP PoE camera mounted on a pole in a parking lot, roughly 180 meters (590 ft) from the building's network closet.
A robust, standards‑friendly design would be:
1. Run 100 m solid copper Cat6 from the PoE switch to a waterproof junction box on a nearby intermediate pole.
2. Install a PoE extender or small PoE switch in the box. [cctvcameraworld]
3. Run a second up‑to‑100 m Cat6 segment from the box to the camera. [cablematters]
Each Ethernet segment stays within the 100 m limit, but the overall path from host to camera is closer to 200 m. With high‑quality components, this setup can run reliably for years. [cctvcameraworld]
For more than 200 m—say cameras on a remote gate—you would instead run fiber from the building to a gate‑side PoE switch, then short Cat6 runs to each camera. [amissiontech]
As resolutions and frame rates climb, the network backbone becomes more critical than the last 100 m to each camera.
You should consider fiber or higher‑category cabling when:
- Your NVR or core switch must aggregate dozens of high‑bitrate 4K streams
- You have long campus‑style installations with multiple buildings
- You anticipate upgrading to higher frame rates, analytics, or multi‑sensor devices [addcomnc]
Typical upgrade pattern
- Keep Cat6 (or Cat5e) for the last 0–100 m to each camera
- Use fiber uplinks between buildings, poles, and distribution points
- Reserve Cat6a or better for noisy environments or where you need additional margin at 10 Gbps in the backbone [showmecables]
This hybrid approach delivers excellent cost‑to‑performance while keeping the core network flexible for future expansion.
Use this quick checklist when planning or reviewing a surveillance project:
- Do all single segments stay ≤ 100 m (328 ft)? [showmecables]
- Are you using solid copper Cat6 from a reputable manufacturer? [cablematters]
- Have you identified any runs over 100 m and chosen PoE extenders, field switches, or fiber where needed? [amissiontech]
- Will any cable run parallel to mains, over fluorescent lights, or near high‑heat sources, and have you rerouted or added shielding? [addcomnc]
- Are outdoor segments protected in conduit or raceway, with weather‑proof enclosures for all connectors? [addcomnc]
- Is your PoE switch rated for the power class of each camera, especially PTZ and IR models? [cctvcameraworld]
If you can confidently answer "yes" to these questions, your Cat6 runs are very likely to perform reliably at or near the 100 m standard limit.
As a dedicated Chinese manufacturer (Shenzhen Otechkabel Electronic Co., Ltd) specializing in USB, VGA, HDMI, DVI, SATA, and Ethernet cables, we supply OEM‑grade Cat6 solutions tailored to security integrators, brands, and system builders around the world.
For CCTV and IP camera projects, we can provide:
- Solid copper Cat6 and Cat6a bulk cable designed for PoE
- Indoor and outdoor‑rated jackets, including UV‑resistant and LSZH materials
- Optional shielded constructions for industrial or high‑EMI environments
- Custom pre‑terminated Cat6 patch cords in specific lengths and colors
- Matching HDMI, USB, and other interconnects to complete your system wiring
If you are planning a surveillance rollout or refreshing older analog systems to IP, our engineering team can help you design cable configurations that balance distance, power, and cost without sacrificing reliability.
The widely accepted maximum is 100 meters (328 feet) per Ethernet standards, including patch cords and horizontal cable. [cloud.tencent]
It is possible in some cases, but you are operating outside the Ethernet specification, and the link may become unstable over time or under different loads and temperatures. [reddit]
Both can support typical camera data rates, but Cat6 offers more headroom and better noise margin, which can help in longer or noisier runs when paired with solid copper conductors. [reddit]
Consider fiber when your camera runs approach or exceed 200 m, when you have multiple buildings, or when backbone bandwidth becomes a bottleneck due to many high‑resolution streams. [amissiontech]
Yes, provided they are installed in appropriate weather‑proof enclosures, properly powered, and used within their rated distance and power specifications. [addcomnc]
