MIDI cables and XLR cables are not the same and are not interchangeable in normal use. [pcm-cable]
- MIDI is for transmitting digital control data between instruments and devices (notes, velocity, control changes, sync). [pcm-cable]
- XLR is for transmitting balanced analog or digital audio signals (and sometimes control or power) over longer distances with strong noise rejection. [youtube]
If you plug a microphone into a MIDI input, nothing useful happens. If you try to send audio through a standard MIDI input, you won't get sound as expected. The systems are built for different signal types, even though both use round connectors and professional‑grade cabling. [pcm-cable]
From a practical point of view, a MIDI cable is the "language cable" between musical devices rather than an audio pipe. [youtube]
- Signal type: Digital serial data, 31.25 kbit/s, unidirectional per cable. [pcm-cable]
- Typical connector: 5‑pin DIN plug, with specific pins used according to the MIDI standard. [youtube]
- Purpose: Send messages such as note on/off, program change, control change, clock, and sync between keyboards, controllers, drum machines, DAW interfaces, and lighting controllers. [pcm-cable]
- No audio: MIDI does not carry sound; it only carries instructions. [pcm-cable]
In live rigs and studios, I see MIDI cables used for:
- Linking a master keyboard to multiple sound modules
- Syncing drum machines and DJ gear
- Automating patch changes on guitar multi‑FX processors
- Controlling lighting scenes from a MIDI‑to‑DMX controller
Most standard MIDI cables use shielded multi‑core cable with enough integrity to protect the digital signal over moderate distances. [pcm-cable]
- Typical reliable length: Up to around 15–50 feet for standard, passive MIDI cables, depending on cable quality and device design. [reddit]
- For longer runs on stage, many technicians prefer MIDI‑over‑XLR or other differential formats to maintain signal reliability. [reddit]
For OEM projects, I often recommend:
- Consistent impedance and shielding for reliable data transfer
- Strain relief and molded connectors for tour‑grade durability
- Clear direction marking (MIDI IN/OUT/THRU labeling) on custom cables or panels
An XLR cable is the workhorse of professional audio for balanced signals. [youtube]
- Connector type: 3‑pin (most common), with 4, 5, 7 pins used in specialty applications. [pcm-cable]
- Signal type: Balanced analog audio (microphone, line level), AES/EBU digital audio, sometimes control signals and phantom power. [youtube]
- Typical uses:
- Microphones to mixing consoles
- Stage boxes/snakes to FOH mixers
- Powered speakers and monitor sends
- AES/EBU digital audio links
Balanced XLR wiring uses:
- Pin 1: Ground/shield
- Pin 2: Hot (+)
- Pin 3: Cold (−)
This configuration provides excellent common‑mode noise rejection, which is why XLR is trusted for long runs in noisy environments like stages and industrial facilities. [pcm-cable]
- Long cable runs (30–100+ meters) with low noise and stable level
- Phantom power support for condenser microphones, typically 48 V delivered over the same cable [pcm-cable]
- Robust locking connector that resists accidental disconnection and mechanical stress [pcm-cable]
As a cable manufacturer, this is one of the most common OEM product lines we support, especially for brands that sell microphones, mixers, and stage boxes.

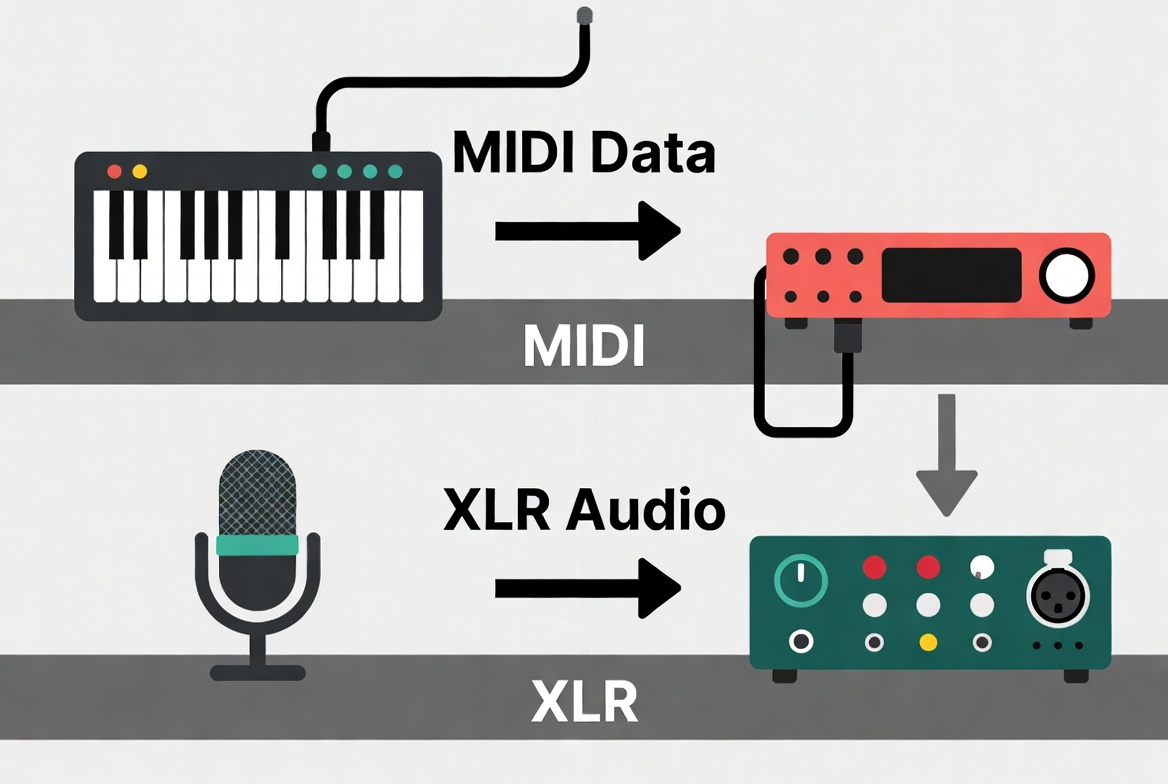

The table below summarizes the most important technical and practical differences. [reddit]
| Aspect | MIDI Cable | XLR Cable |
|---|---|---|
| Primary function | Digital control data between devices pcm-cable | Balanced audio (analog or AES/EBU digital) pcm-cable |
| Typical connector | 5‑pin DIN plug pcm-cable | 3‑pin XLR plug/socket pcm-cable |
| Carries audio? | No, only digital messages pcm-cable | Yes, audio signals and sometimes phantom power pcm-cable |
| Direction | Unidirectional per cable pcm-cable | Bidirectional (separate cables per direction) |
| Typical use cases | Keyboards, controllers, drum machines, lighting control pcm-cable | Microphones, mixers, PA systems, stage boxes pcm-cable |
| Run length | Short to medium; longer runs need boosters/adapters reddit | Long runs with good noise rejection pcm-cable |
| Sensitivity | Sensitive to electrical noise on long runs | Designed to reject hum and RF noise pcm-cable |
| Power over cable | Not designed for power | Can carry phantom power for mics pcm-cable |
For end‑users, the most important takeaway is this: do not treat a MIDI cable as an audio cable, and do not assume an XLR mic cable can plug directly into MIDI ports without proper adapters. [reddit]
This is where things get more nuanced, especially for stage techs and system integrators.
In many touring setups, technicians run MIDI data over XLR cables using dedicated adapters or interface boxes. [reddit]
- The XLR cable acts as a physical transport layer, benefiting from its robust build and shielding. [reddit]
- The electronic format is still MIDI or a related differential format internally, sometimes converted to RS‑422 for very long runs. [reddit]
Field experiences shared by live sound engineers show that:
- Short to medium XLR runs with suitable adapters can carry MIDI reliably. [reddit]
- For runs beyond 50 feet, some setups use line drivers, repeaters, or format converters to maintain data integrity. [reddit]
- Do not plug a MIDI device directly into an XLR mic preamp without a proper converter.
- Do not send phantom power into adapters or devices not designed to receive it.
- Do not assume an XLR run automatically "converts" MIDI into audio—it does not.
If your rig needs this kind of flexibility, an OEM partner can build custom MIDI‑to‑XLR looms and panels with clear labeling, color coding, and integrated strain relief to make touring setups both robust and easy to understand.
Drawing on real projects with musicians, integrators, and overseas buyers, a few patterns repeat themselves.
- MIDI: Short DIN cables from controllers to audio interfaces or synth racks.
- XLR: Balanced mic lines from vocal booths and live rooms back to the control room.
In project studios, the biggest risk is usually cable clutter and mislabeling, which is why we often recommend:
- Color‑coded jacket or boots for MIDI vs XLR
- Printed length and purpose on the cable jacket (e.g., "3 m MIDI – Controller A")

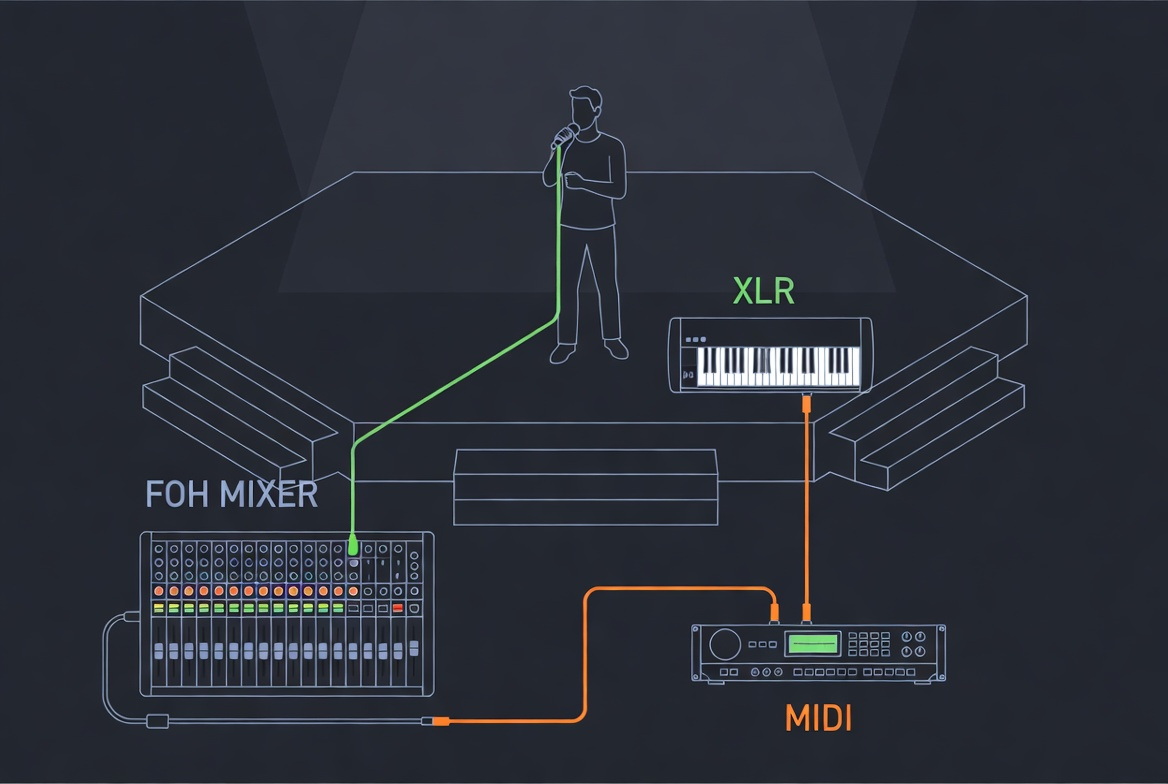

- MIDI over XLR is quite common for long stage runs, especially where existing XLR multicore looms are already installed. [reddit]
- XLR carries microphones, DI boxes, and monitor sends, often over tens of meters. [youtube]
Here, durability and fast troubleshooting matter more than minor cost differences, so we focus on:
- Heavier‑duty outer jackets and stage‑grade strain relief
- Label sleeves and consistent pinouts across all custom cables
- Optional branding for tour providers or rental companies
For brands and distributors, the key value points are:
- Custom branding, labeling, and packaging for different regions
- Consistent electrical performance and QC testing (continuity, insulation, shielding, pull strength)
- Ability to supply multiple ranges: entry‑level, pro‑audio, and broadcast‑grade
A manufacturer that already produces USB, HDMI, VGA, DVI, and SATA cables typically has the process discipline and test equipment needed to deliver stable MIDI and XLR lines as well, including automated continuity testers and impedance checks.
From a user's point of view, the choice is linked to the job you need to do.
- You need to control instruments or devices (notes, patches, automation). [pcm-cable]
- You are connecting MIDI OUT to MIDI IN between keyboards, controllers, sequencers, or drum machines. [pcm-cable]
- You are syncing devices using MIDI clock or time code.
- You are carrying audio signals, such as microphones, DI boxes, or line‑level outputs. [youtube]
- You need long runs with good noise rejection across a stage or building.
- You need to supply phantom power to condenser microphones or active DI boxes. [pcm-cable]
If your system needs both, many professionals standardize on separate, clearly labeled looms or harnesses: one for audio (XLR, TRS) and one for control (MIDI, network, DMX).
Here is a simple, actionable checklist you can use whether you are a musician buying a few cables or a purchasing manager placing a bulk order.
- Audio only: Choose XLR (or TRS, depending on equipment). [youtube]
- Control data (MIDI): Use 5‑pin DIN MIDI cables or MIDI‑over‑USB interfaces. [pcm-cable]
- Hybrid or long‑run control: Consider MIDI‑over‑XLR solutions with proper adapters. [reddit]
- Home studio: Shorter cables (1–5 m) for tidy setups.
- Stage and touring: Longer runs (10–30+ m), more mechanical stress, higher risk of interference.
For harsh environments, look for tough outer jackets, enhanced shielding, and secure connectors rated for repeated plugging/unplugging.
For both MIDI and XLR, check for:
- Oxygen‑free copper conductors for better conductivity and long‑term stability [chinatopcable]
- Multi‑layer shielding (foil + braided copper) to minimize hum and RF noise in demanding environments [chinatopcable]
- Molded or metal strain relief to prevent conductor breakage at the connector [chinatopcable]
These are standard features in higher‑end OEM cables for export markets.
- Verify pinouts match your system standard (especially when using custom or adapter cables).
- Ensure clear labeling: "MIDI," "Mic," "AES/EBU," etc., plus length and direction if needed.
For brands, print and sleeve options make it easy to align with your product hierarchy (e.g., "Studio Series," "Tour Series").
If you are a brand owner, wholesaler, or equipment manufacturer, off‑the‑shelf cables may not be enough.
Custom OEM solutions can help when you need:
- Pre‑bundled looms combining XLR, MIDI, and power for specific rack or stage setups
- Color‑coded or laser‑marked connectors for faster setup and troubleshooting
- Region‑specific packaging and labeling for different retail markets
- Specific compliance requirements, such as RoHS, REACH, or other certifications
A mature cable manufacturer in Shenzhen with experience in USB, VGA, HDMI, DVI, SATA and other data cables is typically well‑positioned to produce high‑volume, consistent‑quality MIDI and XLR lines under OEM agreements, including private‑label branding and custom packaging for global distribution. [blog.animonlive]
If you are planning a new studio, upgrading a live rig, or sourcing cables for resale, choosing the correct MIDI and XLR cables up front will save you from noise problems, failed shows, and unnecessary returns.
Work with a specialized cable manufacturer that understands both audio applications and digital data lines and can provide OEM or bulk solutions customized to your brand, technical spec, and market standards. [kunocreative]
Reach out to our team with your required lengths, connector types, and application scenarios, and we can recommend or design a cable series that fits your exact needs.
No. MIDI and XLR use different connectors, pinouts, and signal types, so a standard MIDI cable will not work in an XLR mic or line input. You would need a purpose‑built adapter or interface and a clear reason to route MIDI data over XLR. [reddit]
No. MIDI cables carry digital control messages, not audio signals. To send audio, use XLR, TRS, RCA, or another appropriate audio cable matched to the input and output on your devices. [youtube]
Because balanced XLR cables provide strong noise rejection over long cable runs and can also deliver phantom power to condenser microphones. This makes them ideal for both studio and live sound environments. [youtube]
For long distances on stage, MIDI over XLR (using correct adapters or converters) can be more robust because XLR cables are better shielded and more durable. However, it must be implemented correctly to avoid signal and phantom‑power issues. [reddit]
Look for oxygen‑free copper conductors, multi‑layer shielding, solid strain relief, and robust connectors, especially if you are using the cables in demanding live or industrial environments. For OEM or bulk orders, add consistent labeling, length markings, and brand customization to support your logistics and marketing. [chinatopcable]
