When I started supporting NMEA 2000 installations years ago, I used to assume that any cable with a Micro‑C connector would "just work." Then I spent a summer troubleshooting intermittent depth readings, frozen chartplotters, and dropouts caused by cheap, poorly shielded cables that technically "fit" the connectors—but failed in the real marine environment. [wiringharnessnews]
Today, when I advise OEMs and boat owners, I always stress this: NMEA 2000 is a standard, but NMEA 2000 cables are not all created equal. [panbo]
NMEA 2000 (N2K) is a marine communication standard based on CAN bus, used to connect engines, GPS, depth sounders, chartplotters, radars, sensors and displays on one shared network. [digitalyacht]
In a typical installation, every device on the boat—engine gateway, wind sensor, AIS, autopilot—shares data through a backbone and short device drops. If the cabling is undersized, poorly shielded or not truly marine‑grade, you can see: [csselectronics]
- Random device resets or "no NMEA 2000 data" alarms
- Data lag or frozen updates on the MFD
- Network voltage drops and brownouts when multiple devices are active
- Intermittent faults that disappear at the dock and reappear offshore
That is why professional installers treat NMEA 2000 cabling as a critical system component, not a commodity accessory. [yachting-pages]

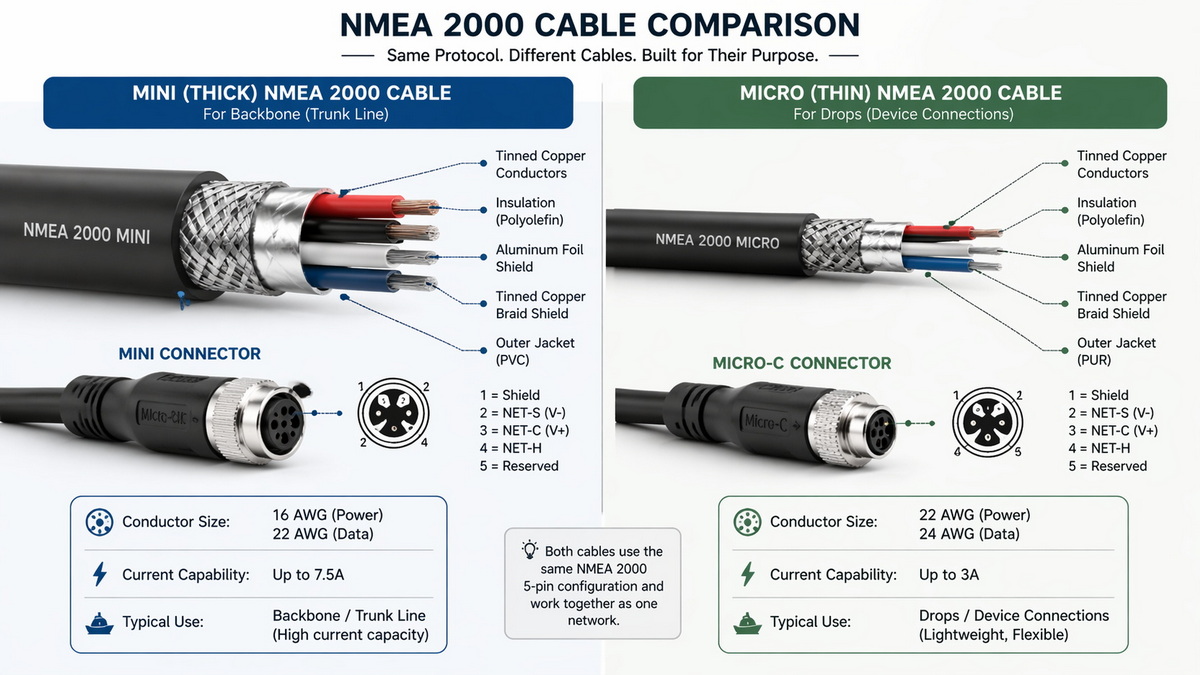

The original article correctly notes there are different NMEA 2000 cable types, but in practice you need to distinguish between backbone, drop, and T‑connectors—and also between mini/thick and micro/thin physical sizes. [panbo]
Backbone cables form the main "spine" of the NMEA 2000 network and carry power and data to all devices. [digitalyachtamerica]
Key characteristics: [digitalyacht]
- Designed for continuous runs along the boat
- Often mini/thick cable for higher current (4–8 A per leg on larger vessels)
- Typically male connectors on both ends, using T‑connectors to attach devices
- Must respect maximum backbone length (commonly up to 100 m for micro‑c networks)
If you undersize the backbone or mix cheap, non‑approved cable, you risk voltage drop and network instability as the system grows. [digitalyachtamerica]
Drop cables connect individual devices (sensors, displays, engines) to the backbone via T‑connectors. [yachting-pages]
Typical properties:
- Usually micro/thin cable with Micro‑C connectors
- Maximum single drop length is typically 6 m (about 20 ft)
- Total combined length of all drops is usually limited to around 76–78 m on a micro network
- Shorter drops are better for signal integrity and voltage stability
Many DIY installs fail because drops are extended beyond spec "just this once"—which often works at the dock but causes issues under load. [yachting-pages]
T‑connectors create the branch from backbone to drop; end terminators, power‑T and multi‑port tees complete the physical network. [actisense]
When evaluating T‑connectors and accessories, check for: [actisense]
- True NMEA 2000 / DeviceNet‑compatible pinout
- Waterproof rating (typically IP67/IP68)
- Corrosion‑resistant materials suitable for marine use
- Mechanical robustness for vibration and repeated plugging/unplugging
One of the most misleading ideas in the market is "as long as it has a Micro‑C connector, it's fine." Real‑world performance depends on compliance with NMEA and DeviceNet physical standards and marine cable standards. [web.nmea]
High‑quality NMEA 2000 cables typically follow: [wiringharnessnews]
- DeviceNet (ODVA) physical layer for Micro‑C connectors and cabling
- Correct conductor sizing for current and voltage drop limits
- Proper twist and shielding for EMI resistance on a CAN bus
- Marine‑grade insulation and jacket materials suitable for moisture, fuel, oil, and temperature extremes
Marine electrical standards such as UL 1426 and IEC marine cable standards also influence material and construction choices to ensure durability on boats. [oceanicgms]
The National Marine Electronics Association maintains a list of approved cables and connectors that meet the NMEA 2000 specification. [web.nmea]
Why certification matters: [web.nmea]
- Ensures electrical characteristics match N2K requirements
- Validates connector pinout and mechanical design
- Increases interoperability between devices from different brands
- Reduces risk of "ghost" problems blamed on electronics rather than cabling
For OEMs, using certified or certifiable cables and connectors is a strong signal of authoritativeness and trustworthiness in the marine electronics ecosystem. [fullthrottlemedia]
So, are all NMEA 2000 cables the same? No—and here are the factors that actually differ between products. [csselectronics]
High‑quality NMEA 2000 cables typically feature: [oceanicgms]
- Tinned copper conductors for corrosion resistance
- Consistent conductor size and lay to meet impedance and voltage drop targets
- Robust shielding (foil and/or braid) to protect CAN bus signals
- Low‑smoke, halogen‑free options for safety in enclosed spaces on some vessels
Low‑cost generic cables often cut corners on copper quality, shielding, and jacket materials. These differences only become obvious after months of heat, vibration, and salt exposure. [oceanicgms]
Even when two cables use the same Micro‑C form factor, connector quality varies. [digitalyachtamerica]
Important connector attributes:
- Precision molding and pin alignment for reliable mating
- O‑ring and seal design for long‑term waterproofing
- Metal vs plastic shells for mechanical robustness
- Plating and corrosion resistance in a salt‑fog environment
Manufacturers that perform salt‑spray and prolonged submersion testing can legitimately claim higher reliability in harsh marine applications. [pcm-cable]
Marine cables must survive: [wiringharnessnews]
- Continuous vibration and flexing
- Salt water exposure and salt‑fog atmosphere
- UV, heat, and changing temperatures
- Contact with fuel, oil, and cleaning chemicals
This is where a factory's process control and material selection matter more than the label on the connector. A cable that passes laboratory tests but fails in the field erodes user trust very quickly. [oceanicgms]
Below is a practical summary you can use (or adapt as an infographic on your product page):
| Use case | Cable type | Typical size | Max length guideline | Why it matters |
|---|---|---|---|---|
| Main N2K network run | Backbone | Mini or micro | ~100 m backbone | Carries power and data to all devices, critical for voltage stability |
| Device connection to trunk | Drop | Micro/thin | 6 m per drop, ~76–78 m total drops | Exceeding these limits causes data errors and voltage issues |
| High‑current large vessels | Mini backbone | Thick | Per NMEA/device specs | Allows higher current and longer runs on big boats |
| Small boats / simple nets | Micro backbone | Thin | Within micro limits | Compact, flexible, easier routing in tight spaces |
As an installer or boat owner, you do not need to be an electrical engineer, but you should follow a simple, repeatable decision process. [digitalyacht]
1. Map your network layout
List all devices, their locations, and approximate cable runs between them. [actisense]
2. Determine backbone route and length
- Choose mini or micro backbone based on total devices and current draw.
- Check that total backbone length will stay under typical 100 m limits. [panbo]
3. Plan drop cables and check limits
- Keep each drop at or under 6 m where possible.
- Ensure total drop length stays within the 76–78 m guideline. [digitalyachtamerica]
4. Specify marine‑grade, NMEA‑approved cabling
- Choose tinned copper, properly shielded cable.
- Prefer products listed as NMEA 2000‑approved or DeviceNet‑compatible from reputable manufacturers. [csselectronics]
5. Consider environment and protection
- Use additional mechanical protection (conduit, loom) where cable passes through sharp edges or high‑traffic areas.
- Avoid tight bends and chafe points. [wiringharnessnews]
6. Standardize connectors and accessories
- Stick to one connector ecosystem (Micro‑C) across backbone, tees, and drops.
- Avoid mixing non‑standard or home‑made adapters unless you fully understand the wiring. [panbo]

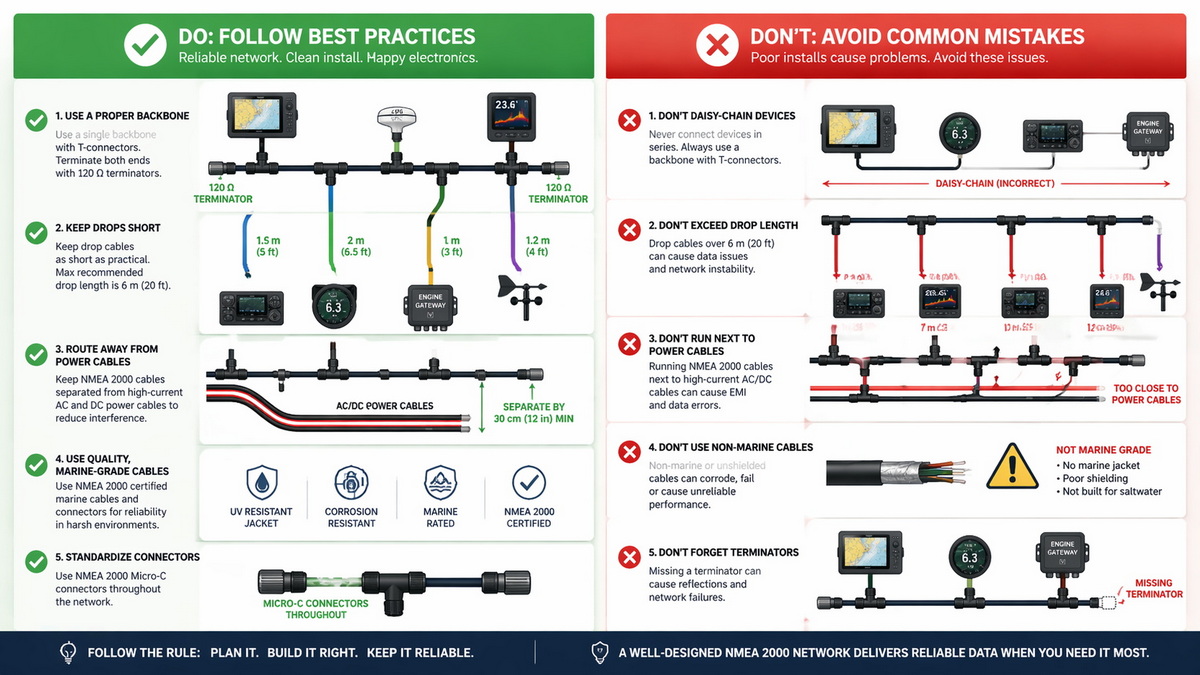

Based on field experience and user reports, most network issues blamed on "electronics" actually trace back to cabling. [yachting-pages]
Typical mistakes include:
- Using non‑marine communication cable that happens to have five cores but lacks proper shielding or jacketing
- Exceeding drop cable length limits in order to reach distant devices
- Mixing uncertified connectors that follow different DeviceNet tolerances or pinouts
- Running NMEA 2000 cables alongside high‑current AC lines, inviting interference
- Daisy‑chaining devices instead of using a proper T‑backbone architecture
A well‑designed OEM cable set helps prevent these mistakes by making the "right way" the easiest way for users. [digitalyacht]
From the perspective of an OEM supplier and a marine electronics specialist, an ideal NMEA 2000 cable partner must deliver more than just correct pinouts. [pcm-cable]
Professional buyers typically evaluate: [web.nmea]
- Verified compliance with NMEA 2000 / DeviceNet mechanical and electrical specifications
- Marine‑grade conductor and insulation (tinned copper, robust jacketing)
- Proven waterproof performance, ideally demonstrated by prolonged submersion tests
- Salt‑spray and corrosion testing for connectors and cable assemblies
- Consistent production quality supported by ISO‑style process controls
Factories that can provide test reports, stable lead times, and flexible OEM customization (lengths, labeling, packaging) have a clear advantage in the NMEA 2000 ecosystem. [oceanicgms]
If we reduce all this to the question boat owners actually ask—"Can I just use any NMEA 2000 cable?"—the practical answer is: You can, but you probably shouldn't. [csselectronics]
Cables that meet NMEA standards, use marine‑grade materials, and respect network design rules provide: [actisense]
- More reliable data sharing between devices
- Fewer intermittent or hard‑to‑reproduce failures offshore
- Better long‑term resistance to corrosion and mechanical wear
- A network that can be safely expanded as new electronics are added
On the other hand, cutting corners on cabling is one of the few decisions that can make every device on the network appear unreliable. [yachting-pages]
If you are designing or upgrading an NMEA 2000 network, here are concrete next steps: [fullthrottlemedia]
1. Audit your existing network layout and cable lengths against NMEA guidelines.
2. Identify any non‑marine or non‑certified cables, over‑length drops, or questionable connectors.
3. Plan a phased upgrade using marine‑grade, NMEA‑compliant cables with Micro‑C connectors.
4. Standardize on one high‑quality OEM supplier for backbone, drops, tees, and terminators.
5. Document your network (diagram, cable lengths, device list) for future expansion and troubleshooting.
If you work with an OEM cable manufacturer, you can also request customized lengths, branding, and pre‑terminated assemblies to reduce installation time and error risk. [pcm-cable]
As a Chinese OEM focusing on USB, VGA, HDMI, DVI, SATA and specialized marine cables, your factory is well‑positioned to supply customized NMEA 2000‑style cables and harnesses for brand owners, wholesalers and device manufacturers. [pcm-cable]
By combining:
- Experience in high‑speed, shielded data cabling
- Rigorous waterproof and salt‑spray testing
- Flexible OEM services (custom lengths, labeling, packaging, overmolding)
you can offer marine electronics brands reliable, competitively priced NMEA 2000 cabling that meets both technical and commercial requirements. [pcm-cable]
A: In many cases, yes—if all components are genuinely NMEA 2000 / DeviceNet‑compatible and follow the same Micro‑C standard. However, mixing uncertified or off‑spec cables increases the risk of mechanical and electrical mismatches, so sticking to one proven ecosystem is safer. [web.nmea]
A: Longer drops increase signal delay and voltage drop, making the CAN bus more prone to errors and device dropouts. That is why most NMEA 2000 guides recommend a maximum of 6 m per drop and a limited total drop length. [digitalyachtamerica]
A: Regular data cable is not designed for continuous vibration, salt, moisture, and temperature swings found on boats. Marine‑grade, tinned copper cables with suitable jacketing significantly extend network life and reliability. [wiringharnessnews]
A: For micro‑cable networks, a typical guideline is up to around 50 physical devices, assuming backbone and drop length limits and voltage drop guidelines are respected. Always check the latest NMEA documentation and device manufacturer recommendations. [digitalyacht]
A: Look for explicit NMEA 2000 certification in product literature or check the NMEA's list of approved cables and connectors. Reputable manufacturers will reference their part numbers and certification status clearly. [actisense]
