As a cable manufacturer who has worked with OEM customers in broadcasting, gaming, industrial control, and legacy AV integration, I still see S‑Video cables quietly doing important work behind the scenes—even in a world dominated by HDMI and DisplayPort. When you are maintaining older equipment, integrating legacy systems, or refurbishing professional AV setups, understanding the different types of S‑Video cables and their real‑world applications can save time, reduce signal issues, and protect your reputation with end users.
S‑Video (Separate Video), also known as Y/C cable or luminance/chrominance separation cable, is an analog video interface that carries the brightness signal (Y) and color signal (C) on separate channels. This separation helps reduce cross‑color and cross‑luminance interference compared with traditional composite video, resulting in a cleaner and more stable image.
From my experience with overseas OEM clients, S‑Video is still widely used in:
- Legacy game consoles and retro gaming setups
- Older VCRs, DVD players, and camcorders
- Professional surveillance and monitoring equipment
- Medical and scientific imaging devices that have not yet been fully digitized
If you are a system integrator, distributor, or brand owner, S‑Video may not be your headline product—but it often becomes the critical link that makes an entire legacy system usable.
Technically, a standard S‑Video cable includes two independent channels:
- Y (luminance): Carries brightness and sync information
- C (chrominance): Carries color information
A typical professional‑grade S‑Video cable uses:
- Two mini‑coax or twisted pairs for Y and C
- Individual shielding for each channel plus overall shielding
- 4‑pin mini‑DIN connectors on one or both ends, depending on the use case
From an OEM manufacturing standpoint, the following design choices matter a lot for actual performance:
- Conductor material: Pure copper vs. CCA (copper‑clad aluminum) has a noticeable impact on signal stability over long runs.
- Shielding design: Braided + foil shielding significantly improves resistance to electromagnetic interference, which is especially important near power cables or industrial machines.
- Connector quality: Gold‑plated contacts and solid strain relief extend lifespan, especially in environments where connectors are frequently plugged and unplugged.
These details are often invisible to end users, but professional buyers—including European distributors and North American brands—reliably report fewer returns and clearer images when they specify better materials and construction.

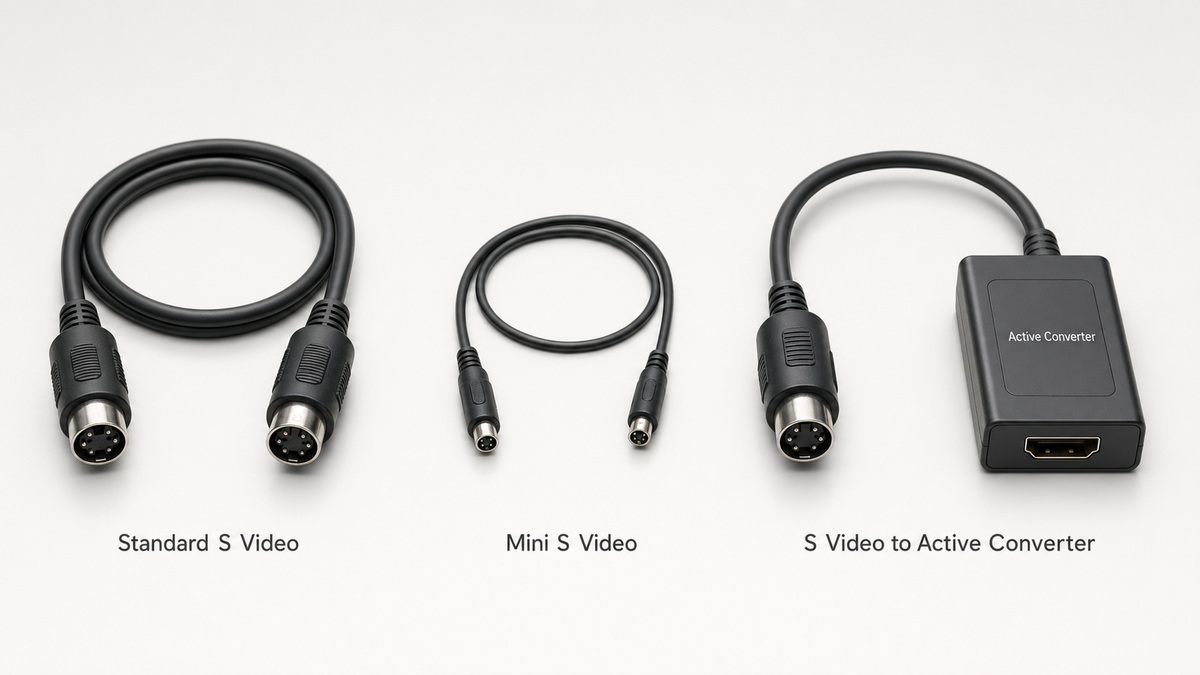

From the perspective of installers and buyers, S‑Video cables can be divided into several practical categories.
The standard S‑Video cable is the most common and is used to connect:
- TVs and monitors
- VCRs and DVD players
- Older set‑top boxes
- Game consoles (PlayStation 1/2, Nintendo 64, etc.)
Key characteristics:
- 4‑pin mini‑DIN plug to 4‑pin mini‑DIN plug
- Typically 1–10 meters in length
- Used for analog video only (no audio)
From field feedback, installers usually choose:
- 1–3 m length for home entertainment
- 5–10 m length for conference rooms, training rooms, and surveillance control rooms
For longer runs, cable quality becomes critical; low‑grade cables tend to show more noise, ghosting, or color bleeding.
Mini S‑Video cables use smaller interfaces designed for compact or portable devices. These were common on:
- Portable DVD players
- Some laptops and graphics cards from the early digital video era
- Compact video devices where board space was limited
Installer tips:
- Always verify the exact pinout and connector type; different manufacturers used slightly different mini‑DIN arrangements.
- Mini connectors are more fragile; for applications involving frequent plugging/unplugging, we recommend enhanced strain relief at both the device and cable ends.
In our OEM projects, we often design custom mini S‑Video assemblies with lockable or reinforced connectors for industrial and medical devices, where accidental disconnections are unacceptable.
With the evolution of AV systems, some integrators require a bridge between analog S‑Video and digital environments. In response, manufacturers have developed S‑Video cables that integrate digital connectivity elements.
Common forms include:
- S‑Video to USB cables (usually with an internal or external capture chipset)
- S‑Video to HDMI converter cable assemblies (paired with small active converter modules)
- S‑Video to fiber assemblies for long‑distance transmission in specialized environments
Important note: in most cases, a simple passive cable cannot convert S‑Video to USB or HDMI. A conversion chipset or external adapter is required to digitize the analog signal. When designing OEM solutions, we usually integrate:
- Shielded analog segment (S‑Video)
- A compact converter module
- A digital output pigtail (USB/HDMI)
This design gives brand owners a clean, single‑cable solution for e‑commerce and retail channels, while still delivering the necessary signal processing inside the assembly.
Although S‑Video has been surpassed by modern interfaces in many scenarios, it is still the most practical option in several real‑world cases.
A large number of:
- Older VCRs and DVD recorders
- Analog camcorders
- Classic gaming consoles
still rely on S‑Video as their best available output option. When these devices are connected via S‑Video instead of composite, users typically see:
- Sharper edges in text and UI
- Less color bleeding around objects
- More stable and comfortable viewing over long periods
For distributors serving retro gaming communities, offering high‑quality S‑Video cables is still a profitable niche, especially when combined with educational content about why S‑Video looks better than composite.
Because S‑Video separates Y and C, it can maintain relatively stable signal quality over longer cable runs than composite in many environments. For example:
- Long analog runs within a building to centralized monitoring rooms
- Temporary installations in training centers, events, or trade shows
In these scenarios, installers often choose thicker cable constructions with better shielding to minimize noise pickup. We frequently manufacture custom S‑Video assemblies in 15–30 m lengths for these projects, using low‑loss coaxial structures to keep the image usable at distance.
Many industrial machines, microscopes, medical imaging devices, and older measuring instruments still output video via S‑Video. These systems are often:
- Highly stable but expensive to replace
- Certified under strict regulatory frameworks
- Used in controlled environments where HD is not strictly necessary
For OEM customers in these verticals, S‑Video remains a reliable and predictable interface. They value:
- Consistent quality across batches
- Long‑term availability of the same cable design
- The option to integrate analog‑to‑digital conversion without redesigning their core equipment
From an expert perspective, it is important to clearly acknowledge S‑Video's limitations so that customers can make the right decision.
Main limitations:
- Limited bandwidth, typically supporting only standard‑definition resolutions
- Susceptible to electromagnetic interference if shielding and routing are poor
- No audio signal; separate cables or combined AV harnesses are needed
- Incompatible with most modern consumer devices without adapters
In projects where customers demand:
- Full HD or 4K image quality
- Integrated audio and control in a single cable
- Minimal analog‑to‑digital conversion steps

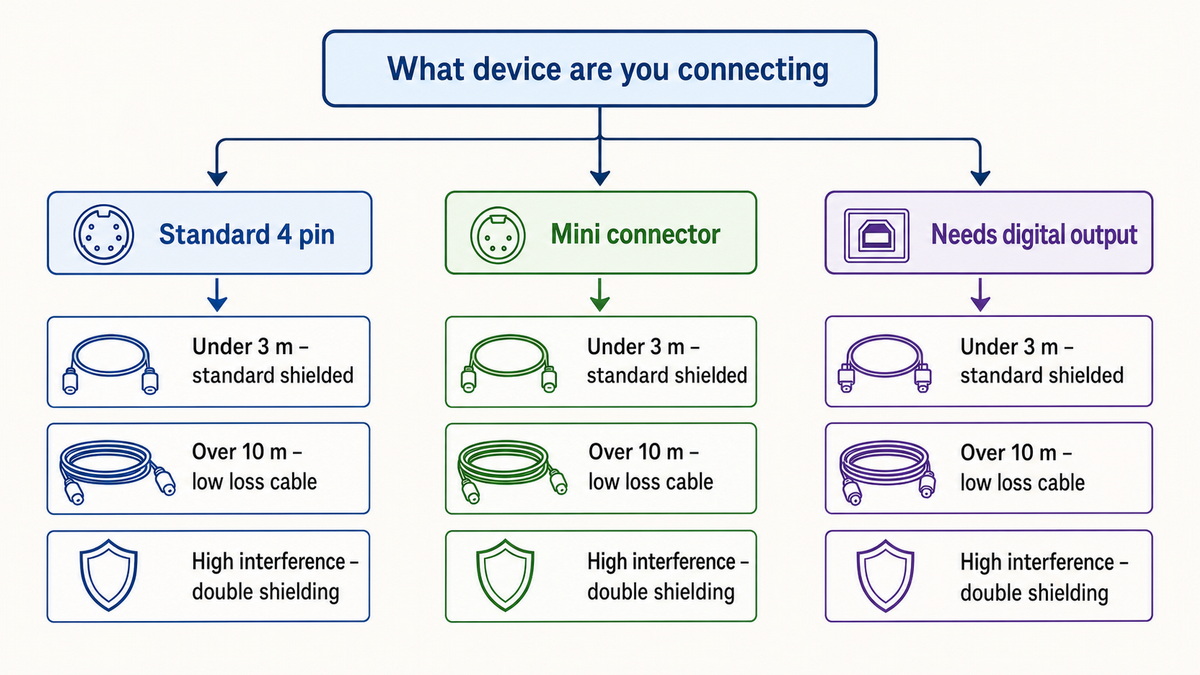

Based on feedback from professional buyers and installers, these are the practical selection criteria that make the biggest difference.
1. Confirm the device interface type
- Standard 4‑pin, mini‑DIN variant, or proprietary connector
- Check both ends: source device and display/recorder
2. Define the transmission distance
- Under 3 m: standard shielded cable is usually sufficient
- 5–10 m: choose better shielding and thicker cable
- Over 10 m: consider low‑loss coax structure or active solutions
3. Assess the environment
- High‑interference (near motors, power lines): use double shielding
- Frequent plugging/unplugging: prioritize connector robustness and strain relief
4. Decide on additional functions
- Need audio together with video: specify combo cable harnesses
- Need conversion to USB/HDMI: integrate or add an active converter
5. Plan for future availability
- For OEMs and brands: lock specifications (materials, pinout, labeling) and ensure long‑term repeatability from the manufacturer.
By following this checklist, buyers can quickly define a repeatable S‑Video specification for their product line instead of purchasing random cables from the market.

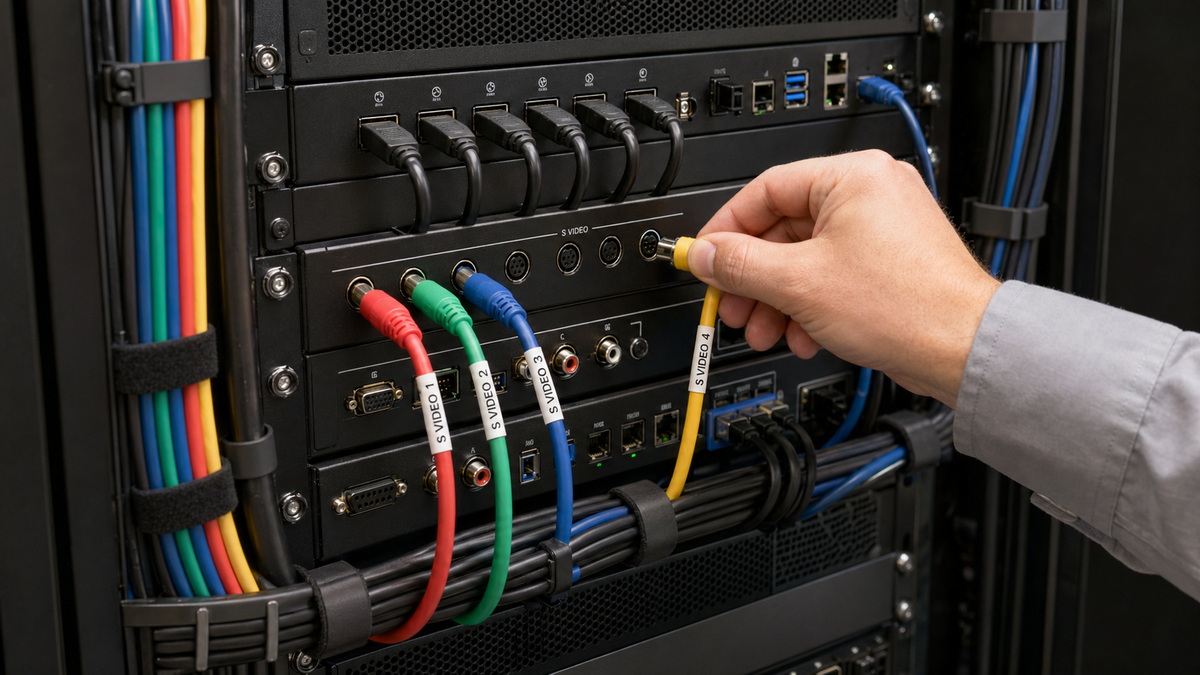

As a Chinese manufacturer specializing in USB, VGA, HDMI, DVI, SATA and various cable assemblies, we have seen a clear pattern among overseas OEM customers: S‑Video is rarely bought as a single retail item; it is usually part of a broader connectivity strategy.
Typical OEM customization options include:
- Custom lengths: Precisely matched to equipment layout (e.g., 1.2 m, 2.5 m, 7 m)
- Color and labeling: Brand‑specific jacket colors, printed logos, and length markings
- Overmolding and strain relief: Tailored for rack mounting, medical carts, or industrial control panels
- Bundle assemblies: S‑Video plus audio, power, or control cables combined into one harness
For distributors and brands, this approach:
- Reduces installation time for end customers
- Creates clear differentiation from generic cables
- Supports higher margins and stronger brand recognition
If you are planning a product line refresh, consider pairing S‑Video SKUs with modern HDMI/USB connectivity in the same catalog so customers can smoothly migrate from analog to digital over time.
Based on real feedback from installers, the following best practices significantly reduce failure rates:
- Avoid sharp bends: Tight radius bends can damage the internal conductors and shielding, especially in long‑term installations.
- Separate from power cables: Route S‑Video away from AC mains and high‑current lines to reduce noise.
- Label both ends: In racks and cabinets, clear labeling prevents accidental mis‑plugging, which is common when multiple black cables look identical.
- Test before closing panels: Always check signal quality before sealing walls, panels, or enclosures; analog issues are easier to fix early.
- Use dust caps for unused connectors in dusty or industrial environments to prolong connector life.
These simple measures often determine whether a system remains stable for years or frequently needs service calls.
| Interface | Signal Type | Max Typical Resolution | Audio Included | Main Use Cases | Notes |
|---|---|---|---|---|---|
| S‑Video | Analog Y/C | Standard definition | No | Legacy devices, industrial, medical, retro gaming | Better image than composite, still analog |
| Composite | Analog | Standard definition | No | Very old TVs and players | Lowest image quality, high interference |
| HDMI | Digital | HD, 4K and above | Yes | Modern TVs, PCs, consoles | One‑cable solution for audio and video |
This type of table helps users quickly understand whether S‑Video is the right choice or if they need to consider a more modern interface.
If you are a brand owner, distributor, or equipment manufacturer working with legacy or mixed analog‑digital systems, high‑quality S‑Video cables are still essential to your product portfolio. By partnering with an OEM manufacturer that also produces USB, VGA, HDMI, DVI, SATA and other cable assemblies, you can:
- Standardize your entire connectivity range
- Ensure consistent quality and performance across analog and digital products
- Simplify procurement and inventory management
You can now:
- Review your current devices and identify where S‑Video is still used
- Define your standard lengths and specifications based on the checklist above
- Contact our engineering team to develop custom S‑Video and mixed‑interface cable assemblies tailored to your market
Yes, S‑Video is still valuable when you need to integrate or maintain existing analog equipment, especially in industrial, medical, and retro gaming applications where device replacement is costly or complex.
No, S‑Video is analog and HDMI is digital, so a simple passive cable cannot convert between them; you need an active converter with a built‑in chipset for reliable operation.
S‑Video separates brightness (Y) and color (C) into two channels, which reduces interference and color bleeding compared with composite, where all information is mixed into a single signal.
For most consumer‑grade installations, up to about 5 m works well; beyond that, using higher‑quality cable and shielding becomes important, and very long runs may require active solutions or alternative interfaces.
It is not recommended; analog signals are susceptible to electromagnetic interference from power lines, so it is better to route S‑Video separately or use cables with enhanced shielding.
