GMSL2 and GMSL3 cables both excel at high‑speed video and data transmission, but they serve slightly different generations of automotive and industrial vision systems. Choosing the right one depends on bandwidth, system architecture, and how future‑proof you want your design to be. [analog]
In this guide, I am writing from the perspective of an engineer who helps OEMs and Tier‑1 suppliers select and qualify GMSL cable assemblies for real vehicles and embedded systems. Over the past few years, my team has supported multiple automotive camera, ADAS, and industrial vision projects moving from GMSL2 to GMSL3, and we have seen where each technology fits best. This article will walk you through the key differences between GMSL2 cable vs GMSL3 cable, practical design tips, and what to consider when sourcing custom cable assemblies from a Chinese OEM like Shenzhen Otechkabel Electronic Co., Ltd. [leopardimaging]
From an engineer's point of view, the most important difference is link bandwidth. [analog]
- GMSL2 cable typically supports up to 6 Gbit/s over coax or shielded twisted pair (STP), which is enough for a single 4K stream (often with display stream compression) or multiple lower‑resolution cameras. [atta.szlcsc]
- GMSL3 cable doubles that to 12 Gbit/s per link, enabling multiple 4K channels, higher frame rates, and more complex sensor fusion over a single physical cable. [linkedin]
Both GMSL2 and GMSL3 were developed by Analog Devices and are widely used in automotive ADAS, surround‑view systems, in‑vehicle infotainment, and increasingly in industrial and robotics applications. [eetimes]
A GMSL cable is not a protocol itself but the physical medium used for the Gigabit Multimedia Serial Link between serializers and deserializers. In practice, most projects use: [pcm-cable]
- 50 Ω coaxial cable with FAKRA, HSD, or custom automotive connectors
- Shielded twisted pair (STP) when harness design or cost targets favor differential pairs over coax [atta.szlcsc]
Both GMSL2 cables and GMSL3 cables can be implemented on coax or STP, provided the cable and connectors meet the attenuation and EMC requirements of the target data rate. For OEMs and harness suppliers, the challenge is optimizing this physical layer for long‑term reliability under vibration, temperature cycling, and electrical noise. [eetimes]

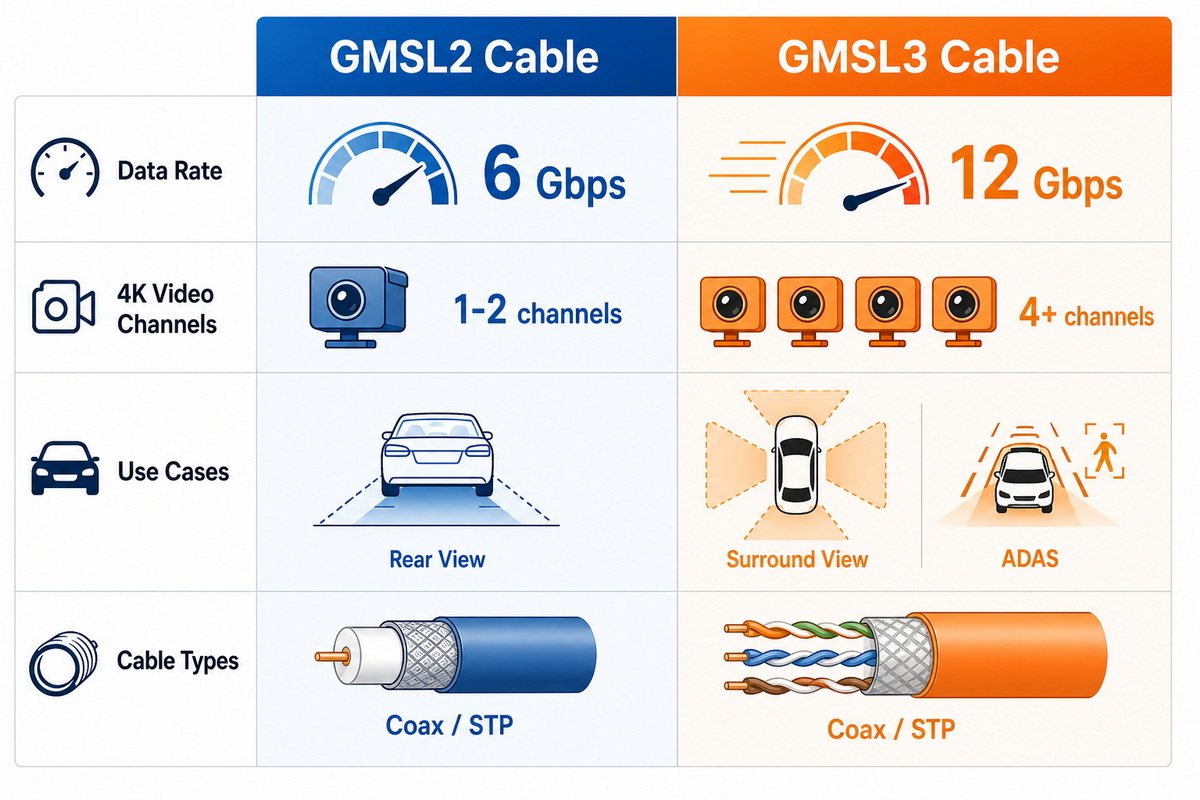

From a system design perspective, you should compare GMSL2 and GMSL3 across bandwidth, video capability, topology, and EM performance. [leopardimaging]
| Parameter | GMSL2 Cable | GMSL3 Cable |
|---|---|---|
| Max forward data rate | Up to 6 Gbit/s | Up to 12 Gbit/s |
| Typical link modes | 3 Gbit/s or 6 Gbit/s | Fixed 12 Gbit/s forward link |
| Reverse channel | ~187.5 Mbit/s control channel | Similar class, optimized with new silicon |
| Video support | Single 4K | Multi‑channel 4K, up to 8K‑class imaging in some systems |
| Medium | Coax or shielded twisted pair | Coax or shielded twisted pair |
| Main use cases | Rear and surround cameras, entry‑level ADAS, infotainment | High‑end ADAS, sensor fusion ECUs, multi‑camera 360° and AR HUD |
| Backward compatibility | N/A | Often supports GMSL2‑like cabling and topologies depending on chipset |
Data rates and capabilities are summarized from ADI product documentation and vendor system descriptions. [linkedin]
On real projects, the 12 Gbit/s of a GMSL3 cable gives engineers headroom for:
- Multiple 4K cameras over one link
- Higher frame rates for perception algorithms
- Additional data such as lidar or radar side channels [analog]
By comparison, a GMSL2 cable works well when you only need one 4K channel (often with display stream compression) or several 1080p cameras. [pcm-cable]

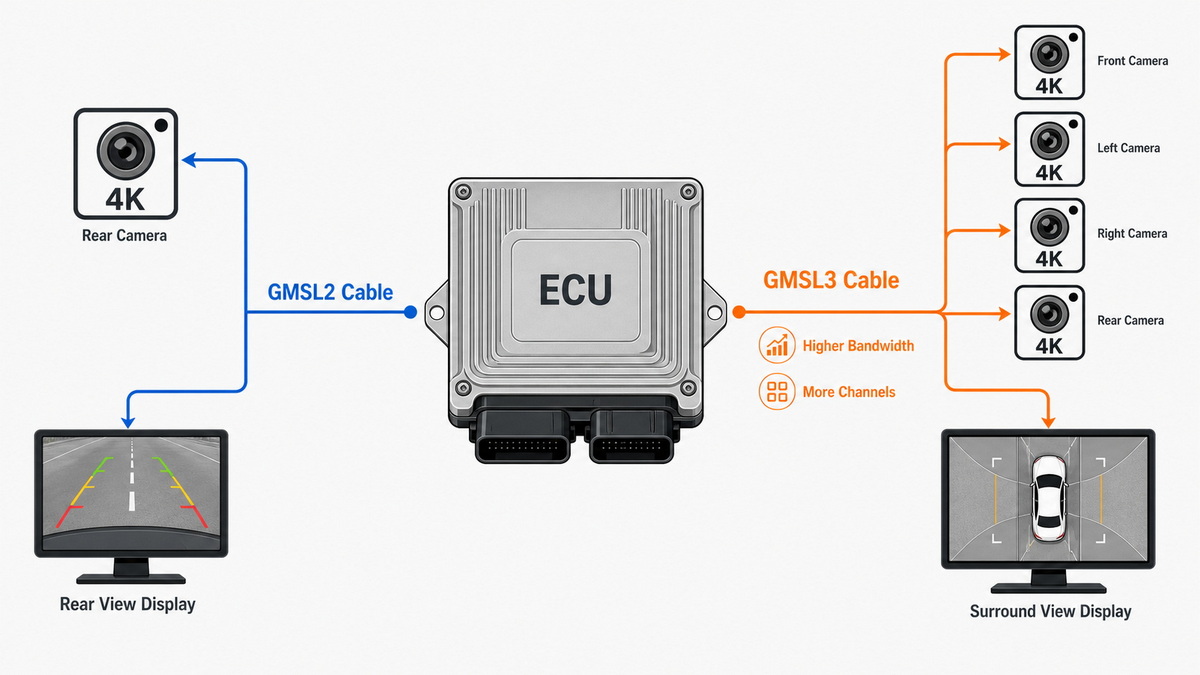

Both GMSL2 cable and GMSL3 cable can be used in point‑to‑point or daisy‑chain architectures. GMSL3, however, is designed with more complex multi‑drop and aggregation scenarios in mind, such as chaining multiple in‑vehicle displays or high‑resolution cameras to a central ECU. [leopardimaging]
When working with OEMs and Tier‑1s, I typically see the following patterns in how GMSL2 vs GMSL3 cables are selected. [linkedin]
GMSL2 cable remains a smart, cost‑effective choice in many projects:
- Rear‑view and surround view cameras in mid‑range cars
- Single 4K display connections where extreme bandwidth is not critical
- Industrial vision systems with short cable runs and limited channel count [atta.szlcsc]
Engineers appreciate that GMSL2 delivers solid performance at lower cost and lower EMC risk than a cutting‑edge, high‑frequency link, especially in vehicles with tight wiring budgets. [eetimes]
For advanced ADAS and automated driving, OEMs are converging on GMSL3 cable because:
- Sensor counts keep increasing and each sensor demands higher resolution
- Aggregation ECUs must ingest multiple parallel video streams
- System architectures favor fewer, higher‑bandwidth links over many small ones [analog]
When I sit down with sourcing teams and design engineers, we rarely talk about protocol first. We talk about cable construction and lifetime reliability. [pcm-cable]
Both GMSL2 cables and GMSL3 cables can use:
- Coaxial cable: excellent shielding, predictable impedance, simpler connectorization
- Shielded twisted pair (STP): better harness flexibility in some layouts, can share harnesses with other differential signals [atta.szlcsc]
However, as the Nyquist frequency of an NRZ link rises (3 GHz for 6 Gbit/s GMSL2, 6 GHz for 12 Gbit/s GMSL3), insertion loss and return loss become much more critical. That is why high‑bandwidth GMSL3 designs require carefully specified low‑loss coax and high‑quality connectors to keep cable lengths practical. [analog]
Vehicles are noisy electrical environments, and camera links must meet stringent EMI and EMC standards. [eetimes]
- GMSL2 already offers robust EMC performance that has been validated in large volumes. [leopardimaging]
- GMSL3 adds enhanced equalization and spread‑spectrum techniques to maintain signal integrity at higher data rates. [eetimes]
From a cabling standpoint, this means consistent shielding, proper grounding, and robust connector design are non‑negotiable, especially at 12 Gbit/s. [atta.szlcsc]
If you have an existing platform based on a GMSL2 cable, you do not necessarily have to redesign everything from scratch to adopt GMSL3. [pcm-cable]
Analog Devices and ecosystem partners are working toward backward‑compatible, multi‑vendor GMSL specifications, so OEMs can gradually move from GMSL2 to GMSL3 without abandoning established cable topologies. In many designs, GMSL3 devices can operate in modes compatible with earlier links or at least reuse similar harness layouts, though exact compatibility depends on the chipset and system design. [analog]

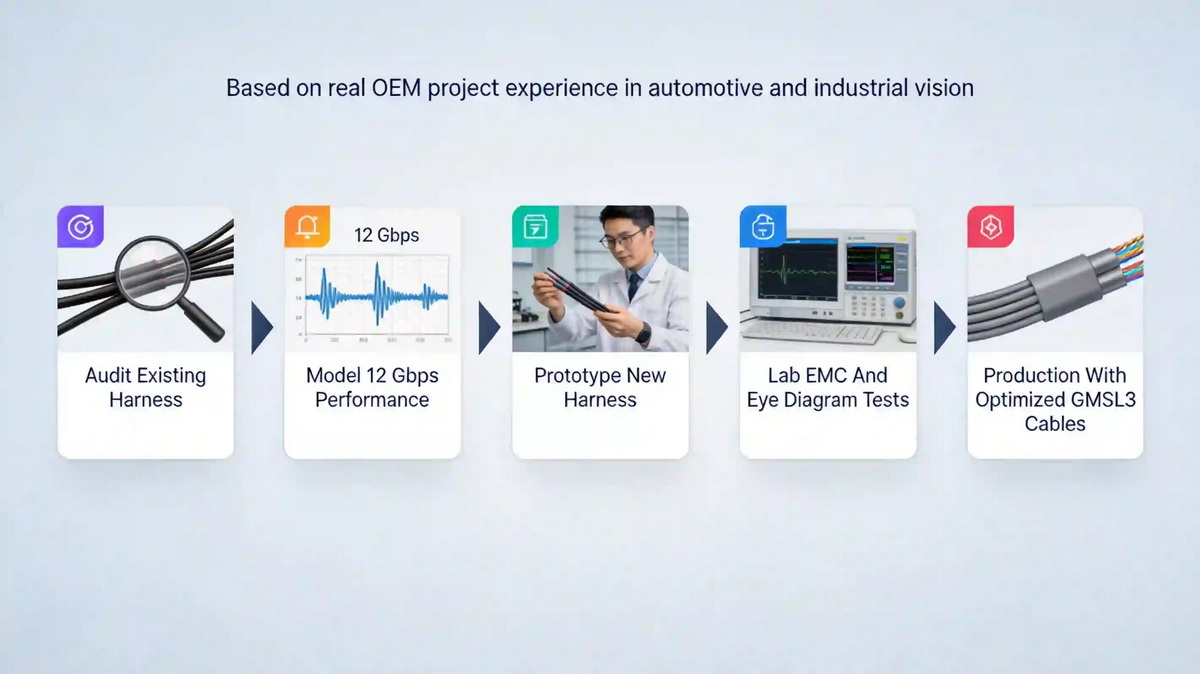

Based on recent migration projects, a typical roadmap looks like this: [leopardimaging]
1. Audit current harness and cable assemblies for insertion loss, return loss, and margin at 6 Gbit/s. [atta.szlcsc]
2. Model 12 Gbit/s performance using vendor reference designs and your current cable specifications. [analog]
3. Prototype new harnesses with upgraded coax or STP and optimized connector sets. [eetimes]
4. Run lab‑level EMC and eye‑diagram tests before committing to a platform‑wide change. [leopardimaging]
5. Work with an experienced cable OEM who can customize cable diameter, shielding, and overmolding for your exact routing constraints. [pcm-cable]
Shenzhen Otechkabel Electronic Co., Ltd, for example, already manufactures USB, HDMI, SATA, and other high‑speed cable assemblies, and can apply similar process control and testing methodology to custom GMSL2 and GMSL3 cable assemblies. [pcm-cable]
If you are specifying cables for a new vehicle or industrial vision platform, use the following framework. [linkedin]
- Choose GMSL2 cable if you only need a single 4K channel or a small cluster of 1080p sensors with modest frame rates. [linkedin]
- Choose GMSL3 cable if your ECU must handle multiple 4K sensors, high frame rates, or future expansion to 8K‑class imaging. [linkedin]
If your platform will ship for 7–10 years, designing around GMSL3 gives you more flexibility to add or upgrade sensors later without redesigning the harness. For shorter‑lived, cost‑sensitive platforms, GMSL2 cable can still be the sweet spot. [linkedin]
- GMSL2 cabling is typically easier to qualify, with more mature EMC data and wider supplier availability today. [eetimes]
- GMSL3 cabling demands higher‑grade materials and stricter process control, which can increase unit cost but reduce overall system complexity by consolidating links. [atta.szlcsc]
When foreign brands, wholesalers, or system integrators look for a cable partner in China, they usually value consistency and engineering support as much as price. Here is a practical checklist based on real sourcing projects: [quickcreator]
1. Protocol familiarity
- The supplier should understand GMSL2 and GMSL3 requirements, not just generic coax or HDMI cables. [analog]
2. Material traceability
- Ask for detailed specifications of inner conductor, dielectric material, shielding layers, and jacket compounds. [atta.szlcsc]
3. Electrical test capability
- Verify that the OEM can run impedance, insertion loss, and return loss tests at relevant frequencies up to at least 6 GHz (for 12 Gbit/s). [analog]
4. Environmental and durability testing
- For automotive and industrial uses, look for vibration, thermal cycling, and humidity test reports. [leopardimaging]
5. Flexible OEM/ODM engagement
- Ensure they can support custom lengths, connector types, overmolding, and labels for different markets. [pcm-cable]
Shenzhen Otechkabel, with its experience in USB, VGA, HDMI, DVI, and SATA cable production, can extend those capabilities to tailored GMSL cable assemblies for camera systems, displays, and sensor links. [pcm-cable]
To illustrate how these factors come together, consider a hypothetical mid‑range SUV program:
- The engineering team initially chooses GMSL2 cables for rear‑view and surround cameras to keep harness costs under control. [analog]
- Two years later, they plan a facelift with more advanced ADAS features and higher‑resolution front cameras, which pushes data requirements beyond what existing GMSL2 links comfortably support. [linkedin]
- Working with their cable OEM, they migrate the front‑camera and sensor fusion links to GMSL3 cables, while reusing the same routing paths and many connectors where possible. [eetimes]
- The result is a hybrid architecture: GMSL2 where bandwidth is stable and cost is critical, GMSL3 where performance and future‑proofing matter more. [leopardimaging]
This kind of staged upgrade is becoming common across automotive and industrial imaging platforms. [linkedin]
If you are planning a new camera or display platform and are still debating GMSL2 cable vs GMSL3 cable, it is usually faster to review your requirements with a cable manufacturer that already understands high‑speed signal integrity. [leopardimaging]
Shenzhen Otechkabel Electronic Co., Ltd can support you with:
- Custom GMSL2 and GMSL3 cable assemblies using coax or STP
- Engineering input on connector selection, harness routing, and shielding
- Flexible OEM/ODM services for branded cables and system‑level integration [pcm-cable]
You can share your block diagrams, expected cable lengths, and bandwidth targets, and we will recommend the most appropriate GMSL cable design for your platform. [atta.szlcsc]
In many cases, you can reuse routing paths and even some connector families, but you will need to validate whether the existing cable construction supports 12 Gbit/s with acceptable loss and EMC performance. Always plan for lab testing rather than assuming full backward compatibility. [eetimes]
Not necessarily; GMSL3 offers twice the bandwidth, but it also imposes stricter requirements on cabling and can increase system cost. For simple camera links or cost‑sensitive platforms, a GMSL2 cable may remain the optimal balance of performance and complexity. [linkedin]
Maximum length depends on cable quality, connector performance, and system design, but higher frequencies at 12 Gbit/s naturally reduce the practical length compared to lower‑speed links. Using low‑loss coax and carefully designed connectors is essential to maintain margin at automotive‑scale distances. [eetimes]
No, GMSL2 and GMSL3 cables are also used in industrial vision, robotics, drones, and transportation systems wherever high‑speed, low‑latency video must travel over long distances in noisy environments. Automotive has been the main driver, but other industries are rapidly adopting the same ecosystem. [analog]
Provide the target protocol (GMSL2 or GMSL3), desired cable length, connector types, operating temperature range, and any EMC or automotive qualifications you require. The more detail you share early, the easier it is for the OEM to design a reliable, cost‑effective GMSL cable assembly. [leopardimaging]
