An RJ45 crossover cable is still one of those "old‑school but essential" tools I reach for when I need to connect two Ethernet devices directly without a switch or router in between. [truecable]
An RJ45 crossover cable is an Ethernet cable wired so that the transmit and receive pairs are crossed between the two ends. In practice, this lets two devices "talk" directly to each other without relying on a hub, switch, or router to handle the signal crossover. [edn]
In my work helping OEM customers troubleshoot networks on production floors, a crossover cable is often the fastest way to:
- Connect two PCs directly for quick file transfer or system imaging. [edn]
- Link two switches or routers when auto‑MDI/MDIX is disabled or unavailable. [truecable]
- Bench‑test industrial Ethernet devices (PLCs, controllers, IP cameras) one‑to‑one. [ascentoptics]
Modern network ports often support auto‑MDI/MDIX, which can automatically adjust to straight‑through or crossover wiring, but many legacy or industrial devices still require a physical crossover cable to link "like‑to‑like" ports reliably. [ascentoptics]
Before you crimp anything, you need to understand the two standard pinouts used on RJ45 connectors:
- T568A: Puts the green pair on pins 1 and 2, orange on 3 and 6. [truecable]
- T568B: Puts the orange pair on pins 1 and 2, green on 3 and 6. [truecable]
From a performance standpoint, both standards behave the same in modern networks; what matters is consistency within a system. For a crossover cable, we intentionally use T568A on one end and T568B on the other so that the transmit and receive pairs are swapped. [truecable]

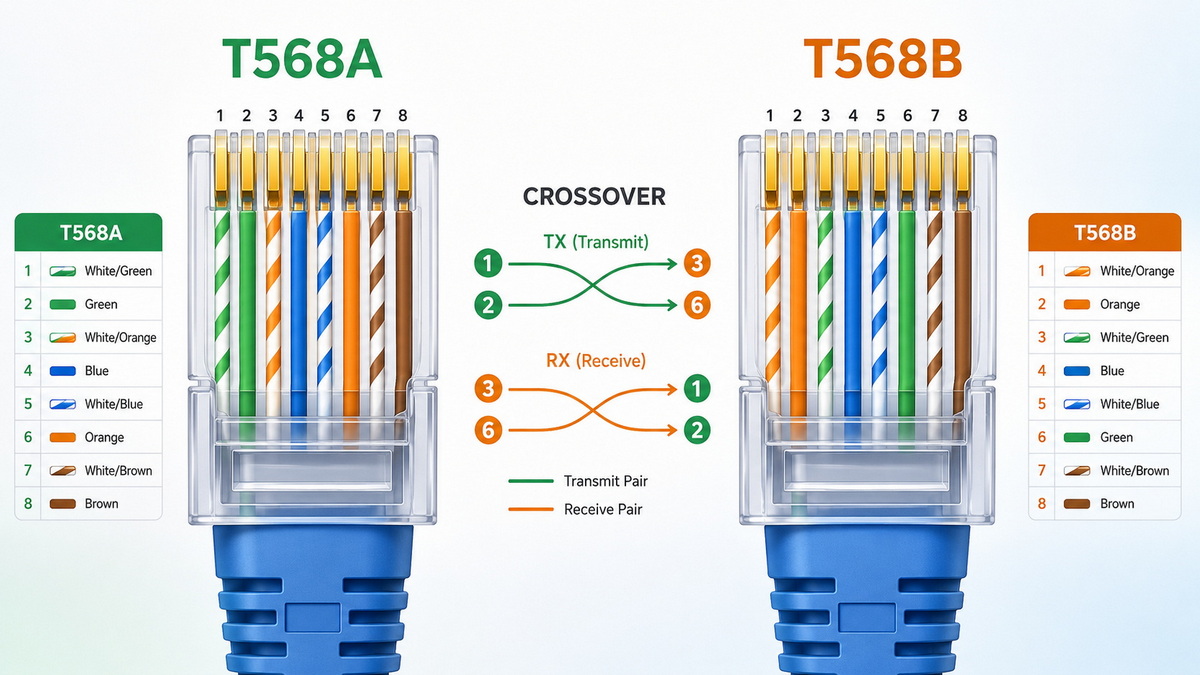

Pinout overview
| Pin | T568A color | T568B color |
|---|---|---|
| 1 | White/Green | White/Orange |
| 2 | Green | Orange |
| 3 | White/Orange | White/Green |
| 4 | Blue | Blue |
| 5 | White/Blue | White/Blue |
| 6 | Orange | Green |
| 7 | White/Brown | White/Brown |
| 8 | Brown | Brown |
For a 100 Mbps crossover, the critical part is that pins 1↔3 and 2↔6 are effectively swapped between ends, because those are the primary transmit/receive pairs in 10/100BASE‑T. [edn]
From a practical manufacturing and field‑service perspective, I recommend the following kit when making a Cat5e or Cat6 RJ45 crossover cable: [tinychen]
- Twisted pair cable: Cat5e or Cat6, solid or stranded, depending on use case.
- Two RJ45 plugs: Choose plugs rated for the cable type (solid vs stranded, Cat5e vs Cat6).
- Crimping tool: A quality RJ45 crimper with good leverage and clean dies.
- Cable stripper: To remove the outer jacket cleanly.
- Side cutters or flush cutters: To trim conductors straight.
- Network cable tester: To verify pair mapping and continuity after crimping.
In OEM environments, we also use pass‑through RJ45 connectors to simplify conductor alignment, especially for new technicians who are still learning color codes. [edn]
The core process in your original article is correct; below is a more detailed, field‑tested version that I use when training technicians. [edn]
1. Measure the required length, adding a little extra for trimming.
2. Use the cable stripper to remove about 2–3 cm of the outer jacket at each end. [tinychen]
3. Inspect the exposed pairs; avoid nicking the insulation on individual conductors.
If you accidentally damage a conductor, cut that end off and start again rather than risk intermittent failures later. [edn]
On the T568A end:
- Arrange the conductors in this order (left to right, pins 1–8):
White/Green, Green, White/Orange, Blue, White/Blue, Orange, White/Brown, Brown. [truecable]
On the T568B end:
- Arrange the conductors:
White/Orange, Orange, White/Green, Blue, White/Blue, Green, White/Brown, Brown. [truecable]
Keep each pair's twist as close as possible to the connector to maintain signal integrity and crosstalk performance, especially for Cat6. [edn]
- Straighten the wires carefully between your fingers, maintaining the order.
- Bring the eight conductors together in a flat row.
- Trim them to a uniform length so that 1–1.5 cm of conductor extends from the jacket.
A clean, flat cut here ensures all conductors bottom out against the front of the RJ45 plug, which is critical for reliable contact. [edn]
1. Hold the plug with the clip facing down (or follow your crimper's standard orientation).
2. Slide the conductors into the plug, ensuring:
- Each color remains in its lane.
- Every conductor reaches the very front of the plug and is visible through the plastic. [edn]
3. Make sure the cable jacket extends into the plug far enough so the strain relief tab will clamp the jacket, not just the conductors.
Repeat on the other end, paying attention that one end is T568A and the other is T568B. [truecable]

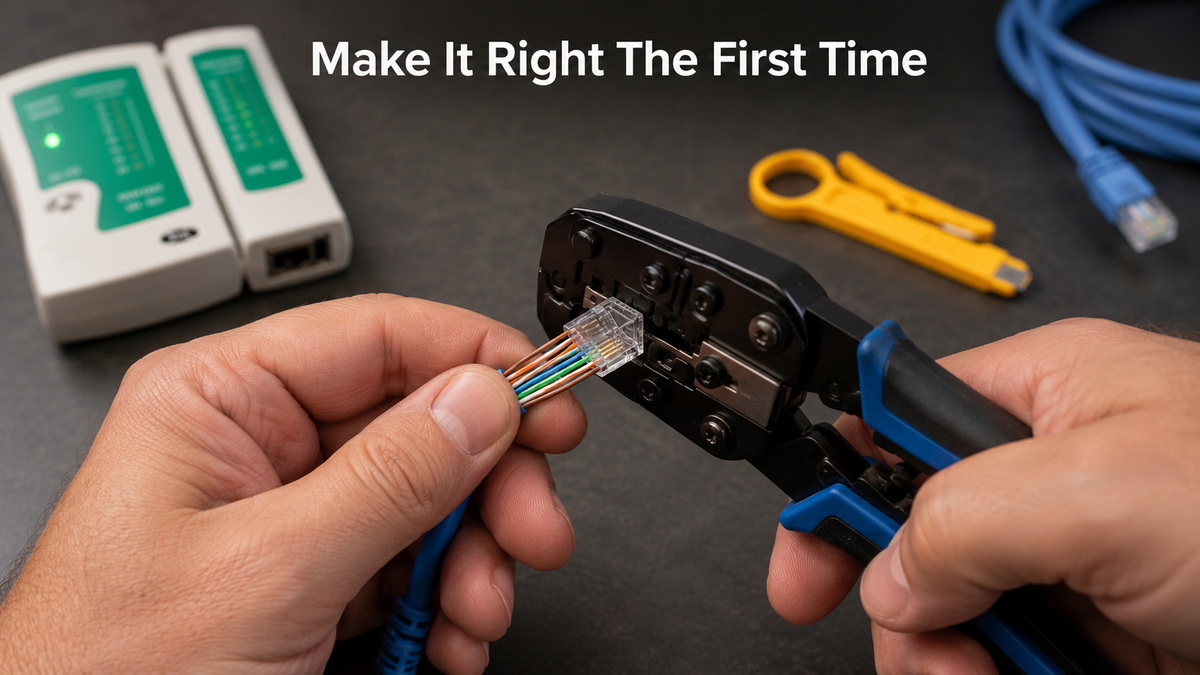

- Place the plug into the crimper and apply firm, even pressure until the crimp cycle is complete.
- Do not over‑crimp; excessive force can crack the plug or misalign contacts. [edn]
- Give a light pull on the cable to confirm mechanical retention.
From a manufacturing perspective, we standardize on ratcheting crimp tools to ensure consistent force and reduce operator variability. [facturmfg]
Connect both ends to a network cable tester and run a full test for:
- Continuity on all eight conductors.
- Correct pairing and crossover mapping (1↔3, 2↔6). [edn]
- Optional: For professional environments, verify wiremap, NEXT, and length with a higher‑end certifier.
A properly wired RJ45 crossover cable should show all pairs connected in the correct crossover pattern, not straight‑through mapping. [truecable]
When I'm working with junior engineers, this is usually the table I sketch to explain when to use which cable. [ascentoptics]
| Use case | Straight‑through cable | Crossover cable |
|---|---|---|
| PC to switch/router | Recommended | Not needed (except rare cases) |
| PC to PC (legacy NICs) | May not work | Recommended |
| Switch to switch (older gear) | May require crossover | Recommended |
| Router to router | May require crossover | Recommended |
| Modern devices with auto‑MDI/MDIX | Straight‑through usually enough | Either works, but straight‑through typical |
| Lab/bench testing like‑to‑like ports | Sometimes fails | Highly reliable |
In many new installations, auto‑MDI/MDIX makes cabling more forgiving, but crossover cables remain important in troubleshooting kits and for older or industrial hardware that does not support auto detection. [ascentoptics]
From both our factory QA data and what I've seen in the field, these are the most frequent causes of failed crossover cables: [tinychen]
- Mixing color order on one end so it becomes an invalid pinout instead of A–B.
- Not fully inserting conductors, leaving some contacts "floating" without proper metal‑to‑metal contact.
- Insufficient jacket inside the plug, which leads to mechanical stress and broken conductors over time.
- Untwisting too much of each pair, degrading performance at higher frequencies (especially on Cat6).
- Forgetting to label the cable, causing confusion later because it looks identical to a straight‑through patch cable.

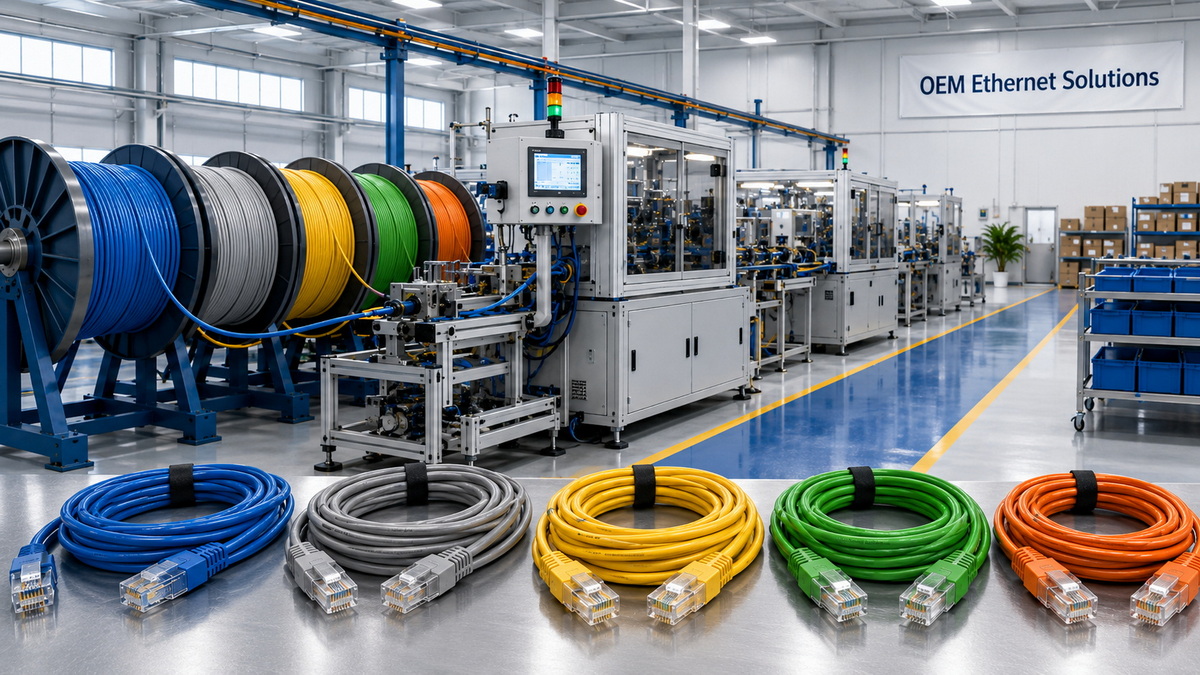

In our OEM production, we address these with work instructions, color diagrams at each station, and 100% wiremap testing before packing. [facturmfg]
As a manufacturer of USB, HDMI, DVI, VGA, SATA, and Ethernet assemblies, we see thousands of terminations every day and work closely with global OEM and distribution customers. A few practical tips we consistently recommend: [siteimprove]
- Standardize on one scheme in your plant
Use T568B for general cabling (or T568A, depending on your regional standard), and define a clear rule that "crossover = one end A, one end B." [truecable]
- Color‑coded or labeled boots
Use a different boot color, heat‑shrink, or label for crossover cables so technicians can identify them instantly on a crowded rack. [facturmfg]
- Pre‑terminated OEM cables for critical links
For high‑volume or mission‑critical applications, consider factory‑terminated, 100% tested crossover cables instead of field‑made ones to minimize downtime and variation. [facturmfg]
- Document your wiring standards
Include pinout diagrams and test procedures in your internal manuals so every technician follows the same process. [siteimprove]
Hand‑made cables are fine for lab work and one‑off repairs, but many of our OEM customers have moved to factory‑made crossover assemblies in these situations: [siteimprove]
- Production lines and test fixtures where every failure means lost time.
- Harsh environments (vibration, temperature cycling) that require molded or over‑molded strain relief.
- High‑speed links (Gigabit and above) where pair balance and precise twist are critical.
As a dedicated cable manufacturer based in China, we work with brand owners, wholesalers, and device manufacturers worldwide to provide OEM crossover cables tailored to length, jacket material, compliance (RoHS, REACH), and labeling requirements. [siteimprove]
A typical OEM request we see: a customer specifies several lengths (0.5 m, 1 m, 2 m), Cat6 cable, T568A–T568B crossover wiring, Fluke‑tested performance, and custom labeling for each region. [facturmfg]
Even a simple crossover cable is part of a larger network, so it should meet your electrical and regulatory requirements: [siteimprove]
- Use UL‑listed or equivalent cable and connectors where required by local regulations.
- Confirm RoHS and REACH compliance for global shipments.
- For industrial or outdoor use, look for shielded (F/UTP, S/FTP) constructions and appropriate grounding practices.
- Implement batch testing and traceability on OEM orders so any issue can be tracked back to a specific production lot.
In our own production, we combine incoming material inspection with in‑process and final testing to ensure each batch of crossover cables performs consistently in real‑world conditions. [facturmfg]
If you regularly rely on Ethernet, USB, HDMI, or other data cables in your products or projects, having a trusted OEM cable partner can dramatically reduce field failures and support costs. [siteimprove]
Our team at Shenzhen Otechkabel Electronic Co., Ltd focuses on:
- Custom RJ45 crossover and straight‑through patch cables.
- OEM USB, VGA, HDMI, DVI, SATA and other signal cables.
- Flexible MOQ, private‑label packaging, and full testing and reports for B2B customers. [siteimprove]
If you're planning a new device, upgrading a production line, or standardizing your network accessories, you're welcome to contact our engineering team for a quick consultation or OEM quote.
Many modern switches and NICs can auto‑detect and adjust to straight‑through or crossover wiring, so a straight‑through cable will often work. However, crossover cables remain useful for legacy gear, industrial devices without auto‑MDI/MDIX, and controlled lab environments where you want predictable behavior. [ascentoptics]
In many auto‑MDI/MDIX devices, a crossover cable will still work, but it can cause confusion in mixed environments. It is better to reserve crossover cables for cases where you specifically need a direct device‑to‑device link or where documentation calls for it. [ascentoptics]
No, as long as the cable and terminations meet the relevant Category (Cat5e, Cat6), a correctly wired crossover cable supports the same speeds as a straight‑through cable of the same rating. Poor workmanship, excessive untwisting, or low‑quality components are what typically reduce performance. [edn]
Visually compare the two RJ45 ends: if the color order is identical, it's straight‑through; if one end follows T568A and the other T568B, it's crossover. Many technicians also use color‑coded boots or labels to identify crossover cables at a glance. [truecable]
The wiring logic (A at one end, B at the other) is the same; the difference lies in cable construction, stricter twist and separation requirements, and higher bandwidth capability for Cat6. Use Cat6 components and maintain pair twist as close to the plug as possible when you need Gigabit performance or better. [edn]
