Mini HDMI and Micro HDMI are both compact versions of the HDMI interface, designed for devices where a full-size HDMI port would take up too much space. They can both transmit high-quality digital video and audio, but they are different connector types with different dimensions, pin arrangements, and compatibility requirements.
For camera brands, electronics distributors, accessory wholesalers, and device manufacturers, choosing between Mini HDMI vs. Micro HDMI is not only about connector size. The correct decision depends on the device port, display connection, intended resolution, cable flexibility, connector orientation, and daily usage environment.
This guide explains the practical differences between Mini HDMI and Micro HDMI, including size, compatibility, performance, applications, cable construction, and key sourcing considerations.
Mini HDMI is officially called HDMI Type C. It was developed for portable electronics that require HDMI output but have limited space for a full-size HDMI Type A port.
Mini HDMI connectors are commonly found on:
- DSLR cameras
- Mirrorless cameras
- Digital camcorders
- Portable media players
- Tablets
- Compact laptops
- Some field monitors and video devices
A Mini HDMI connector is smaller than a standard HDMI connector but still large enough to be practical for many camera and portable-display applications. It is frequently used when a product requires a compact port while maintaining a stable connection for video playback, live monitoring, or video capture.
The most common cable configuration is a Mini HDMI to Standard HDMI cable. This allows a camera or portable device to connect to a television, monitor, projector, video capture card, or HDMI switch.
Micro HDMI is officially called HDMI Type D. It is smaller than Mini HDMI and was designed for electronics with very limited internal and external space.
Micro HDMI connectors have been used in:
- Action cameras
- Compact digital cameras
- Portable imaging devices
- Legacy smartphones
- Small video recorders
- Embedded video systems
- Industrial inspection equipment
- Portable monitoring devices
Micro HDMI is particularly useful in compact products where connector footprint is a major design concern. Its small size helps device makers reduce chassis dimensions while still offering an HDMI output option.
However, the smaller size also makes cable design more important. Micro HDMI plugs need accurate molding, proper alignment, and a slim connector head that can fit into recessed device ports. A cable that is too stiff, too thick, or too heavy may place unnecessary force on a small device-side port.
The main difference between Mini HDMI and Micro HDMI is their physical size. Both are smaller than standard HDMI, but Micro HDMI is significantly more compact.
| Feature | Mini HDMI | Micro HDMI |
|---|---|---|
| Official connector type | HDMI Type C | HDMI Type D |
| Approximate plug size | 10.42 mm × 2.42 mm | 5.83 mm × 2.20 mm |
| Number of contacts | 19 pins | 19 pins |
| Relative size | Small | Ultra-compact |
| Typical device types | Cameras, camcorders, tablets | Action cameras, compact devices, legacy smartphones |
| Common cable type | Mini HDMI to HDMI | Micro HDMI to HDMI |
| Can it fit the other port? | No | No |
| Main mechanical concern | Connector clearance and cable routing | Fine-pitch fit, slim molding, and strain relief |
Mini HDMI and Micro HDMI both use 19 contacts, but the contact arrangement is different. This means a Mini HDMI plug cannot be inserted into a Micro HDMI port, and a Micro HDMI plug cannot be inserted into a Mini HDMI port.
The safest rule is simple:
Match the cable connector to the exact port on the device.
Do not rely only on product category. A camera may use Mini HDMI, while another camera from the same brand may use Micro HDMI. Always check the port shape, product manual, or technical drawing before ordering.
Neither Mini HDMI nor Micro HDMI automatically offers better image quality.
Both connector types can transmit digital video and audio. The actual video quality depends on the complete system, including the source device, display device, HDMI hardware version, cable construction, cable length, and selected output settings.
For example, a Micro HDMI-equipped action camera may output 4K video if its internal hardware supports that mode. At the same time, an older Mini HDMI camera may only support 1080p because of its internal video processor.
The connector size does not determine whether a device can deliver 1080p, 4K, HDR, high frame rates, or multi-channel audio.
Instead, buyers should evaluate these factors:
- Video resolution required
- Frame rate required
- Color format and bit depth
- Audio transmission needs
- Device HDMI output capability
- Display input capability
- Cable length
- Cable shielding and construction quality
- Use environment
For many camera and portable-device applications, the actual requirement may be 1080p video output or 4K output at standard frame rates. Higher-bandwidth use cases should be confirmed through application testing with the intended source and display devices.
Mini HDMI and Micro HDMI are not interchangeable. They require the correct mating connector.
A Mini HDMI port requires a Mini HDMI cable end. A Micro HDMI port requires a Micro HDMI cable end. If the display or monitor has a standard HDMI input, the other end of the cable is usually a standard HDMI Type A connector.
| Device Port | Recommended Cable |
|---|---|
| Mini HDMI Type C port | Mini HDMI to Standard HDMI cable |
| Micro HDMI Type D port | Micro HDMI to Standard HDMI cable |
| Standard HDMI Type A port | Standard HDMI to Standard HDMI cable |
| Mini HDMI Type C port to Micro HDMI Type D port | Mini HDMI to Micro HDMI cable |
| Micro HDMI Type D port to Mini HDMI Type C port | Micro HDMI to Mini HDMI cable |
Direct cable assemblies are generally more convenient than using multiple adapters. A direct Mini HDMI-to-HDMI or Micro HDMI-to-HDMI cable reduces connection points, improves cable management, and creates a cleaner setup for consumers.
For example, a photographer connecting a camera to a field monitor may prefer a short Mini HDMI-to-HDMI cable with a right-angle connector. This helps keep the cable closer to the camera body and can improve cable routing inside a camera cage.
Mini HDMI remains common in products that need a compact but relatively user-friendly HDMI connection.
Many DSLR and mirrorless cameras use Mini HDMI output for external monitors, television playback, and video capture equipment. A Mini HDMI cable allows users to view recorded content on a larger screen or send a live signal to an external monitor.
Mini HDMI can also be used with portable video devices, compact computers, tablets, and certain media accessories. It provides a practical option when a standard HDMI connector is too large for the device design.
Short Mini HDMI cables are often used in camera rigs, field-monitor systems, and streaming setups. In these applications, cable flexibility and connector orientation can be as important as the signal itself.
A right-angle Mini HDMI connector may be useful when space is limited or when the cable must route around a camera cage, battery plate, monitor mount, or handheld stabilizer.
Micro HDMI is often selected when product miniaturization is the highest priority.
Action cameras may use Micro HDMI because the connector occupies very little space. Users can connect the camera to a television, monitor, or capture device without significantly increasing the camera's housing size.
Micro HDMI can be found on compact cameras and specialized imaging equipment. These devices often require a slim cable connector that fits closely around a small port opening.
Portable inspection cameras, small monitoring systems, and embedded video products may also use Micro HDMI. In these applications, the cable must be selected according to routing space, vibration, plug clearance, and the physical position of the port.
For fixed installations, a cable with a narrow molded connector may be essential. For mobile applications, a lightweight and flexible cable may help reduce pull force on the device port.

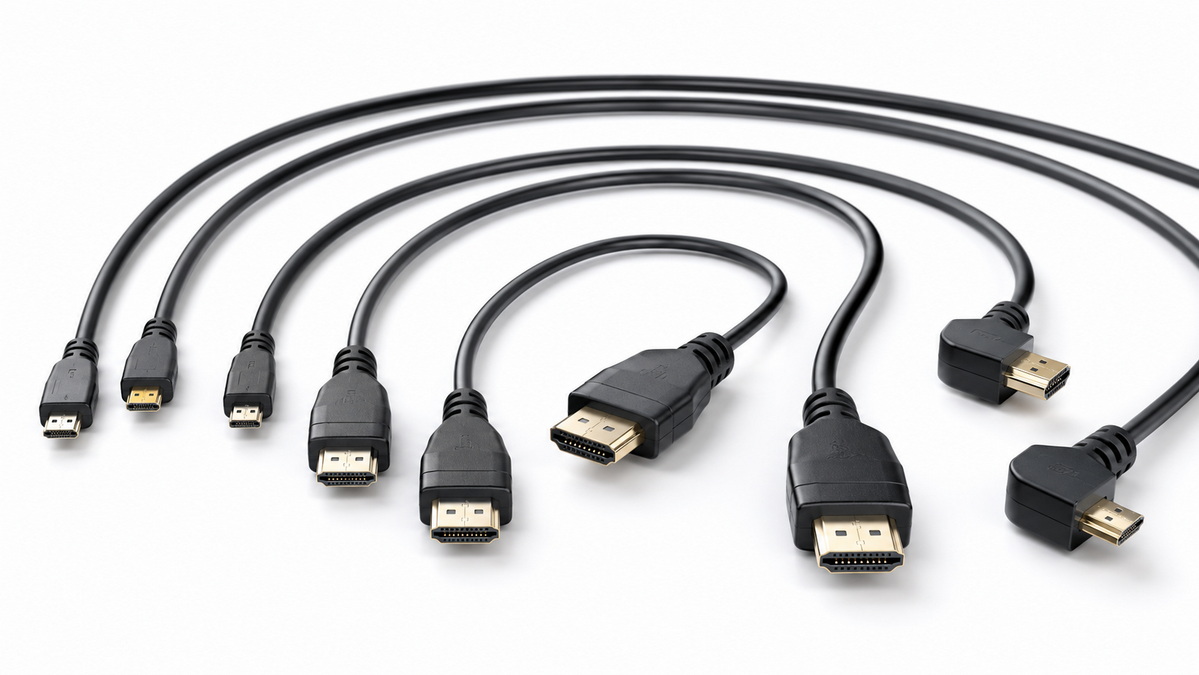

A Mini HDMI or Micro HDMI cable should not be selected based on connector type alone. The full cable assembly affects installation, durability, usability, and product satisfaction.
Short cables are often preferred for camera rigs, field monitors, capture devices, and portable workstations. They reduce excess cable, simplify routing, and lower the chance of accidental pulling.
Longer cables may be suitable for television playback, conference rooms, retail displays, training environments, or fixed installations. However, the required signal performance should be reviewed carefully as cable length increases.
Straight connectors are suitable for general use. However, right-angle, left-angle, up-angle, and down-angle connectors can provide better cable routing in compact spaces.
For example, an angled Micro HDMI cable can help prevent the cable from extending too far from an action camera or camera cage. This may improve handling and protect the connector from accidental contact.
The plastic housing around the connector is often overlooked. A large overmold may not fit into a recessed port, even when the metal connector itself is correct.
This is especially important for Micro HDMI applications. Small cameras and portable devices may have narrow port openings, protective covers, or nearby buttons that limit cable clearance.
A flexible cable is often a better choice for mobile and camera-related use. Stiff cable constructions can transfer movement and pulling force directly to the device port.
For a camera monitor setup, a soft and lightweight cable can make the entire rig easier to use. For an industrial installation, a more robust cable jacket may be necessary to match the environment.
Cable shielding helps reduce the effect of external electrical interference. This is particularly relevant in environments with power equipment, lighting systems, production machinery, or multiple electronic devices operating nearby.
Cable performance should be evaluated according to the actual application instead of relying only on general product descriptions.
Use the following checklist before purchasing, developing, or specifying a Mini HDMI or Micro HDMI cable.
1. Confirm the exact device-side port type.
2. Confirm whether the display side uses standard HDMI.
3. Identify the required cable length.
4. Define the required video output mode.
5. Check whether the device port is recessed.
6. Choose straight or angled connector orientation.
7. Consider cable flexibility for moving equipment.
8. Review cable diameter and cable routing space.
9. Confirm jacket material and exterior appearance.
10. Specify packaging, logo, labeling, and branding needs.
For private-label products, it is also helpful to define the target customer. A retail camera cable may need consumer-friendly packaging and a clear compatibility label. A cable intended for industrial equipment may need a specific length, durable jacket material, compact connector housing, and bulk packing.
Several issues can lead to incorrect orders or poor customer experience.
- Buying a Mini HDMI cable for a Micro HDMI device.
- Assuming that all small HDMI ports are Micro HDMI.
- Selecting a cable only by length without checking connector orientation.
- Using a thick connector housing for a recessed camera port.
- Choosing a long and heavy cable for a mobile camera rig.
- Assuming connector size determines video resolution.
- Using multiple adapters when a direct cable is available.
- Ignoring packaging and branding requirements for retail sales.
- Ordering before testing fit with the intended device housing.
- Failing to clarify cable flexibility requirements.
Careful specification before production helps reduce returns, compatibility complaints, and installation issues.
Mini HDMI and Micro HDMI are both compact HDMI connector formats, but they are designed for different device sizes and are not interchangeable.
Mini HDMI, also known as Type C, is larger and commonly used on cameras, camcorders, and portable video devices. Micro HDMI, also known as Type D, is smaller and is often found on action cameras, compact electronics, and space-sensitive products.
Neither connector type is inherently better for video quality. The correct choice depends on the device port, the required signal performance, the physical installation space, and the way the cable will be used.
For compact HDMI cable projects, the strongest solution combines the correct connector type with appropriate cable length, connector orientation, overmold size, flexibility, shielding, and packaging design.
Shenzhen Otechkabel Electronic Co., Ltd. supports custom Mini HDMI, Micro HDMI, standard HDMI, adapter, splitter, switch, and cable accessory projects for brand owners, wholesalers, and device manufacturers. Custom options can include cable length, connector direction, jacket material, product color, logo marking, packaging, and application-focused cable construction.
Mini HDMI is HDMI Type C, while Micro HDMI is HDMI Type D. Micro HDMI is smaller than Mini HDMI, and the two connector types are not compatible with each other.
Neither is universally better. Mini HDMI may be more convenient for larger portable devices, while Micro HDMI is better suited to very compact products. The correct choice depends on the device port.
No. Mini HDMI and Micro HDMI have different sizes and pin layouts. A Mini HDMI plug cannot fit into a Micro HDMI port.
Both can support 4K when the source device, display device, and cable assembly support the required video mode. Connector size alone does not determine resolution capability.
Mini HDMI is commonly used on DSLR cameras, mirrorless cameras, camcorders, tablets, portable media devices, and selected compact computers.
Micro HDMI is commonly used on action cameras, compact cameras, small imaging devices, portable recorders, embedded video systems, and some legacy smartphones.
A direct cable is usually more convenient when the required connector combination is known. It reduces connection points and provides a cleaner cable setup.
Connector orientation affects cable routing and clearance. Right-angle or left-angle connectors can be useful in tight camera rigs, recessed ports, portable equipment, and compact installations.
