Product Specifications
Conductors | Bare Copper/Tin-Copper; |
Insulation | PVC/TPE/Nylon Braided Woven. |
Contacts | Gold Plated/Nickle Plated Optional. |
Connectors | MINI 5PIN; USB-A Male. |
Available lengths | 0.5m 1m 1.5m 2m 3m |
Available terminations | MP3/MP4 players, Digital Camcorders, Digital Cameras, WEB Cameras, Video Games. |
Available gauge | OD: 3.5mm/4.0mm/4.5mm. |
Certification | RoHS, UL, CE, CE, REACH |
Shielding | AL+ ML+ Braiding+ Ferrite(optional) |
AWG | 22/24/26/28/30/32 |
Product Electrical
Quality Control | operation according to regulations & rules in ISO9001: 2008 |
Voltage | DC300V 5M ohm/10ms |
Insulation Resistance | 10M min |
Contact Resistance | 2 ohm max |
Working Temperature | -25C-80C |
Connecting Test | 100% |
Feature
1. Type: Mini 5P USB Cable, USB 2.0 Male to Mini 5P Male Data Cable
2. High speed USB 2.0 to Mini 5 pin cable

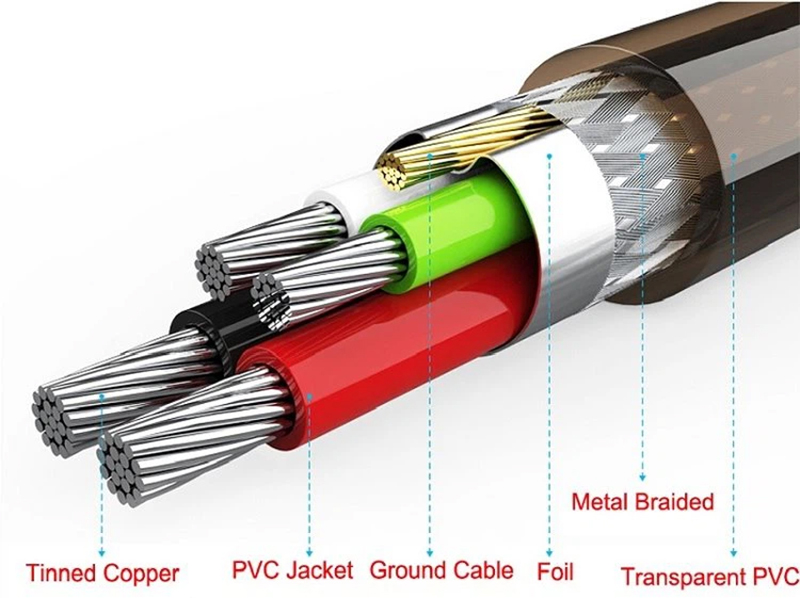

3. Foil and Internal Braided Shielding inside Shielded+Environment PVC jacket ensure to reduce EMI / RF Interference
4. Ensure high-speed, error-free data transfer by Pure Copper Core construction
5. Compatible with many devices such as MP3/MP4 players, Digital Camcorders, Digital Cameras, WEB Cameras, Video Games, GPS Navigation in Car
6. Backwards compatible with USB.0 and USB 1.1 Signals
7. Cable Gague: 24AWG+28AWG Copper
8. Construction: 4Cores Pure Copper+Ground Cable is connected, it is Standard Mini 5Pin Cable
Product Detail
Hot Tags: Mini USB Cables, USB C To Mini USB Cable, Mini USB To USB Cable, USB To Mini USB Data Cable, Data Cable Mini USB, China, manufacturers, factory, customized, wholesale, bulk, pricelist, free sample
