USB-C cables may use the same reversible connector, but they can deliver dramatically different levels of data speed, display output, charging power, and device compatibility. USB 3, USB4, Thunderbolt 3, and Thunderbolt 4 are not interchangeable standards, even when the cable ends look identical.
For brands, wholesalers, laptop accessory suppliers, and electronics manufacturers, selecting the correct cable specification is essential. A cable with insufficient bandwidth can limit an external SSD, docking station, monitor, or workstation. A cable with unclear charging specifications may fail to meet the needs of modern laptops, tablets, or high-power USB-C devices.
Shenzhen Otechkabel Electronic Co., Ltd. manufactures USB cables, high-speed data cables, and cable accessories for overseas brands, wholesalers, and electronics manufacturers. From an OEM cable-development perspective, the key is not simply choosing the highest advertised speed. The real goal is to match the cable's electrical design, transmission performance, power rating, length, and compatibility level to the application.
This guide explains the differences between USB 3 vs USB4 vs Thunderbolt 3 vs Thunderbolt 4, with practical information for product managers, procurement teams, distributors, and end users.

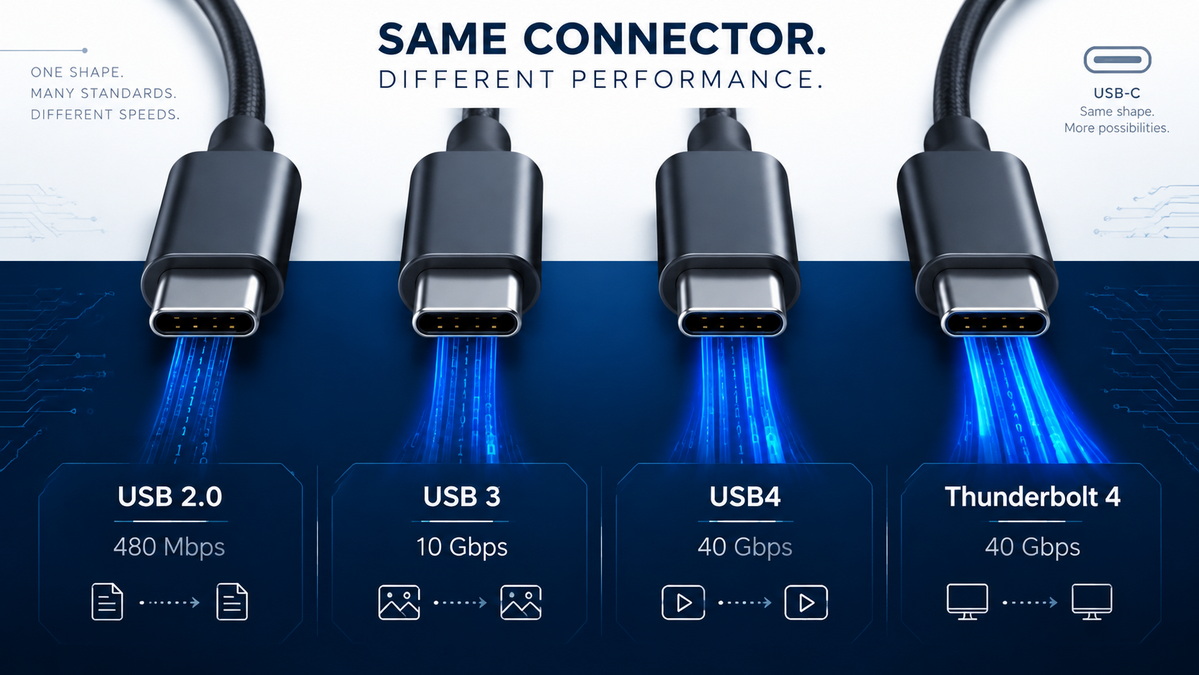

The first point to understand is that USB-C does not indicate a cable's data speed.
USB-C refers to the physical connector design. It is compact, reversible, and now widely used on laptops, smartphones, tablets, external SSDs, monitors, docking stations, chargers, and industrial devices. However, two USB-C cables can look nearly identical while offering completely different functionality.
A USB-C cable may support:
- USB 2.0 data transfer at up to 480 Mbps
- USB 3.2 Gen 1 data transfer at up to 5 Gbps
- USB 3.2 Gen 2 data transfer at up to 10 Gbps
- USB 3.2 Gen 2x2 data transfer at up to 20 Gbps
- USB4 data transfer at up to 40 Gbps or higher in newer implementations
- Thunderbolt 3 data transfer at up to 40 Gbps
- Thunderbolt 4 data transfer at up to 40 Gbps
- USB Power Delivery charging up to 240W, depending on cable and device support
- Video output through compatible USB-C display technologies
Because of this, a product listing should never only state "USB-C cable." It should clearly identify the actual performance specification.
For example, the following product description is much more useful:
> USB-C to USB-C Cable, USB4 40Gbps, 240W Power Delivery, 8K Video Support, E-Marked, Custom OEM Available
This type of description helps buyers understand what the cable is designed to do and reduces compatibility misunderstandings.

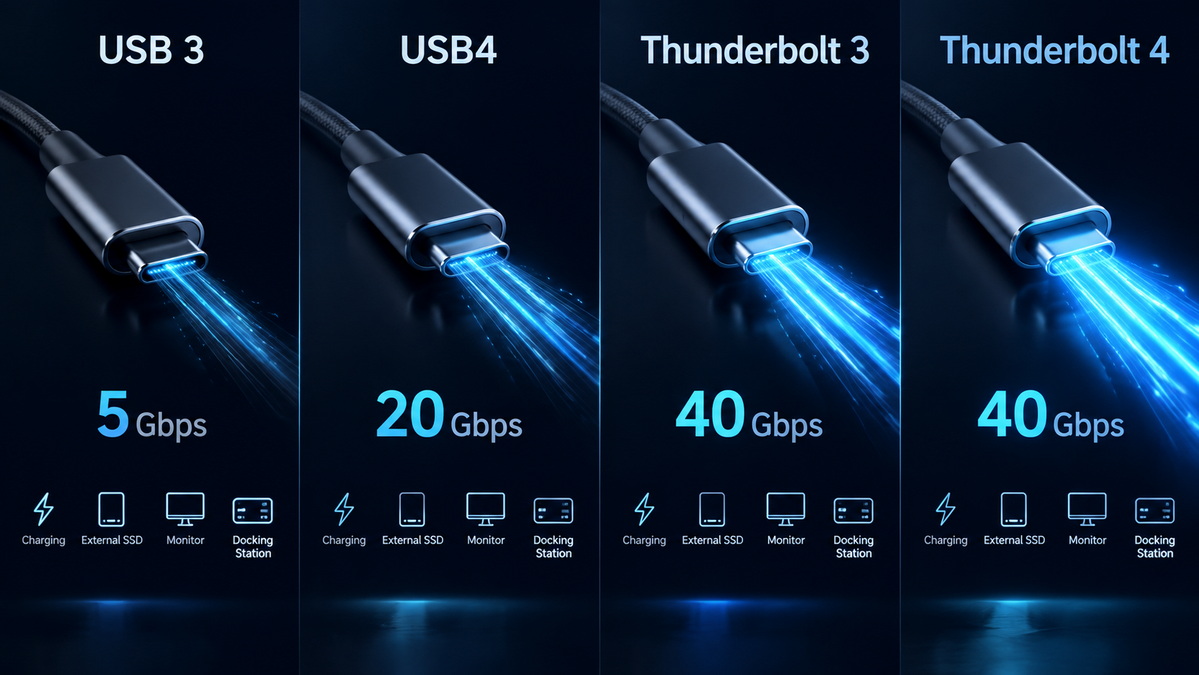

The following comparison shows the main differences between common high-speed cable standards.
| Standard | Maximum theoretical bandwidth | Connector type | Display capability | Charging capability | PCIe support | Typical applications |
|---|---|---|---|---|---|---|
| USB 3.2 Gen 1 | 5 Gbps | USB-A, USB-C, Micro-B | Depends on device support | Depends on cable and charger | No | Basic data cables, peripherals, flash drives |
| USB 3.2 Gen 2 | 10 Gbps | USB-A or USB-C | Depends on device support | Depends on cable and charger | No | External SSDs, smartphones, laptop accessories |
| USB 3.2 Gen 2x2 | 20 Gbps | USB-C | Depends on device support | Depends on cable and charger | No | Selected 20 Gbps SSDs and storage enclosures |
| USB4 | 20 Gbps, 40 Gbps, or up to 80 Gbps | USB-C | Depends on device and system support | Depends on USB Power Delivery design | Possible, depending on implementation | High-speed docks, SSDs, displays, premium accessories |
| Thunderbolt 3 | Up to 40 Gbps | USB-C | Up to dual 4K or one 5K display in supported systems | Commonly up to 100W | Yes | Professional docks, storage, display systems, eGPU applications |
| Thunderbolt 4 | 40 Gbps | USB-C | Dual 4K or one 8K display in supported systems | Charging supported through compatible systems | Yes | Business docks, workstation accessories, professional storage, premium laptops |
The most important rule is simple: connector type does not equal performance level.
A USB-C cable can be a low-cost charging cable, a 10 Gbps data cable, a 40 Gbps Thunderbolt cable, or a high-power 240W cable. The buyer must review the complete specification before selecting a product.
USB 3 remains one of the most important cable categories in the market because it provides a practical balance between speed, compatibility, and cost.
Many consumer products still use older naming terms such as USB 3.0, USB 3.1, or USB 3.2. These names can be confusing because some earlier standards were renamed as newer USB specifications were introduced.
| Common older name | Current designation | Maximum speed | Typical product use |
|---|---|---|---|
| USB 3.0 | USB 3.2 Gen 1 | 5 Gbps | USB hubs, flash drives, basic external storage |
| USB 3.1 Gen 1 | USB 3.2 Gen 1 | 5 Gbps | General USB-C accessories |
| USB 3.1 Gen 2 | USB 3.2 Gen 2 | 10 Gbps | External SSDs, premium USB-C cables |
| USB 3.2 Gen 2x2 | USB 3.2 Gen 2x2 | 20 Gbps | High-speed USB-C SSD enclosures |
For product packaging and catalogs, the clearest approach is to state the actual speed directly.
Instead of writing:
> USB 3.0 High-Speed Cable
A clearer option is:
> USB-C Data Cable, Up to 5Gbps Transfer Speed, 100W Charging Support
Or:
> USB-C 10Gbps Cable for External SSD, 4K Video Compatible, 100W PD Charging
The speed figure is easier for customers to understand and helps buyers compare similar products accurately.
USB 3 cables are suitable when customers need reliable performance without the cost of USB4 or Thunderbolt-level hardware.
USB 3 cables are commonly used for:
- Laptop-to-external-SSD connections
- Smartphone data backup
- USB-C hubs and adapters
- Portable monitors
- Digital cameras and camera accessories
- Printers, scanners, and industrial peripherals
- Charging and data synchronization
- USB-A to USB-C conversion products
- Standard consumer-electronics accessories
A 5 Gbps or 10 Gbps cable is often the best commercial choice for a broad retail market. It can support fast file transfers for many users while keeping the product cost, cable diameter, and manufacturing complexity under control.
For example, a 10 Gbps USB-C cable is a strong fit for an external SSD enclosure designed for photographers, office workers, students, and mobile professionals. It can provide fast transfer performance without requiring a Thunderbolt-enabled computer.
USB4 represents a major upgrade in the USB-C ecosystem. It is designed to support high-speed data, display signals, and other protocols through one USB-C connection.
However, one important detail must be understood: not all USB4 products provide identical functionality.
A USB4 cable may support 20 Gbps, 40 Gbps, or newer higher-speed operating modes. The final performance depends on the cable, host computer, connected device, dock, display, controller, and system configuration.
USB4 can provide advanced capabilities for modern computer and display environments, including:
- High-speed data transfer for external storage
- Display connection through compatible USB-C systems
- Simultaneous transmission of data and video
- Compatibility with earlier USB devices
- Support for advanced docking stations
- Support for selected Thunderbolt-related functions in compatible systems
- Higher performance potential for future laptops and accessories
The USB4 ecosystem is especially important for laptop accessories because many new notebook computers use USB-C as their main connection standard.
A well-designed USB4 cable can support applications such as:
- High-speed portable SSDs
- USB-C docking stations
- External monitors
- Laptop charging and data transfer
- Desktop workstation expansion
- High-bandwidth professional peripherals
- Advanced USB-C hubs
USB4 cables are commonly offered in two main performance levels.
| USB4 cable type | Maximum data speed | Suitable applications |
|---|---|---|
| USB4 20Gbps cable | Up to 20 Gbps | External SSDs, compact docks, high-speed storage |
| USB4 40Gbps cable | Up to 40 Gbps | Professional docks, premium storage, high-resolution displays, workstation accessories |
A USB4 20Gbps cable is suitable for customers who need faster performance than 10 Gbps USB 3.2 but do not require the highest-level dock or display capability.
A USB4 40Gbps cable is designed for more demanding applications. It is better suited for users who connect fast external storage, high-resolution displays, docking stations, or multiple peripherals to a laptop through one cable.
Newer USB4 implementations can support up to 80 Gbps of total bandwidth. Certain display-focused configurations can prioritize bandwidth in one direction, allowing up to 120 Gbps for display transmission and 40 Gbps for return data transmission.
This higher-performance capability is important for the future of high-resolution monitors, advanced docking stations, professional video workflows, and data-intensive storage systems.
However, an 80 Gbps cable should only be offered when the complete product environment supports it. The cable, host device, display, dock, and peripheral must all be compatible with the same high-speed standard.
For OEM brands, this means USB 80Gbps products should be positioned as a premium and future-oriented category rather than a universal replacement for every USB-C cable.
Thunderbolt 3 uses the USB-C connector and offers up to 40 Gbps bandwidth. It became popular in professional work environments because it combines data transfer, video transmission, PCIe connectivity, and charging support in one compact cable system.
Thunderbolt 3 is particularly useful when users need more than standard USB data transfer.
Thunderbolt 3 is often used in:
- External NVMe SSDs
- Professional video-editing workflows
- Dual-monitor workstations
- High-performance docking stations
- External graphics-card applications
- Audio-production equipment
- Industrial imaging equipment
- High-speed data-acquisition devices
- Professional laptop expansion systems
- Daisy-chained peripherals
The PCIe capability is a major reason why Thunderbolt 3 is valuable for professional hardware. It enables high-performance external accessories to communicate with the computer at a much higher level than many conventional USB devices.
For example, a video editor may connect a Thunderbolt 3 external SSD, a professional dock, two displays, and other peripherals to a laptop. This setup can reduce cable clutter and support a more efficient workstation.
Thunderbolt 3 cables are generally divided into passive and active designs.
| Cable type | Typical strength | Important consideration |
|---|---|---|
| Passive Thunderbolt 3 cable | High speed at shorter lengths | Longer passive cables may operate at reduced speed |
| Active Thunderbolt 3 cable | Maintains high performance over longer lengths | Usually has a more complex internal electronic design |
Passive cables are commonly used for short desktop connections. Active cables are often selected when higher bandwidth needs to be maintained over longer cable lengths.
When developing Thunderbolt 3 cables, the OEM specification should clearly define:
- Required cable length
- Passive or active design
- Maximum data rate
- Charging wattage
- Display requirement
- Connector shell material
- Cable jacket material
- Outer diameter
- Strain-relief design
- Bend-test requirement
- Compatibility targets
- Product labeling and packaging language
A Thunderbolt 3 cable with a 40 Gbps rating is not automatically a 240W charging cable. Data performance and charging performance are separate product characteristics and should always be listed separately.
Thunderbolt 4 keeps the same maximum 40 Gbps bandwidth as Thunderbolt 3. The difference is that Thunderbolt 4 establishes stricter minimum requirements for supported devices, docks, and systems.
This makes Thunderbolt 4 especially useful for buyers who need a more predictable high-performance experience.
Thunderbolt 4 systems are designed to support:
- Up to 40 Gbps bandwidth
- Up to 32 Gbps PCIe data capability
- Dual 4K display support or one 8K display support in compatible systems
- Docking stations with multiple Thunderbolt ports
- Laptop charging through compatible docking systems
- Wake-from-sleep functionality through supported dock-connected accessories
- Stronger hardware-level protection requirements in compatible computer platforms
For office users, creative professionals, engineers, and corporate IT teams, these capabilities make Thunderbolt 4 a strong choice for long-term workstation setups.
Thunderbolt 4 cable products are often positioned in the premium accessory market. They are appropriate for customers who expect stable dock compatibility, fast storage connectivity, high-resolution display support, and reliable laptop expansion.
A Thunderbolt 4 cable product line can be relevant for:
- Premium laptop-accessory brands
- Corporate procurement programs
- Professional workstation distributors
- Creative-studio equipment suppliers
- High-end consumer-electronics retailers
- Monitor and docking-station manufacturers
- Enterprise IT accessory bundles
- Industrial computer and display-system integrators
At this level, product quality must extend beyond cable appearance. High-speed performance requires precise conductor geometry, impedance control, shielding, connector consistency, electronic-marker configuration, and stable manufacturing processes.
A cable that claims 40 Gbps performance should be developed as a high-speed signal product, not simply as a standard charging cable with USB-C connectors.

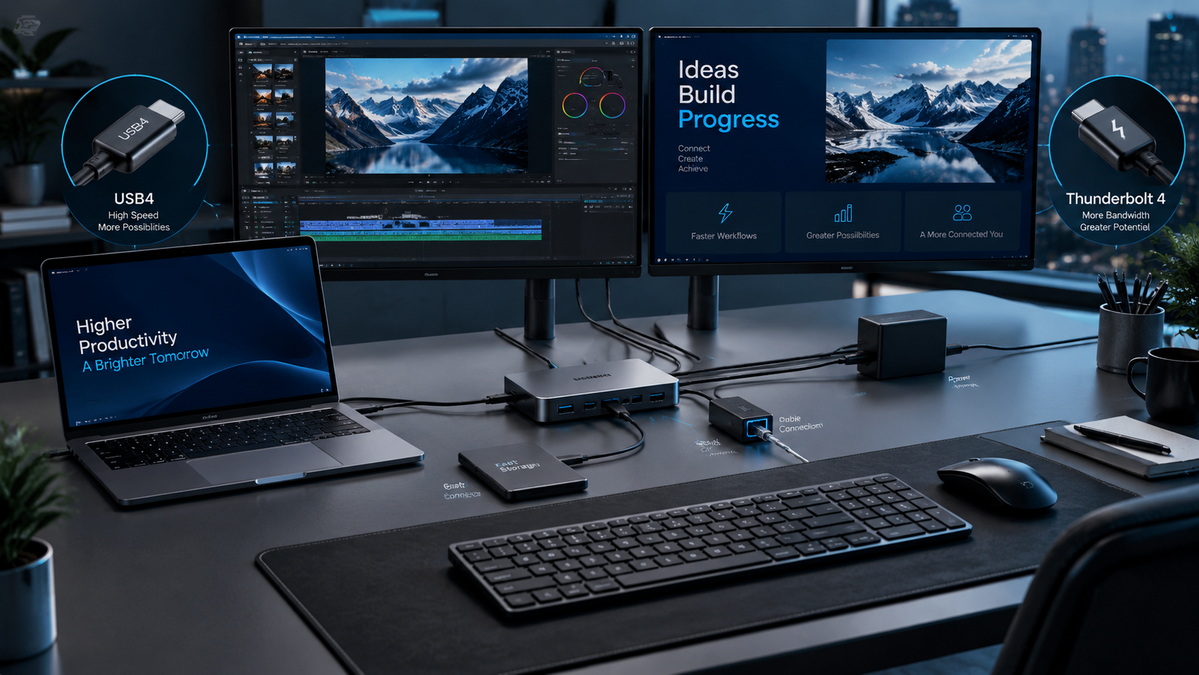

USB4 and Thunderbolt 4 can both support high-performance USB-C applications, but they are designed for different market needs.
| Requirement | Recommended cable type | Main reason |
|---|---|---|
| Low-cost charging and basic synchronization | USB-C USB 2.0 cable | Lowest cost and suitable for basic charging |
| Everyday external storage | USB 3.2 Gen 1 or USB 3.2 Gen 2 cable | Good balance between speed and cost |
| 20 Gbps USB-C storage | USB 3.2 Gen 2x2 cable | Designed for compatible 20 Gbps SSD systems |
| High-speed USB-C dock | USB4 40Gbps cable | Suitable for advanced USB-C connectivity |
| Professional storage and workstation dock | Thunderbolt 4 cable | Strong baseline capability for professional users |
| Existing professional Thunderbolt ecosystem | Thunderbolt 3 cable | Suitable for compatible legacy products |
| New high-resolution display and advanced data workflows | USB4 Version 2.0 / USB 80Gbps cable | Designed for emerging high-bandwidth applications |
USB4 is often a strong option for brands that want a premium USB-C cable range with broad modern compatibility. Thunderbolt 4 is generally more suitable for professional products where customers expect a consistently high level of dock, display, and storage performance.
The correct choice depends on the final application, expected device ecosystem, target price, cable length, required charging power, and customer profile.
The cable is only one part of the system. A high-performance cable cannot increase the maximum capability of a lower-performance device.
The final result depends on:
- Host computer port capability
- Cable data specification
- Cable length
- Passive or active cable design
- External SSD or storage enclosure
- Docking station controller
- Display resolution and refresh rate
- USB Power Delivery charger output
- Laptop charging input limit
- Device firmware and operating system support
- Thermal conditions during sustained use
For example, a Thunderbolt 4 cable connected to a laptop with only USB 3.2 Gen 2 support will not deliver 40 Gbps data transfer. The connection may operate at up to 10 Gbps instead.
Likewise, a 240W USB-C cable connected to a 65W charger will only provide the power level that the charger and laptop can negotiate.
This is why cable packaging and product pages should include clear compatibility notes. Accurate information helps prevent returns, confusion, and unrealistic customer expectations.
For OEM projects, a cable purchase order should include much more than connector type, length, and color. A complete specification reduces technical risk and improves production consistency.
1. Define the target standard
Specify USB 2.0, USB 3.2 Gen 1, USB 3.2 Gen 2, USB 3.2 Gen 2x2, USB4 20Gbps, USB4 40Gbps, Thunderbolt 3, or Thunderbolt 4.
2. State the data-transfer requirement
Use measurable speed language such as 480 Mbps, 5 Gbps, 10 Gbps, 20 Gbps, 40 Gbps, or 80 Gbps.
3. Confirm charging performance
Specify whether the cable needs 60W, 100W, 140W, 180W, or 240W charging support.
4. Specify the electronic-marker requirement
High-power and high-speed USB-C cables may require an E-marker chip that communicates the cable's capability to connected devices.
5. Define display-output requirements
Confirm the target resolution, refresh rate, and display environment before making video claims.

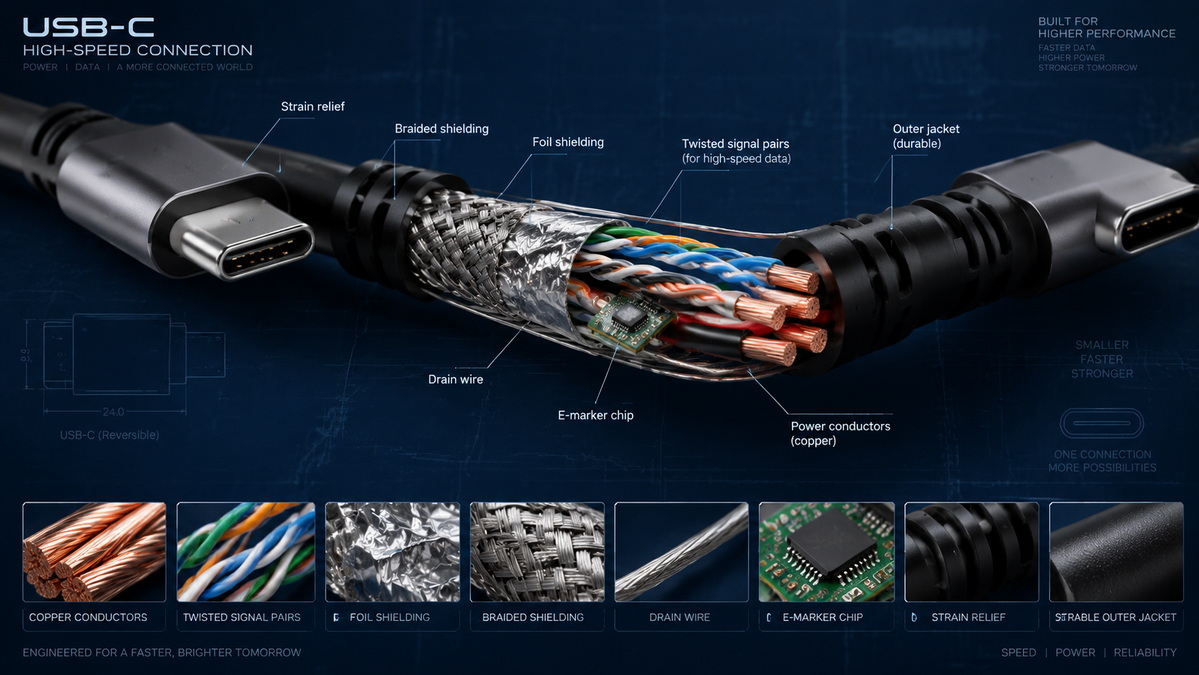

6. Choose the cable construction
Specify conductor material, wire gauge, shielding structure, outer diameter, jacket material, connector shell, strain relief, and appearance requirements.
7. Define durability expectations
Include bending cycles, plug insertion and removal cycles, tensile strength, temperature requirements, and packaging drop-test standards.
8. Confirm test requirements
Request data transmission tests, charging tests, compatibility tests, visual inspection standards, and production quality-control documentation.
9. Control product claims
State actual speed, power rating, cable length, and supported functions clearly. Avoid broad claims such as "universal," "full-function," or "ultra-fast" without defining the tested capability.
A well-organized cable portfolio helps distributors, retailers, and end users identify the correct product quickly.
One practical product structure may include:
- Basic charging range: USB-C charging cables with USB 2.0 data performance.
- Everyday data range: USB 3.2 Gen 1 cables with up to 5 Gbps transfer speed.
- High-speed storage range: USB 3.2 Gen 2 cables with up to 10 Gbps transfer speed.
- Performance storage range: USB 3.2 Gen 2x2 cables with up to 20 Gbps transfer speed.
- Premium USB-C range: USB4 20Gbps and USB4 40Gbps cables.
- Professional workstation range: Thunderbolt 3 and Thunderbolt 4 cables.
- Future-oriented range: USB4 Version 2.0 and USB 80Gbps products for compatible ecosystems.
- High-power charging range: USB-C cables supporting up to 240W Power Delivery.
This approach gives customers an easy performance ladder. Instead of comparing many confusing product names, they can choose based on their actual need: charging, standard data transfer, external SSD performance, docking, display, or professional workstation expansion.
USB 3, USB4, Thunderbolt 3, and Thunderbolt 4 each serve different applications in the modern cable market.
USB 3 remains a cost-effective and widely compatible choice for everyday peripherals, charging, external drives, and general accessories. USB4 offers a more advanced USB-C pathway for high-speed data, displays, and docking solutions, although actual performance varies by implementation. Thunderbolt 3 continues to support many professional workflows, while Thunderbolt 4 provides stronger minimum requirements for demanding workstation, display, storage, and docking environments.
The best cable is not always the cable with the highest advertised number. The best cable is the one that matches the host device, peripheral, power requirement, cable length, budget, and intended workflow.
Shenzhen Otechkabel Electronic Co., Ltd supports custom USB-C, USB 3, USB4, Thunderbolt 3, Thunderbolt 4, and high-power charging cable development for overseas brands, wholesalers, and electronics manufacturers. Product specifications can be tailored according to connector type, cable length, data rate, charging power, jacket material, color, logo, packaging, and application requirements.
No. USB-C is the physical connector shape. USB4 and Thunderbolt 4 are high-speed connection standards that use the USB-C connector. A USB-C cable may support basic USB 2.0 data, USB 3 data, USB4, Thunderbolt, charging, video, or a combination of these functions.
Thunderbolt 3 and Thunderbolt 4 both support up to 40 Gbps bandwidth. Thunderbolt 4 improves the minimum requirement level for supported systems, including stronger PCIe performance requirements and support for dual 4K displays or one 8K display in compatible setups.
It depends on the specific cable, host device, dock, and peripheral. Some USB4 products can support Thunderbolt-related compatibility, but this should always be confirmed in the full product specification before purchase or product bundling.
Not always. Charging wattage and data speed are separate specifications. A 240W cable may only support USB 2.0 data, while a 40 Gbps cable may support lower or higher charging power depending on its design. Buyers should check both the wattage rating and the data-transfer rating.
No. Actual data transfer depends on the computer port, cable, external drive, storage enclosure, dock, device controller, operating system, and thermal conditions. The lowest-performing part of the connection determines the final speed.
USB 3.2 Gen 2x2 can support up to 20 Gbps, while USB 3.2 Gen 2 supports up to 10 Gbps. However, Gen 2x2 requires compatible devices on both ends of the connection. Many laptops and accessories support 10 Gbps more widely than 20 Gbps.
For standard external SSDs, a 10 Gbps USB 3.2 Gen 2 cable is often sufficient. For compatible 20 Gbps SSD enclosures, choose a USB 3.2 Gen 2x2 cable. For high-performance professional SSDs and workstation systems, USB4 40Gbps or Thunderbolt 4 cables may be more suitable.
A 40 Gbps USB4 or Thunderbolt 4 cable is generally the most suitable option. Using a lower-rated 5 Gbps or 10 Gbps cable may reduce the dock's storage, display, and peripheral performance.
1. USB Implementers Forum. [USB 3.2 Specification Language Usage Guidelines]
2. USB Implementers Forum. [USB4® Technology Overview]
3. USB Implementers Forum. [USB4® Version 2.0 and USB 80Gbps Announcement]
4. USB Implementers Forum. [USB Power Delivery and USB Charger Information]
5. Intel. [What Is Thunderbolt 4?]
6. Intel. [Introducing Thunderbolt 4: Universal Cable Connectivity for Everyone]
7. CABLETIME. [Comparison of Common Data Cable Interfaces: USB 3 vs USB4 vs Thunderbolt 3 vs Thunderbolt 4]
