When professionals talk about AC cable and MC cable, they are almost never asking whether "alternating current cables" and "metal‑clad cables" are the same thing. In North American electrical practice, these terms usually refer to two specific wiring methods defined by the NEC (National Electrical Code): Type AC (Armored Cable) and Type MC (Metal‑Clad Cable). [greaterwire]
However, many global articles — including some Chinese technical content — use "AC cable" more broadly to mean *any* cable that carries alternating current, such as PVC insulated power cables, XLPE cables, or mineral‑insulated cables. As a result, many buyers and engineers new to the international market get confused when they see "AC cable" in datasheets, forums, or purchase orders. [greaterwire]
From my experience helping overseas OEM customers, the first step is to clarify what the buyer means by "AC cable":
- If the project is in North America: "AC cable" likely means Type AC armored cable under NEC Article 320. [centralwires]
- If the document is translated from Chinese or used in a general power context: "AC cable" usually means any cable used to transmit AC power, not a specific armored product. [greaterwire]
In the broad international sense, AC cable simply means a cable used for alternating current power transmission and distribution. Typical categories include: [greaterwire]
- PVC insulated cables for low‑voltage building wiring
- XLPE insulated cables for higher temperature ratings and long runs
- Mineral insulated cables for fire‑survival and critical circuits
These cables can appear in:
- Residential wiring (lighting, outlets)
- Industrial lines and equipment feeders
- Commercial power distribution and infrastructure projects
In other words, "AC cable" here is a functional description, not a single product type. [greaterwire]

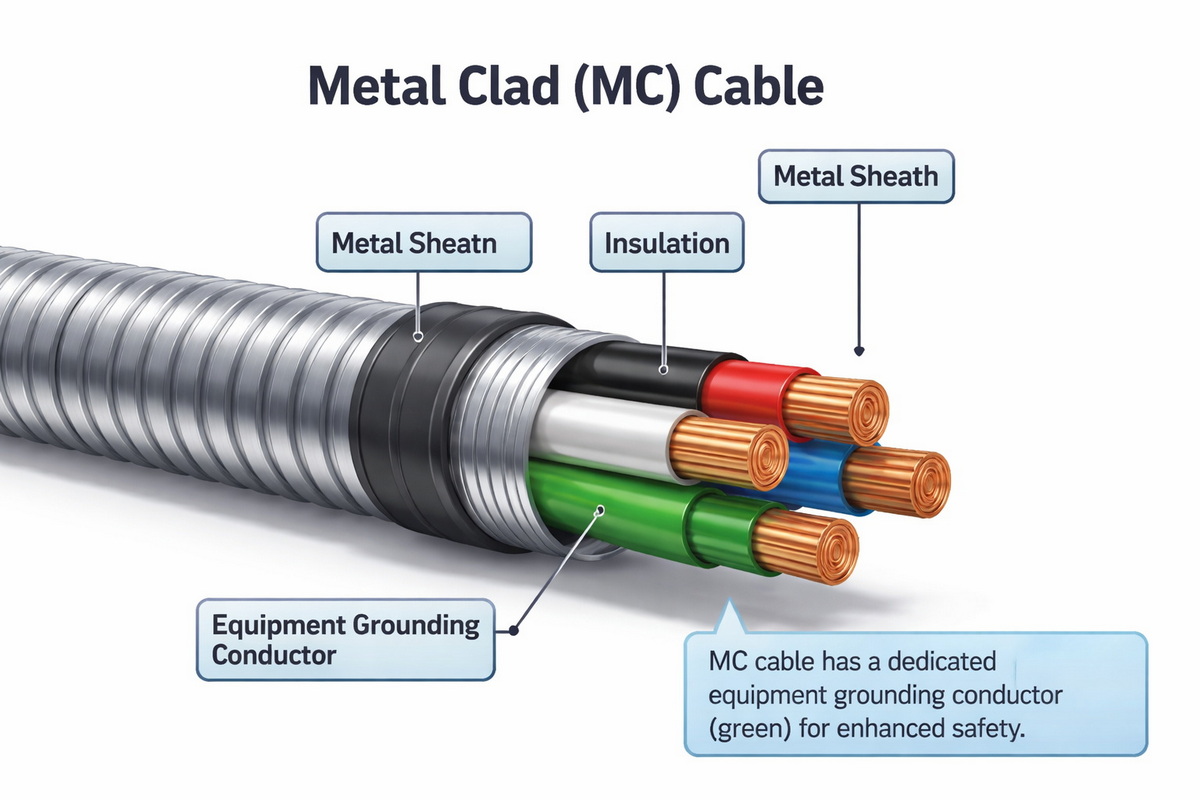

In NEC terminology, MC cable means Type MC (Metal‑Clad) cable, defined in NEC Article 330. It consists of: [greaterwire]
- Multiple individually insulated conductors
- An additional insulated or bare grounding conductor
- All enclosed in an interlocked or continuous metallic armor
Key characteristics from field practice and manufacturer data: [nassaunationalcable]
- Dedicated ground wire: MC cable includes a full‑sized equipment grounding conductor, rather than relying on the armor alone.
- Versatile environments: With the correct construction (for example PVC‑jacketed MC), it can be used in dry, damp, or wet locations, and even for direct burial in some designs. [centralwires]
- Typical applications:
- Commercial buildings
- Industrial plants
- Exposed or concealed runs where mechanical protection is needed
In some Chinese technical texts, "MC cable" is also used to describe rubber‑sheathed flexible cables for mining machinery, designed for harsh coal‑mine environments. These products use highly wear‑resistant rubber sheaths, multi‑core constructions, and enhanced flame‑retardant and anti‑static performance to meet mining safety rules. [greaterwire]

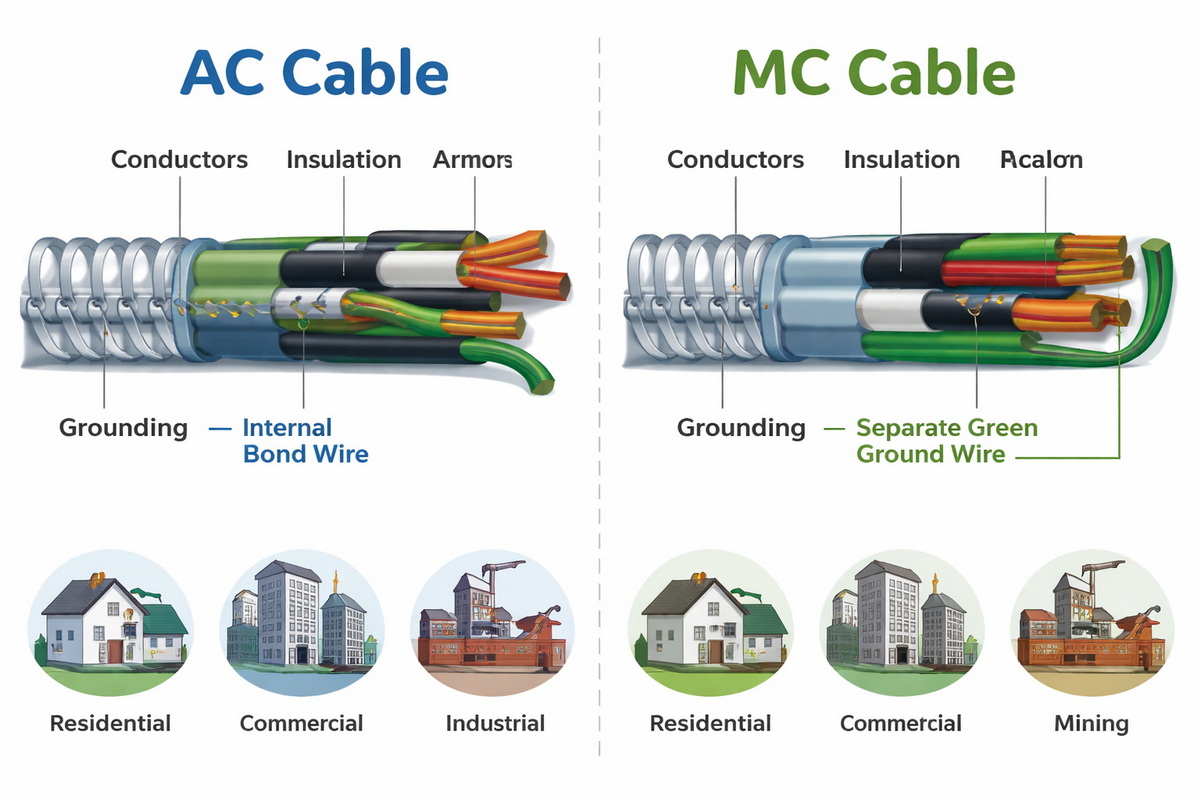

From a professional design standpoint, we compare AC and MC cables on construction, grounding, environment, and safety. [greaterwire]
- Broad AC power cables
- May use PVC, XLPE, or mineral insulation
- Sheaths can be PVC, PE, LSZH, or other compounds
- Can be armored (steel tape/steel wire) or unarmored
- Type MC (Metal‑Clad) cable
- Interlocked metal armor over insulated conductors
- Includes separate ground conductor
- Often wrapped with polyester/Mylar tape inside for mechanical protection [centralwires]
- Mining‑type MC flexible cable (coal‑mine usage)
- Rubber sheath for extreme wear resistance and flexibility
- Multi‑core, often with screened pairs and reinforcement elements
- Designed to withstand bending, dragging, and impact underground [greaterwire]
Grounding is one of the most critical differences.
- Type AC armored cable (North American)
- Uses metal armor + internal bonding strip as the grounding path. [greaterwire]
- Traditionally does not have a separate full‑sized ground conductor.
- Type MC cable
- Has a dedicated equipment grounding conductor (bare or insulated). [nassaunationalcable]
- The metal armor is not relied on as the primary ground in standard MC designs. [centralwires]
- Mining MC flexible cables
- Must satisfy explosion‑proof and anti‑static requirements.
- Include special grounding and screening structures to meet coal‑mine safety codes. [greaterwire]
- General AC power cables
- Used almost everywhere AC power is needed, from homes to industrial grids. [greaterwire]
- Type AC cable
- Mainly for indoor, dry locations, often in residential or light commercial projects. [centralwires]
- Type MC cable
- Widely used in commercial and industrial buildings, including wet or outdoor areas when jacketed versions are specified. [greaterwire]

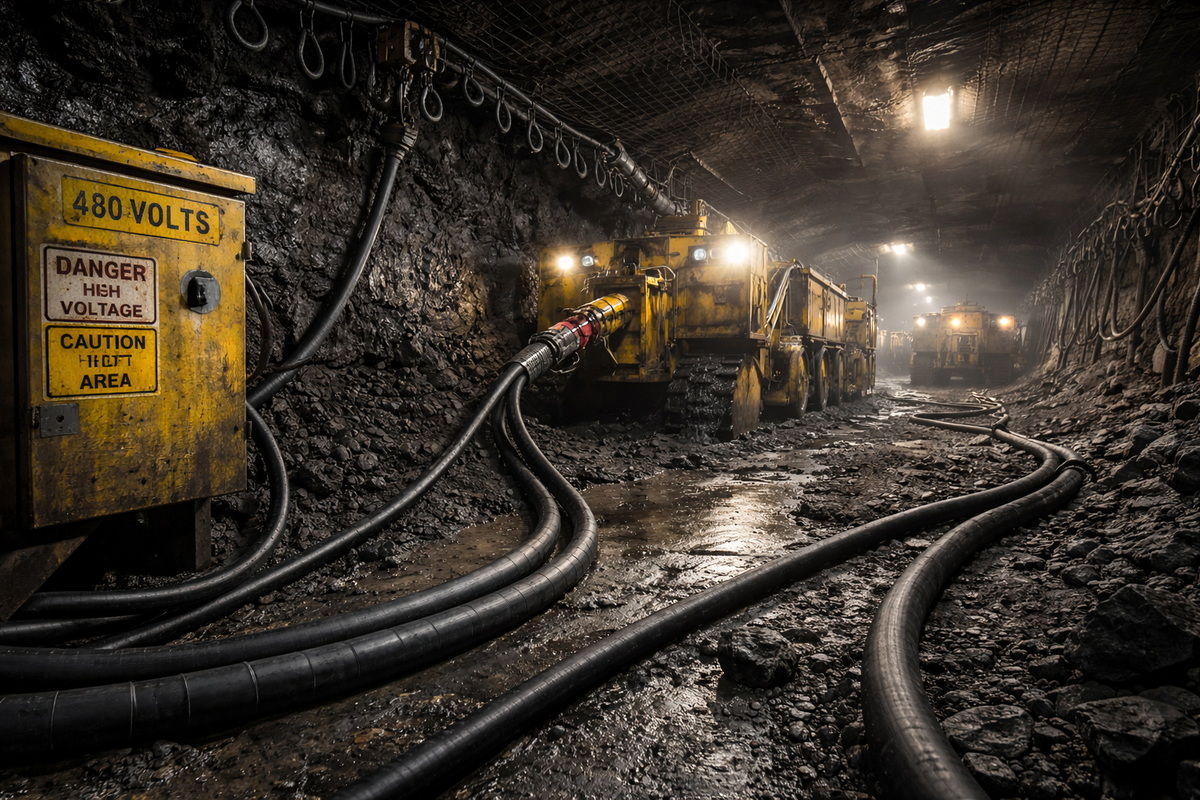

- Coal‑mine MC flexible cables
- Specially designed for underground coal mines, powering coal‑cutters, loaders, and tunneling equipment where movement, abrasion, and impact are severe. [greaterwire]
Both AC and MC cables must comply with national and industry safety standards, but the focus of those standards differs.
- AC power cables: generally follow building and power‑distribution standards for insulation, voltage rating, flame retardancy, and mechanical strength. [greaterwire]
- Type AC and MC cables: governed by NEC Articles 320 and 330, plus UL listings (UL, cUL) for North American markets. [centralwires]
- Mining MC cables: in addition to electrical performance, must meet coal‑mine specific rules for flame retardancy, explosion prevention, and anti‑static performance. [greaterwire]
- Both are used for power transmission and control. [greaterwire]
- Both must meet electrical, mechanical, and safety standards in their target markets. [centralwires]

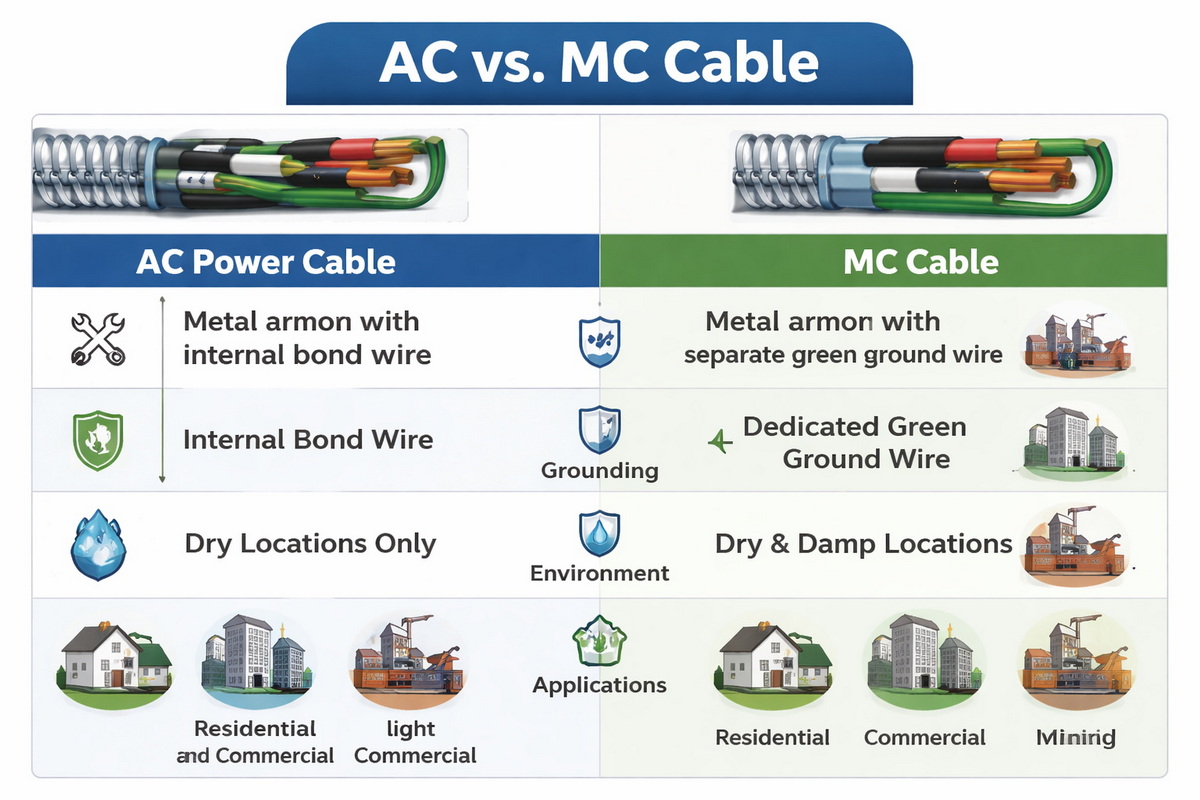

| Aspect | Broad "AC Cable" for Power | Type MC Cable / Mining MC Cable |
|---|---|---|
| Basic meaning | Any cable carrying AC power (PVC, XLPE, MI, etc.) (greaterwire) | A defined product type with metal armor and specific construction (greaterwire) |
| Grounding | Depends on design (separate ground, armor, or conduit) | Has dedicated grounding conductor; armor not primary ground (greaterwire) |
| Environment | From residential to industrial, chosen by insulation and armoring | Commercial/industrial, including wet locations and harsh mechanical conditions (greaterwire) |
| Mining version | Usually not mining‑specific | Mining flexible MC uses rubber sheath, flame‑retardant and anti‑static design (greaterwire) |
| Safety focus | General building or power standards | Additional NEC or mining safety regulations, depending on market (greaterwire) |
When I review project specs or assist overseas buyers, I always start with five core questions before deciding on AC power cable vs MC cable:
1. Where will the cable run?
- Indoors, outdoors, underground, in shaft or tray?
2. Is the environment dry, damp, or wet?
- Some AC cables are strictly for dry locations, while jacketed MC cables can be used in wet or direct‑burial applications. [centralwires]
3. What are the mechanical risks?
- Will the cable be exposed, dragged, or subject to impact or vibration?
4. What grounding method does the local code allow or prefer?
- Many engineers prefer MC for its dedicated ground conductor in commercial and industrial jobs. [greaterwire]
5. Is the project in a special sector, such as mining?
- Then mining‑type MC flexible cables are often mandatory to meet safety rules. [greaterwire]
In North America, if you are wiring a typical dry, indoor residential or light commercial circuit, a properly rated Type AC cable (armored) is usually sufficient and cost‑effective. If you are designing wiring for industrial plants, outdoor installations, or areas where moisture is present, Type MC cable is usually the safer and more versatile choice. [centralwires]
To make this more concrete, here is how I would answer customers in typical scenarios.
1. Renovating an office ceiling in a dry indoor environment
- If local code permits, Type AC cable for branch circuits can be a cost‑efficient solution.
2. Running feeders on the exterior wall of a warehouse, exposed to weather
- I would specify PVC‑jacketed MC cable rated for wet locations and UV exposure. [centralwires]
3. Powering a conveyor in an open‑pit or dusty industrial area
- MC cable with robust armor or flexible rubber‑sheathed power cable, depending on motion and mechanical stress.
4. Supplying power to a coal‑mining machine underground
- Only specialized mining MC flexible cable would be acceptable due to flame‑retardant, explosion‑proof, and anti‑static requirements. [greaterwire]
Over the years, I have seen the same misunderstanding repeat in RFQs and design drawings:
- "AC and MC cable are interchangeable."
- In reality, they are not. Each has its own code article, grounding method, and environmental rating. [greaterwire]
- "MC armor can always serve as the ground."
- Standard MC cable relies on a dedicated ground conductor, and its armor is not intended to be the main grounding path. [nassaunationalcable]
- "If the cable is armored, it must be MC."
- Many AC power cables can also be armored (steel tape, steel wire) without being classified as Type MC.
Clarifying these points early helps prevent inspection failures, project delays, and safety risks.
When you prepare a cable specification or RFQ, you can follow this simple expert checklist:
1. Define the standard and market
- NEC/UL for North America, IEC/EN for Europe, GB for China, etc.
2. State clearly whether you mean:
- Broad AC power cable, or
- Specific Type AC armored cable, or
- Type MC metal‑clad cable, or
- Mining MC flexible cable.
3. Describe the environment
- Dry, damp, wet, indoor, outdoor, buried, in tray or conduit.
4. Clarify grounding philosophy
- Dedicated ground conductor vs using armor and bonding strips.
5. List mechanical requirements
- Fixed vs flexible, risk of impact, abrasion, or frequent bending.
By answering these points in your inquiry, you help the manufacturer quickly propose the safest and most economical cable structure.
As Shenzhen Otechkabel Electronic Co., Ltd, we started by focusing on USB, VGA, HDMI, DVI, SATA and other signal cables and related accessories for global OEM customers. Over the years, this has given us three practical advantages that also benefit buyers seeking specialized power and control cables: [cnotechkabel]
- Deep OEM experience
- We are familiar with brand‑label, packaging and compliance documentation requirements for overseas markets, from North America to Europe. [otechkabel.en.alibaba]
- Strict quality management
- For low‑voltage signal cables, our clients require tight tolerances and stable transmission, which translates into high process discipline when we support power‑cable‑related projects. [cnotechkabel]
- Fast engineering communication
- Our team can help you translate project needs (for example, "AC cable for data center PDU" or "flexible power lead for mining‑type equipment") into feasible cable structures that match local standards.
If your project involves combining power and signal — for example, hybrid cables with USB/HDMI plus power, or custom harnesses that connect equipment to AC or MC‑type infrastructure — this is exactly where our OEM background becomes an advantage.
If you are still unsure whether your project should use AC power cable, Type AC armored cable, Type MC cable, or a custom hybrid solution, you do not need to decide alone.
Send us your project drawings, environment description, and target market, and our engineering team at Shenzhen Otechkabel Electronic Co., Ltd can help you evaluate cable structure, grounding approach, and long‑term reliability from both a technical and OEM supply perspective. [cnotechkabel]
No. "AC cable" often means any cable used to carry alternating current, while "MC cable" refers to a specific metal‑clad cable type with its own structure and grounding method. [greaterwire]
Not always. MC cable has its own rating and standards. For some simple dry indoor circuits, Type AC cable or standard building wire may be more economical, while MC is preferred in many industrial or wet‑location applications. [centralwires]
Yes, standard Type MC cable includes a full‑sized equipment grounding conductor, and its armor is not intended to be the main grounding path. [nassaunationalcable]
No. Mining flexible MC cables use heavy rubber sheaths and enhanced flame‑retardant, explosion‑proof, and anti‑static designs for coal‑mine environments, while building MC cables are optimized for commercial and industrial construction. [greaterwire]
Define your market standard, installation environment, and grounding method, then consult with an experienced cable manufacturer or OEM partner to match these requirements to the correct AC power cable, Type AC, MC, or mining cable design. [centralwires]
