As an engineer who has spent years helping overseas OEM clients troubleshoot "why is my USB‑C monitor not working?", I can tell you that the shape of the connector doesn't guarantee its function. Many customers assume "USB‑C = video + data + power," but in real projects I've seen laptops with USB‑C that only charge, cables that only do USB 2.0, and adapters that simply don't negotiate the right video mode. [reddit]
In this guide, I'll walk you through how USB‑C video actually works, how to quickly identify whether a USB‑C cable supports video, and what we as a professional cable manufacturer in Shenzhen (Otechkabel) recommend for reliable OEM/ODM projects in markets like the US and EU. [cabletimetech]
The USB‑C standard defines the connector shape and pin layout, not the exact functions that every port or cable must support. A USB‑C port can be: [benq]
- Power‑only (charging)
- USB 2.0 or USB 3.x data only
- Data + power + video (via Alt Modes or Thunderbolt)
- Full‑featured Thunderbolt 3/4/USB4 with high‑bandwidth video
From a UX perspective, this is the root of user confusion: everything looks the same, but capabilities differ drastically. [kb.plugable]
For a USB‑C connection to carry video, the port and cable must support one of these technologies: [uperfect]
- DisplayPort Alt Mode (DP Alt Mode) – reuses USB‑C "high‑speed lanes" to carry native DisplayPort signals directly from the GPU to the display.
- HDMI Alt Mode – less common, but allows native HDMI over USB‑C on supported devices.
- Thunderbolt 3/4 / USB4 – encapsulates DisplayPort signals inside a high‑bandwidth Thunderbolt/USB4 transport, often supporting multiple 4K displays.
If none of these are supported, the USB‑C cable cannot output video, even if devices connect and charge normally. [benq]

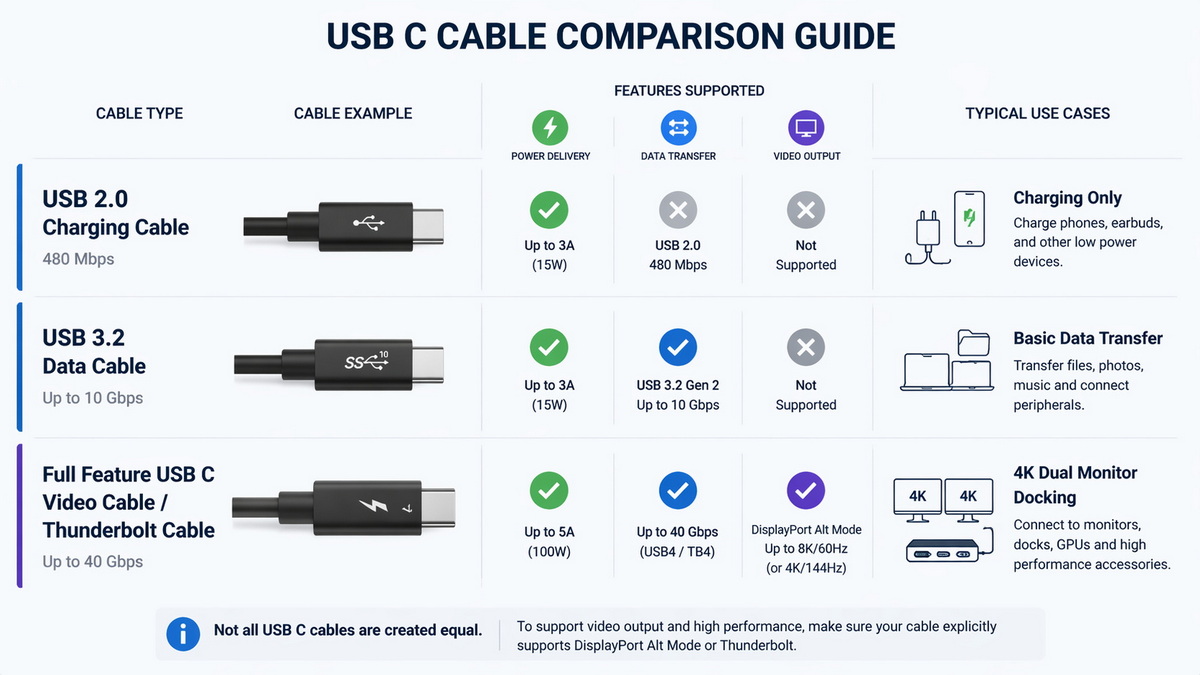

Inside a USB‑C cable, the wiring and shielding configuration decides what it can actually do. Typical categories include: [reddit]
- USB 2.0 charging cables
2 data lines + power; no high‑speed SuperSpeed pairs; no video support.
- USB 3.x data cables (Gen 1 / Gen 2)
Include high‑speed differential pairs; may support video if designed as full‑feature and used with compatible ports.
- Full‑feature USB‑C video cables
Designed for DP Alt Mode or HDMI Alt Mode; often labeled with DisplayPort or HDMI icons.
- Thunderbolt 3/4 cables
Certified for 40 Gbps or 80 Gbps, strong signal integrity; widely used for high‑resolution multi‑display setups. [cabletimetech]
In daily OEM work, we routinely see cost‑driven designs where buyers initially choose basic USB 2.0‑grade Type‑C cables for "savings," then later discover that their displays or docks won't light up. The issue is not the connector—it's the missing high‑speed lanes and certification. [cabletimetech]

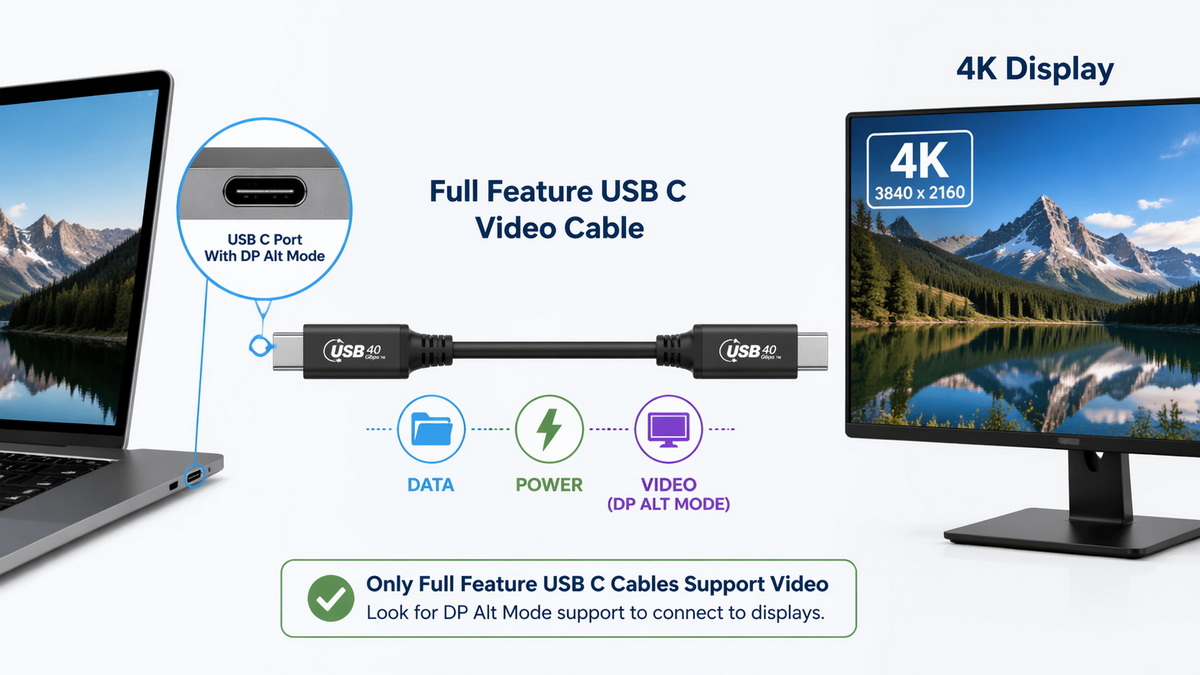

Video output over USB‑C is a system‑level capability: [kb.plugable]
- The source device port (laptop, tablet, phone) must support DP Alt Mode / HDMI Alt Mode / Thunderbolt.
- The cable must be full‑feature and support the required bandwidth.
- The display or dock must accept video over USB‑C or through the correct adapter.
If just one part of this chain is limited (for example, a USB‑C port that only supports USB 2.0 + charging), the setup will fail to output video even with a high‑end cable. [melgeek]
As a manufacturer, this is one of the most common questions we get from both brand owners and end‑users. Below is a practical step‑by‑step process that we also use in our OEM consulting.

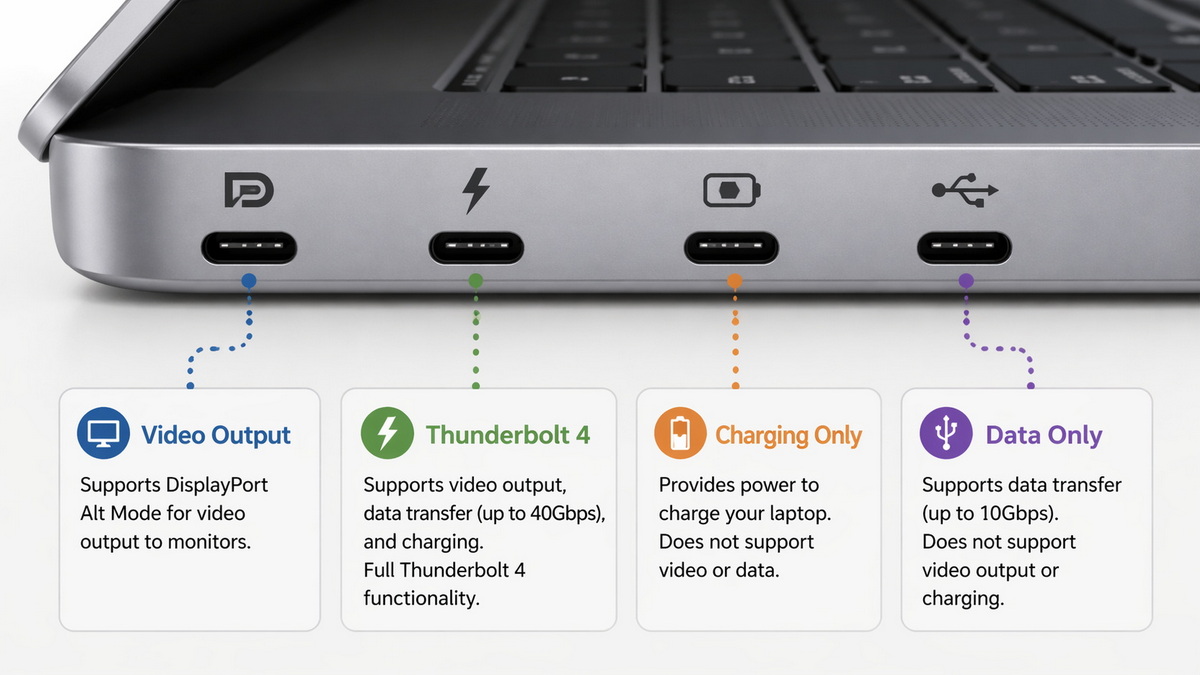

Many video‑capable USB‑C cables and ports carry small icons near the connector: [benq]
- DisplayPort icon (DP logo) – indicates DP Alt Mode support.
- Thunderbolt icon (lightning bolt) – indicates Thunderbolt 3/4 capability.
- HDMI or monitor icon – used by some brands for USB‑C to HDMI video support.
If there are no icons and no specs on the packaging, treat the cable as data/charging only by default.
For professional purchasing and OEM projects, never rely only on labeling. Carefully check the following parameters in the datasheet or product page: [melgeek]
- Supported standard: USB 2.0, USB 3.2 Gen 1 (5 Gbps), Gen 2 (10 Gbps), Thunderbolt 3/4/USB4.
- Alt Mode support: "DisplayPort Alt Mode", "HDMI Alt Mode", "USB‑C video".
- Maximum video resolution: e.g., 4K@60Hz, 8K@60Hz, dual 4K.
- Cable length and AWG: longer cables require better materials and shielding to maintain signal integrity.
A cable described only as "USB‑C charging cable" with no data rate or video spec is almost always non‑video.
Not all USB‑C ports on laptops or phones support video output. [kb.plugable]
- Check the user manual/spec sheet for terms like "DisplayPort Alt Mode", "Thunderbolt 4", or "supports external display".
- Look at the port itself for DP or Thunderbolt icons.
- On some models, only one of multiple USB‑C ports supports video.
In our support experience, many "cable problems" turned out to be port limitations on the laptop motherboard or GPU routing.
If you already have the devices and cable in hand, a quick functional test is still valuable: [reddit]
1. Connect the USB‑C source device (laptop/phone) to a known‑good USB‑C monitor or dock.
2. Confirm the monitor's input source is set correctly.
3. Try a known video‑capable cable as a control.
4. Compare behavior: if the control cable works and the unknown cable does not, the unknown cable likely lacks video support.
For OEM customers, we recommend building a simple test matrix (2–3 typical devices × 2–3 displays) to validate a cable before mass deployment.
To go beyond theory, here are typical scenarios we see from overseas clients, and the cable types that usually work best.
- Recommended: Full‑feature USB‑C cable rated for at least USB 3.2 Gen 2, with DP Alt Mode support.
- Port requirement: Laptop USB‑C port supporting DP Alt Mode or Thunderbolt 3/4. [benq]
- Result: 4K@60Hz video + USB data + up to 100 W power on one cable (depending on monitor/dock).
Here, low‑grade charging cables often cause "no signal" or force the monitor to low resolutions.
- Recommended: Certified Thunderbolt 3/4 or USB4 cable, especially for dual 4K or 5K setups. [uperfect]
- Port requirement: Thunderbolt 3/4 or USB4 port on laptop.
- Result: High bandwidth, more robust signal integrity, better support for daisy‑chaining or multiple external screens.
This is the typical environment for advanced office workstations and creative studios.
- Recommended: USB‑C to HDMI cable or adapter that explicitly states support for video over USB‑C (Alt Mode). [melgeek]
- Port requirement: Phone/Tablet USB‑C with DisplayPort or HDMI Alt Mode.
- Result: Simple one‑cable connection from mobile device to TV or projector for presentations, streaming, or signage.
For consumer electronics brands, clear packaging text and simple diagrams drastically reduce user confusion in this use case.

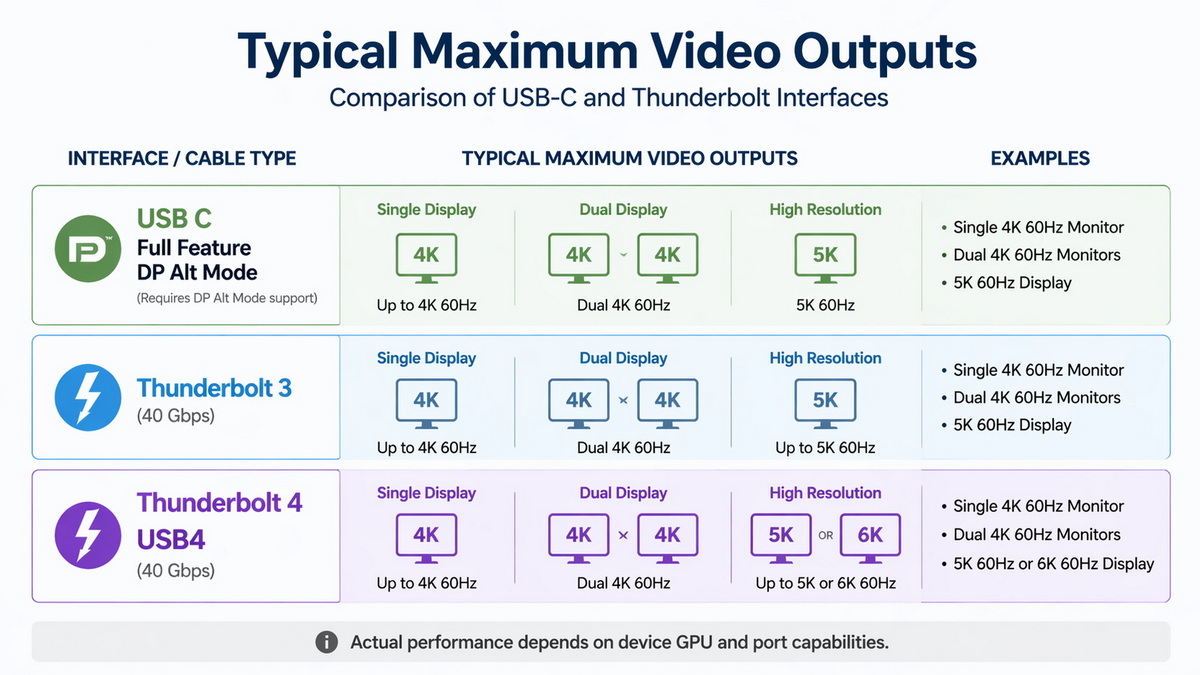

Video data rates grow quickly with resolution and refresh rate. The cable must support enough bandwidth to carry the desired signal without errors. [vesa]
Typical patterns:
- USB‑C with DP Alt Mode over a decent full‑feature cable:
- Often supports 4K@60Hz on one display.
- Thunderbolt 3/4:
- Can support dual 4K@60Hz or a single 5K/6K display in many implementations.
Insufficient bandwidth leads to forced lower resolution, flickering, black screens, or intermittent disconnects. [uperfect]
From a manufacturing standpoint, high‑speed video signals are very sensitive to:
- Cable length
- Wire gauge (AWG)
- Shielding quality
- Connector plating and assembly precision [cabletimetech]
This is why serious brands prefer tighter quality control and certified assemblies for premium video cables—especially above 2 meters. For OEM/ODM clients, we often propose a length vs. resolution chart during the design phase to balance cost and performance.
When buying USB‑C cables online or for internal deployment, follow these expert tips: [kb.plugable]
- Look for clear claims like "supports 4K video via DP Alt Mode" or "Thunderbolt 4 certified".
- Verify data rate (e.g., 10 Gbps, 20 Gbps, 40 Gbps) rather than just "fast".
- Read customer reviews mentioning success or failure with specific laptops and monitors.
- Prefer reputable brands that show detailed specs and test reports.
As a Chinese cable manufacturer serving overseas brands, we see what causes returns and support tickets—and how to avoid them:
- Define target use cases clearly (single 4K monitor, triple display dock, signage, etc.) before finalizing cable specs. [cleardigital]
- Request engineering documentation: wiring diagrams, supported standards, test reports.
- Align cable specs with device chipset capabilities from your ODM/EMS partners (GPU, USB controller, dock chipset).
- Invest in pre‑shipment compatibility testing with your real-world devices and displays.
At Shenzhen Otechkabel Electronic Co., Ltd, we typically co‑design cable solutions with our clients' product teams to ensure that label claims match real‑world performance, which is crucial for long‑term brand reputation.
From a user‑experience and SEO perspective, you can significantly reduce confusion and boost conversions on your cable product pages.
To make the concept of USB‑C video more intuitive, consider adding:
- A simple diagram showing source device → USB‑C cable → monitor/dock, with labels for DP Alt Mode / Thunderbolt.
- An icon legend explaining DP, Thunderbolt, and HDMI symbols on ports and cables.
- A resolution vs. cable type table (e.g., USB 2.0 cable, full‑feature USB‑C, Thunderbolt 4) with "Typical Max Resolution" and "Recommended Use". [cleardigital]
On your product or knowledge pages, include clearly visible blocks such as:
- "This cable is ideal for…" (e.g., "4K@60Hz single monitor setups, USB‑C docking stations, gaming laptops").
- Compatibility notice: "Requires a USB‑C port with DisplayPort Alt Mode or Thunderbolt 3/4 for video output."
- Quick checklist: "Check your device manual for DP Alt Mode; look for the DP or Thunderbolt logo near your USB‑C port."
These small UX touches dramatically reduce returns and improve user satisfaction. [monsterinsights]
From an industry perspective, USB‑C video cables are no longer simple commodities—they are high‑speed signal products that must be engineered and tested accordingly. [vesa]
As a dedicated cable manufacturer in Shenzhen, supplying USB, VGA, HDMI, DVI, SATA and other custom cables to overseas brands, wholesalers, and device manufacturers, our role includes:
- Helping you choose the right cable specification for your device roadmap (USB‑C, DP, HDMI versions, Thunderbolt).
- Providing OEM customization: lengths, jacket materials, color, branding, labeling, and packaging.
- Supporting compliance and certification requirements in your target markets.
When your customers plug in a USB‑C cable and "it just works," that directly supports your brand's perceived quality.
If you are planning a new monitor, docking station, industrial device, or consumer electronics product and need reliable USB‑C video cables, we can support you from design to mass production.
- Discuss your target resolutions and use cases
- Get engineering recommendations on DP Alt Mode, HDMI Alt Mode, or Thunderbolt solutions
- Receive samples and test reports for your QA team
Contact Shenzhen Otechkabel Electronic Co., Ltd today to discuss your USB‑C, HDMI, VGA, DVI, and SATA cable OEM requirements and build cable solutions that your customers can truly rely on.
No. Only cables and ports that support DisplayPort Alt Mode, HDMI Alt Mode, Thunderbolt 3/4, or USB4—and offer enough bandwidth—can reliably carry 4K video. [melgeek]
Look for a DisplayPort or Thunderbolt icon next to the port and confirm in your device's specifications that it supports "DisplayPort Alt Mode", "Thunderbolt", or "external display support". [benq]
Thunderbolt 3/4 cables are usually engineered for higher bandwidth and stricter signal integrity, making them very reliable for demanding multi‑monitor setups, but they may be unnecessary for simple single‑monitor 1080p or 4K use cases. [uperfect]
Charging only requires power delivery, while video needs Alt Mode or Thunderbolt support plus the correct internal wiring in the cable; a power‑only or USB 2.0 cable will not carry video signals. [kb.plugable]
Ideally at the early design stage, when you are defining display resolutions, port types, and system architecture, so that cable specs, testing, and labeling are aligned with your device roadmap. [monsterinsights]
