As someone who has spent over a decade helping overseas brands and wholesalers design and manufacture custom USB, HDMI, VGA, DVI, and SATA cables in Shenzhen's cable industry cluster, I can tell you that "Can USB cables send video?" is one of the most misunderstood questions we hear from global customers. Many USB cables only carry power and data, while a carefully selected USB‑C cable with the right protocol can drive a 4K or even 8K display just as reliably as HDMI. [anker]
In this guide, I'll walk you through how USB video actually works, where most users get it wrong, and how to choose (or OEM) the right cable for stable display connections in real‑world projects. [techtimes]
- Whether USB‑A, USB‑B, and USB‑C support video
- The difference between USB 2.0, USB 3.x, USB4, and Thunderbolt for video
- What DisplayPort Alt Mode and HDMI Alt Mode mean in practice
- How to pick a USB cable that truly supports 4K/8K video
- Practical OEM tips for brands, wholesalers, and device manufacturers
You can think of this as a field guide from the factory floor: what really matters when your USB cable must carry video, not just power. [techtimes]

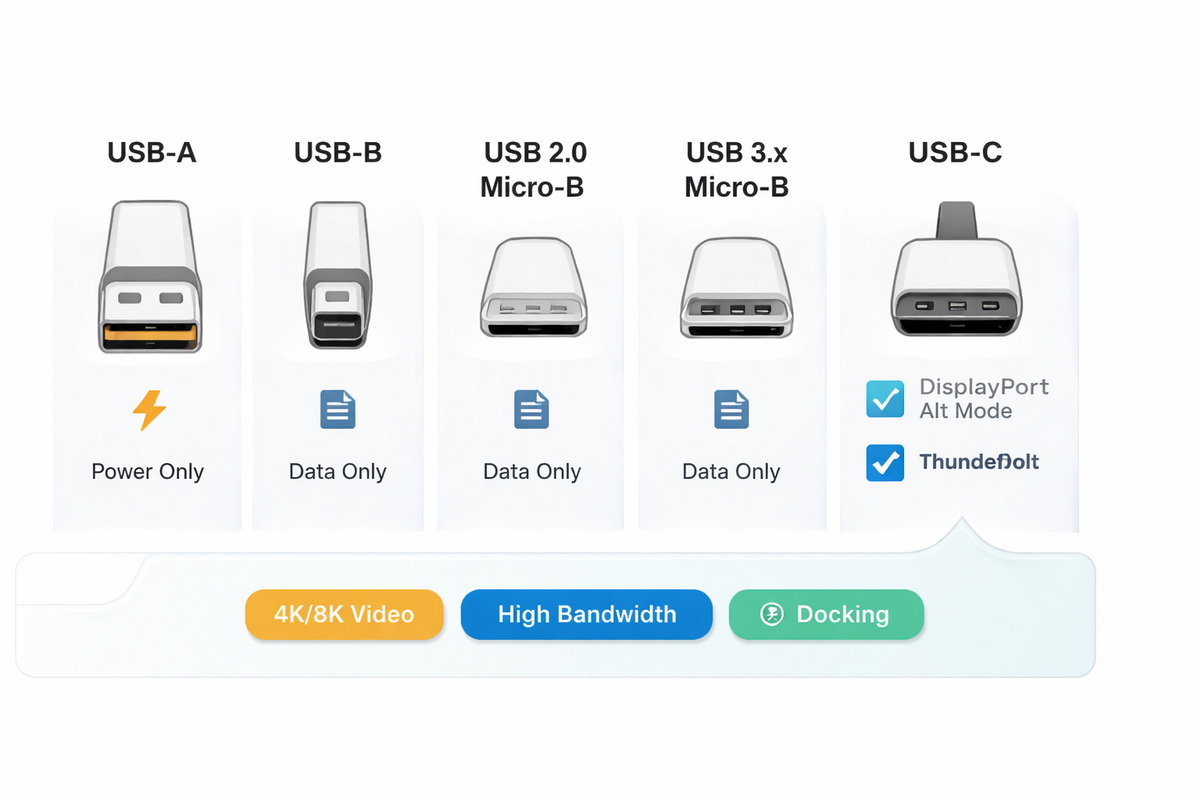

From a user's perspective, the confusion starts because all USB cables look similar, but their internal wiring and supported protocols can be completely different. [cabletimetech]
In simple terms:
- Most USB 2.0 charging cables: power + basic data only, no video. [cabletimetech]
- Many USB 3.x cables: enough bandwidth for video, but only work if both devices and cable support video protocols. [melgeek]
- USB‑C cables with Alt Mode or Thunderbolt: can carry high‑resolution video similar to DisplayPort or HDMI. [anker]
If your customer plugs a random USB cable into a monitor and expects it to "just work" like HDMI, they will likely be disappointed—unless the cable and port are designed for video from the start. [cabletimetech]
The original article correctly notes that USB 1.0 and 2.0 were built for low‑speed data and power, not for moving large video streams. [techtimes]
- USB 1.0: up to about 1.5 Mbps, far too low for any practical video. [techtimes]
- USB 2.0: up to 480 Mbps; still not ideal for direct high‑resolution video. [techtimes]
In practice, USB 2.0 can be used in USB display adapters where a chip compresses and converts video over USB 2.0 data, but this is not native, low‑latency video like DisplayPort or HDMI. [melgeek]
Key takeaway: If your cable is USB 2.0 only, assume no native video support unless a dedicated adapter chipset is involved. [cabletimetech]
The jump to USB 3.x increased bandwidth dramatically, making true video over USB technically possible. [anker]
Typical rates:
- USB 3.0 / USB 3.1 Gen 1: up to 5 Gbps
- USB 3.1 Gen 2 / USB 3.2 Gen 2: up to 10 Gbps
- USB 3.2 Gen 2x2: up to 20 Gbps [anker]
These speeds are sufficient for compressed 4K video and beyond, but two conditions must be met:
1. Your host device (laptop, PC, tablet) must support sending video over USB, often via DisplayPort Alt Mode or through a video adapter chip. [melgeek]
2. Your receiving device (monitor, dock, adapter) must interpret that video signal correctly. [melgeek]
A USB 3.1 cable without Alt Mode support is still just a very fast data cable. It will not magically behave like HDMI on its own. [cabletimetech]
From an OEM manufacturer's point of view, USB‑C is where video, data, and power converge into a single compact connector. [anker]
USB‑C itself is just the connector shape, but it commonly carries:
- USB 3.x or USB4 data
- Power Delivery up to 100 W or more
- DisplayPort Alt Mode (DisplayPort video over USB‑C)
- HDMI Alt Mode in some implementations
- Thunderbolt 3/4 on supported devices [melgeek]
As the original article mentions, properly designed USB‑C solutions can handle 4K and even 8K video at high refresh rates. For example: [cabletimetech]
- DisplayPort Alt Mode over USB‑C can support up to 8K at 60 Hz with Display Stream Compression. [cabletimetech]
- HDMI Alt Mode over USB‑C can support 4K at 60 Hz with HDMI 2.0‑equivalent performance. [melgeek]
Real‑world example: A laptop with USB‑C that supports DisplayPort Alt Mode connects via a USB‑C to HDMI cable to a 4K TV. The USB‑C port outputs DisplayPort signals, which the cable or adapter converts to HDMI for the TV. [anker]
To decide whether a USB‑C cable supports video, you must understand the protocols running over that cable. [melgeek]

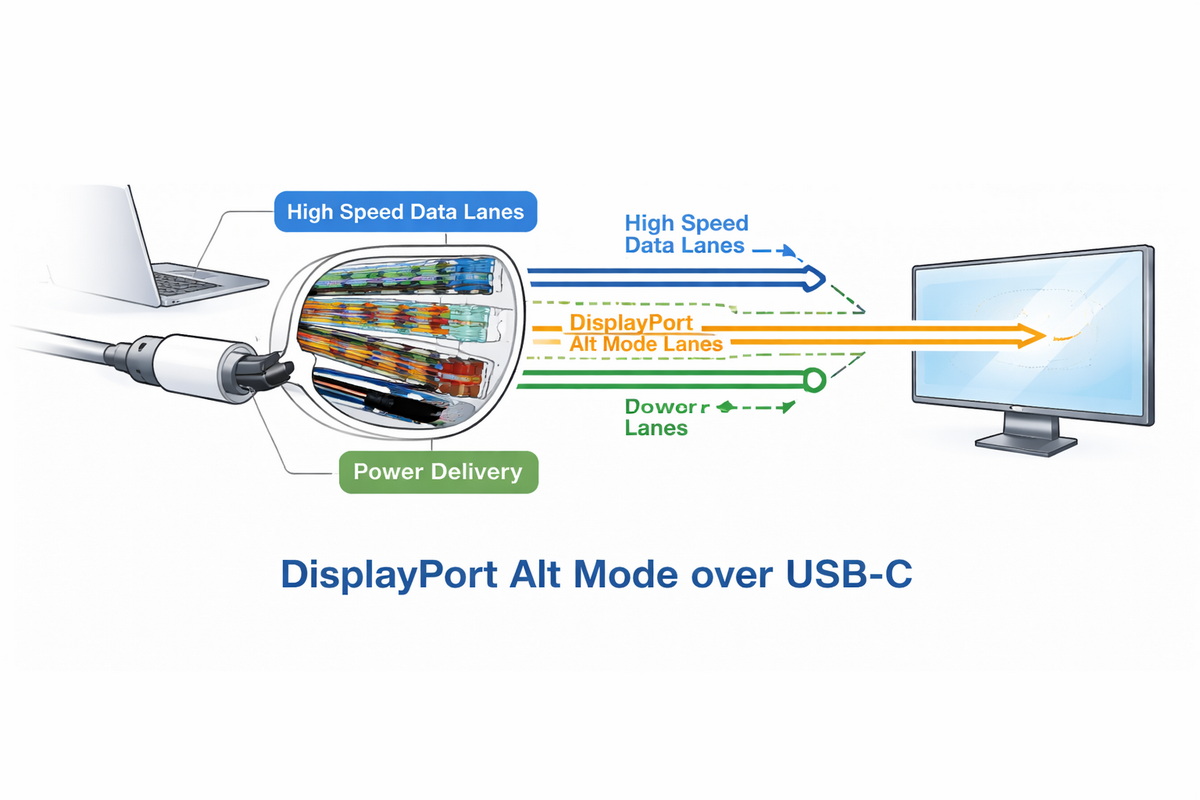

DisplayPort Alt Mode allows a USB‑C port to output native DisplayPort audio/video signals through specific pins in the connector. [cabletimetech]
Typical capabilities:
- Up to 4K at 240 Hz, or dual 4K at 144 Hz in advanced configurations
- Up to 8K at 60 Hz with Display Stream Compression (DSC) [cabletimetech]
This is the standard behind many USB‑C to DisplayPort or USB‑C to HDMI adapters.
HDMI Alt Mode is less common today but allows a USB‑C port to transmit HDMI signals directly. [melgeek]
- Typically supports 4K at 60 Hz
- Compatible with common HDMI features via USB‑C [melgeek]
Thunderbolt uses the USB‑C connector but carries PCIe and DisplayPort together at up to 40 Gbps. [anker]
From a cable manufacturing standpoint, Thunderbolt‑certified cables are built with stricter signal integrity requirements to ensure stable high‑bandwidth video and data simultaneously. [cabletimetech]
Practical OEM insight: When overseas brands need one cable for docking stations that handle multiple 4K displays, we usually recommend active, certified Thunderbolt or high‑grade USB‑C cables with robust shielding and low‑loss materials to prevent signal degradation. [anker]

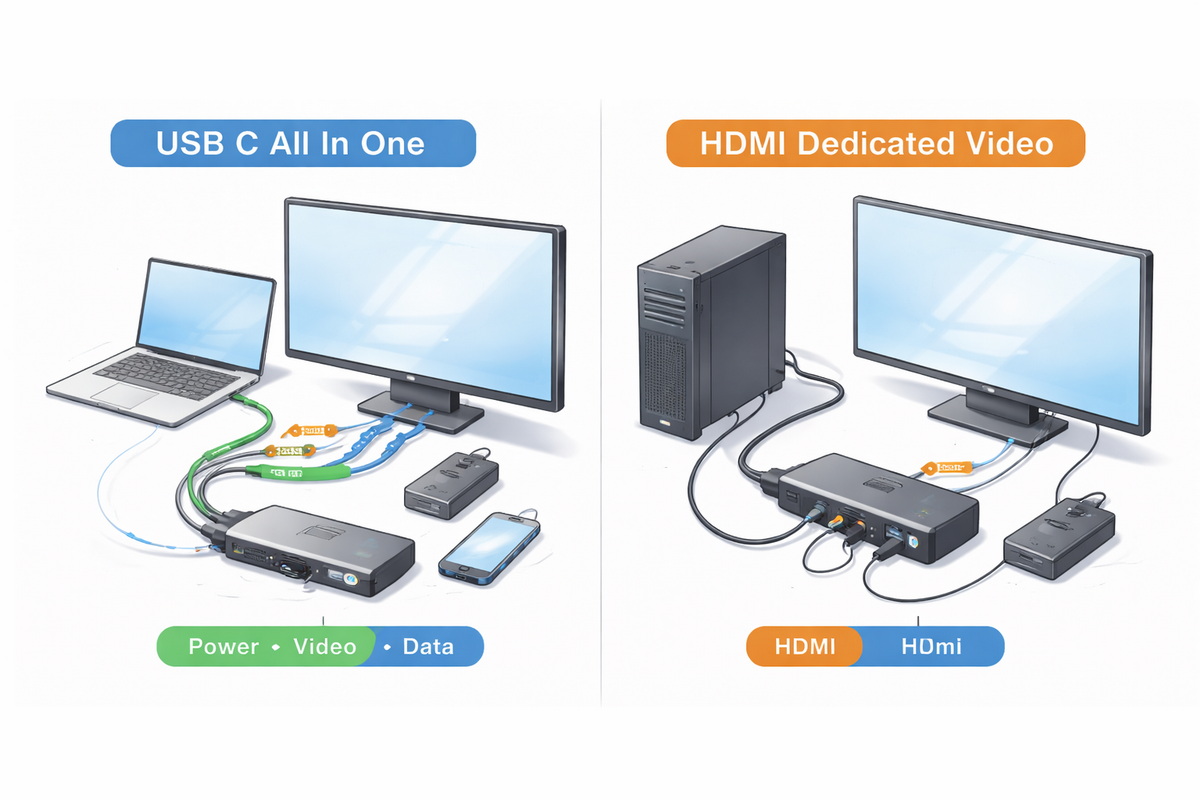

Below is a simplified table that reflects how USB‑C video compares with HDMI in typical 2024–2026 deployments. [anker]
| Feature | USB‑C (Alt Mode / TB) | HDMI (2.0–2.1) |
|---|---|---|
| Primary purpose | Universal data, power, video | Dedicated video + audio |
| Connector direction | Reversible USB‑C | One‑way HDMI plug |
| Max bandwidth | Up to 40 Gbps (USB4/TB4) anker | Up to 48 Gbps (HDMI 2.1) anker |
| Typical video support | Up to 8K, multi‑display via DP Alt Mode | Up to 10K, widely used for TVs and AV |
| Power delivery | Up to 100 W or more | No standard power delivery |
| Ideal use cases | Laptops, phones, docks, monitors | TVs, projectors, consoles, AV receivers |
Bottom line: HDMI remains the simplest choice for pure display connections, while USB‑C is the most flexible choice when you need video + data + power in one cable, especially for laptops, tablets, and docking stations. [anker]
As a manufacturer, we often help customers troubleshoot "Why doesn't this USB‑C cable show video on my monitor?" Here is the practical checklist we use internally.
- Look for a DisplayPort logo (⧉ style icon) or a small monitor icon near the USB‑C port on your device. [melgeek]
- On the spec sheet, confirm it mentions DisplayPort Alt Mode, HDMI Alt Mode, or Thunderbolt 3/4 support. [cabletimetech]
If the USB‑C port is listed as "data and charging only," it will not output video regardless of cable quality. [melgeek]
- Check whether the cable is labeled as USB‑C video cable, USB‑C to HDMI, USB‑C to DisplayPort, or Thunderbolt.
- Look for certification marks or clear specs like "USB‑C 3.2 Gen 2, 4K@60Hz DP Alt Mode". [cabletimetech]
A generic "USB‑C charging cable" often has fewer high‑speed pairs and may not support video at all. [cabletimetech]
Higher resolutions and refresh rates require more bandwidth. [anker]
- For 1080p at 60 Hz, most USB‑C video solutions are fine.
- For 4K at 60 Hz, use USB‑C cables rated for at least 10 Gbps and Alt Mode. [anker]
- For high‑refresh gaming (144 Hz and above) or multi‑monitor setups, choose higher‑spec DisplayPort Alt Mode or Thunderbolt cables. [cabletimetech]
When a customer complains about unstable or missing video, we often test with known‑good USB‑C to HDMI/DP adapters and cables to isolate whether the issue is with the device, cable, or adapter. [techtimes]
Working with brands and wholesalers from Europe, North America, and Asia, we repeatedly see the same mistakes in cable selection for video applications. [techtimes]
- Using USB 2.0 charge cables for USB‑C monitors and then assuming the monitor is defective.
- Ignoring cable length: signal integrity drops over long USB‑C runs, causing flicker or dropouts with 4K or higher resolutions. [cabletimetech]
- Mixing uncertified adapters and hubs from different suppliers, leading to compatibility issues and difficult after‑sales support. [cabletimetech]
- Not specifying video requirements in OEM orders (e.g., required resolution, refresh rate, and interface), so the factory defaults to a data‑only cable design.
By clarifying technical requirements upfront and choosing the correct internal construction and shielding, we help clients dramatically reduce returns and support tickets related to video over USB. [techtimes]
As a specialized cable manufacturer in China, we produce USB, HDMI, VGA, DVI, SATA, and other custom cable assemblies for global OEM/ODM projects. Our approach to USB video cables focuses on three aspects:
1. Signal Integrity by Design
- Careful selection of conductor gauge, twisting, and shielding to maintain differential impedance and minimize crosstalk at high frequencies. [cabletimetech]
- Testing at target lengths (e.g., 1 m, 2 m, 3 m) to ensure stable 4K or 8K performance.
2. Protocol‑Aware Engineering
- Designing for DisplayPort Alt Mode, HDMI Alt Mode, or Thunderbolt where required, instead of treating USB‑C as "just another connector." [melgeek]
- Coordinating with customers' device teams to match port capabilities and certification requirements.
3. Full‑Chain OEM Support
- From bulk cables for wholesalers to bespoke assemblies for branded monitors, docking stations, and industrial equipment. [cabledo]
- Reliability testing with tools like high‑speed interface testers to quickly identify failing cables before shipment. [techtimes]
This is why many of our repeat customers trust us not just to "produce cables," but to help them define the right cable specification for their video‑centric products.
If you are sourcing cables for your brand, e‑commerce store, or devices, use this checklist when ordering from an OEM or supplier.
- Target resolution: 1080p, 1440p, 4K, 8K
- Target refresh rate: 60 Hz, 120 Hz, 144 Hz
- Number of displays: single or dual monitor setups
This determines whether you need standard USB‑C video, high‑end DP Alt Mode, or Thunderbolt‑level performance. [melgeek]
- Device output: USB‑C (DP Alt Mode / TB), HDMI, DisplayPort, VGA, DVI
- Display input: HDMI, DisplayPort, USB‑C, VGA, DVI
For example:
- Laptop (USB‑C DP Alt Mode) → Monitor (HDMI): USB‑C to HDMI cable
- Laptop (USB‑C DP Alt Mode) → Monitor (DisplayPort): USB‑C to DP cable
- Docking station supporting dual 4K: Thunderbolt or high‑spec USB‑C cables
- USB version (e.g., USB 3.2 Gen 2, USB4, Thunderbolt 4)
- Desired cable length and acceptable thickness
- Requirements for bending, flexibility, and jacket materials (e.g., PVC, braided) [cabletimetech]
When working with us, many customers share their product brief or current user complaints so we can recommend a suitable specification instead of just copying a generic cable.
If your business needs reliable USB video cables—whether USB‑C to HDMI, USB‑C to DisplayPort, USB‑C to USB‑C, or hybrid solutions combined with HDMI, VGA, and DVI—working with an experienced OEM partner can save you time, cost, and after‑sales headaches.
At Shenzhen Otechkabel Electronic Co., Ltd, we:
- Manufacture USB, VGA, HDMI, DVI, SATA and other cables for overseas brands, wholesalers, and device manufacturers.
- Support OEM/ODM, custom labeling, and bulk packaging for your markets.
- Help you translate your performance requirements (like 4K@60 Hz video) into precise cable specifications and testing standards.
If you are planning a new monitor, docking station, or cable lineup—or struggling with current video cable failure rates—reach out to our engineering team to discuss a tailor‑made cable solution for your next project.
No. Only USB‑C cables used with ports that support DisplayPort Alt Mode, HDMI Alt Mode, or Thunderbolt will carry video, and the cable itself must be built for high‑speed lanes, not just charging. [melgeek]
Not directly. USB 2.0 lacks the bandwidth for native high‑resolution video and normally only carries power and basic data, unless used with a special USB display adapter that compresses video. [techtimes]
USB‑C is more versatile because it can carry power, data, and video, but HDMI is still simpler and more common for TVs and AV equipment. For laptops and docks, USB‑C is often the better all‑in‑one choice. [anker]
You need a USB‑C cable that supports DisplayPort Alt Mode or HDMI Alt Mode at sufficient bandwidth, or a certified Thunderbolt cable, and both devices must support 4K 60 Hz over that interface. [anker]
Define your required resolution, refresh rate, cable length, and interfaces in detail, then work with an experienced OEM like Shenzhen Otechkabel to choose proper conductors, shielding, and testing methods tailored for your application. [techtimes]
