● What Is USB Cable Shielding?
● How USB Cable Shielding Works
● Main Types of USB Cable Shielding
>> 3. Dual Shielding (Foil + Braid)
● Why USB Cable Shielding Is So Important
● Where Shielded USB Cables Are Essential
>> Industrial Automation and Robotics
>> Medical and Laboratory Equipment
>> Professional Audio and Video
>> High‑Speed Data and Long Cable Runs
● How Shielding Is Connected in Real USB Designs
● Common Problems Caused by Poor USB Shielding
● How Professional Manufacturers Test Shielding Quality
● Practical Guidance for Choosing Shielded USB Cables
>> 1. Understand Your Environment
>> 2. Match Shielding Structure to Application
>> 3. Review Quality and Test Practices
● FAQ
If you have ever plugged in a USB device and experienced random disconnects, noisy audio, or unstable data transfer, you have already seen what happens when USB cable shielding is done poorly. As a manufacturer focused on designing and producing USB cables and cable assemblies, we see this every day in incoming samples and rejected batches from low‑cost suppliers. In this guide, we will look at what USB cable shielding is, how it works in real applications, and how to select the right shielded USB cable for demanding projects.
USB cable shielding is a conductive layer, or multiple layers, wrapped around the internal conductors of a USB cable. Its main role is to block electromagnetic interference (EMI) and radio‑frequency interference (RFI) from entering the cable, and to prevent high‑speed USB signals from radiating outward.
In simple terms, shielding protects both sides:
- It stops external noise from nearby power lines, motors, wireless equipment and other electronics from disturbing the USB signals inside the cable.
- It helps prevent the USB cable from acting like an antenna that radiates noise into surrounding devices.

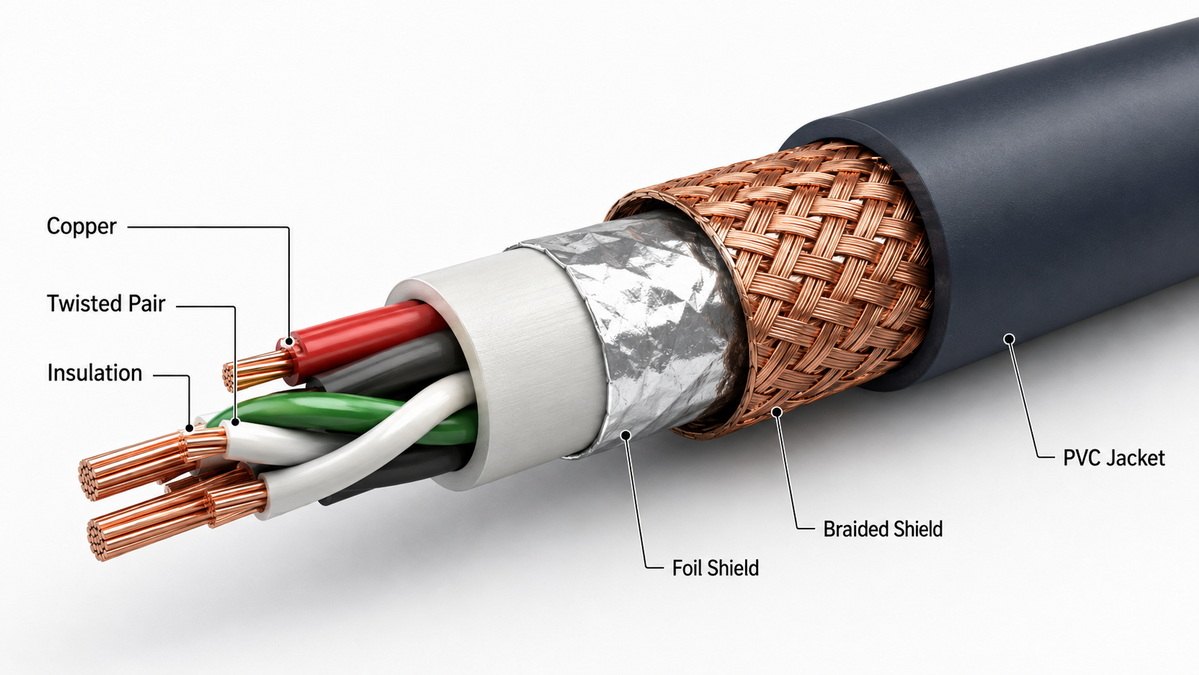

Typical USB cable shielding structures include:
- Aluminum foil shielding – A thin layer of foil wrapped around the cable core.
- Braided copper shielding – A woven mesh of tinned copper surrounding the conductors.
- Dual shielding (foil + braid) – An inner foil layer plus an outer braided shield for enhanced protection.
Good shielding is especially important for high‑speed standards such as USB 2.0, USB 3.x, and USB‑C, where data is transmitted at very high frequencies and is more sensitive to noise.
From an engineering point of view, USB cable shielding is a practical application of electromagnetic shielding and the Faraday cage principle.
When external electromagnetic fields reach the cable, the shield:
- Receives interference and induces currents in the shielding layer.
- Generates an opposing electromagnetic field that cancels or greatly reduces the interference reaching the signal pair.
- Guides unwanted noise safely to a defined reference potential, instead of letting it modulate the data signal.
At the same time, the shield forms a metallic envelope around the internal conductors. High‑speed USB differential signals create their own fields; the shield helps keep these fields inside the cable. This reduces radiation, improves signal integrity, and allows the cable to meet electromagnetic compatibility (EMC) requirements.
In production, the performance of the shield depends not only on its material and structure, but also on how well it is connected at the connectors. Shield resistance, continuity, and stable contact to the plug shell all have a direct impact on the stability of data transmission.
Foil shielding uses a thin aluminum (or sometimes copper) foil wrapped around the cable core.
Advantages:
- Very effective at blocking high‑frequency EMI and RFI.
- Lightweight and compact, suitable for slim cable designs.
- Cost‑efficient for a wide range of consumer and office USB applications.
Limitations:
- Less robust mechanically, more likely to crack or tear under repeated bending.
- Offers limited strength in environments with frequent movement, vibration, or cable dragging.
Foil shielding is commonly used in standard consumer USB cables where cost, size and moderate EMI protection are the main concerns.
Braided shielding uses a woven mesh of fine metal strands (usually tinned copper) wrapped around the inner core.
Advantages:
- Strong mechanical protection and excellent durability under bending and movement.
- Good shielding performance across a broad frequency range.
- Better long‑term stability for cables that must move frequently.
Limitations:
- Higher material and processing cost compared with foil alone.
- Slightly increases cable outer diameter and weight.
Braided shielding is a popular choice in industrial, automotive, and professional audio/video applications, where cables must endure frequent motion and harsh conditions.
Dual shielding combines an inner foil layer with an outer braided shield.
Advantages:
- Enhanced protection, combining foil's high‑frequency attenuation with braid's mechanical and wide‑band performance.
- Better stability for long cable runs and high‑speed data transmission.
- Helps meet stricter EMC requirements in demanding environments.
Limitations:
- Higher production cost and more complex manufacturing process.
- Slightly thicker and heavier than single‑shielded cables.
Dual‑shielded USB cables are typically used in industrial automation, medical equipment, data acquisition systems, and other situations where downtime or data loss would be very costly.
From both user feedback and factory experience, the quality of USB cable shielding has a direct influence on:
- Data stability – Good shielding reduces bit errors, random disconnects, and corrupted transfers, especially for high‑speed interfaces and longer cable runs.
- Interference control – Devices connected by well‑shielded cables are less likely to disturb nearby electronics and are easier to integrate into complex systems.
- Device reliability – Shielding acts as a physical and electrical protection layer, helping cables survive in environments with noise, heat, and mechanical stress.
- System performance – In professional and industrial systems, reliable cabling reduces the risk of costly troubleshooting, shutdowns, or field repairs.
In many real‑world cases, unstable USB behavior that looks like a software or device problem is actually traced back to poor‑quality, weakly shielded cables.
Although most quality USB cables include some form of shielding, there are situations where strong shielding is not just recommended but necessary.
In factories and automation lines, USB cables may run in parallel with power cables, motor drives, inverters, and other heavy equipment. These components generate strong EMI that can easily disturb unprotected data lines. Here, robust shielding, often with dual‑shielded structures, is essential to keep communication between controllers, sensors, cameras, and operator panels stable.
Medical and laboratory devices often combine sensitive measurement circuits with complex electronics and high‑frequency instruments. For these systems, stable communication and predictable electromagnetic behavior are vital. Shielded USB cables help maintain accuracy, prevent data loss, and support compliance with relevant electrical and safety standards.
In recording studios, live sound setups, and professional imaging systems, USB cables connect audio interfaces, microphones with digital outputs, cameras, and storage devices. Poor shielding can cause audible noise, dropouts, or image artifacts. Using high‑quality shielded cables in this environment is one of the easiest ways to improve reliability.
External solid‑state drives, docking stations, high‑resolution webcams, and VR equipment all rely on fast, stable data paths. When cable length increases or the environment is electrically noisy, shielding quality becomes a deciding factor in maintaining performance and avoiding random disconnections.
The way shielding is physically and electrically connected at each end of the cable is just as important as the choice of shielding material.
In a typical USB cable:
- The shielding layer is brought forward and clamped, crimped, or soldered to the metal shell of the connector.
- The connector shell is then tied to a stable reference, such as chassis ground or PCB ground, according to the device designer's grounding strategy.
- Overall shield resistance between the two plug shells is kept within a tight range to ensure effective noise conduction.
Different device designs use slightly different grounding approaches, for example connecting the shield to chassis or ground at one or both ends, or using resistors and capacitors to control high‑frequency behavior. Cable manufacturers must follow the agreed design, because incorrect shield termination can lead to ground loops, additional noise, or reduced protection.
During incoming inspection of market samples and low‑cost products, several recurring issues appear:

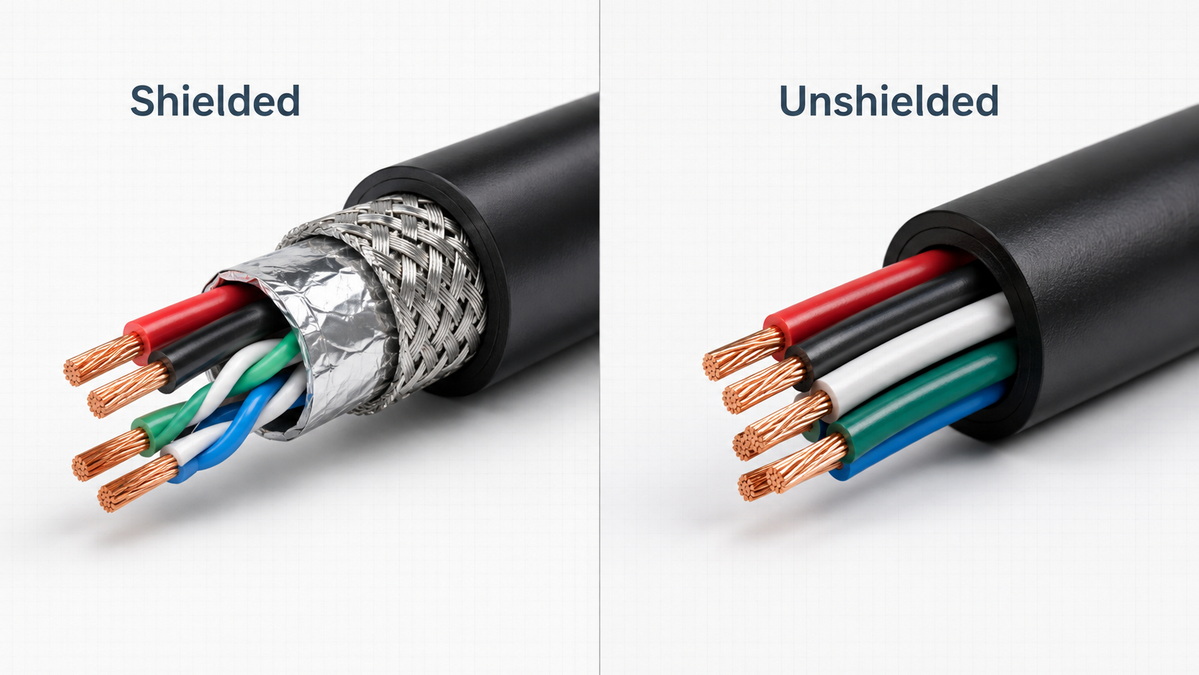

- Missing shielding – Some very cheap cables have only power and data wires without any metallic shield layer. These products may work in simple conditions but are highly unstable in noisy environments.
- Weak or damaged shielding – Foil that tears easily, or braid with very low coverage, cannot maintain performance over time, especially when the cable is bent or moved frequently.
- Incomplete shield connection to the plug – If the shield does not make solid contact with the connector shell, noise cannot be guided away effectively, and the cable behaves unpredictably.
- Mismatch with device grounding – If the cable's shield connection does not match the intended device grounding scheme, extra noise and ground loops can appear.
For end users, these technical issues translate into symptoms such as:
- Devices randomly disconnecting or reconnecting.
- External drives or cameras slowing down or failing under load.
- Audible noise and glitches in digital audio equipment.
- Devices that pass tests in the lab but fail in real‑world installations.

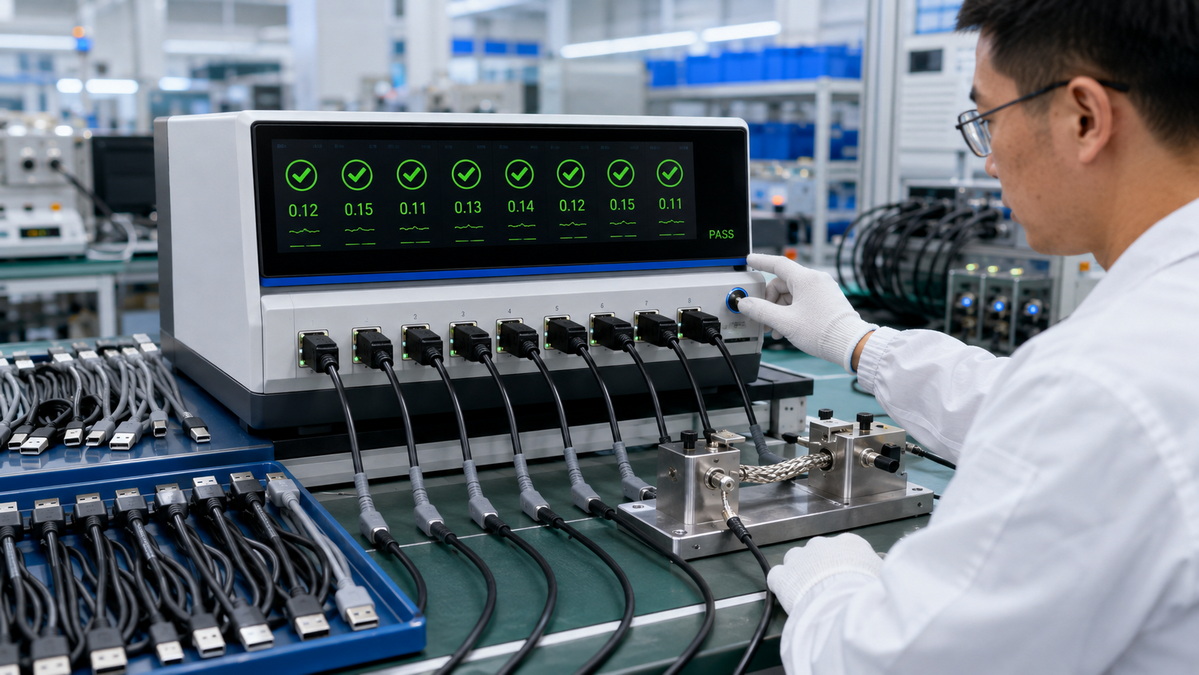

A responsible USB cable manufacturer does not rely only on visual checks. Shielding performance is validated through structured tests that are integrated into production and final inspection.
Typical tests include:
- Shield continuity and resistance measurement – Ensuring a low and consistent resistance between connector shells through the shielding path, using automated testers.
- Insulation and dielectric strength tests – Verifying that the shield is correctly insulated from inner conductors and meets electrical safety requirements.
- Mechanical tests – Bending, flexing, and sometimes torsion tests to check that foil and braid remain intact and effective under repeated movement.
- Pre‑compliance electromagnetic checks – For critical applications, sample cables may be tested together with the target device in an EMC environment to identify potential issues before formal certification.
These procedures help ensure that a cable not only passes a one‑time lab test, but also maintains stable shielding performance over its entire service life.
From the perspective of a brand owner, equipment manufacturer, or technical buyer, you do not need to become a signal integrity specialist to select appropriate cables. A structured approach is usually enough.
Clarify where and how the cable will be used:
- Office or home, industrial line, medical room, vehicle, outdoor cabinet, or test bench.
- Distance from power cables, motors, radio transmitters, or other strong sources of interference.
- Required data speed and typical cable length.
The harsher and noisier the environment, the stronger the shielding requirements should be.
A simple guideline is:
- Low‑noise environments and short consumer cables – Foil shielding is often adequate.
- Dynamic or harsh environments with frequent bending or vibration – Braided or dual shielding is preferred for durability and consistent performance.
- High‑speed USB 3.x, docking stations, industrial cameras, and measurement systems – Dual‑shielded cables with precisely constructed twisted pairs are recommended.
Specifying clear shielding requirements in purchase documents helps suppliers design and quote accurately.
Beyond the cable itself, it is important to check how potential suppliers control quality:
- Do they measure shield continuity and resistance as part of routine testing?
- Do they have documented cable assembly standards and inspection steps?
- Can they support special testing needs for your industry or target market?
Experience with similar projects and transparent test reports are strong indicators that the manufacturer can consistently deliver the required shielding performance.
USB cable shielding is one of the key elements that separates unstable, short‑lived cables from reliable, professional‑grade solutions. By understanding how shielding works, the differences between foil, braid, and dual structures, and the impact of proper termination and testing, buyers and engineers can make much more confident decisions when selecting cables for real projects.
For organizations that depend on consistent data transmission in industrial, medical, audio, or professional computing environments, investing in well‑designed shielded USB cables is a practical way to reduce risk, improve system stability, and extend equipment lifetime. If you are planning a new device, upgrading existing systems, or evaluating suppliers, this is an ideal moment to review your cabling strategy and ensure your USB shielding is aligned with your performance and reliability goals.
1. Do all USB cables include shielding?
Not every low‑cost USB cable on the market has a complete shielding structure. Some budget products omit the metallic shield layer entirely, relying only on the outer jacket. While these cables may work in very simple environments, they tend to perform poorly in electrically noisy conditions and can be a hidden source of unstable behavior.
2. What is the difference between foil and braided shielding?
Foil shielding uses a thin metal layer wrapped around the core, providing strong high‑frequency noise protection at low cost and in a compact form. Braided shielding uses a woven mesh of metal strands, offering better mechanical durability and broad‑band protection, especially for cables that move or flex frequently.
3. Is a dual‑shielded USB cable always necessary?
Dual shielding is not mandatory for every application, but it becomes very valuable for high‑speed data, long runs, or harsh industrial and professional environments. In low‑noise, short‑distance consumer applications, single‑shielded cables can often meet the requirements, while more demanding projects benefit significantly from dual‑shielded designs.
4. How can I tell if a cable's shielding is effective?
Without test instruments, it is difficult to measure shielding performance precisely. However, you can inspect a cut sample for visible foil and braid, check for solid connection to the connector shell, and observe behavior in real use. If the cable remains stable near power equipment or in complex setups, it is a good sign. Professional testing with dedicated equipment provides a much more accurate evaluation.
5. Which applications benefit most from high‑quality shielded USB cables?
Applications that involve high data rates, long cable routes, or strong electromagnetic noise benefit the most. Typical examples include industrial control systems, robotics, medical equipment, professional audio and video, external storage solutions, docking stations, and any installation where unexpected downtime or data loss would be costly.
