A USB‑C connection only stays truly "waterproof" when you combine the right connector design, sealing materials, and real‑world installation practices, not just a "waterproof" label on the datasheet. As a manufacturer of USB, VGA, HDMI, DVI, SATA and custom cables for global OEMs, I'll walk you through how we actually engineer and validate waterproof USB‑C connections in production, and how you should evaluate or specify them for your own projects. [shineindustrygroup]
Most USB‑C connectors are not inherently waterproof; they become waterproof only when combined with proper sealing structures and housing design. In engineering terms, we're usually talking about ingress protection (IP) ratings such as IP67 or IP68, which define resistance to dust and water under specific test conditions. [electronics.alibaba]
In our factory work, we see two common misunderstandings from buyers: they assume the *entire* cable is IP68 (not just the connector), and they assume "water‑resistant" marketing claims equal full submersion protection. A practical rule is to always cross‑check IP ratings, test reports, and the exact application scenario (rain, splash, immersion, or high‑pressure washdown) before finalizing the design. [connector-distribution]

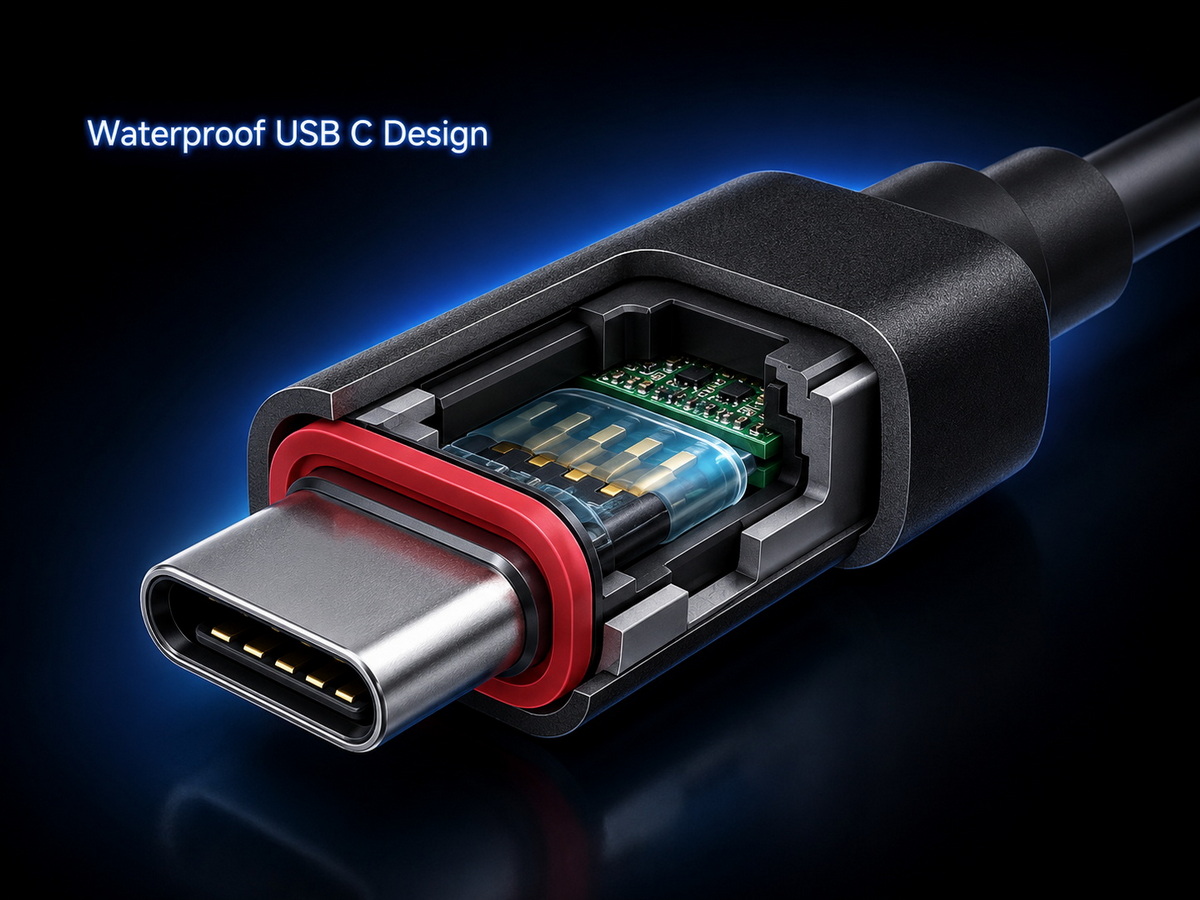

When we design a waterproof USB‑C assembly, we think in layers: sealing, coatings, and mechanical structure. [pcm-cable]
The primary defense is a well‑designed sealing system around the USB‑C receptacle or plug. This often includes: [pcm-cable]
- Elastomer sealing rings or gaskets around the connector shell to block water in the mating area. [electronics.alibaba]
- Sealant or potting compounds around cable entries and PCB terminations to eliminate capillary water paths. [electronics.alibaba]
- Protective caps for unmated ports, especially in outdoor equipment and marine or industrial devices. [sameskydevices]
In our OEM projects, we typically use silicone or high‑grade rubber seals that retain elasticity over wide temperature ranges and repeated mating cycles. [hystypec]
Even with good sealing, microscopic moisture can still appear inside an enclosure, so we add coating protection as a second barrier. Conformal coatings or waterproof films on contact areas, solder joints, and exposed PCB traces help prevent corrosion and leakage currents. [pcm-cable]
For harsh environments, we often specify coatings that are:
- Moisture‑resistant and salt‑spray resistant
- Stable at elevated temperatures found in outdoor or industrial applications
This ensures the USB‑C connector can survive long‑term in real‑world conditions, not just pass a one‑time lab test. [electronics.alibaba]
The geometry of the connector and its mounting plays a bigger role than many buyers expect. Effective structural improvements include: [pcm-cable]
- Tighter mating fits to reduce gaps where water can accumulate. [pcm-cable]
- Multiple sealing rings at different depths to create layered protection. [pcm-cable]
- Drainage paths at the bottom or sides of the interface so occasional water ingress can exit quickly instead of pooling. [electronics.alibaba]
From a design‑for‑manufacture standpoint, we also pay close attention to chamfers, surface roughness, and plastic‑to‑metal interfaces, all of which affect long‑term sealing quality. [electronics.alibaba]

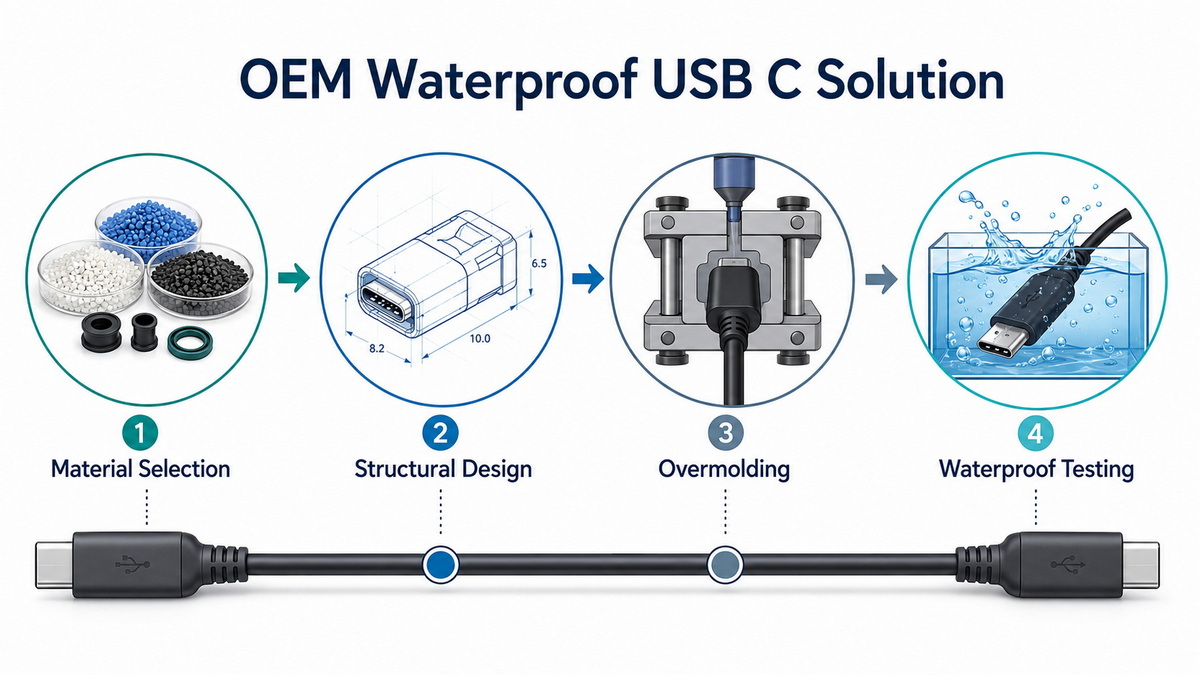

In our production for overseas brand owners and OEMs, a waterproof USB‑C design typically goes through four key stages: material selection, structural design, production process, and air‑tightness testing. [pcm-cable]
We start by choosing high‑performance materials that match the final application. Typical choices include: [electronics.alibaba]
- Silicone sealing rings with excellent elasticity, high‑temperature resistance, and chemical stability. [hystypec]
- UV‑stable and flame‑retardant plastics for outdoor enclosures and cable overmolds. [connector-distribution]
- Corrosion‑resistant metals (e.g., stainless steel or nickel‑plated brass) for panel‑mount housings. [connector-distribution]
For marine, automotive, or industrial settings, we always validate the material against oils, cleaning agents, and salt spray, not just fresh water. [sameskydevices]
Next, we design the connector structure to maximize sealing while preserving USB‑C performance. Common design moves include: [pcm-cable]
- Placing multiple seals around the mating interface and cable exit for redundancy. [pcm-cable]
- Optimizing connector depth so the mating area is recessed and protected from direct spray. [connector-distribution]
- Integrating strain relief and bend protection to prevent cable movement from damaging seals. [connector-distribution]
For panel‑mount connectors, we also design the housing to compress gaskets consistently when tightened, avoiding both under‑ and over‑compression. [connector-distribution]
High‑quality design fails quickly without precision manufacturing. In our lines we: [pcm-cable]
- Use controlled injection‑molding to tightly bond the sealing ring with the connector shell so it cannot loosen or detach in use. [dgxrkj]
- Maintain strict dimensional tolerances on metal shells and plastic parts to ensure seal compression is within design range. [pcm-cable]
- Apply controlled quantities of potting compounds where required to avoid voids or air pockets that can become leak paths. [dgxrkj]
This is where OEM experience really matters: we've seen many "waterproof" samples from low‑cost sources that leak simply because the molding flash or misalignment breaks the seal geometry. [dgxrkj]
Finally, every waterproof USB‑C series must pass air‑tightness tests and, where specified, IP tests. Common methods include: [sameskydevices]
- Pressure attenuation methods to detect micro‑leaks. [pcm-cable]
- Vacuum or negative pressure tests for sealed assemblies. [pcm-cable]
- Gas leak detection for high‑reliability applications. [pcm-cable]
We pair these with sample‑based IPX7 or IPX8 immersion tests depending on the project requirements, so the test conditions match how customers will actually use the cable. [sameskydevices]

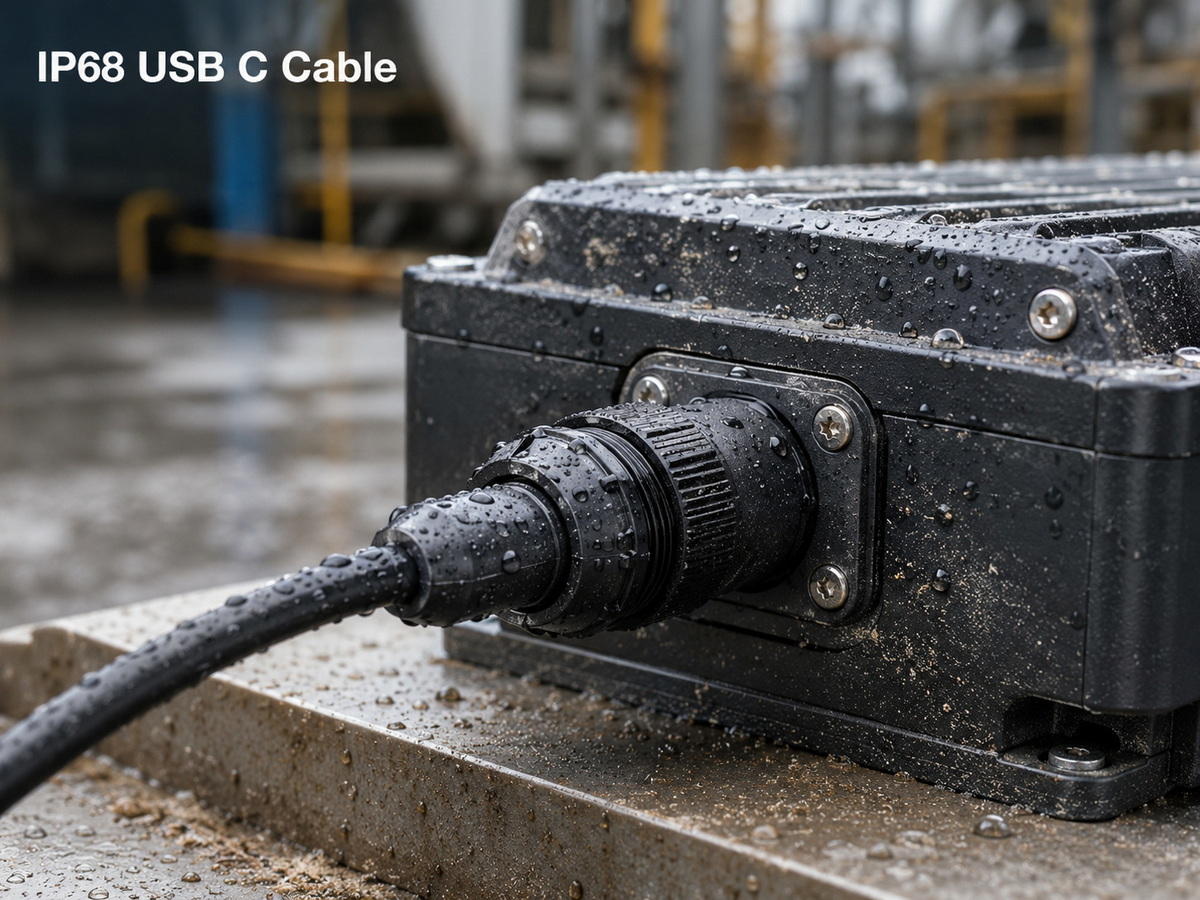

From our conversations with overseas buyers and engineers, we see waterproof USB‑C connectors most often in:
- Outdoor cameras, access control, and smart home devices exposed to rain and snow. [forums.tomshardware]
- Marine electronics (navigation, sonar, cameras) where saltwater and vibration are constant threats. [reddit]
- Industrial tablets, sensors, and controllers in dusty, wet production environments. [sameskydevices]
- Sports and adventure gear such as action cameras, e‑bikes, and wearables. [connector-distribution]
In these scenarios, a failure is more than inconvenience—it can lead to field service calls, warranty claims, or safety risks, which is why we recommend designing for a margin above minimum IP requirements where economically feasible. [sameskydevices]
Even the best waterproof connector can fail early if end users treat it like a standard office cable. When we support global OEMs, these are the maintenance guidelines we suggest including in user manuals: [hystypec]
- Avoid strong impacts and drops that can crack housings or misalign internal seals. [hystypec]
- Always use protective caps or covers when the connector is unplugged in dusty or outdoor environments. [hystypec]
- For cleaning, use a soft cloth lightly moistened with anhydrous ethanol, and avoid aggressive chemicals such as acetone that can attack plastics and seals. [hystypec]
- Ensure the connector is fully mated and locked before applying power to avoid arcing and contact damage in humid conditions. [hystypec]
We also recommend periodic inspection of outdoor or industrial cables for cuts, crushed sections, or hardened seals, especially in applications with vibration and UV exposure. [electronics.alibaba]
As an engineer, I'm often asked, "How can I make an existing USB‑C connection more waterproof without redesigning the whole device?" Community experience and field tests suggest several practical options. [youtube]
- Silicone grease and sleeves: Applying silicone grease to both the male and female contacts, then covering with a silicone sleeve, can significantly enhance water resistance in outdoor mounts. [youtube]
- Heat‑shrink tubing with adhesive: Adhesive‑lined heat‑shrink around the plug–receptacle junction improves sealing and adds strain relief; a heat gun works best, but a hair dryer can work in a pinch. [reddit]
- Silicone sealant or liquid electrical tape: These can be applied around cable exits and junctions to close small gaps and cracks. [reddit]
- Protective caps and grommets: Rubber grommets, nylon washers, or custom 3D‑printed gaskets can fill gaps between the device housing and connector, reducing water paths. [reddit]
These solutions are not a substitute for a properly designed IP‑rated connector, but they are practical ways to upgrade existing setups or prototypes. [youtube]
If you're specifying cables or connectors for a new product, we encourage customers to follow a simple decision framework based on leading industry guidance. [sameskydevices]
1. Define the environment and threat level
Is it occasional rain, splashes, dust, temporary immersion, or long‑term submersion? Avoid overspecifying IP68 if the device will never be submerged—it increases cost without real benefit. [connector-distribution]
2. Clarify data and power requirements
Confirm if you need full USB‑C data (USB 3.x, USB4) plus Power Delivery, or only power. Some sealed or overmolded designs prioritize power delivery and robustness over maximum data rate. [sameskydevices]
3. Decide between panel‑mount connector vs. sealed cable
- Panel‑mount connectors are ideal when you can modify the enclosure and want a robust, serviceable interface. [electronics.alibaba]
- Pre‑terminated sealed cables work well when enclosure modifications are limited or you want a "plug‑and‑forget" cable assembly. [connector-distribution]
4. Check certifications and supplier experience
Look for clear IP ratings, test reports, and a manufacturer with a proven track record in waterproof USB solutions rather than generic "waterproof" claims. [sameskydevices]
As a Chinese cable manufacturer supplying USB, VGA, HDMI, DVI, SATA and customized assemblies to overseas brands and OEMs, we integrate these waterproofing practices directly into our design‑for‑manufacture workflow. Our engineering team collaborates with customers from early concept to finalize: [electronics.alibaba]
- The required IP level (e.g., IP65, IP67, IP68)
- Cable length, connector types, and overmold geometry
- Material and coating combinations optimized for the target environment
- Test plans, including air‑tightness, salt‑spray, and bending or flex tests
For OEM and private‑label projects, we can also help translate technical requirements into user‑friendly maintenance guidelines, packaging claims, and compliance documentation that align with international markets. [connector-distribution]
| Solution type | Typical IP level | Best use case |
|---|---|---|
| Panel‑mount IP67/IP68 USB‑C | IP67–IP68 electronics.alibaba | Industrial, marine, outdoor enclosures |
| Overmolded sealed USB‑C cable | IP65–IP68 electronics.alibaba | Consumer and light‑industrial outdoor devices |
| Standard USB‑C + caps/sleeves | IPX4–IPX5 (approx) youtube | Cost‑sensitive upgrades and DIY protection |
| Fully potted USB‑C assemblies | Up to IP68 electronics.alibaba | Permanent installations, severe environments |
If you are designing a new device or upgrading an existing product and need reliable, IP‑rated USB‑C connections for outdoor, industrial or marine use, our engineering team at Shenzhen Otechkabel can support you from concept to mass production. Share your environment, IP target, and data/power requirements, and we will recommend a custom cable or connector solution that balances performance, durability and cost for your market. [electronics.alibaba]
No, the standard USB‑C connector is not inherently waterproof; it becomes waterproof only when combined with proper seals, coatings, and enclosure design tested to IP standards. [shineindustrygroup]
For rain and splashes, IP65 or IP66 is usually sufficient, while temporary immersion (e.g., devices occasionally dropped in water) typically requires IP67 or IP68. Always match the rating to real‑world usage instead of over‑specifying. [sameskydevices]
You can improve water resistance using silicone grease, adhesive heat‑shrink, sealant, and protective caps, but it will not fully equal a professionally designed IP‑rated connector. For critical applications, choose a purpose‑built waterproof cable or connector. [youtube]
We combine air‑tightness tests (pressure and vacuum methods) with standardized IP tests such as immersion and spray, depending on the customer's specified IP level. Only connectors that pass both lab and functional tests move into volume production. [connector-distribution]
Avoid impacts, use dust caps on unmated connectors, clean with anhydrous ethanol instead of aggressive chemicals, and always ensure the connector is fully mated before powering on. Regular inspection is recommended for outdoor and industrial deployments. [hystypec]
