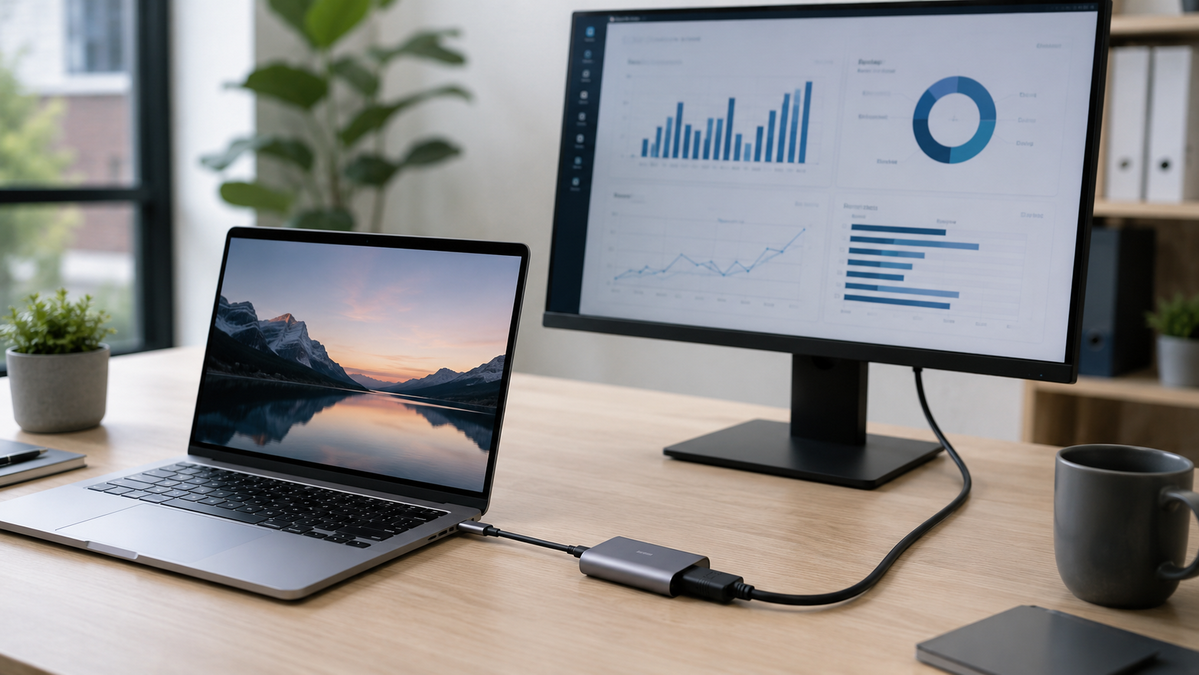

If you want to connect a MacBook to an external display，HDMI is still one of the easiest and most reliable ways to do it. Whether you are using a monitor for work, a TV for entertainment, or a projector for a presentation, the setup usually takes only a few minutes.
The most important step is choosing the correct adapter or cable combination for your MacBook model. Once that is clear, the rest of the process is straightforward.
Before you begin, check the ports on your MacBook and on the display you want to connect to.
You will usually need:
- A MacBook with USB-C, Thunderbolt, or HDMI output.
- An HDMI cable.
- A USB-C to HDMI adapter, if your MacBook does not have a built-in HDMI port.
- A monitor, TV, or projector with an HDMI input.
If your MacBook has a built-in HDMI port, you can connect it directly with an HDMI cable. If not, you will need an adapter that converts USB-C or Thunderbolt to HDMI.

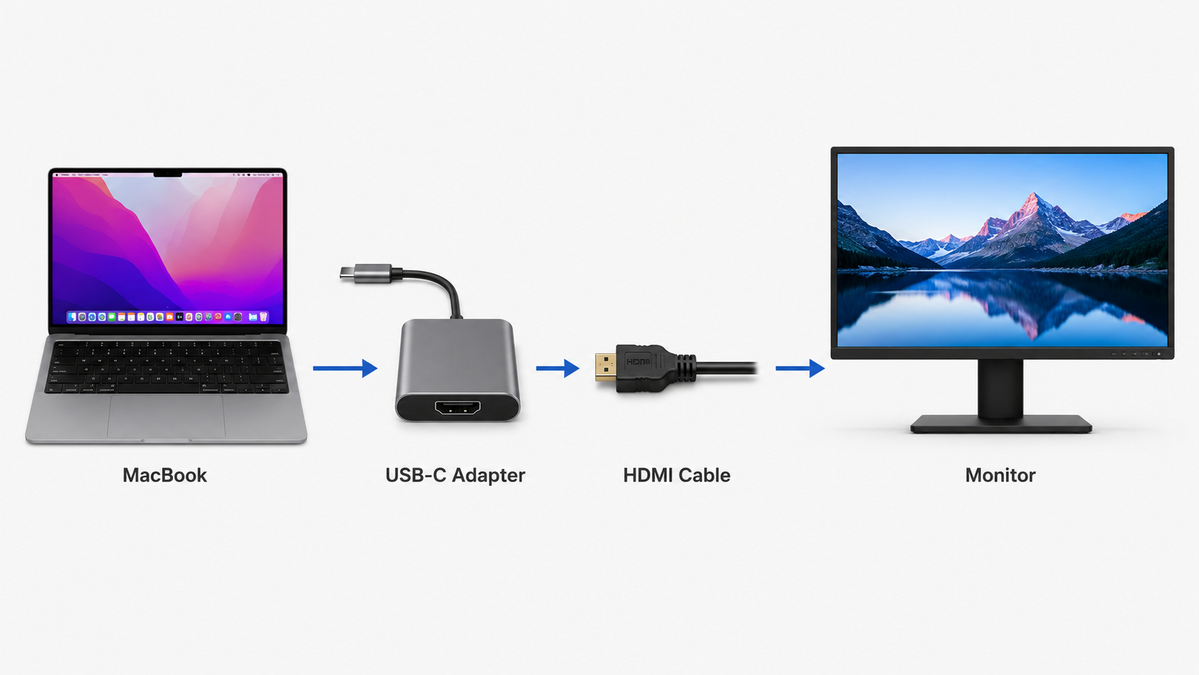

The setup is based on a simple signal path.
Your MacBook sends video and audio through its USB-C or HDMI port. The adapter converts that output into an HDMI signal. The HDMI cable then carries the signal to your display device.
In most cases, this process is plug-and-play. Once the cable is connected, the screen should appear automatically on the external display.
Follow these steps to connect your MacBook to an HDMI display.
1. Turn on your monitor, TV, or projector.
2. Plug the HDMI cable into the HDMI port on the display.
3. Connect the other end of the HDMI cable to your adapter, if one is needed.
4. Insert the adapter into your MacBook's USB-C or Thunderbolt port.
5. Select the correct HDMI input on the display if it does not switch automatically.
6. Open your MacBook's display settings to confirm the image is showing correctly.
If everything is connected properly, your MacBook screen should appear on the external display within a few seconds.
The adapter is often the most important part of the setup. A poor-quality adapter can cause flickering, no signal, low resolution, or unstable audio.

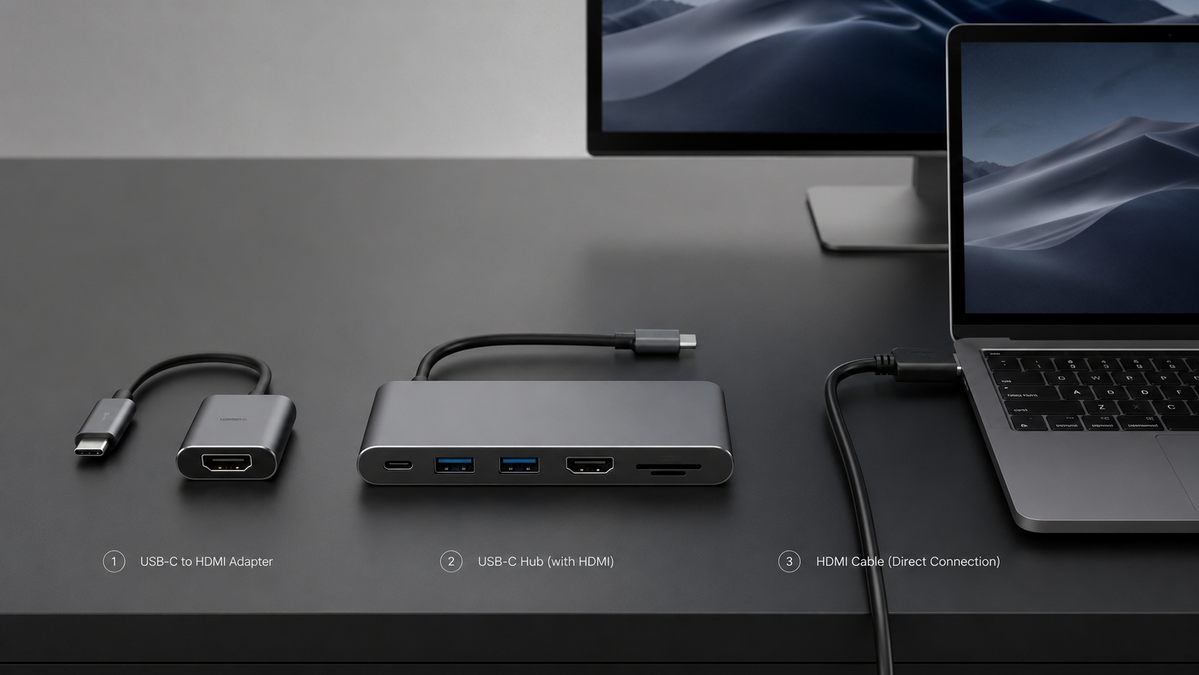

Here are the most common types:
| Adapter Type | Best For | Notes |
|---|---|---|
| USB-C to HDMI adapter | Most modern MacBooks | Simple and compact |
| USB-C hub with HDMI | Users who need extra ports | Useful for charging and peripherals |
| Direct HDMI cable | MacBooks with HDMI ports | Fastest and simplest option |
| Legacy adapter | Older Mac models | Needed for older port types |
A USB-C hub with HDMI is a good choice if you want one device that can handle charging, storage, and display output at the same time. If your main goal is just one external screen, a dedicated USB-C to HDMI adapter is usually the cleanest option.

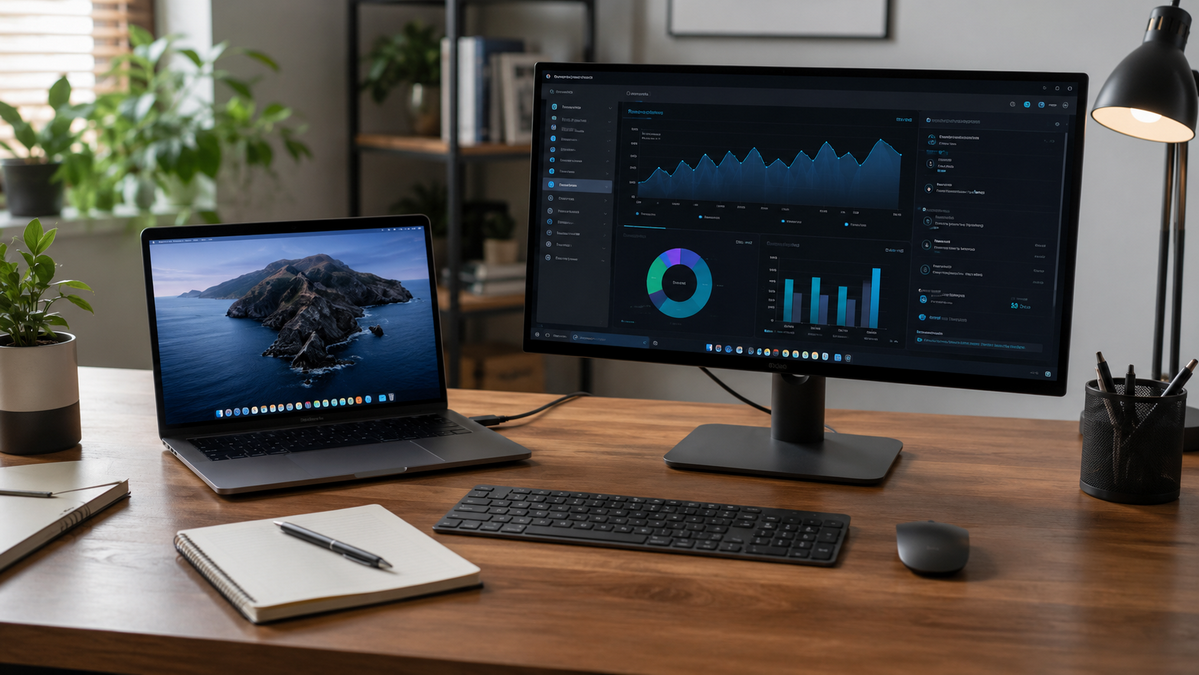

After the display is connected, you may want to adjust how the screen appears.
Your MacBook can usually work in one of two modes:
- Mirror mode: The same image appears on both screens.
- Extended display mode: The external monitor acts as a second workspace.
To check or change these settings, open your MacBook's display menu in system settings. This is especially useful if you are presenting, editing video, multitasking, or using a larger monitor for productivity.
You can also adjust resolution, brightness, and arrangement so the external display matches your needs more closely.
HDMI can carry both video and audio. That means you do not need a separate audio cable in most cases.
If sound does not play through your TV or monitor, check the audio output settings on your MacBook. Make sure the HDMI display is selected as the sound source. Also confirm that the display itself is not muted.
This is especially useful when connecting to a TV for movies, online meetings, or presentations.
Sometimes the display does not work on the first try. Most issues are easy to solve.
If the screen stays black or says "No Signal," check the following:
- The HDMI cable is fully inserted.
- The adapter is connected securely.
- The display is set to the correct HDMI input.
- The cable itself is not damaged.
If the image looks blurry or stretched, the adapter may not support the display's full resolution. Try changing the screen resolution in your MacBook settings.
If the picture works but there is no audio:
- Open the sound settings on your MacBook.
- Choose the HDMI display as the output device.
- Check the volume on the external display.
This often happens when the adapter or cable is low quality. A certified or well-made cable usually solves the problem. In some cases, a different HDMI port on the monitor may also help.
If the monitor fails to wake after sleep, unplug the adapter and reconnect it. Restarting the display or MacBook may also refresh the connection.
HDMI is useful in many everyday and professional situations.
- Workstations: Connect a MacBook to a large monitor for better multitasking.
- Presentations: Use a projector in a meeting room or classroom.
- Entertainment: Watch movies or stream video on a TV.
- Creative work: Edit photos or videos on a larger screen.
- Remote collaboration: Extend your desktop while keeping chat or notes open on the MacBook screen.
For office users, a dual-screen setup can improve focus and efficiency. For home users, HDMI makes it easy to turn a MacBook into a media center.
When selecting an HDMI cable or adapter, pay attention to quality, compatibility, and intended use.
Look for:
- Stable connector construction.
- Support for your target resolution.
- Reliable shielding to reduce signal interference.
- Compatibility with your MacBook model.
- A length that suits your desk or room setup.
If you are sourcing accessories for resale or OEM use, it is also worth considering packaging quality, certification standards, and customer support expectations. These details can affect product satisfaction just as much as the hardware itself.
For manufacturers, distributors, and brand owners, HDMI connectivity products remain a strong accessory category because demand is broad and recurring. Users continue to need adapters, hubs, splitters, and switches for work, education, home entertainment, and commercial display setups.
Products that often perform well include:
- USB-C to HDMI adapters.
- Multiport hubs with HDMI output.
- HDMI cables in different lengths and grades.
- Splitters for dual-display scenarios.
- Switches for users with multiple input devices.
Clear labeling, consistent performance, and dependable quality testing can significantly improve market acceptance. A well-positioned accessory line can support both retail and B2B distribution channels.
Connecting an HDMI cable to a MacBook is easy once you match the correct adapter with the right port type. After that, the setup becomes a simple plug-in process that works for monitors, TVs, and projectors.
If the display does not work immediately, the issue is usually related to input selection, adapter compatibility, or display settings. With the right hardware and a few quick adjustments, your MacBook can be ready for work, entertainment, or presentations in minutes.
Only if your MacBook has a built-in HDMI port. Most modern MacBooks use USB-C or Thunderbolt ports and need an adapter.
If your MacBook does not have an HDMI port, yes. A USB-C to HDMI adapter is the most common solution.
Yes, HDMI can transmit both video and audio. If sound is missing, check your MacBook's sound output settings.
The most common causes are an incorrect input source, a loose connection, or an incompatible adapter.
Yes. A USB-C hub with HDMI is a practical choice if you also need charging or extra USB ports.
Mirror mode is best for presentations. Extended mode is better for productivity because it gives you more screen space.
