A Cisco console cable is typically a rollover cable, but in real projects I often see confusion because "console," "rollover," and "Ethernet" cables look similar while behaving very differently in a Cisco lab or live network. In this guide, I'll walk through the differences from a hands‑on engineer's perspective and show you how an experienced OEM cable manufacturer thinks about choosing and sourcing the right console cable for serious network work. [blog.animonlive]
In Cisco networking, a console cable is the dedicated link between your computer and the console port on a router, switch, firewall, or wireless controller. Engineers use it to perform initial configuration, recovery, and low‑level troubleshooting when the device has no IP address or is unreachable over the network. [study-ccna]
A traditional Cisco console cable is:
- A serial‑to‑RJ45 cable, often light blue, with a DB‑9 connector on the PC side and an RJ45 on the device side. [certificationkits]
- Wired with a reversed pinout compared with standard Ethernet patch cables. [web.uni-plovdiv]
- Designed for low‑speed serial communication (9600 bps by default), not for Ethernet traffic. [study-ccna]
In modern labs and datacenters, many engineers prefer USB‑to‑RJ45 console cables that emulate a serial port over USB while preserving the same rollover pinout on the RJ45 side. [tripplite.eaton]
In practical terms, yes: a Cisco console cable is almost always a rollover cable, and the terms "console cable" and "rollover cable" are often used interchangeably in Cisco documentation and training materials. [certificationkits]
A rollover cable is defined by its pinout pattern:
- Pin 1 on one connector goes to pin 8 on the other.
- Pin 2 goes to pin 7, pin 3 to pin 6, pin 4 to pin 5, and so on. [web.uni-plovdiv]
This "rolled over" mapping is what allows a serial terminal to communicate correctly with the Cisco console port. [study-ccna]
From an engineer's perspective:
- If I am connecting a laptop to the Cisco console port, I need a rollover pinout.
- If the cable is not wired as rollover, the terminal session will simply not work, even if the connectors physically fit.
So while not every rollover cable in the world is branded as a "Cisco console cable," every genuine Cisco console cable you use in a lab or production environment will be rollover‑compatible.

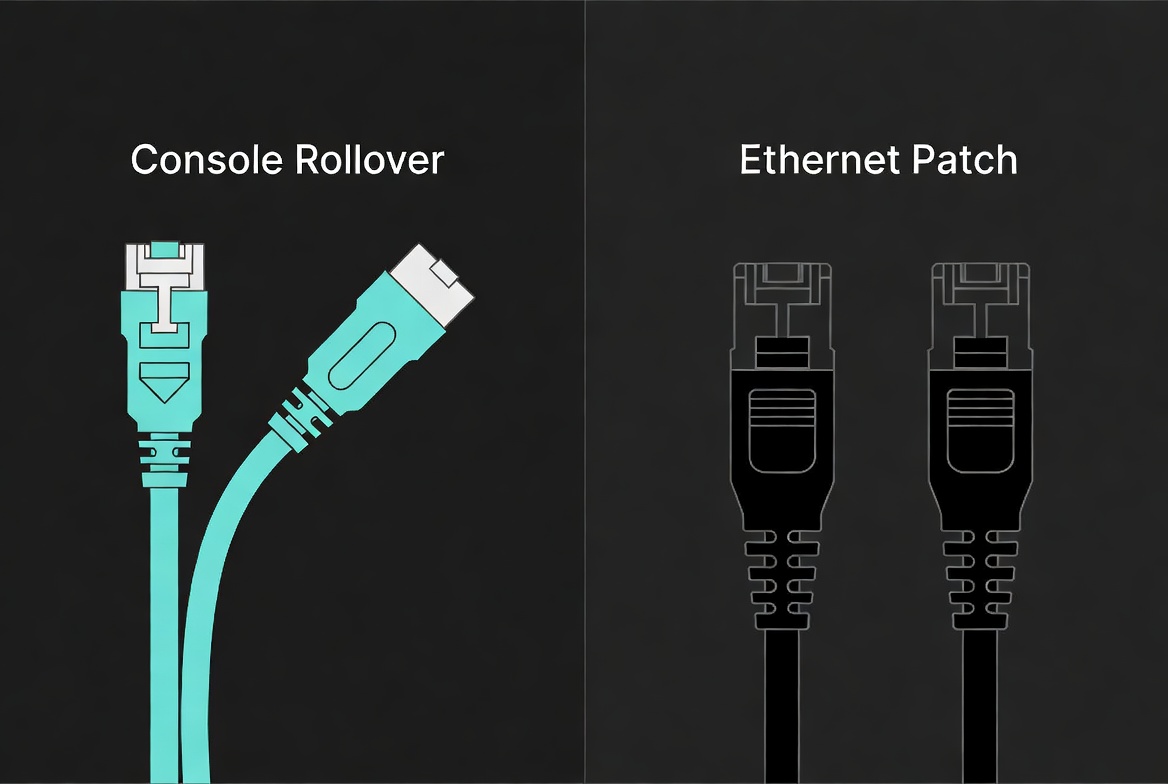

A lot of mistakes come from using the wrong cable type just because it has an RJ45 plug. Below is a concise comparison I use when training junior engineers.

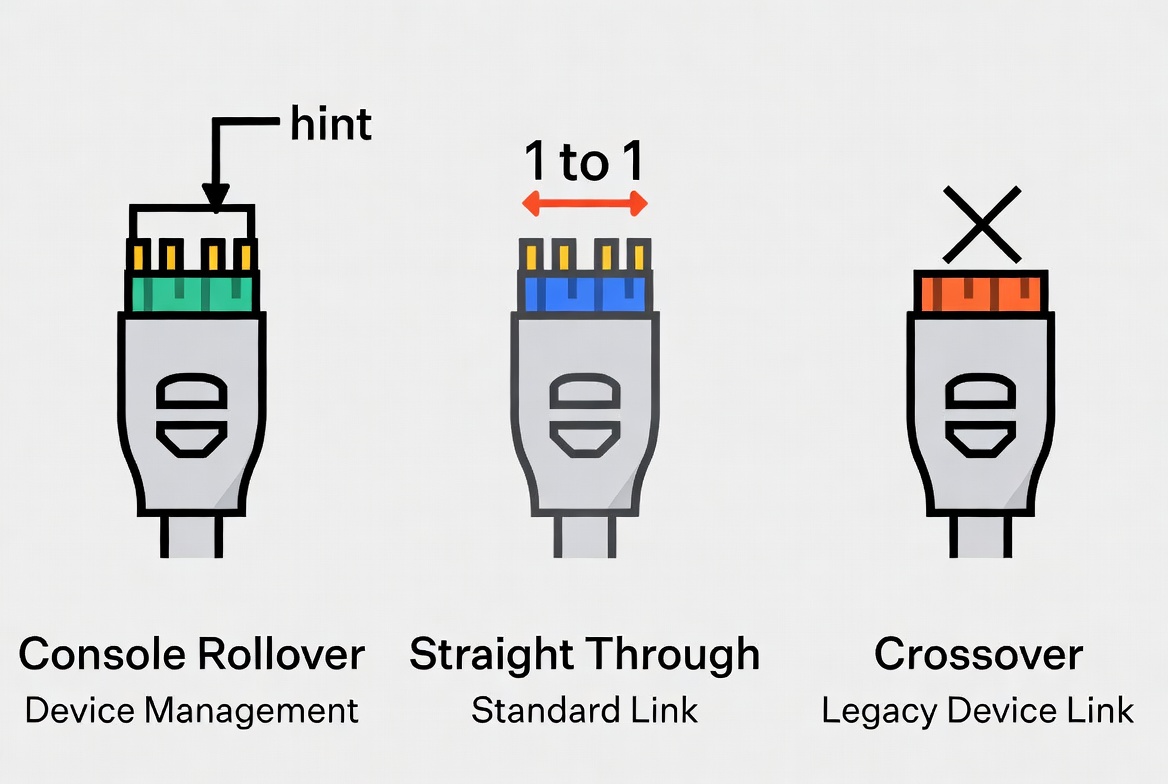

| Cable type | Connectors & color (typical) | Pinout style | Main use case |
|---|---|---|---|
| Rollover / console | DB‑9‑to‑RJ45 or USB‑to‑RJ45, often light blue (study-ccna) | Pins completely reversed (1↔8, 2↔7…) (study-ccna) | PC or laptop to Cisco console port for CLI config (study-ccna) |
| Straight‑through | RJ45‑to‑RJ45, Cat5e/6 patch | 1–1, 2–2, 3–3, etc. | Switch to router, switch to server, normal Ethernet links |
| Crossover | RJ45‑to‑RJ45 | 1↔3, 2↔6 (classic) | Legacy switch‑to‑switch or router‑to‑router links |
| USB console | USB‑A or USB‑C to USB mini‑B or micro‑B | USB serial signaling | Newer Cisco devices with USB console ports (tripplite.eaton) |
As an OEM cable manufacturer, we see that visual similarity is the biggest UX problem: a blue rollover cable and a blue Cat5e patch cable can co‑exist in the same rack, but only one will talk to the console port correctly. Clear labeling and color coding dramatically reduce field errors.
In day‑to‑day network operations, a console rollover cable is your safety line when something goes wrong. Based on standard Cisco training practices and our customers' feedback, a typical workflow looks like this: [certificationkits]

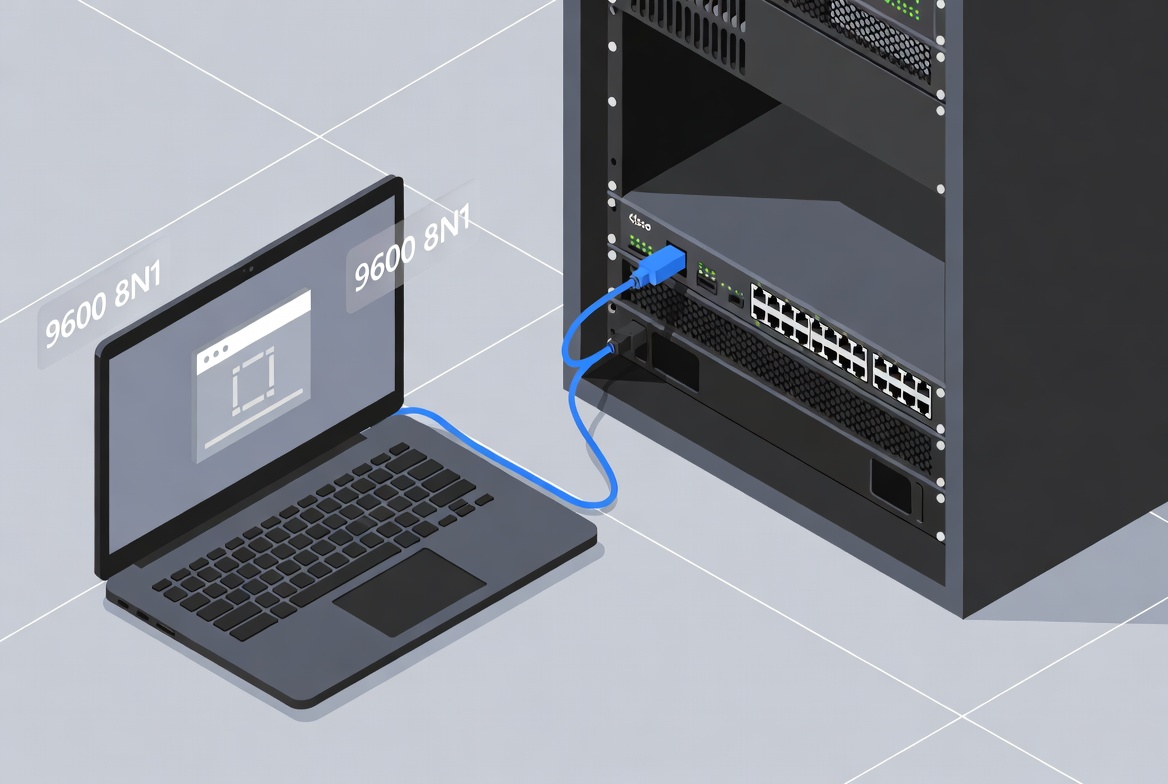

1. Connect the RJ45 side of the rollover cable to the blue console port of the Cisco device. [study-ccna]
2. Connect the DB‑9 or USB‑A/USB‑C side to your laptop, using a USB‑to‑serial adapter if necessary. [tripplite.eaton]
3. Open a terminal emulator (for example, PuTTY, Tera Term, or SecureCRT). [study-ccna]
4. Set serial port parameters to Cisco defaults:
- 9600 baud
- 8 data bits
- No parity
- 1 stop bit
- No hardware flow control [study-ccna]
5. Power on or reboot the device and watch the console output scroll by for boot logs and error messages. [certificationkits]
From experience, the engineers who standardize on one good, reliable rollover cable in their toolkit have far fewer "mystery" connection problems than teams that mix different low‑quality
When we manufacture and supply console and rollover cables to overseas OEMs and distributors, we regularly hear about three recurring issues from field engineers and system integrators. These are worth addressing explicitly in a buyer's guide.
Because console ports and Ethernet ports both use RJ45, engineers sometimes:
- Grab a straight‑through patch cable instead of a rollover console cable.
- Plug a rollover cable into an Ethernet port, expecting network connectivity.
In both cases, the connection fails silently. You see no link light for Ethernet, or no output in the serial console window. Clear labelling, distinct jacket color, and printed "CONSOLE / ROLLOVER" identifiers on the cable help prevent these mistakes.
Many modern laptops lack a native DB‑9 serial port, so USB‑to‑serial adapters are common. Cheap adapters with unstable chipsets cause:
- Intermittent disconnects during long configuration sessions.
- Broken connections when the OS updates drivers.
- Random character corruption at 9600 bps.
Professional‑grade USB console cables with stable, driver‑friendly chipsets (for example, well‑supported FTDI‑based designs) provide a much better user experience for network engineers working across different operating systems.
In industrial and telecom environments, console cables are often:
- Bent sharply inside crowded racks.
- Stepped on or pinched in doors and removable floor panels.
- Connected and disconnected many times during commissioning.
We see the best results with flexible jackets, reinforced strain relief, and solid molding around the connectors, especially when cables are used by multiple technicians across sites. For OEM partners, these durability details directly affect your brand perception at the customer's rack.
When you are not sure if a cable is rollover, there are a few practical checks you can perform in the field.
- Check the color and labeling: Cisco‑style rollover cables are often light blue and clearly labeled as "CONSOLE" or "ROLL‑OVER." [web.uni-plovdiv]
- Inspect the connectors: One end will terminate to the Cisco console (RJ45); the other will be either DB‑9 (serial) or USB‑A/USB‑C for modern laptops. [showmecables]
- Use a cable tester: A simple cable tester with pin‑to‑pin indicators will show pin 1 mapping to pin 8, pin 2 to pin 7, etc., instead of the 1‑to‑1 mapping of an Ethernet patch cable. [web.uni-plovdiv]
- Test with a live device: Connect to a known‑good Cisco router with standard console settings. If the cable is correct and the OS serial settings are right, you should see output immediately on boot. [study-ccna]
For OEM customers and distributors, we recommend printing the pinout specification directly on the packaging and in product datasheets to reduce confusion for end users.
From the perspective of an experienced cable manufacturer supporting global OEM brands and distributors, there are several factors that separate a basic console cable from a truly professional‑grade solution.
- Precise pinout and impedance control to match Cisco and industry serial specifications.
- Gold‑plated contacts on RJ45 and DB‑9 connectors to resist corrosion and maintain stable contact in humid environments.
- Robust strain relief and molded boots to prevent conductor breakage with frequent bending.
- Proven compatibility with major operating systems (Windows, macOS, Linux) when using integrated USB‑to‑serial designs.
- Stable chipsets that do not require difficult manual driver installations.
- Clear documentation for driver download and installation for large deployments.
We see the strongest adoption from brands that consider user experience in the field:
- Distinct color‑coding for console vs standard patch cables.
- Printed length markers for rack planning and documentation.
- Simple, readable labeling on connectors indicating device side vs PC side to avoid confusion in dark datacenters.
When you act as an OEM buyer, specifying these details up front makes your product line significantly more attractive to network integrators and service providers.
To illustrate the practical use of a Cisco console rollover cable, here is a typical scenario encountered when deploying a new switch in a small business network.
1. The engineer unpacks a new Cisco Layer 2 switch and mounts it in the rack.
2. Before any Ethernet links are configured, the engineer connects a USB‑to‑RJ45 rollover console cable from their laptop to the switch's console port. [tripplite.eaton]
3. Using a terminal emulator with standard Cisco serial settings, they:
- Assign a management IP address.
- Configure VLANs and trunk ports.
- Secure remote access via SSH.
4. Only after this initial console configuration does the engineer connect normal Ethernet patch cables for production traffic.
In this workflow, the console cable is never used for live data traffic; it is purely a management lifeline. As an OEM supplier, designing cables that are comfortable to use in tight racks and resilient to repeated setups is critical.
Network teams today work across a mix of legacy and modern devices. Your choice of console cable form factor has a direct impact on deployment flexibility.
- Choose DB‑9‑to‑RJ45 rollover if:
- You still operate older laptops or industrial PCs with native serial ports.
- You want maximum compatibility with existing Cisco training labs and documentation. [certificationkits]
- Choose USB‑to‑RJ45 rollover if:
- Your engineers use modern laptops with only USB‑A or USB‑C ports.
- You want a plug‑and‑play solution without separate USB‑to‑serial adapters. [tripplite.eaton]
Many of our OEM partners bundle both options in their field kits so technicians can handle any environment without searching for adapters.
Even though console cables carry low‑speed serial signals, they are still subject to wear. Replacement guidelines we see in professional environments include:
- Replace immediately if there is visible damage to the jacket, broken latch on the RJ45, or bent pins on the DB‑9/USB connector.
- Replace if the cable frequently loses connection under light movement, suggesting internal conductor breaks.
- For large enterprises and service providers, standardize on planned replacement cycles for heavily used field kits to avoid unplanned downtime during remote interventions.
High‑quality OEM console cables are designed for long service life, but treating them as consumables in extremely harsh or high‑turnover environments is a practical risk‑management strategy.
For overseas distributors, brand owners, and equipment manufacturers, partnering with a specialized cable producer brings several advantages:
- Custom lengths, colors, and branding to match your product line and support your own labeling strategy.
- Ability to integrate console cables into kit packaging with routers, switches, or industrial controllers.
- Consistent quality control, pinout testing, and packaging standards aligned with international expectations.
By working closely with OEM partners, you can create console and rollover cable offerings that not only meet Cisco‑style technical requirements, but also enhance overall user experience and support your positioning as a trusted networking brand.
If you manage a Cisco lab, deploy networks for customers, or build your own branded networking equipment, now is the right time to standardize on a reliable family of console rollover cables.
Define your requirements (USB vs DB‑9, lengths, colors, chipsets, labeling), then work with a dedicated OEM cable manufacturer to develop a consistent, high‑quality solution that your engineers and customers can trust in every rack and every remote site.
Yes. In Cisco environments, the standard console cable is a rollover cable, with the pins reversed end‑to‑end to match the console port's serial wiring. [web.uni-plovdiv]
No. Ethernet patch cables are wired straight‑through for network traffic, while console cables are wired as rollover for serial communication, even though both use RJ45 connectors. [certificationkits]
Common causes include missing or incorrect USB‑to‑serial drivers, unsupported chipsets, or wrong COM port settings. Ensuring driver compatibility and using Cisco‑standard serial parameters usually solves the issue. [tripplite.eaton]
The typical defaults are 9600 baud, 8 data bits, no parity, 1 stop bit, and no hardware flow control in your terminal emulator. [study-ccna]
Most off‑the‑shelf console cables range from about 6 to 10 feet, which is sufficient for rack work; for longer runs, OEM manufacturers can supply custom lengths, though very long serial cables may be more susceptible to interference. [showmecables]
