USB 3.0 was introduced to solve a common problem: older USB standards could no longer keep up with the growing size of files, faster storage devices, and more demanding peripherals. By offering SuperSpeed connectivity, USB 3.0 made external storage, adapters, hubs, and industrial devices far more efficient than USB 2.0 ever could.
However, many users are surprised when their actual transfer speed does not match the number printed on the specification sheet. That gap is normal. USB 3.0 performance is influenced by many layers of the system, and the final result is often limited by the slowest part of the chain.
USB 3.0, also known as SuperSpeed USB, was designed to deliver a raw signaling rate of 5 Gbps. It also improved power management, supported backward compatibility, and allowed devices to move data much faster than older USB generations.
For many applications, this was a huge step forward. External hard drives became more practical. Flash drives became more useful for larger file transfers. Hubs, adapters, and docking solutions could support more demanding workflows. In theory, the standard opened the door to much better performance across consumer and industrial environments.
The most important thing to understand is that 5 Gbps is the signaling rate, not the usable file transfer rate. A portion of that bandwidth is consumed by encoding, protocol overhead, and communication management between the host and the device.
In addition, the operating system, storage controller, and peripheral itself all influence the result. A fast USB 3.0 port does not guarantee fast transfers if the connected device is slow or if the system has other bottlenecks.
This is why a USB 3.0 connection may feel much faster than USB 2.0 but still fall short of the theoretical maximum.

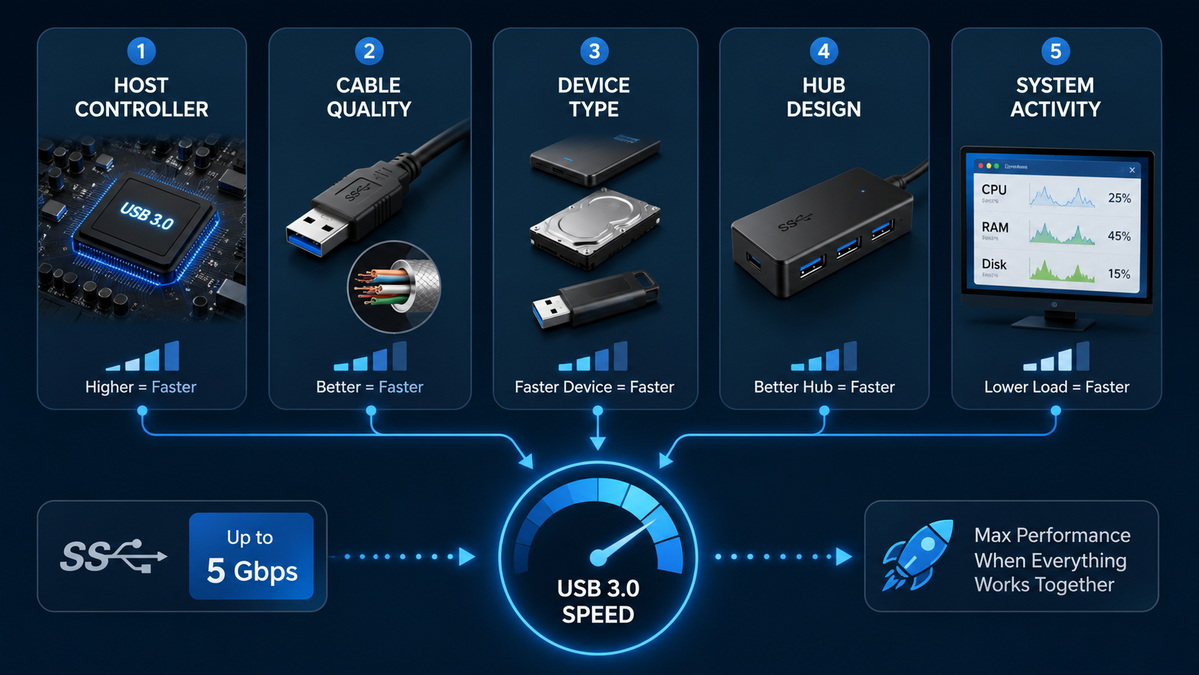

Several variables determine the real-world performance of a USB 3.0 connection. Understanding them makes it easier to diagnose slow transfers and choose better products.
The host controller is the hardware that manages USB communication on the computer side. If the controller is weak, outdated, or poorly configured, the connection will not perform well, even if the port itself is labeled USB 3.0.
Motherboard design, chipset quality, and driver optimization all matter. A better controller can improve stability, reduce latency, and support more consistent throughput.
The connected device often becomes the biggest limitation. A mechanical hard drive cannot match the performance of a solid-state drive. A low-cost flash drive may also perform far below the level expected from the USB 3.0 interface.
This means the same port can deliver very different results depending on whether the user connects an SSD, HDD, memory stick, camera, or industrial peripheral.
A USB 3.0 cable must carry data reliably at high speed. If the cable is too long, poorly shielded, or made with low-quality materials, signal integrity can suffer.
Poor cable construction may lead to slower performance, random disconnects, or unstable connections. In high-speed USB applications, cable quality is not a minor detail — it is a core part of system performance.
Hubs and splitters are useful for expanding connectivity, but they may also divide available bandwidth among multiple devices. If several high-demand devices are active at the same time, each one may receive less throughput.
A well-designed hub should balance convenience, power delivery, and traffic handling. A poorly designed one can become a bottleneck instead of a solution.
Large single files often transfer more efficiently than thousands of small files. When a transfer involves many folders, small documents, or compressed packages, the system spends more time on file management overhead.
That is why users often see different performance numbers depending on the data type being copied.
Background software can also affect speed. Antivirus scanning, cloud sync, indexing services, and other system tasks may compete for resources during a transfer.
Even when the hardware is capable of higher throughput, background activity can reduce the final result.

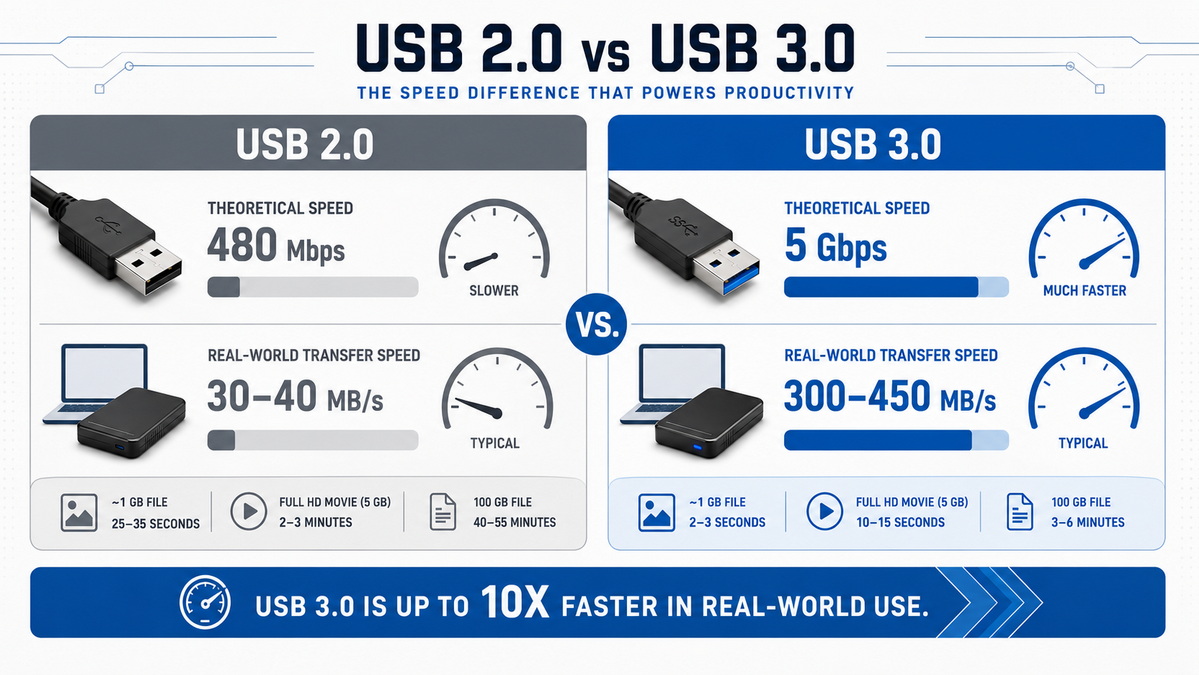

A USB 3.0 port may deliver excellent improvement compared with USB 2.0, but the gains are not unlimited. In many real-world cases, the port is faster than the device connected to it, which means the system never reaches the theoretical ceiling.
This is especially common with hard drives, budget flash drives, and low-end hubs. For that reason, performance testing should always consider the full environment rather than only the USB standard.
One of the strengths of USB 3.0 is backward compatibility. Older USB devices can still connect to newer ports without difficulty. But backward compatibility does not mean backward devices become faster automatically.
If a USB 2.0 device is connected, it will still operate at USB 2.0 speed. The interface can adapt for compatibility, but the device still determines the final performance level.
This point is important for buyers who assume a USB 3.0 port alone guarantees faster results in every situation.
For OEM and export-focused businesses, USB performance is not just a technical detail. It affects customer satisfaction, product reviews, repeat orders, and long-term brand trust.
A cable, adapter, hub, or splitter should be designed to support stable operation in actual use, not only in controlled demonstrations. That includes strong shielding, reliable connectors, correct electrical design, and consistent manufacturing quality.
When performance is stable, the product is more likely to meet buyer expectations across different markets and use cases.

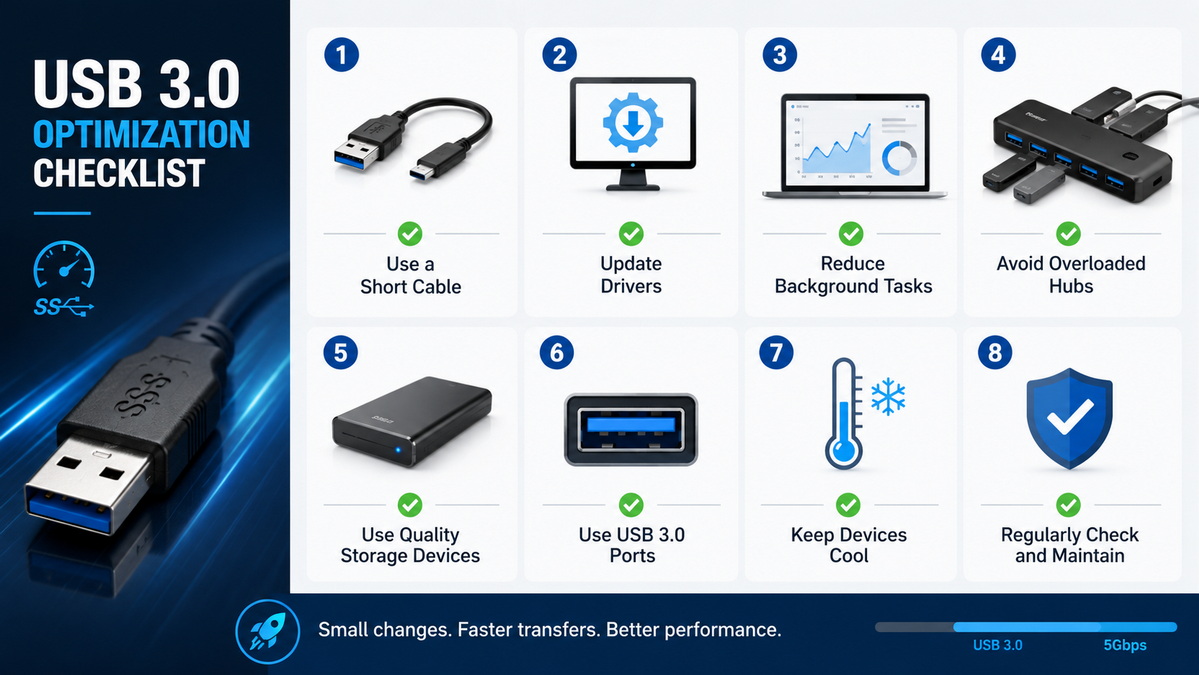

Users can often improve speed and stability by following a few simple practices:
1. Use a direct motherboard USB 3.0 port whenever possible.
2. Choose a short, high-quality cable with proper shielding.
3. Avoid connecting too many high-bandwidth devices to the same hub.
4. Keep chipset and USB drivers up to date.
5. Test performance with both large files and small files.
6. Reduce background tasks during large data transfers.
These steps do not change the USB standard itself, but they help the system perform closer to its real potential.
Manufacturers of cables, hubs, adapters, and switching products can improve customer experience by focusing on the following areas:
- Stable electrical performance.
- Strong compatibility across devices and operating systems.
- Durable connector structure.
- Reliable shielding and signal transmission.
- Clear product labeling and realistic performance claims.
For B2B buyers, these details are often more important than marketing language. Products that perform consistently in real environments are far more valuable than products that only look good on paper.
Even though newer USB standards exist, USB 3.0 remains widely used in storage, industrial equipment, office peripherals, and cost-sensitive export markets. Many buyers still need practical guidance on how to understand and optimize USB 3.0 performance.
Because of that, the topic remains highly relevant for manufacturers, wholesalers, and brand owners who want to select the right cable or connectivity product for their market.
USB 3.0 remains a major improvement over older USB standards, but its real-world performance depends on the entire connection path. Host hardware, device type, cable quality, hub design, and system activity all shape the final transfer speed.
For users, the key is to look beyond the port label and understand the full system. For manufacturers and OEM partners, the key is to design products that deliver stable, predictable performance in real use, not just in theory.
