Views: 222 Author: Otechkabel Publish Time: 2026-05-04 Origin: Site
USB extenders are not all the same, and choosing the wrong one can quietly destroy performance, stability, and even your overall system design. As a cable manufacturer who has helped overseas OEM customers solve countless "mysterious" USB problems, I will walk you through how USB extenders really work, what to look for, and how to choose the right solution for your project or installation. [seopowerplays]
From a user's point of view, a USB extender is any solution that allows you to place a USB device farther away from the host (PC, NVR, industrial controller, etc.) than a standard USB cable allows. In practice, this can be a long active cable, a USB over Cat cable extender, or even a wireless link. [seopowerplays]
For professional AV integrators, system builders, and OEMs, extenders impact:
- Signal integrity and stability under long distances. [seopowerplays]
- Bandwidth availability for high‑speed devices such as cameras and SSDs. [seopowerplays]
- EMI/ESD robustness in industrial or commercial environments. [powerandcables]
- Total cost of ownership, including installation, troubleshooting, and replacement.
From an engineering perspective, treating extenders as "all the same" is the fastest way to create intermittent, hard‑to‑debug field issues that damage user trust and brand reputation. [linkedin]
No – USB extenders differ significantly by USB version, internal electronics, physical medium, power design, and firmware implementation. Even two products that both claim "USB 3.0 50 m" can behave very differently in real‑world use. [seopowerplays]
Key differentiators include:
- Supported USB standard (USB 2.0 vs USB 3.x).
- Passive vs active signal conditioning. [seopowerplays]
- Medium: pure USB cable, Cat5e/Cat6, fiber, or wireless. [seopowerplays]
- Chipset quality, shielding, PCB design, and ESD protection. [powerandcables]
- Power budget and 5 V rail stability under load.
In other words, choosing a USB extender is more like specifying a professional cable assembly than buying a simple accessory: you must align the product with your exact distance, bandwidth, environment, and reliability requirements. [powerandcables]
USB 2.0 extenders support up to 480 Mbps, which is enough for keyboards, mice, barcode scanners, many webcams, control panels, and low‑frame‑rate cameras. [seopowerplays]
Use cases:
- Office devices (mouse, keyboard, dongles).
- KVM and POS terminals.
- Simple industrial sensors and control interfaces.
Typical properties:
- Practical distance: around 5–10 m for standard cables, more with active or Cat extenders. [seopowerplays]
- Lower cost, lower power consumption.
USB 3.0 extenders support up to 5 Gbps, and newer USB 3.1/3.2 standards go even higher, which is critical for:
- High‑resolution USB cameras (1080p, 4K, 60 fps).
- External SSD / HDD storage.
- High‑speed data acquisition devices.
Characteristics:
- Significantly more sensitive to signal integrity and cable construction.
- Often require active electronics and higher quality cable or Cat6/7 to maintain performance over distance. [seopowerplays]
A passive USB extender is essentially a longer or rearranged cable without active electronics. [seopowerplays]
- Suitable for short distances (usually not more than 5 m, depending on device). [seopowerplays]
- Works best with low‑bandwidth, low‑power devices (mouse, keyboard, small USB dongles). [seopowerplays]
- Lowest price but also lowest reliability once you approach the USB spec limit.
If you are debugging random disconnects on a long passive lead, you are likely at or beyond the practical margin of the protocol.
An active USB extender includes electronic amplification, equalization, and sometimes re‑timing to maintain signal quality over longer distances. [seopowerplays]
Advantages:
- Supports longer distances while keeping eye‑diagram and timing within USB spec. [seopowerplays]
- Better performance with cameras, audio interfaces, and storage.
- Often includes repeater or hub functionality for multiple downstream devices.
Active extenders are the usual choice for professional AV, broadcast, and industrial environments where downtime is unacceptable.
Wireless USB solutions use Wi‑Fi or proprietary RF links to emulate a USB connection over the air. [seopowerplays]
Pros:
- Completely removes cable routing constraints.
- Useful where cabling is impossible or aesthetics are critical (heritage buildings, temporary events).
Cons:
- Sensitive to interference, bandwidth limitations, security concerns.
- Latency and jitter can be problematic for real‑time control or high‑bandwidth video.

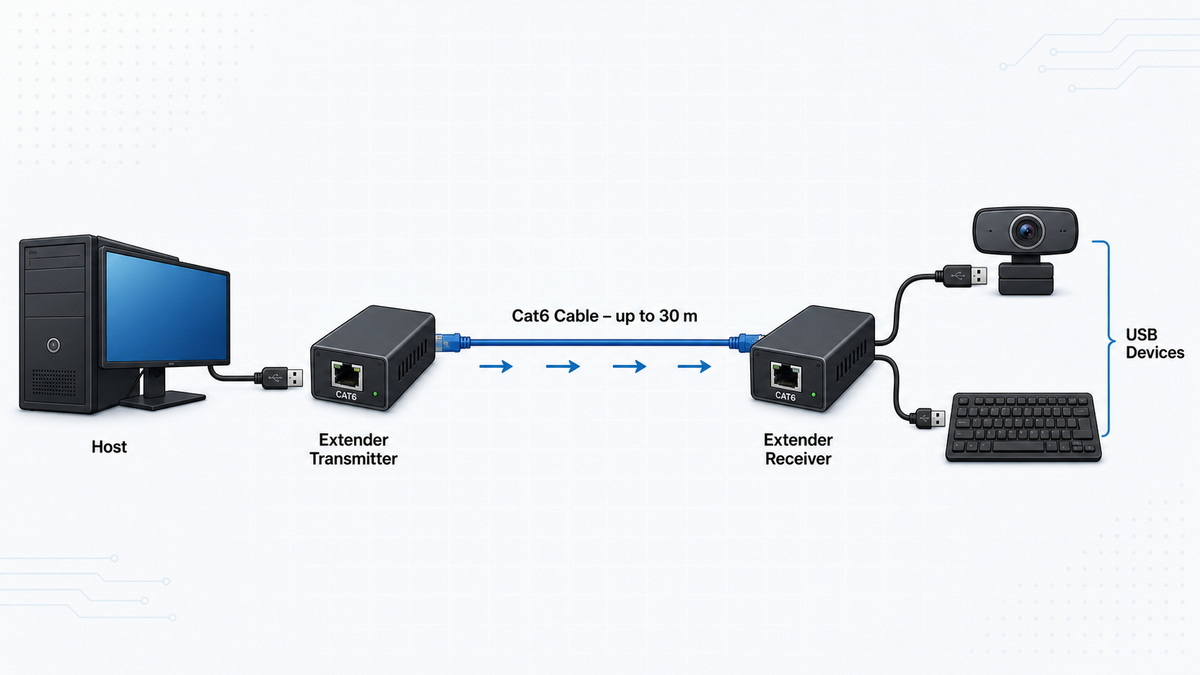

From an engineer's viewpoint, a USB extender is a signal management system between host and device.
Core functional steps: [seopowerplays]
1. Signal capture – The extender taps into the D+/D‑ (USB 2.0) or differential SuperSpeed pairs (USB 3.x), plus power and ground.
2. Conditioning and amplification – Active extenders boost, equalize, and sometimes re‑clock signals to restore edge sharpness and timing margins. [seopowerplays]
3. Transmission – The conditioned signal travels over copper, Cat cable, fiber, or wireless according to the extender type. [seopowerplays]
4. Decoding and regeneration – At the far end, the extender reconstructs the USB signal and presents it to the device or host as if it were a standard cable. [seopowerplays]
5. Data interaction – Once restored, the USB stack on both sides continues normal enumeration, transfers, and power management.
The quality of each stage determines whether the extender will pass compliance tests and survive demanding field conditions. Poor PCB layout, sub‑standard components, or inadequate shielding can cause marginal performance that only appears as intermittent failures under certain devices or temperatures. [powerandcables]
Choosing the right extender starts with a structured evaluation of your application.
- Under 5 m: Passive USB cable is usually enough for low‑speed devices. [seopowerplays]
- 5–15 m: Consider active USB 2.0 or shorter USB 3.0 active cables. [seopowerplays]
- 15–50 m: Use USB over Cat5e/Cat6 extenders or fiber solutions designed for your USB version.
- 50 m and beyond: Look at fiber‑based or specialized long‑distance USB extenders.
Match the extender type to your heaviest‑load device in the chain:
- Human interface devices → USB 2.0 is fine.
- 1080p / 4K camera, capture card, SSD → require USB 3.x extender with tested bandwidth margins.
Using a USB 2.0‑only extender for a 4K camera often results in dropped frames, reduced resolutions, or non‑enumeration.
For professional use, you should prioritize:
- Proper impedance control and twisted pair geometry.
- Foil/braid shielding and low crosstalk construction. [powerandcables]
- Robust ESD and surge protection components at both ends.
Active extenders typically offer better signal‑to‑noise ratio and resilience, which directly translates into fewer field failures.
USB extenders must deliver enough current to the far‑end device while keeping voltage within spec.
- Check extender maximum current rating at 5 V.
- Prefer extenders with external power supplies for power‑hungry devices (cameras, hubs, storage).
- For OEM integration, look for designs that follow relevant cable and electronics standards to reduce compliance risk. [standards.iteh]
Industrial, commercial, or medical environments can expose extenders to:
- High EMI (motors, inverters, RF systems).
- Temperature variation.
- Mechanical stress on cables and connectors.
In these cases, professional‑grade extenders with industrial shielding, locking connectors, and robust strain relief are worth the initial extra cost because they significantly reduce downtime and replacement cycles. [powerandcables]

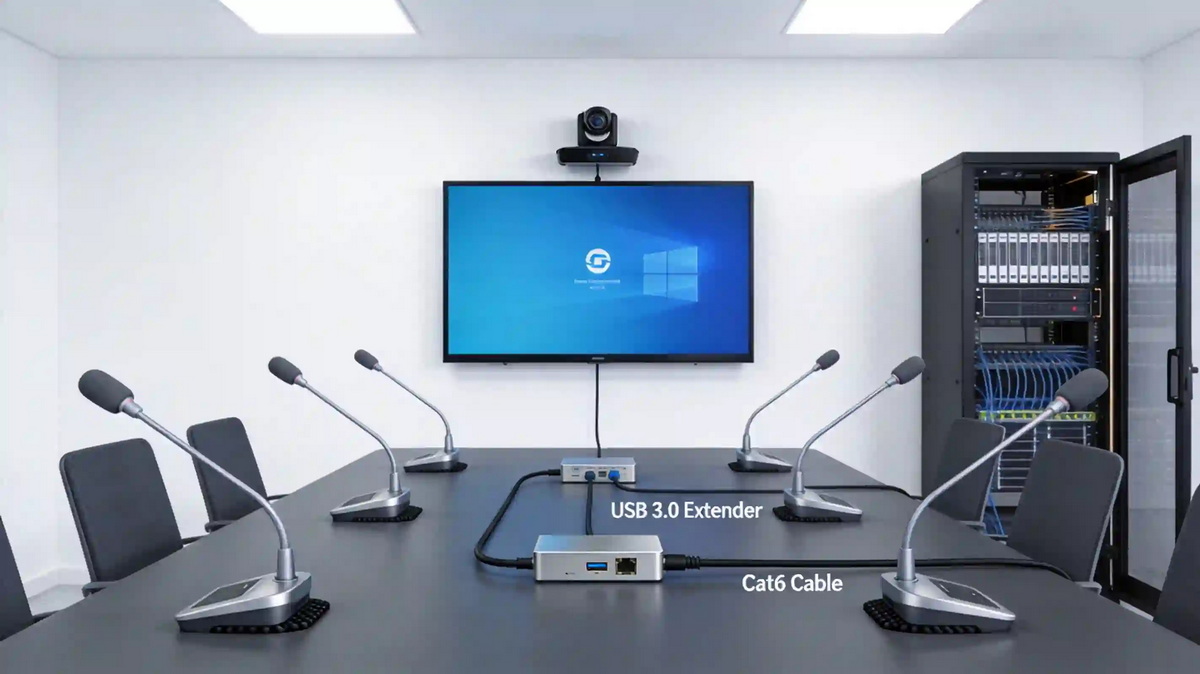

In large conference rooms and training centers, cameras are often mounted far from the rack PC. Users expect zero‑glitch video and audio, even during long meetings.
A typical setup uses:
- USB 3.0 active extender or USB‑over‑Cat system for cameras and audio devices.
- Short local USB cables from extender endpoint to devices.
Integrators who previously used low‑cost passive solutions often reported random disconnects and dropouts; upgrading to properly engineered active extenders significantly reduced support tickets and on‑site visits. [pageonepower]

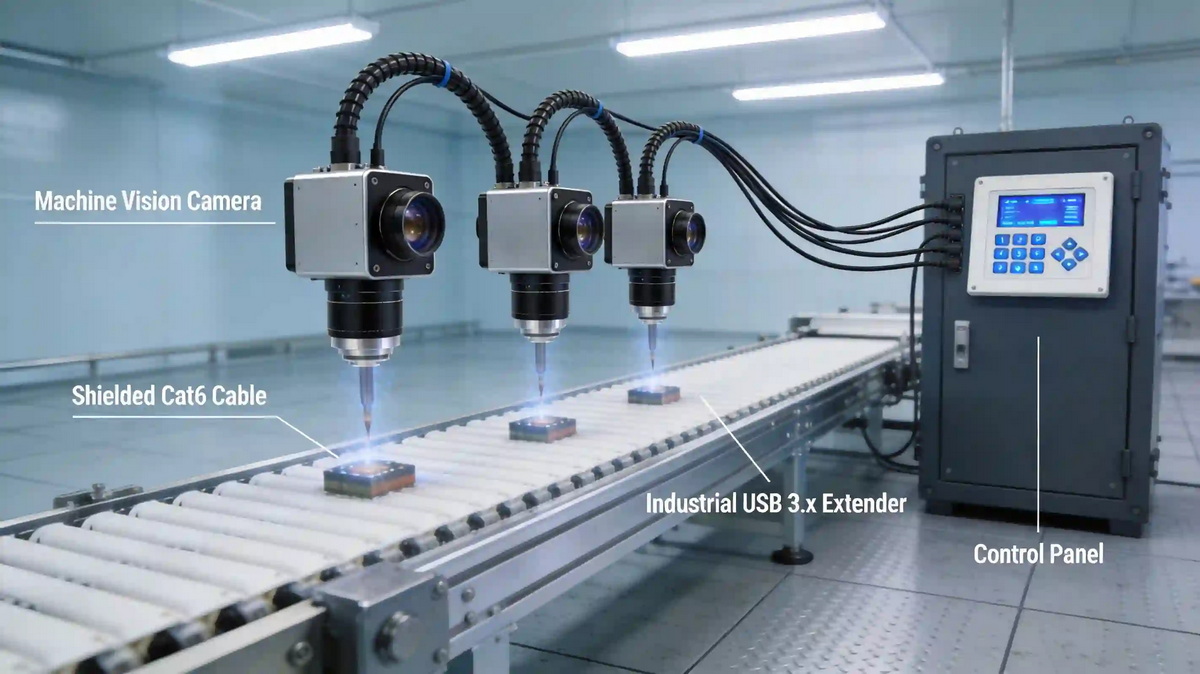

In manufacturing lines, machine‑vision cameras and sensors can be 10–30 m away from control cabinets. Here, reliability is not just convenience; it affects yield and safety.
Recommended approach:
- Industrial USB 3.x extenders over shielded Cat6/7 or fiber.
- Secure mounting, locking connectors, and environmental protection.
OEM customers who standardized on tested extender + cable sets saw fewer commissioning delays and simpler global replication of line designs.
Below is a simplified decision table you can use during project planning.
| Extender Type | Typical Distance | Best For | Main Advantages | Main Limitations |
|---|---|---|---|---|
| Passive USB cable | Up to ~5 m (seopowerplays) | Keyboards, mice, dongles | Lowest cost, easy to source | Unreliable close to distance limit, limited bandwidth |
| Active USB 2.0 cable | 5–15 m (seopowerplays) | HIDs, webcams, POS | Improved stability, affordable | Not suitable for high‑bandwidth USB 3.x devices |
| Active USB 3.x cable | 5–15+ m (seopowerplays) | Cameras, storage | High bandwidth, better signal integrity | Higher cost, stricter cable quality requirements |
| USB‑over‑Cat extender | 15–50 m | Pro AV, industrial | Uses Cat cable infrastructure, flexible routing | Quality varies by chipset, must match USB version |
| Fiber USB extender | 50 m–100 m+ | Broadcast, campus | Long distance, EMI‑immune | Higher price, needs fiber installation |
| Wireless USB extender | Variable | Temporary or cable‑free setups | No cables, flexible placement | Interference, latency, security concerns |
While USB extenders themselves are not standardized to the same degree as power cables, professional manufacturers increasingly design around relevant safety and EMC standards for cables and electronics. [standards.iteh]
Trends that buyers should pay attention to:
- Growing emphasis on compliance with international cable standards and updated test methods for insulation, shielding, and robustness. [standards.iteh]
- Increased demand for certified, traceable components, especially in industrial, medical, and security projects. [technicalcable]
- Closer collaboration between OEMs and cable manufacturers to co‑design extender + cable assemblies that pass local regulations without repeated re‑testing. [technicalcable]
Working with a specialized cable manufacturer that understands these standards can shorten your development cycle and reduce regulatory risk.
For engineers, installers, and purchasing teams, a structured selection process prevents expensive mistakes.
1. Define the maximum distance. Measure real routing, not just line‑of‑sight.
2. List all USB devices and their bandwidth / power needs. Identify the most demanding one.
3. Choose the required USB version (2.0 vs 3.x) based on that heaviest device.
4. Decide the transmission medium: simple active cable, Cat infrastructure, or fiber, according to distance and environment.
5. Check power requirements. If the far‑end device draws significant current, specify extenders with external power and adequate 5 V regulation.
6. Evaluate environment: EMI, temperature, mechanical stress, and required IP rating.
7. Request test reports or case studies from the manufacturer for similar applications.
8. Prototype and validate with real devices before mass deployment.
Following this checklist aligns with modern SEO and UX best practices for buying guides: it matches user intent (in this case, "how to choose the right USB extender") with clear, actionable steps. [ahrefs]
If you are planning a new project—or facing problems with existing USB extenders—do not treat all products as identical accessories. Define your technical requirements, then work with a manufacturer who understands both cables and extenders.
As an OEM‑focused cable producer in China, we can help you:
- Review your distance, bandwidth, and environment requirements.
- Recommend suitable USB extender and cable combinations.
- Provide custom OEM solutions for overseas brands, wholesalers, and equipment manufacturers.
You can contact our engineering team with your project details (distance, device list, environment), and we will propose an optimized USB connectivity solution tailored to your application.
In some very short‑distance, low‑speed cases, a longer passive cable may work, but once you approach or exceed typical USB distance limits, signal degradation and random disconnects become very likely. For professional or critical applications, an active extender or USB‑over‑Cat solution is strongly recommended. [seopowerplays]
Most USB 3.0 extenders are backward‑compatible with USB 2.0, but performance depends on the specific chipset and design. Always check the manufacturer's specifications and test with your actual devices before deployment. [seopowerplays]
High‑bandwidth devices such as cameras are highly sensitive to signal integrity and power drop on long cables. If you are using a passive or low‑quality extender, the camera may lose sync, causing freezes or disconnects; switching to a quality active USB 3.x extender with external power often resolves the issue. [seopowerplays]
Wireless USB can be convenient, but it is vulnerable to interference, bandwidth limits, and security concerns. For critical applications like conference rooms, industrial monitoring, or security systems, wired USB extenders over Cat or fiber are generally more stable and predictable. [seopowerplays]
The safest approach is to evaluate extenders that have been successfully used in similar environments and to run a pilot test with your actual devices and cable routing. Working with a specialized cable and extender manufacturer also allows you to adapt shielding, connectors, and power design to your conditions. [pageonepower]
