Determining whether your vehicle is equipped with a CAN bus (Controller Area Network) system is essential for modern vehicle diagnostics, aftermarket installations, and understanding your car's electronic architecture. As a cable manufacturer specializing in automotive connectivity solutions including CAN bus cables, USB, HDMI, and diagnostic cables for OEM clients worldwide, we've witnessed firsthand how critical this technology has become in the automotive industry. This guide provides proven methods to identify CAN bus systems in your vehicle, backed by industry expertise and technical specifications. [cartrack.co]

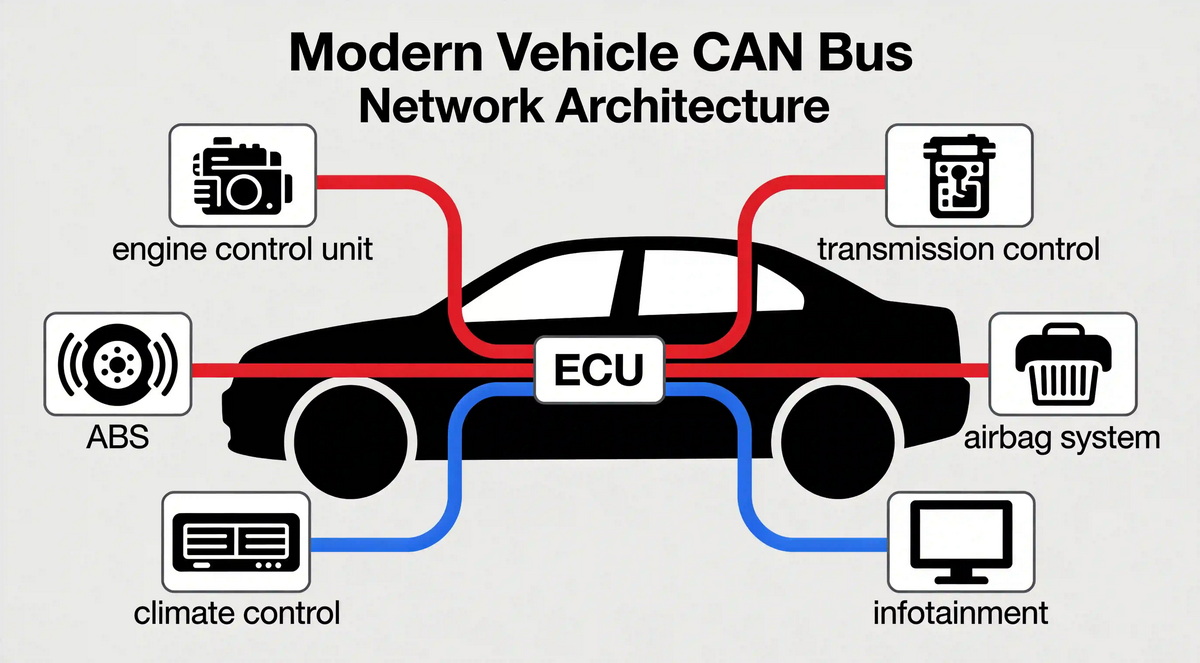

The Controller Area Network (CAN bus) is a robust vehicle bus standard designed to enable efficient communication between electronic control units (ECUs) without a host computer. Originally developed by Robert Bosch GmbH in the 1980s and publicly released in the Mercedes Benz W140 in 1991, CAN protocol was introduced to the Society of Automotive Engineers (SAE) in 1986. [totalphase]
CAN bus technology revolutionized automotive design by reducing wiring complexity and cost through multiplexing. Instead of running separate wires for every electronic function, the CAN bus uses a broadcast-based, message-oriented protocol that ensures data integrity and prioritization through arbitration. This means when multiple devices attempt to send data simultaneously, the highest priority device continues transmitting while others back off. [en.wikipedia]
The system operates according to ISO 11898 standards, which define physical and data link layer requirements for high-speed CAN communication in automotive and industrial applications. The most common implementation, ISO 11898-2, supports transmission rates up to 1 Mbps with a maximum bus length of 40 meters and up to 30 nodes. [munich.dissec]
The simplest initial indicator is your vehicle's production date. Most passenger cars and light trucks sold in the United States since 2008 are CAN-bus equipped. This timeline coincides with emissions control regulations that made OBD-II connectors with CAN protocol support mandatory in 1996, with full CAN implementation becoming standard by 2008. [pcm-cable]
Important consideration: Vehicles manufactured between 2004-2008 may have partial CAN implementation or alternative protocols, so additional verification is recommended for cars in this transition period.
Locating and examining the OBD-II port is the most practical method for confirmation. The On-Board Diagnostics (OBD-II) port acts as a plug-in point for diagnostic tools and scanners to access real-time vehicle data. [cartrack.co]
Step-by-step inspection process:
1. Find the OBD-II port - typically located under the dashboard near the driver's seat, sometimes under the steering column or in the lower center console area [pcm-cable]
2. Examine the pin configuration - A universal DLC (Data Link Connector) will have 16 pins, with CAN protocol specifically using pins 6 (CAN High) and 14 (CAN Low) [totalphase]
3. Connect an OBD-II scanner - Use a diagnostic scanner that supports CAN protocol (modern scanners from 2026 support CAN FD protocol for vehicles manufactured after 2020) [youtube]
4. Read protocol information - If the scanner successfully reads CAN bus protocol data, your vehicle is CAN-bus equipped [pcm-cable]

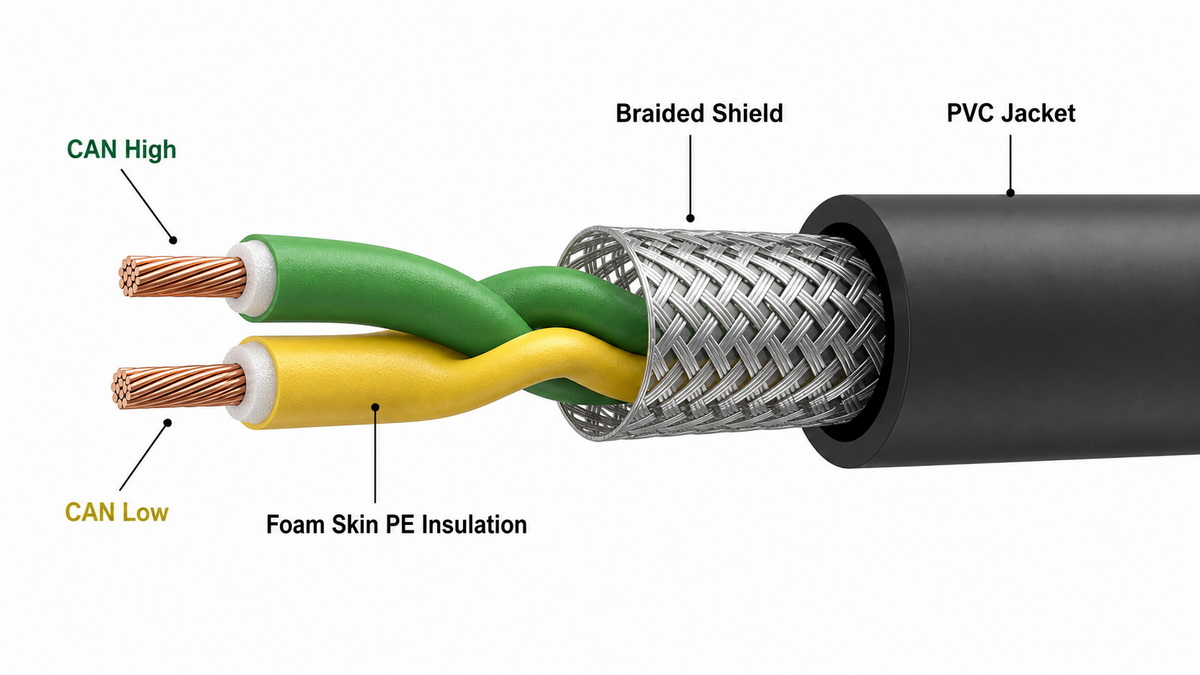

For technicians and experienced vehicle owners, physically identifying CAN wiring provides definitive confirmation. CAN bus systems use two specific wires: CAN High and CAN Low. [cartrack.co]
Physical identification markers:
- Wire color coding varies by manufacturer but commonly features green (CAN High) and yellow (CAN Low) [cartrack.co]
- Twisted pair configuration - CAN cables use twisted pair construction to provide excellent noise immunity and maintain signal integrity [romtronic]
- Shielded construction - Professional CAN bus cables typically feature shielded twisted pair (STP) construction with 120-Ω characteristic impedance [elcabconductors]
- Wire gauge - Standard CAN cables use AWG 18 to AWG 22 (0.34 mm² to 0.75 mm²) conductors [zeva.com]
Expert recommendation: Experienced technicians rely on diagnostic tools rather than wire colors alone to accurately verify CAN wires, as color coding varies significantly between manufacturers. [cartrack.co]
Your vehicle's owner's manual or service manual provides authoritative information about electronic systems and diagnostic interfaces. Look for specific mentions of:
- CAN (Controller Area Network) bus system
- Electronic control unit (ECU) communication networks
- Diagnostic interface specifications
- On-board diagnostics capabilities
If documentation is unavailable, digital versions can often be obtained through the manufacturer's website or third-party automotive documentation services.
For definitive confirmation, contact your car manufacturer or authorized dealer with your Vehicle Identification Number (VIN). The VIN provides complete vehicle specifications including: [pcm-cable]
- Factory-installed electronic systems
- Communication protocol types
- Diagnostic interface capabilities
- Model-specific CAN bus implementation
Manufacturers maintain comprehensive databases that can instantly confirm CAN bus presence and provide specific implementation details for your exact model and production date.
The international standard ISO 11898 defines critical parameters for CAN bus implementation in automotive applications: [munich.dissec]
| Specification Category | Parameter | Requirement |
|---|---|---|
| Protocol Standard | ISO Layer | ISO 11898-2 High-Speed CAN |
| Construction Type | Cable Configuration | Twisted Pair, Shielded |
| Electrical Characteristic | Impedance (Z₀) | 120 Ω ±10 Ω |
| Conductor Size | Wire Gauge | AWG 18 to AWG 22 (0.34-0.75 mm²) |
| Data Rate | High-Speed CAN | Up to 1 Mbps |
| Data Rate | Low-Speed CAN (ISO 11898-3) | 40 kbit/s to 125 kbit/s |
| Network Topology | Bus Length | Maximum 40 meters at 1 Mbps |
| Network Nodes | Maximum Devices | 30 nodes |
| Termination | Stub Length | 0.3 meters maximum unterminated |
As an OEM cable manufacturer, we emphasize that proper CAN bus cable selection directly impacts system reliability and performance. Quality CAN cables feature: [elcabconductors]
1. Twisted pair construction with precisely controlled twist rates to exclude electromagnetic interference [elcabconductors]
2. Shielding strength using bare copper braiding over plastic foil layers for harsh environments [allkabel]
3. Foam skin polyethylene (PE) core insulation for optimal signal integrity [allkabel]
4. 120-Ω termination resistors at both ends to prevent signal reflections [eevblog]
Environmental considerations: For industrial and electronically harsh environments, shielded cable such as Belden 3105A or equivalent is strongly recommended over unshielded alternatives. [eevblog]
The latest 2026 OBD-II diagnostic scanners incorporate advanced features specifically designed for CAN bus systems: [youtube]
- CAN FD protocol support for vehicles manufactured after 2020 [youtube]
- Auto VIN scan technology that quickly recognizes vehicle identification numbers [youtube]
- Bi-directional control capabilities allowing command transmission to ECUs for active component testing [youtube]
- Bluetooth 5.0 VCI (Vehicle Communication Interface) enabling wireless diagnosis up to 33 feet [youtube]
- 15+ reset functions including oil light, TPMS, brake pad, SAS calibration, and ABS bleeding [youtube]
Oscilloscope-based CAN bus analysis provides the most comprehensive diagnostic capability. Tektronix oscilloscopes with built-in CAN bus decoding allow engineers to: [tek]
1. Visualize digital waveforms alongside decoded protocol data [tek]
2. Identify bus errors including arbitration conflicts and signal integrity problems [tek]
3. Verify message timing (latency) and transmission accuracy across vehicle networks [tek]
4. Troubleshoot systematic issues by using wiring diagrams to identify harness separation points [linkedin]
Advanced troubleshooting workflow: When diagnosing network faults, use your vehicle's wiring diagram to identify harness separation points where you can disconnect to split the circuit in half, then repeat testing at the OBD-II port to isolate the faulty section. [linkedin]
From our manufacturing expertise at Shenzhen Otechkabel Electronic Co., Ltd, producing high-quality CAN bus cables requires precision engineering and strict quality control. Our cables designed for automotive, industrial control, and communication applications feature: [elcabconductors]
- Excellent transmission performance through optimized conductor geometry and insulation materials
- Environmental durability meeting automotive temperature ranges and vibration requirements
- Certified quality complying with ISO 11898 electrical and physical specifications
- Custom solutions tailored to specific OEM requirements for different vehicle platforms
Quality assurance processes include impedance testing, signal integrity verification, and environmental stress testing to ensure cables perform reliably in complex and hostile environments. [elcabconductors]
CAN bus technology extends far beyond automotive applications. Industrial implementations include:
- Manufacturing automation where Controller Area Networks connect PLCs and sensors [allkabel]
- Building management systems using LON (Local Operating Network) compatible CAN solutions [allkabel]
- Heavy machinery requiring continuous operation with reliable communication networks [elcabconductors]
- Medical equipment where CAN cables provide reliable data transmission in critical applications
Poor cable quality or improper installation can cause CAN bus communication failures. Common symptoms include:
- Intermittent communication errors logged in diagnostic trouble codes (DTCs)
- Slow or delayed sensor responses
- Complete communication loss between ECUs
Solutions: Verify proper termination (120-Ω resistors at both ends), check for electromagnetic interference sources, and ensure cable routing follows manufacturer specifications with appropriate shielding. [eevblog]
When installing aftermarket electronics such as alarm systems, navigation units, or performance tuners, CAN bus compatibility is critical. Incompatible devices can:
- Generate bus errors disrupting normal ECU communication
- Introduce improper voltage levels damaging sensitive electronics
- Fail to properly decode CAN messages leading to malfunction
CAN bus protocol became part of OBD-II specifications in 1996, but full implementation as the standard communication protocol became mandatory for most passenger cars and light trucks in the United States by 2008. Vehicles manufactured after this date are almost universally CAN-bus equipped. [totalphase]
Connecting a quality OBD-II scanner to the diagnostic port is generally safe and will not damage your vehicle. However, using improper aftermarket devices or diagnostic tools that send incorrect commands can potentially cause issues. Always use certified diagnostic equipment and avoid devices from unknown manufacturers. [cartrack.co]
High-speed CAN (ISO 11898-2) operates at data rates up to 1 Mbps and is used for critical real-time communications like engine control and safety systems. Low-speed CAN (ISO 11898-3) operates between 40 kbit/s to 125 kbit/s and is typically used for comfort functions like power windows and climate control. [en.wikipedia]
Not all OBD-II scanners support CAN protocol, especially older models produced before 2008. Modern scanners manufactured in 2026 typically support CAN and the newer CAN FD protocol for vehicles made after 2020. Always verify scanner specifications before purchase to ensure CAN compatibility. [youtube]
While technically possible, retrofitting a complete CAN bus system into a non-CAN vehicle is extremely complex and generally not practical or cost-effective. It would require replacing most electronic control units, installing new wiring harnesses, and extensive reprogramming. For older vehicles, standalone aftermarket solutions that don't require full CAN integration are more appropriate.
